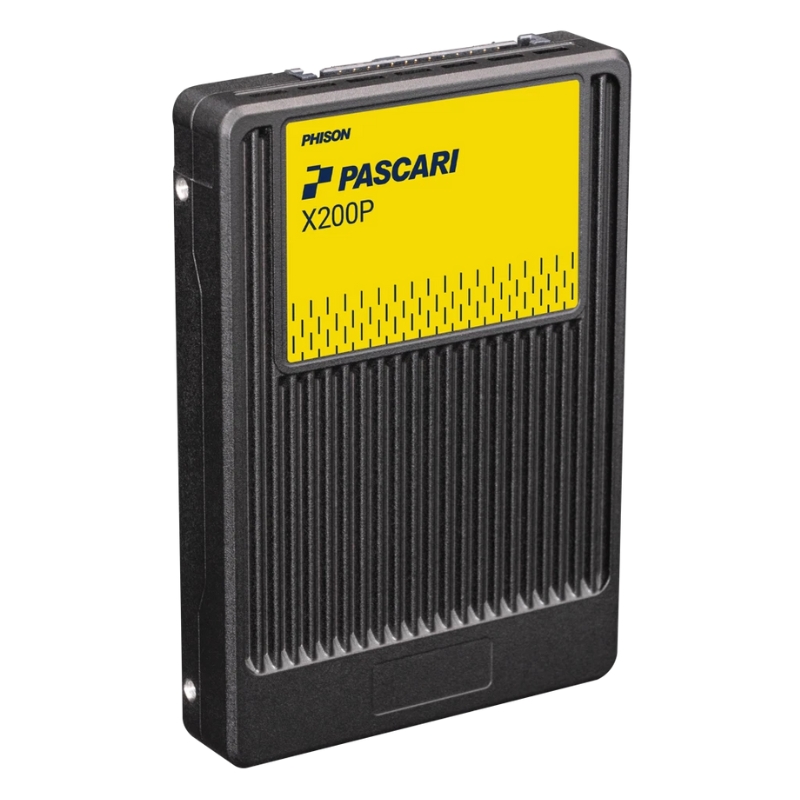

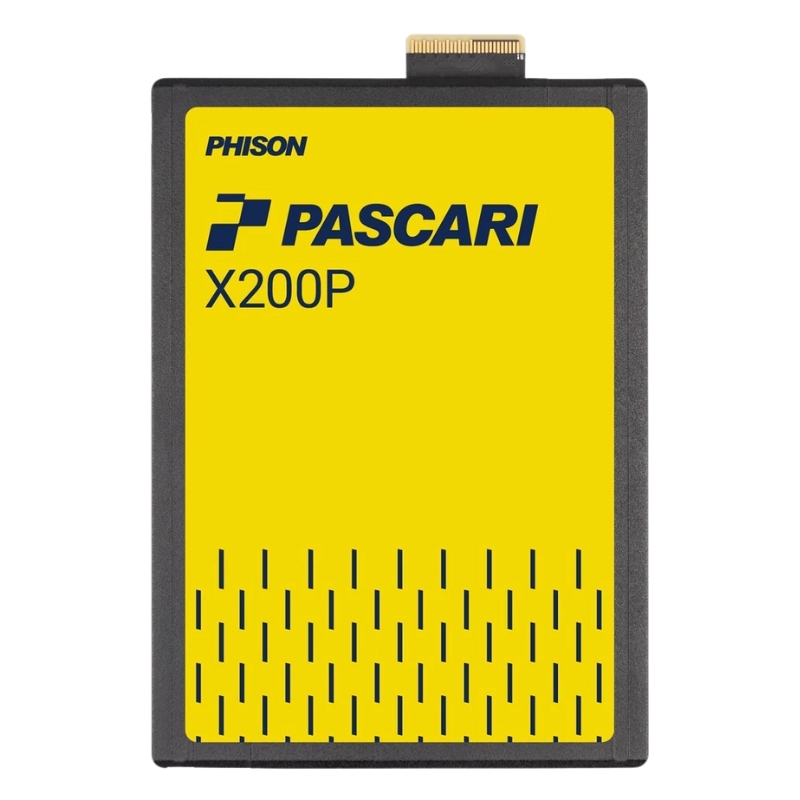

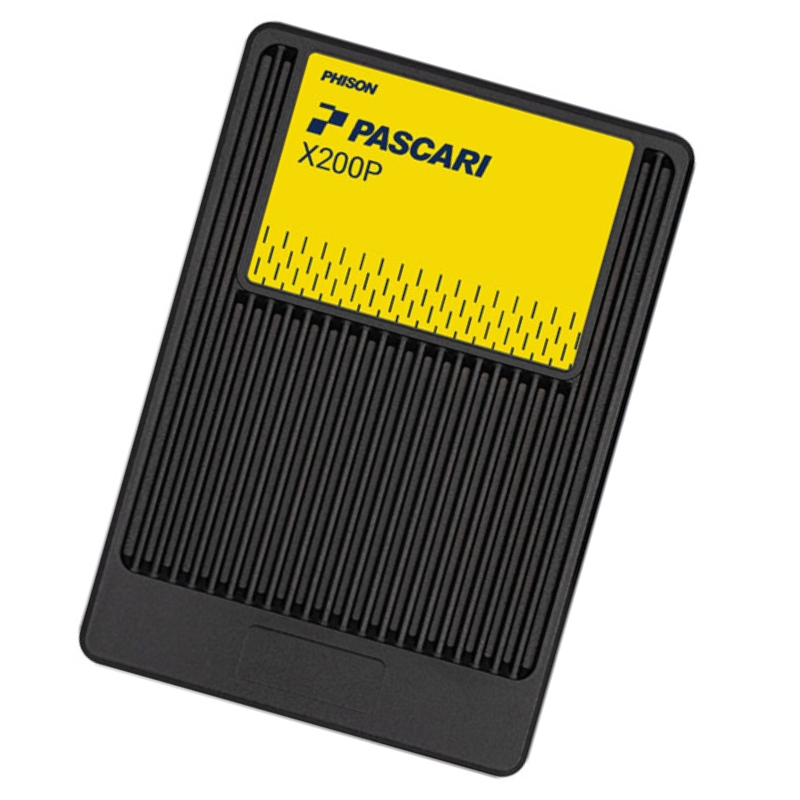

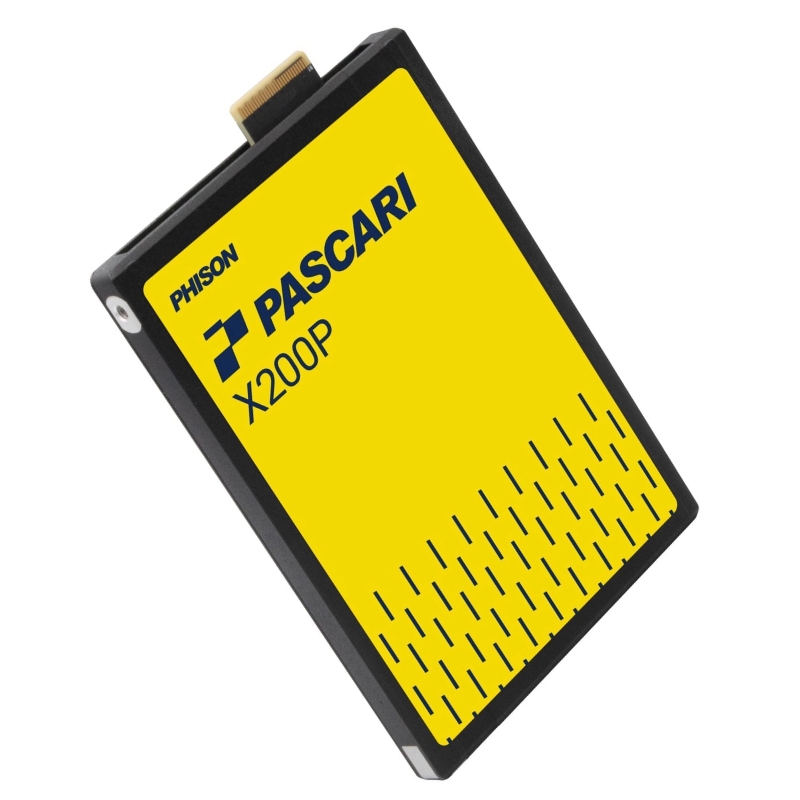

XP208H0315T3P2116T310 Phison Pascari X200P 15.36TB PCI-E 5.0 x4 NVMe U.2 SSD

Understanding of Phison 15.36TB NVMe U.2 SSD

The Phison XP208H0315T3P2116T310, commercially known as the Pascari X200P, represents a paradigm shift in enterprise and high-performance computing storage. This U.2 form factor SSD leverages the full potential of the PCI-Express 5.0 interface and the NVMe protocol to deliver unprecedented bandwidth, latency, and reliability for the most demanding data center and workstation environments. Engineered around Phison's cutting-edge controller architecture and paired with high-endurance 3D NAND, the X200P is built for sustained performance under continuous, heavy workloads.

Core Architecture and Interface Breakthrough

At the heart of the Pascari XP208H0315T3P2116T310 X200P's capability is its foundational hardware architecture, designed to remove bottlenecks and maximize data flow from the NAND to the host system.

PCI-Express 5.0 x4 Interface

The adoption of the PCIe 5.0 standard doubles the available bandwidth per lane compared to the previous PCIe 4.0 generation. With a x4 lane configuration, the Pascari X200P unlocks a theoretical interface bandwidth of approximately 16 GT/s (Giga Transfers per second) per lane, culminating in near 32 Gbps per lane or a total bi-directional bandwidth capability that saturates the needs of modern CPUs and platforms. This headroom ensures that the storage device is never the limiting factor in data-intensive pipelines, such as real-time analytics, AI training, and high-resolution video rendering.

NVMe 2.0 Protocol Compliance

The drive operates on the NVMe 2.0 protocol, which introduces efficiencies in command handling, namespace management, and support for Zoned Namespaces (ZNS). This compliance allows for reduced command overhead, improved quality of service (QoS), and better integration with modern data center orchestration software, optimizing both performance and longevity.

Phison Proprietary Controller: The XP208H Engine

The "XP208H0315T3P2116T310" designator points to the specific configuration of Phison's flagship enterprise controller. This multi-core, ARM-based processor is built on an advanced process node and features dedicated hardware accelerators for encryption, RAID ECC, and NAND management. Its ability to manage massive parallelism across NAND channels is key to achieving both high random IOPS and consistent sequential throughput.

Performance Specifications and Capabilities

The Pascari XP208H0315T3P2116T310 X200P is engineered for deterministic performance, where consistent low latency is as critical as peak throughput figures.

Sequential Read and Write Speeds

Harnessing the PCIe 5.0 interface, the drive delivers sequential read speeds that can exceed 12,000 MB/s and sequential write speeds surpassing 10,000 MB/s in optimal conditions. These figures enable rapid data ingestion, backup, restoration, and movement between storage tiers, drastically reducing wait times for large-scale operations.

Sustained Write Performance and Cache Architecture

Beyond burst speeds, the drive employs a sophisticated dynamic SLC/MLC caching mechanism alongside a large, power-loss-protected DRAM buffer. This ensures that write performance remains exceptionally high even during extended, continuous transfers, preventing the steep performance degradation seen in lesser drives. The "P2116T310" segment of the model code likely references the NAND configuration and over-provisioning level that supports this sustained performance profile.

Random Input/Output Operations Per Second (IOPS)

For enterprise workloads dominated by database transactions, virtualization, and server boot drives, random IOPS are the critical metric. The Pascari X200P achieves random read IOPS in the range of 1.8 million and random write IOPS up to 1.5 million at low queue depths. This is accomplished through the controller's deep command queues and efficient scheduling algorithms that minimize internal contention.

Latency

The drive is designed with strict QoS targets, offering 99.999% (five-nines) of read and write operations below a specified latency threshold, often in the sub-100 microsecond range for reads. This predictability is essential for tier-1 enterprise applications, cloud infrastructure, and financial trading systems where timing is absolute.

Form Factor, Endurance, and Reliability

The physical design and endurance ratings of the Pascari X200P are tailored for 24/7 operation in certified servers and storage arrays.

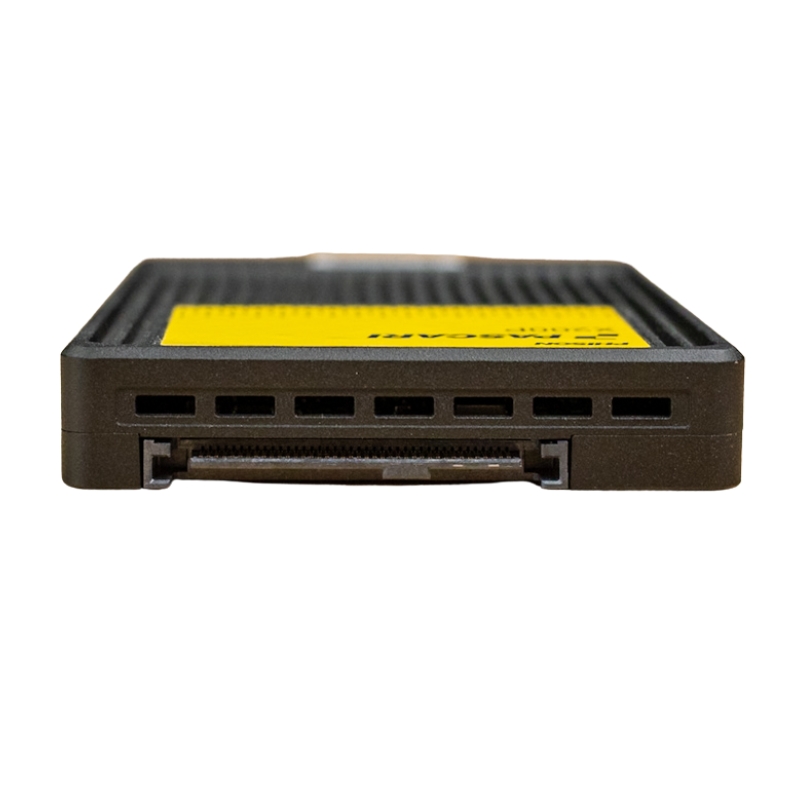

U.2 (2.5-inch 15mm) Form Factor

The U.2 (SFF-8639) interface provides a robust, hot-swappable connection with support for both PCIe and SAS. The 15mm thickness allows for a larger physical footprint and thermal solution compared to 7mm drives, facilitating greater NAND density and improved heat dissipation—a critical factor for maintaining peak performance under load in confined server bays.

Terabytes Written (TBW) and Mean Time Between Failures (MTBF)

Based on its 3D TLC or enterprise-grade MLC NAND (as indicated in the full model code), the Pascari X200P offers extraordinary endurance. Drive Endurance Ratings (TBW) are specified in the range of multiple drive writes per day (DWPD) over its 5-year warranty period. For a 3.84TB model, this could translate to a TBW rating exceeding 14,000 TB. The MTBF rating is typically 2.5 million hours or higher, underscoring its design for mission-critical deployment.

Advanced Error Correction and Data Integrity

Phison's controller integrates a multi-level ECC engine with LDPC (Low-Density Parity Check) technology, capable of handling the higher bit error rates associated with advanced NAND processes. This is combined with end-to-end data path protection, power-loss protection circuits, and RAID-like redundancy within the drive's internal architecture to guarantee data integrity from the host interface to the NAND cells and back.

Security and Manageability Features

Enterprise deployment requires robust security and remote management capabilities for seamless integration into existing infrastructure.

Full Data Path Encryption

The drive supports TCG Opal 2.0, Pyrite, and Enterprise security protocols. Hardware-based AES-256 encryption is performed in-line by the dedicated accelerator on the controller, ensuring no performance penalty for encryption at rest. This provides a secure, easy-to-erase foundation for decommissioning or repurposing drives.

Secure Boot and Firmware Validation

To prevent malicious firmware uploads, the controller implements secure boot with cryptographically signed firmware images. This ensures that only authorized, tested firmware from Phison can run on the drive, protecting the storage layer from low-level attacks.

Telemetry and SMART Attributes

The Pascari XP208H0315T3P2116T310 X200P provides extensive Self-Monitoring, Analysis, and Reporting Technology (SMART) attributes, along with vendor-specific telemetry. This includes detailed metrics on NAND wear, temperature history, error counts, and performance logs. These data points are accessible via standard NVMe Management Interface commands and can be integrated into data center monitoring solutions for predictive failure analysis and proactive maintenance.

NVMe-MI and Platform Management

Support for NVMe Management Interface (NVMe-MI) over SMBus or PCIe Vendor Defined Messages allows for out-of-band management. This enables IT administrators to monitor drive health, update firmware, and perform diagnostics even if the host operating system is unresponsive, a crucial feature for large-scale server farms.

Target Workloads and Application Scenarios

The unique combination of performance, endurance, and features makes the Pascari X200P ideal for specific high-tier applications.

High-Frequency Trading and Real-Time Analytics

In financial trading and real-time analytics platforms, microsecond latencies translate directly to competitive advantage and accurate insights. The deterministic low latency and massive IOPS of the X200P allow it to handle millions of market data updates and queries per second without introducing jitter.

High-Density Virtualization and Database Servers

For consolidated servers running hundreds of virtual machines or hosting large in-memory databases (like SAP HANA), the drive provides the high random I/O performance and consistent QoS needed to service simultaneous requests from multiple VMs or database threads, improving consolidation ratios and user experience.

Platform Compatibility

The Pascari X200P is designed for broad compatibility with modern server platforms from Dell, HPE, Lenovo, Cisco, and Supermicro, among others. It undergoes rigorous testing for certification in these platforms, ensuring seamless integration, proper thermal management, and full functionality with the system's RAID and management controllers.
