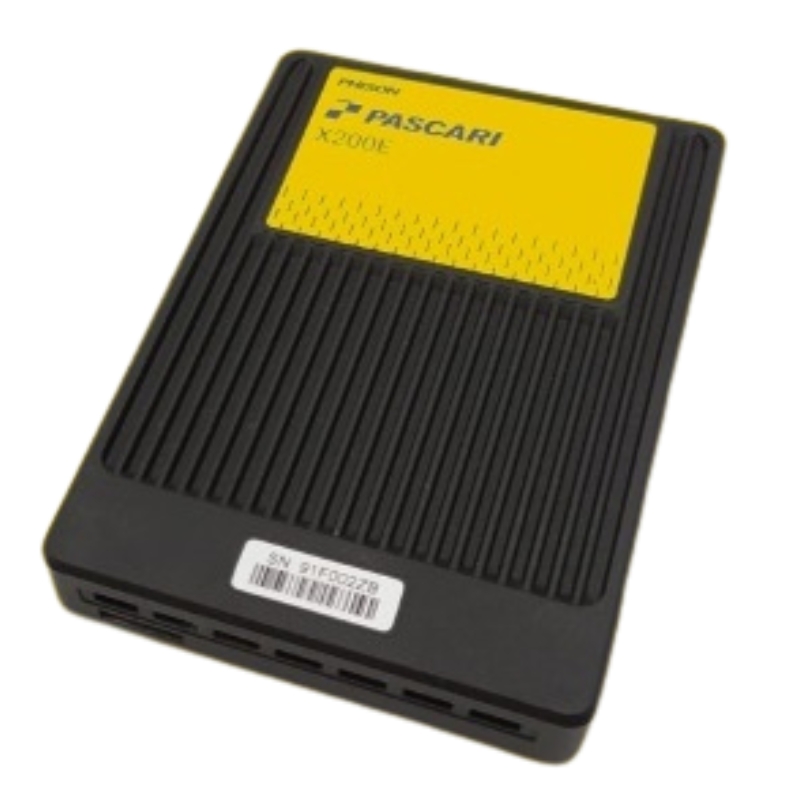

XP208H036T40E228T1910 Phison Pascari X200E 6.4TB U.2 Gen5x4 PCIe SSD

Highlights of Phison XP208H036T40E228T1910 6.4TB PCIe SSD

The Phison XP208H036T40E228T1910 Pascari X200E 6.4TB U.2 PCIe Gen5 NVMe SSD is a high-end enterprise storage solution engineered for data centers, cloud platforms, and mission-critical server environments. Built on PCIe Gen5 x4 architecture with OPAL security, this SSD delivers exceptional throughput, ultra-low latency, and enterprise-class endurance for demanding mixed and write-intensive workloads.

General Information

• Manufacturer: Phison
• Series: Pascari X200E
• Part Number: XP208H036T40E228T1910
• Product Type: Enterprise Solid State Drive
• Sub Type: U.2 Gen5x4 PCIe

Technical Specifications

• Total Capacity: 6.4TB
• Form Factor: U.2 15mm
• Interface: PCIe Gen5 x4 NVMe 2.0
• Port Type: Single Port

Performance and Throughput

• Sequential Read: Up to 14,000 MB/s
• Sequential Write: Up to 8,500 MB/s
• Random Read: Up to 3,000,000 IOPS (4K)
• Random Write: Up to 850,000 IOPS (4K)

Endurance and Reliability Features

• Endurance: 3 DWPD
• Total Bytes Written (TBW): 35,040 TB
• MTBF: 2.5 Million Hours
• Advanced ECC and error correction
• Static and dynamic wear leveling
• Bad block management and over-provisioning

Latency and Quality of Service

• Ultra-low 4K read/write latency for real-time workloads
• 95% IOPS consistency under sustained load
• 99% QoS support for predictable enterprise performance

Security and Data Protection

• OPAL-compliant security
• Hardware AES-XTS 256-bit encryption
• End-to-end data path protection
• Power loss protection
• PCIe AER (Advanced Error Reporting)

Enterprise Management and Features

• NVMe-MI management interface support
• SMBus support
• Namespace and reservation features
• Thermal throttling protection
• SMART monitoring and firmware upgrade support

Operating Conditions and Compliance

• Operating Temperature: 0°C to 70°C
• Storage Temperature: -40°C to 85°C
• Compliance: PCIe 5.0, NVMe 2.0, RoHS
• Dimensions: 100 x 70 x 15 mm
• Weight: < 250g

Compatibility

Supported System Platforms

• Enterprise Servers
• Data Center Storage Systems
• High-Performance Computing (HPC) Environments
• Cloud and Virtualization Platforms

Backplane and Interface Requirements

• U.2 (SFF-8639) NVMe-compatible drive bays
• PCIe Gen5 x4 support on motherboard or storage backplane
• NVMe 2.0 protocol compatibility
• Single-port NVMe storage configuration

Overview of Phison XP208H036T40E228T1910 U.2 Gen5x4 SSD

The Phison XP208H036T40E228T1910 Pascari X200E 6.4TB U.2 Gen5x4 PCIe Opal Security Solid State Drive belongs to the enterprise NVMe storage category engineered for extreme performance, capacity scalability, and security-centric data center deployments. This category represents the forefront of storage technology, combining next-generation PCIe Gen5x4 connectivity, NVMe protocol optimization, enterprise endurance characteristics, and hardware-based security compliance. Designed for hyperscale data centers, private cloud infrastructure, high-performance computing clusters, and security-sensitive enterprise environments, the Pascari X200E series establishes a foundation for modern workloads that demand ultra-low latency, massive throughput, and uncompromising data protection.

Enterprise PCIe Gen5x4 NVMe Storage Architecture

PCIe Gen5x4 NVMe SSDs define a new performance tier in enterprise storage architecture, offering a dramatic leap in bandwidth and I/O efficiency over previous generations. The Phison Pascari X200E leverages four PCIe Gen5 lanes to deliver exceptional data transfer rates, enabling storage subsystems to match the rapid evolution of CPUs, memory, and accelerator technologies. NVMe, purpose-built for non-volatile memory, eliminates protocol bottlenecks associated with legacy storage interfaces and enables parallel command execution that is essential for modern multi-core, multi-threaded server environments.

PCIe Gen5 Bandwidth Expansion

PCIe Gen5 doubles the per-lane bandwidth of Gen4, allowing enterprise SSDs to achieve throughput levels previously unattainable in standard server platforms. This expansion supports workloads that generate continuous high-volume data streams, such as real-time analytics, AI model training, high-frequency trading platforms, and large-scale content delivery systems. The Pascari X200E takes advantage of this increased bandwidth to ensure storage performance scales in parallel with compute and networking advancements.

NVMe Protocol for Parallel Workloads

NVMe supports deep command queues and thousands of parallel I/O operations, making it ideal for enterprise workloads that involve concurrent access patterns. By minimizing command overhead and reducing latency, NVMe allows the Pascari X200E to deliver consistent performance under mixed read/write conditions. This efficiency is especially valuable in virtualized environments and containerized workloads where multiple applications compete for storage resources simultaneously.

U.2 Form Factor and 6.4TB High-Density Capacity

The U.2 form factor remains a cornerstone of enterprise storage design due to its balance of capacity, serviceability, and thermal efficiency. The 6.4TB capacity of the Phison Pascari X200E enables high-density storage deployments while maintaining compatibility with standard enterprise server and storage chassis. This capacity tier is well suited for organizations seeking to consolidate storage resources, reduce device count, and simplify infrastructure management without sacrificing performance or reliability.

Advantages of U.2 in Enterprise Environments

U.2 SSDs are designed for rack-mounted servers and storage arrays, offering hot-swap capability and robust physical construction. This form factor supports higher power envelopes and improved cooling compared to compact alternatives, allowing Gen5 SSDs to operate at peak performance without thermal throttling. The U.2 interface also ensures compatibility with a wide range of enterprise backplanes and storage controllers, simplifying integration into existing data center environments.

Strategic Value of 6.4TB Capacity

A 6.4TB SSD capacity enables enterprises to host large datasets, virtual machine repositories, and application data within fewer physical drives. This reduces rack space utilization, power consumption, and cabling complexity. High-capacity drives are particularly beneficial for software-defined storage, hyperconverged infrastructure, and cloud platforms where efficient resource utilization directly impacts operational cost and scalability.

Opal Security and Hardware-Based Data Protection

Security is a defining feature of the Phison Pascari X200E category, with built-in support for Opal-compliant self-encrypting drive standards. Hardware-based encryption ensures that data at rest is protected without imposing performance penalties on the host system. This category addresses the growing need for compliance with data protection regulations, corporate governance policies, and zero-trust security frameworks across enterprise and government environments.

Opal-Compliant Drive Technology

Opal security standards define how self-encrypting drives manage authentication, access control, and encryption key handling. The Pascari X200E integrates encryption directly into the SSD controller, ensuring that all data written to the drive is automatically encrypted. This transparent encryption approach eliminates the need for software-based encryption layers, reducing CPU overhead and simplifying security implementation.

Access Control

Hardware-level key management ensures encryption keys are securely generated, stored, and managed within the SSD. Access control mechanisms prevent unauthorized access to data, even if the drive is physically removed from the system. This capability is critical for environments handling sensitive information such as financial records, healthcare data, intellectual property, and government-regulated content.

Regulatory Alignment

Opal security support helps organizations meet compliance requirements related to data privacy and protection. Enterprises operating under strict regulatory frameworks benefit from standardized encryption and secure erase functionality that ensures data is properly sanitized when drives are decommissioned or repurposed.

Performance Characteristics for Enterprise Workloads

The Pascari X200E category is defined by its ability to deliver sustained high performance across diverse workload profiles. PCIe Gen5x4 connectivity combined with advanced controller design enables exceptional sequential throughput, low-latency random I/O, and predictable performance under continuous load. These characteristics are essential for enterprise applications that demand responsiveness and consistency.

Sequential Throughput and Data Streaming

High sequential read and write speeds benefit workloads involving large file transfers, backup and restore operations, data ingestion pipelines, and media processing. The Pascari X200E supports rapid movement of large datasets, minimizing processing delays and improving overall system efficiency in data-intensive environments.

Random I/O and Transactional Performance

Random I/O performance is critical for databases, virtualization platforms, and transactional systems. The Pascari X200E delivers high IOPS and low latency, ensuring fast access to small data blocks and metadata. This capability improves application responsiveness and supports high transaction rates in demanding enterprise scenarios.

Endurance and Reliability in Continuous Operation

Enterprise SSD categories prioritize endurance and reliability to support 24/7 operation under heavy workloads. The Phison Pascari X200E is designed with advanced flash management, wear leveling, and error correction mechanisms that extend drive lifespan and maintain data integrity. These features ensure predictable performance and reliability throughout the drive’s operational life.

Wear Leveling

Intelligent wear leveling algorithms distribute write cycles evenly across NAND flash cells, reducing localized wear and preventing premature failure. By managing write amplification and optimizing garbage collection, the Pascari X200E maintains consistent performance and extends usable drive life in write-intensive environments.

ECC and Data Integrity Assurance

Advanced error correction capabilities detect and correct data errors at the hardware level. These mechanisms protect against data corruption caused by cell wear, electrical interference, or environmental factors. Enterprise-grade ECC ensures that stored data remains accurate and reliable, even under sustained high I/O conditions. Advanced controller architectures and firmware optimizations reduce unnecessary power draw during idle and low-utilization states. This efficiency contributes to lower operational costs and improved overall energy utilization in large-scale deployments.

Stability in High-Density Deployments

Effective heat dissipation ensures that the drive maintains consistent performance even in densely packed server racks. The U.2 form factor supports airflow and cooling solutions commonly used in enterprise chassis, reducing the risk of thermal throttling and performance degradation.

Integration with Enterprise Servers and Storage Platforms

The Phison Pascari X200E category is designed for seamless integration with modern enterprise servers, storage arrays, and software-defined infrastructure. Compatibility with industry-standard NVMe drivers and management tools ensures straightforward deployment and ongoing maintenance across diverse IT environments.

Cloud Stacks

The Pascari X200E integrates smoothly with virtualization platforms, container orchestration systems, and cloud management frameworks. Its performance and security features support multi-tenant environments, dynamic workload allocation, and scalable storage architectures.

Use Cases Across Industry Verticals

This enterprise SSD category serves a wide range of industries, including finance, healthcare, telecommunications, research, and government. High performance, large capacity, and built-in security make the Pascari X200E suitable for mission-critical applications where data availability, integrity, and protection are paramount.

Data Analytics

AI and analytics workloads require rapid access to large datasets and intermediate results. High-throughput Gen5 NVMe storage accelerates data pipelines, reduces training times, and improves real-time analytics performance. Cloud service providers benefit from high-density, secure SSDs that support scalable storage pools and diverse tenant workloads. The Pascari X200E enables efficient resource utilization and consistent performance across shared infrastructure.

Enterprise Storage Strategy

The Phison XP208H036T40E228T1910 Pascari X200E 6.4TB U.2 Gen5x4 PCIe Opal Security Solid State Drive category represents a forward-looking approach to enterprise storage. By combining next-generation interface technology, high-capacity design, robust security, and enterprise-grade reliability, this category supports evolving workloads and long-term infrastructure planning. Organizations adopting Gen5 NVMe SSDs position themselves to meet future performance demands, regulatory requirements, and scalability challenges while maintaining operational efficiency and data protection across their storage environments.
