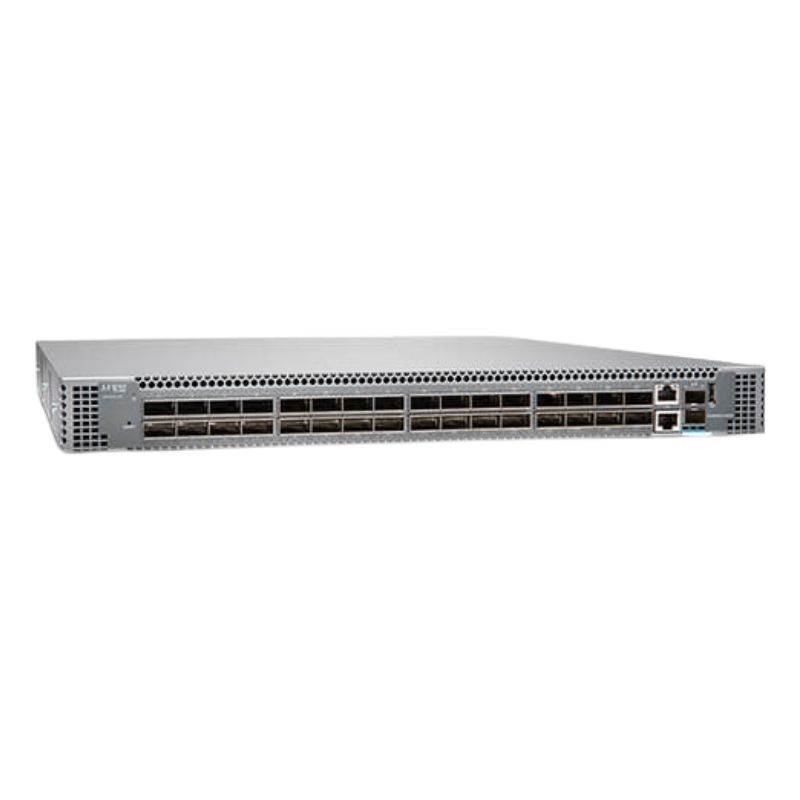

Juniper QFX5120-32C-AFO QFX5120 32 Ports 100GbE Managed Switch

QFX5120-32C-AFO Juniper 100GbE Layer 3 Managed Switch

The QFX5120-32C-AFO is an advanced, high-performance Layer 3 managed 32-port switch from Juniper Networks' QFX Series. This 32-port switch is engineered to provide exceptional network performance with its 32 x 100 Gigabit Ethernet (100GbE) ports and is designed for demanding environments such as data centers and enterprise networks. The QFX5120-32C-AFO is characterized by its robust features, modular design, and compliance with various environmental standards.

Key Features and Specifications

High-Speed Connectivity

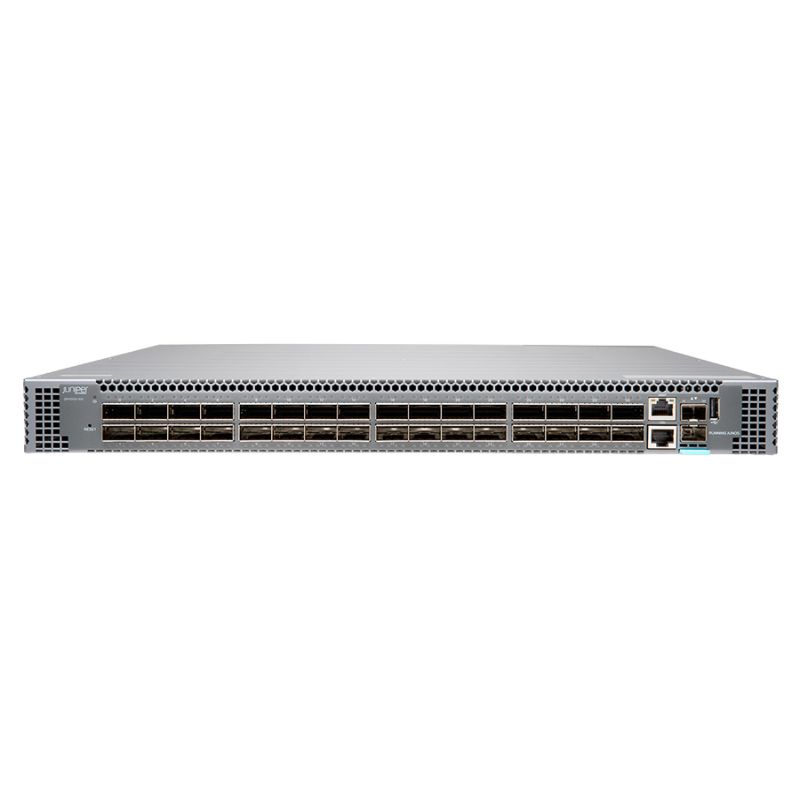

The QFX5120-32C-AFO offers 32 x 100GbE QSFP28 ports, which are crucial for High-speed connectivity and low-latency performance. These ports are designed to handle large volumes of traffic, making the switch ideal for high-performance computing (HPC), virtualization, and large-scale data processing applications. The switch's support for 100GbE technology ensures that it can meet the demands of modern, data-intensive workloads.

Layer 3 Managed Capabilities

As a 32-port Layer 3 Managed switch, the QFX5120-32C-AFO supports advanced routing features, including various routing protocols such as OSPF, BGP, and IS-IS. This functionality enables efficient packet forwarding and optimized network performance. Layer 3 capabilities are essential for managing complex networks and ensuring effective data routing and traffic management.

Modular and Expandable Design

The switch features a modular design with QSFP28 expansion slots, allowing for flexible network configuration and future scalability. The modularity of the QFX5120-32C-AFO means that it can be easily adapted to meet changing network requirements. The availability of expansion slots provides options for adding additional connectivity as network demands grow.

Rack-Mountable Form Factor

The QFX5120-32C-AFO is designed with a 1U rack-mountable form factor, making it suitable for installation in standard 19-inch server racks or data center cabinets. This compact form factor helps optimize space within racks, allowing for efficient use of physical space in network environments.

Environmental and Compliance Standards

The switch adheres to several important environmental and compliance standards:

• Restriction of Hazardous Substances (RoHS): The QFX5120-32C-AFO complies with RoHS regulations, which restrict the use of certain hazardous substances in electrical and electronic equipment.
• Waste Electrical and Electronic Equipment Directive (WEEE): The switch meets WEEE requirements, ensuring proper disposal and recycling of electronic waste.
• Registration, Evaluation, Authorization, and Restriction of Chemicals (REACH): Compliance with REACH regulations ensures that the switch meets safety standards related to chemical substances.
• China Restriction of Hazardous Substances (China RoHS): The QFX5120-32C-AFO adheres to China RoHS regulations, which are similar to global RoHS standards but specific to the Chinese market.

Power and Cooling

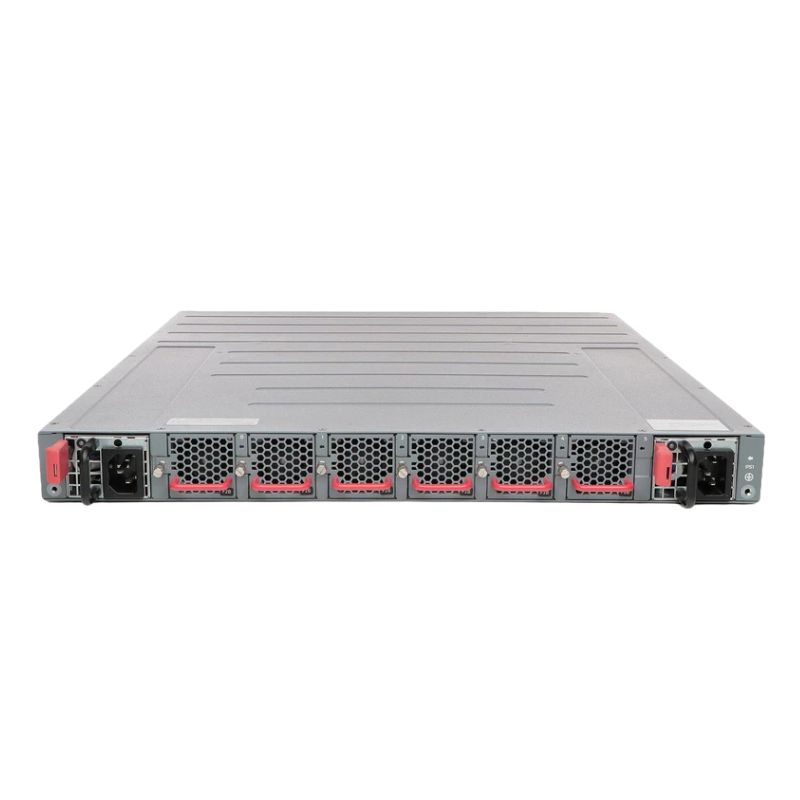

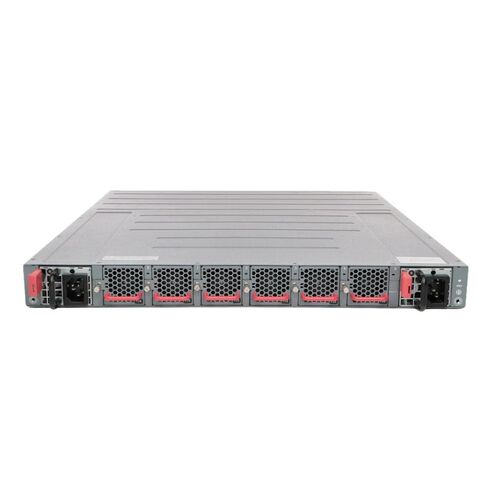

The QFX5120-32C-AFO is equipped with redundant power supplies to ensure continuous operation in the event of a power failure. It supports a total of 2 power supplies, both of which are installed in the switch. This redundancy helps maintain network uptime and reliability. The switch has a power consumption of 515 watts, reflecting its high-performance capabilities and energy efficiency.

Deployment and Use Cases

Data Centers

In data center environments, the QFX5120-32C-AFO excels in providing high-speed connectivity and reliability. Its 100GbE ports are ideal for interconnecting servers, storage devices, and other networking equipment. The switch’s modular design allows data centers to scale their network infrastructure as needed, supporting increased data loads and traffic volumes efficiently.

Enterprise Networks

For enterprise networks, the QFX5120-32C-AFO offers the performance and features necessary for supporting critical business applications. Its Layer 3 capabilities and high-speed ports ensure effective network management and optimal performance for various enterprise applications, including virtualization and cloud services.

High-Performance Computing (HPC)

In HPC environments, the QFX5120-32C-AFO provides the necessary bandwidth and low latency required for rapid data processing and high-speed interconnectivity between computing nodes. Its 100GbE ports facilitate quick data transfers, supporting the demanding requirements of HPC applications and ensuring efficient data handling.

Technical Specifications

Product Type and Family

The QFX5120-32C-AFO belongs to Juniper Networks' QFX Series, known for its high-performance and reliable networking solutions. As an Ethernet switch, it provides advanced connectivity options and management features, making it suitable for a wide range of networking applications.

Media Type and Expansion Slots

The switch supports optical fiber media type, which is commonly used for high-speed, long-distance connections. It features 32 QSFP28 expansion slots, which are designed to accommodate 100GbE connections. This configuration provides high-density connectivity and flexibility for various networking scenarios.

Form Factor and Rack Compatibility

The QFX5120-32C-AFO is designed to fit into a 1U rack space, making it compatible with standard 19-inch server racks. Its compact form factor allows for efficient space utilization within racks, making it suitable for high-density deployments in data centers and network closets.

Power and Cooling Specifications

The switch requires a total power consumption of 515 watts, reflecting its high-performance capabilities and energy requirements. It is equipped with two redundant power supplies, which ensure continuous operation and minimize the risk of downtime due to power supply failures. Additionally, the switch includes cooling mechanisms to maintain optimal operating temperatures and prevent overheating.

Benefits and Advantages

Enhanced Performance

The QFX5120-32C-AFO delivers superior performance with its 100GbE ports, providing high-speed data transfer and low latency. This performance is essential for applications requiring rapid data processing and high-throughput connectivity, such as virtualized environments and large-scale data operations.

Scalability and Flexibility

With its modular design and extensive expansion slots, the QFX5120-32C-AFO offers significant scalability and flexibility. Network administrators can easily expand their network infrastructure by adding additional devices or upgrading existing connections to accommodate growing demands.

Reliability and Redundancy

The switch's redundant power supplies and cooling systems contribute to its reliability and ensure continuous operation. This design minimizes the risk of network downtime and helps maintain service availability, which is crucial for mission-critical applications.

Environmental Compliance

The QFX5120-32C-AFO adheres to several environmental compliance standards, including RoHS, WEEE, REACH, and China RoHS. These certifications ensure that the switch meets global environmental and safety regulations, making it an environmentally friendly choice for network deployments.

Compatibility and Integration

Network Architecture Compatibility

The QFX5120-32C-AFO is compatible with various network architectures, including spine-leaf and traditional hierarchical models. Its flexible port configuration and modular design allow it to integrate seamlessly into different network topologies and support a range of deployment scenarios.

Integration with Existing Infrastructure

The switch integrates easily with other Juniper devices and third-party networking equipment. Its support for standard protocols and interfaces ensures compatibility with a wide range of networking gear, facilitating smooth integration into existing network environments.

Network Management

Juniper Networks’ Junos OS provides advanced network management features, including monitoring, configuration, and troubleshooting tools. These capabilities enhance network management efficiency and help administrators maintain optimal network performance and reliability.
