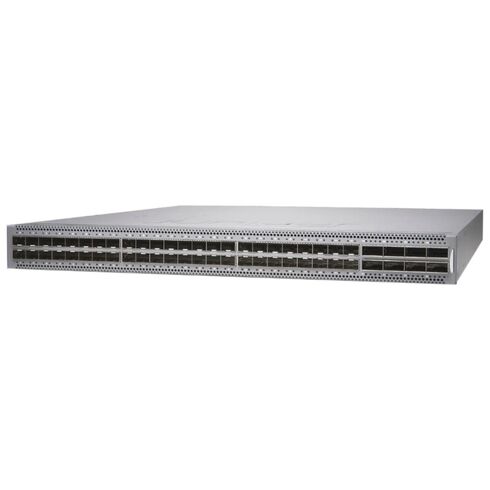

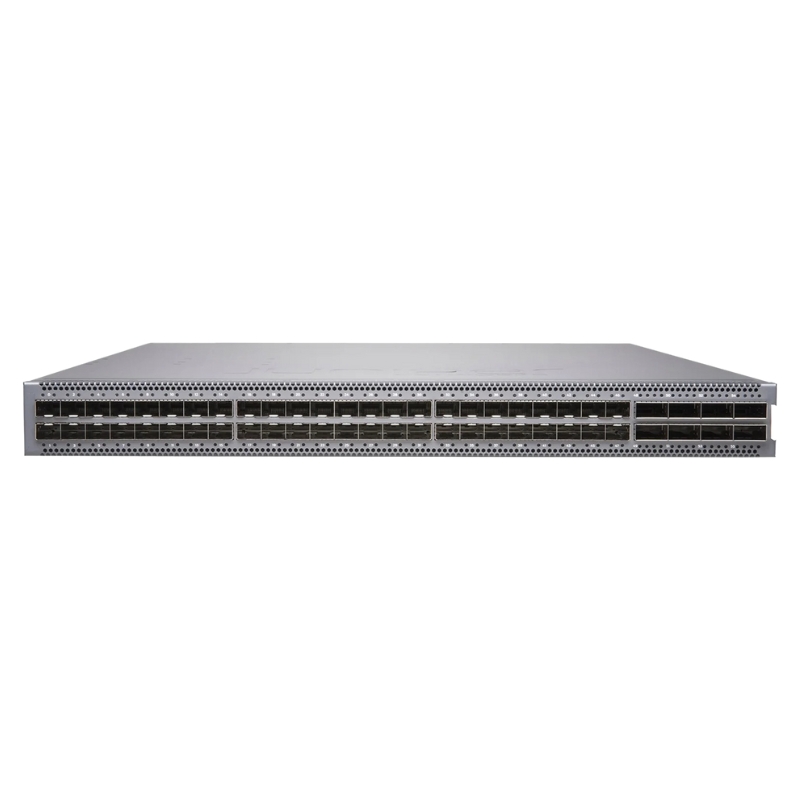

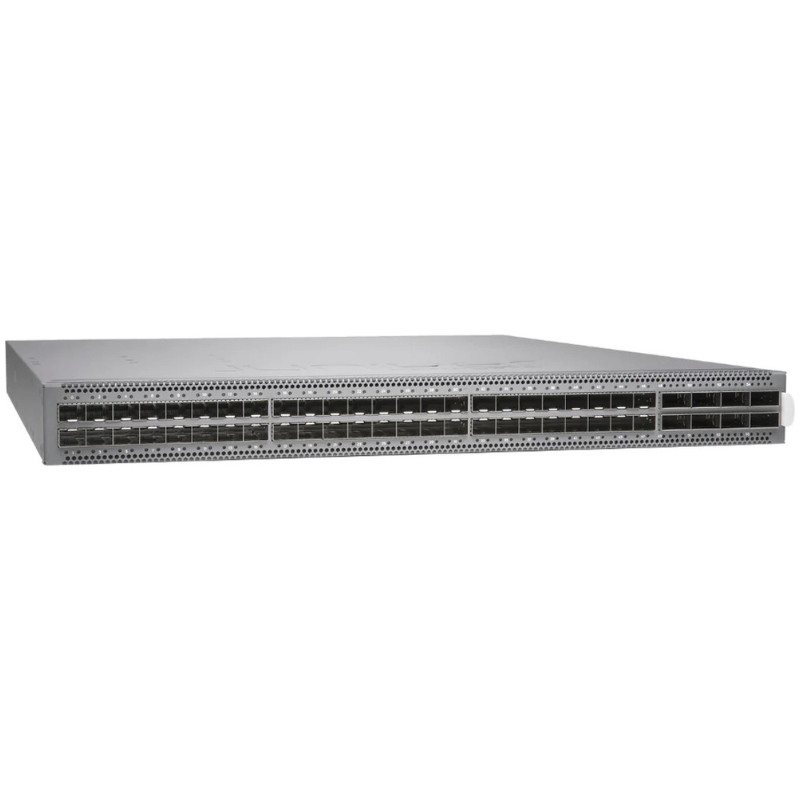

Juniper QFX5120-48Y-AFO2 48 Ports Managed SFP28 Network Switch

QFX5120-48Y-AFO2 Juniper QFX Series Managed Switch

The QFX5120-48Y-AFO2 is a high-performance, rack-mountable managed switch from Juniper Networks' QFX Series, designed to deliver exceptional networking capabilities for a variety of environments, including data centers, enterprise networks, and high-performance computing (HPC) setups. This managed switch stands out with its extensive port configuration, modular expansion options, and advanced features, making it a versatile choice for modern networking needs.

Key Features and Specifications

Port Configuration

The QFX5120-48Y-AFO2 offers a robust port configuration that includes:

• 48 x 25 Gigabit Ethernet (25GbE) SFP28 Expansion Slots: These high-speed ports are designed for connecting devices and servers, providing rapid data transfer rates essential for bandwidth-intensive applications.
• 8 x 100 Gigabit Ethernet (100GbE) QSFP28 Expansion Slots: These ports provide additional high-throughput uplink options for connecting to other network devices or switches, supporting large-scale data transfers and network backbone connectivity.

Managed Rack-Mountable Design

The QFX5120-48Y-AFO2 features a rack-mountable form factor, allowing it to be installed in standard 19-inch server racks or data center cabinets. This design ensures efficient use of space while providing easy integration into existing network infrastructure. The switch is also designed for easy management and configuration, offering features that facilitate streamlined network operations.

Modular Expansion and Flexibility

This switch supports modular expansion with 56 expansion slots, providing significant flexibility for network growth and customization. The expansion slots are divided as follows:

• 48 x SFP28 Slots: These slots are used for 25 Gigabit Ethernet connections, allowing for high-density port configurations and efficient network scaling.
• 8 x QSFP28 Slots: These slots support 100GbE connections, offering high-speed uplink capabilities to enhance network performance and capacity.

Performance and Scalability

High-Speed Connectivity

The QFX5120-48Y-AFO2 is engineered to deliver high-speed connectivity with its 25 Gigabit Ethernet and 100GbE ports. This connectivity is crucial for supporting demanding applications such as virtualized environments, high-frequency trading, and large-scale data processing. The switch's high port density and speed ensure that it can handle substantial amounts of traffic with minimal latency.

Scalability Options

With its modular design and extensive port options, the QFX5120-48Y-AFO2 offers excellent scalability. Network administrators can easily expand their network infrastructure by adding more devices or increasing bandwidth capacity as needed. The switch's flexibility in port configuration allows for a range of network topologies, including spine-leaf and traditional hierarchical models.

Advanced Routing Capabilities

As a managed Layer 3 switch, the QFX5120-48Y-AFO2 supports advanced routing features. This includes support for various routing protocols such as OSPF, BGP, and IS-IS. These capabilities enable efficient packet forwarding and optimized network performance, making the switch suitable for complex network environments.

Deployment Scenarios

Data Centers

In data center environments, the QFX5120-48Y-AFO2 excels in providing high-speed connectivity and reliable performance. Its high-density 25GbE and 100GbE ports are ideal for interconnecting servers, storage devices, and other networking equipment. The switch's modular expansion capabilities allow data centers to scale their infrastructure as needed to accommodate increasing data loads and traffic volumes.

Enterprise Networks

For enterprise networks, the QFX5120-48Y-AFO2 offers the performance and flexibility needed to support critical business applications. Its advanced features, such as Layer 3 switch routing and high-speed uplinks, help ensure smooth and efficient network operations. The Layer 3 switch is well-suited for both core and aggregation layers within enterprise network architectures.

High-Performance Computing (HPC)

In HPC environments, the QFX5120-48Y-AFO2 provides the high bandwidth and low latency required for rapid data processing and high-speed interconnectivity between computing nodes. Its 25GbE and 100GbE ports facilitate quick data transfers and support the demanding requirements of HPC applications.

Technical Specifications

Port Details

The QFX5120-48Y-AFO2 features a total of 56 fixed ports and expansion slots, which include:

• 48 x 25GbE SFP28 Expansion Slots: Ideal for high-density connections and providing significant bandwidth to connected devices.
• 8 x 100GbE QSFP28 Expansion Slots: These high-speed uplink ports are designed to handle large volumes of data and connect to other high-performance network devices.

Form Factor and Rack-Mounting

The switch is designed for rack-mounting in standard 19-inch racks, making it suitable for deployment in server rooms and data centers. Its rack-mountable form factor ensures that it fits seamlessly into existing rack setups, optimizing space and improving network organization.

Operating System

The QFX5120-48Y-AFO2 runs on Juniper’s Junos OS, which provides a comprehensive set of features for network management and configuration. Junos OS is known for its stability, scalability, and advanced networking capabilities, making it a robust platform for managing complex network environments.

Power and Cooling

The switch includes redundant power supplies to ensure continuous operation in the event of a power failure. Additionally, it features advanced cooling mechanisms to maintain optimal operating temperatures and prevent overheating, which is essential for sustaining performance and reliability.

Benefits of the QFX5120-48Y-AFO2

Enhanced Performance

The QFX5120-48Y-AFO2 delivers high performance with its 25GbE and 100GbE ports, ensuring fast data transfer and minimal latency. This performance is critical for applications requiring high throughput and low latency, such as virtualized environments and data-intensive workloads.

Scalability and Flexibility

With its modular expansion options and extensive port configuration, the QFX5120-48Y-AFO2 offers significant scalability and flexibility. Network administrators can easily scale their infrastructure by adding more devices or upgrading existing connections to meet growing demands.

Reliability and Redundancy

Featuring redundant power supplies and advanced cooling systems, the QFX5120-48Y-AFO2 is built for reliability. These features ensure that the switch operates continuously even in the event of component failures, maintaining network uptime and service availability.

Compatibility and Integration

Network Architecture Compatibility

The QFX5120-48Y-AFO2 is compatible with various network architectures, including spine-leaf and hierarchical models. Its flexible port configuration and modular expansion options allow it to integrate seamlessly into different network designs and support diverse deployment scenarios.

Integration with Existing Infrastructure

Whether upgrading an existing network or deploying a new one, the QFX5120-48Y-AFO2 integrates smoothly with other Juniper devices and third-party equipment. Its support for standard protocols and interfaces ensures compatibility with a wide range of networking gear.

Network Management

The Junos OS platform provides advanced network management features, including monitoring, configuration, and troubleshooting tools. These capabilities enhance network management efficiency and help administrators maintain optimal network performance and reliability.
