QFX5120-48YM-AFO Juniper Networks 48 Ports 3 Layer Rack Mountable 1U Ethernet Switch

Juniper QFX5120-48YM-AFO product family overview and core identity

The QFX5120-48YM-AFO is a member of Juniper Networks’ QFX5120 family of compact, high-performance Ethernet switches designed for modern data centers, cloud deployments, and campus distribution. Built as a 1U, rack-mountable appliance, this SKU combines high-density server access with flexible uplink options and carrier-grade routing features. It targets use cases that require low latency, high throughput, and advanced Layer 2/Layer 3 capabilities — from top-of-rack (ToR) data center deployments to campus aggregation and leaf-spine fabrics. Key product identity elements include multi-rate SFP28 downlinks, QSFP28 uplink capability, hardware-based security features such as MACsec, and the proven Junos OS feature set.

Performance throughput, latency and forwarding capacity

The  QFX5120-48YM-AFO family is architected for wire-speed L2/L3 forwarding with very low latency suitable for East-West traffic patterns typical in virtualization and containerized environments. Depending on the exact sub model and port configuration, the platform supports multi-terabit aggregate throughput and low single-digit microsecond (sub-microsecond to sub-millisecond as measured on small packets) latency characteristics. This makes it a strong candidate for leaf switches in leaf-spine fabrics and high-performance campus distribution where predictable packet timing and jitter reduction are important.

Layer 2 and Layer 3 feature richness

Out of the box the QFX5120-48YM-AFO runs Junos OS and inherits a mature set of advanced switching and routing features. It supports traditional Layer 2 functions (VLANs, STP variants, EVPN-VXLAN bridging) and full Layer 3 capabilities including OSPF, BGP, IS-IS, and static routing. The platform also supports EVPN-VXLAN overlays for multi-tenant segmentation and modern cloud networking, enabling consistent connectivity patterns between virtualized and bare-metal servers. For campus networks it performs well as a distribution device thanks to robust L3 gateway performance, route scale, and policy enforcement points.

Power, thermal and reliability considerations

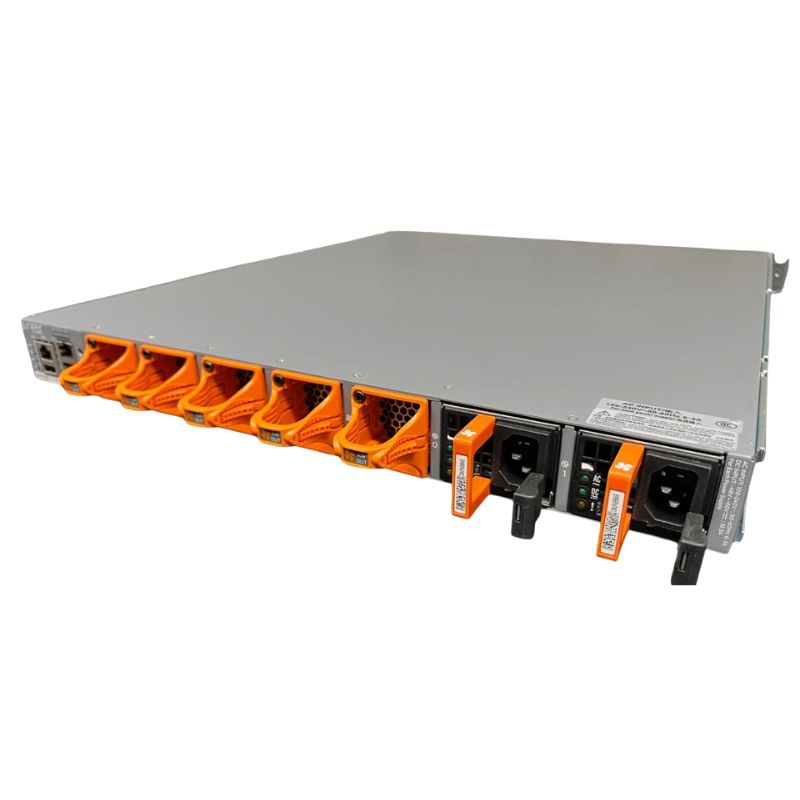

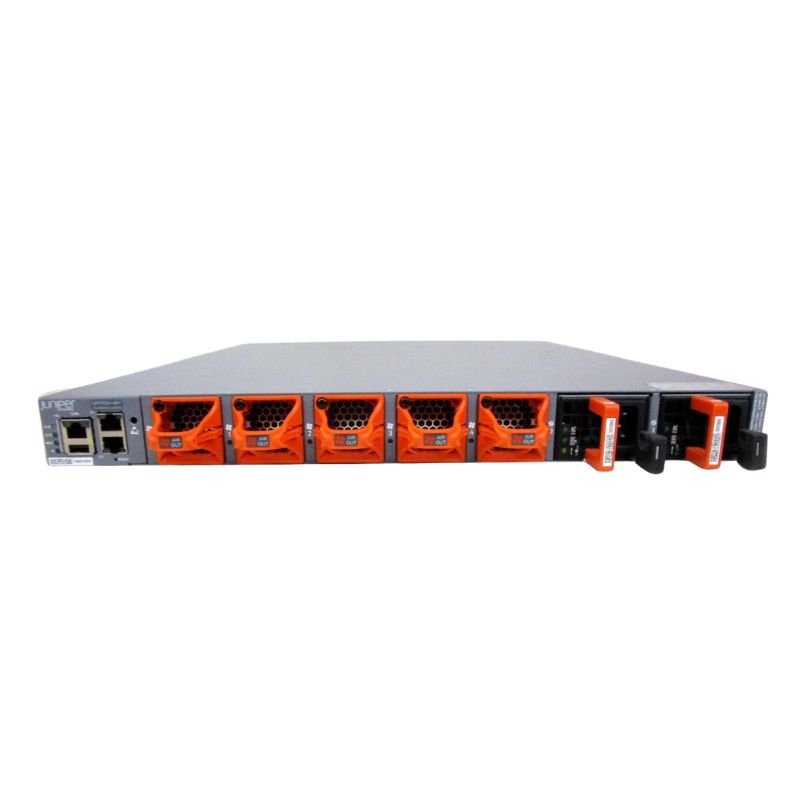

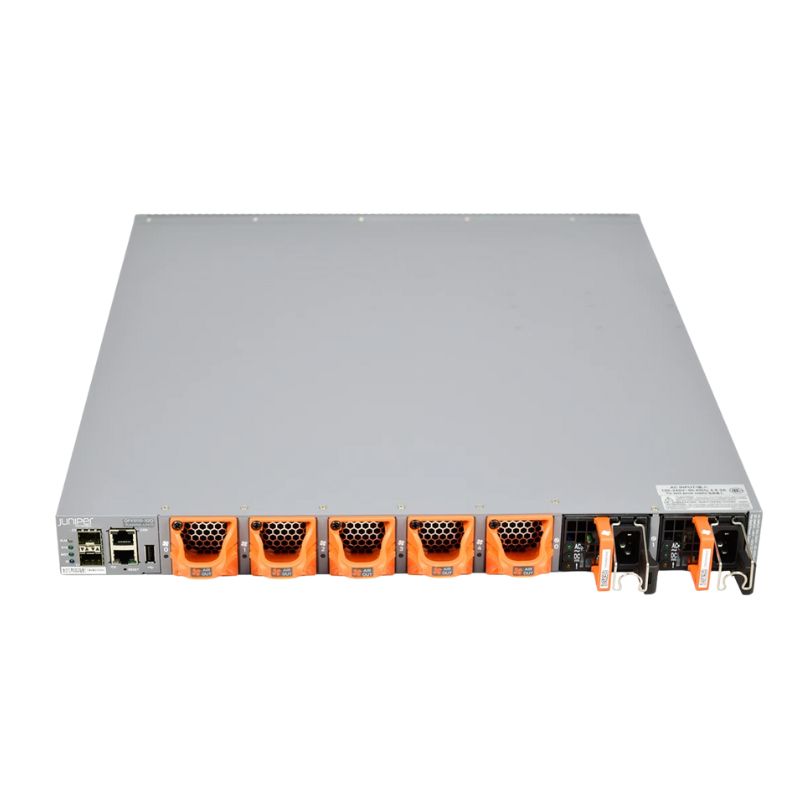

Power and thermal design are important for dense rack deployments. The 48YM variant, particularly when MACsec and uplinks are heavily utilized, will exhibit higher maximum power draw compared to smaller variants; the datasheet lists typical and maximum power consumption figures that administrators must consider during rack power planning. Redundant power supplies may be available depending on the exact ordering configuration, and fans are engineered to accommodate sustained throughput while maintaining thermal headroom for the line cards and optics. Always consult the official power tables to size PDUs and UPS systems appropriately.

Field reliability and mean-time-between-failure (MTBF) inputs

Juniper’s QFX family is built for continuous operations in production environments, with features that support non-disruptive software upgrades, graceful restart, and diagnostic telemetry. Standard support options through Juniper or authorized resellers include hardware replacement, advanced firmware support, and access to knowledgebase articles that help diagnose and resolve rare hardware issues or optics compatibility incidents. Field-replacement units and spare-part logistics depend on support contract levels.

Management, automation and observability

Junos OS and operational automation

The switch runs Junos OS, which offers an operational model familiar to many enterprise and service provider operators. Junos provides configuration hierarchy, rollback capabilities, event scripts, and programmatic interfaces (such as NETCONF, RESTCONF, and streaming telemetry) for integration with orchestration platforms. These capabilities reduce mean time to repair (MTTR) and accelerate configuration at scale when deployed as part of automated provisioning systems. Many organizations also use Juniper’s toolsets or third-party automation frameworks to manage day 0–2 operations, enabling repeatable and auditable change management across the fleet.

Use cases and deployment patterns

Data center leaf/top-of-rack (ToR)

As a ToR leaf switch, the QFX5120-48YM-AFO excels at providing high-density server connectivity with the option to scale spine/upstream links to 100GbE. Its low-latency forwarding and multi-rate SFP28 ports allow operators to mix legacy 10GbE equipment with newer 25GbE NICs, enabling gradual server refreshes without forklift upgrades. EVPN-VXLAN support simplifies tenant segmentation and east-west overlay routing typically required by modern cloud-native workloads.

Campus distribution and aggregation

In campus networks, the QFX5120 can be used as a distribution or aggregation switch where high throughput and advanced L3 routing are required. It can consolidate multiple access switches, provide uplinks to core routers, and enforce campus-wide policies with ACLs, QoS, and authentication integration. The built-in uplink capacity and routing scalability make it preferable for locations that anticipate increased bandwidth growth over time.

Edge and service provider aggregation

Service providers or enterprise WAN-edge teams can leverage the QFX5120 family where multi-rate speeds, MACsec, and hardware performance are crucial. Its encryption and feature-rich Junos OS support allow it to function as a secure aggregation point for customer-facing services or as part of a distributed routing fabric for edge compute locations.

Transceiver compatibility and breakout options

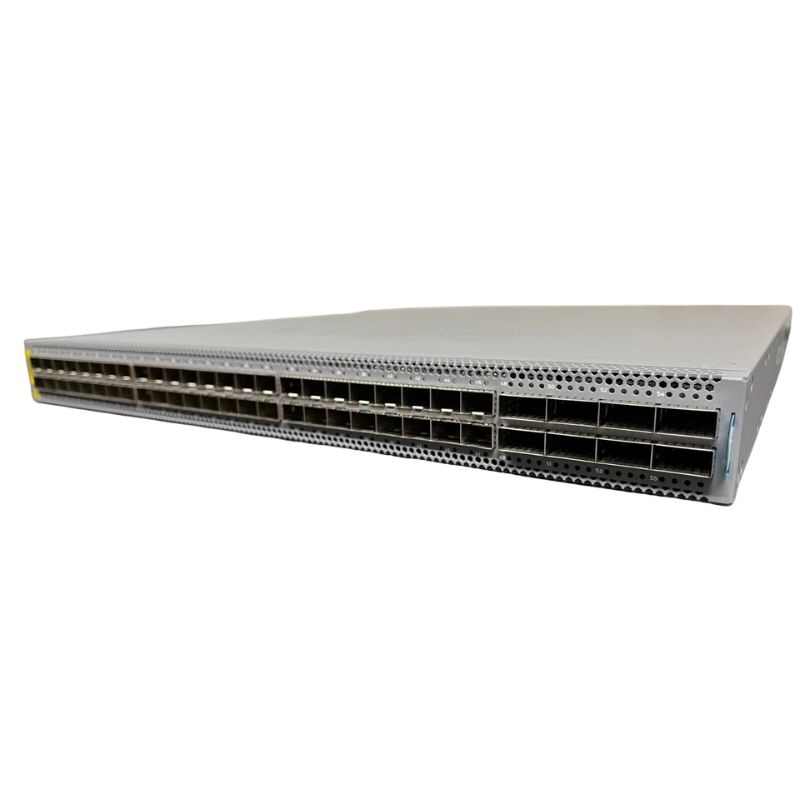

The switch supports a broad array of SFP+, SFP28, and QSFP28 transceivers. The use of breakout cables on QSFP28 ports enables network operators to convert uplink modules into multiple lower-speed interfaces when required; for example, a 100GbE QSFP28 can be split into 4×25GbE interfaces using breakout optics for additional access ports in specific deployment models. Always reference the Juniper interoperability guide and optics compatibility matrix to choose supported transceivers and cable assemblies to avoid negotiated speed or power issues.

Cost of ownership and operational expenses

Total cost of ownership (TCO) goes beyond initial purchase price. Factors to account for include power consumption (which varies by sub model and feature set), cooling requirements, licensing for advanced features (if any), and the staff time required to run automation and telemetry tooling. Because the  QFX5120-48YM-AFO family targets high-density server access, an organization that reduces aggregation hops, consolidates cabling, and automates provisioning can often see a lower operational footprint despite a higher per-unit capital cost.

Comparison with neighboring SKUs in the QFX5120 family

How the 48YM differs from 48Y, 48T and 32C variants

Within the  QFX5120-48YM-AFO line there are several variants optimized for slightly different link-media and port-speed mixes. The “48Y” versions prioritize 25GbE downlinks and 100GbE uplinks for dense 25GbE environments, while the “48T” and “48YM” variants may offer mixed copper/transceiver options and differing uplink counts or power envelopes. The 32C SKU typically targets higher uplink density or specific high-throughput use cases. When choosing among these, match your server NIC speeds, uplink architecture, and power budget to the SKU that best aligns with your existing and planned infrastructure.

Real-world deployment tips and best practices

Pre-deployment validation

Test interoperability in a lab or pilot rack before full roll-out. Validate optics, breakout cabling, and automation scripts with the specific Junos version you plan to run in production. Ensure telemetry collectors and monitoring dashboards can consume the metrics emitted by the  QFX5120-48YM-AFO without creating monitoring storms. Maintain a small inventory of vendor-approved transceivers to accelerate replacement during maintenance windows.

Cabling and airflow optimization

Use structured cabling panels and maintain front-to-back airflow consistency across the rack. When deploying multiple 1U switches in the same rack, ensure cable bundles do not obstruct rear-panel ventilation or block neighboring intake/exhaust paths. Standardize patching polarity and color codes for ease of troubleshooting. Label both ends of every patch to speed fault isolation.

Authoritative references and specification sources

The technical details and recommendations above reference Juniper’s official QFX5120-48YM-AFO datasheets and product documentation, reseller specification pages, and field datasheets that document power, port mappings, MACsec capabilities, and CPU/storage configurations. When designing a solution, consult the official QFX5120 datasheet and Juniper interoperability guides for the most current information about transceiver compatibility, power tables, and software feature licensing.

Next steps for engineers and procurement teams

For teams building a modern, programmable fabric that requires a balance between high-density server access and uplink capacity, the QFX5120-48YM-AFO represents a versatile, high-performance option. Its blend of mixed-speed SFP28 ports, QSFP28 uplinks, Junos-driven automation, and hardware security features make it suitable for cloud, enterprise, and service provider environments where predictable performance and operational simplicity are prioritized. Always pair architecture decisions with datasheet-validated power and optics planning to guarantee production stability.
