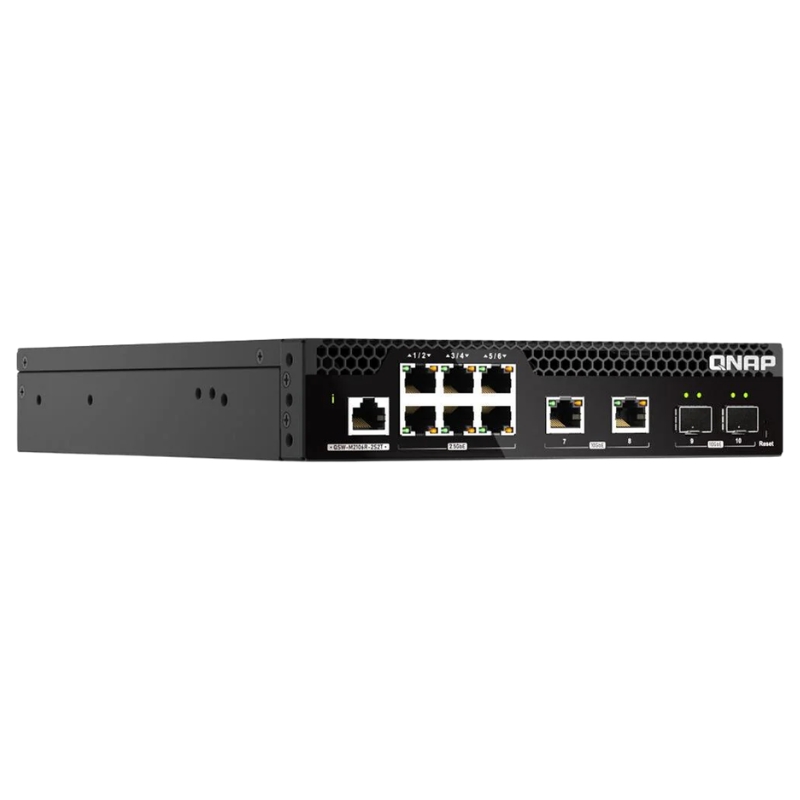

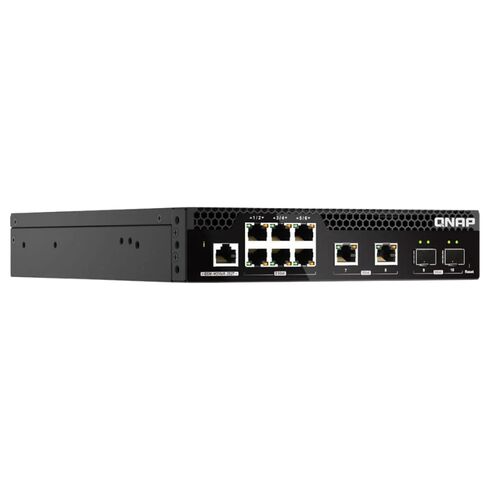

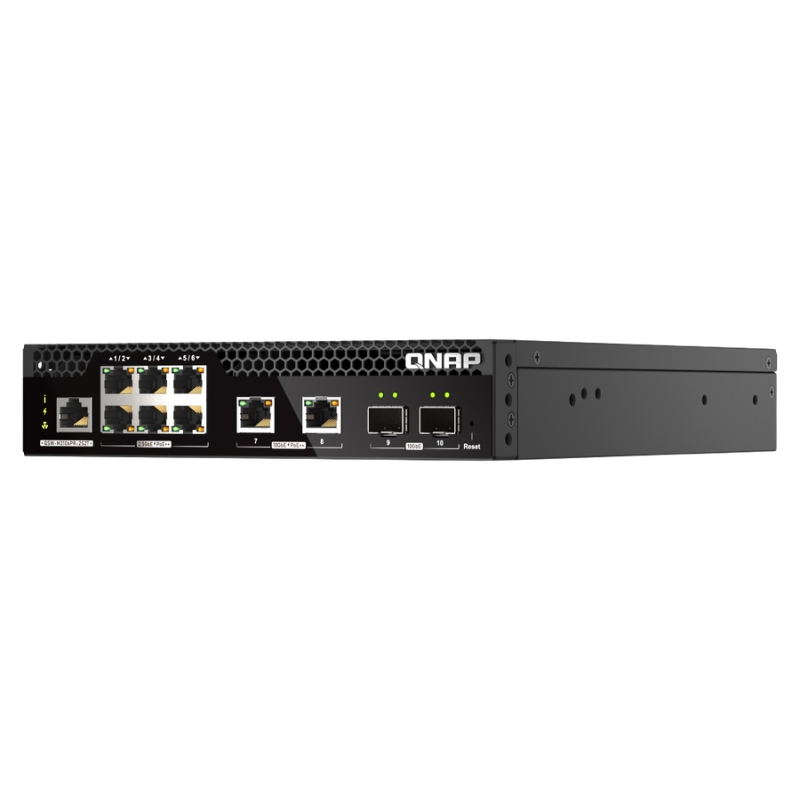

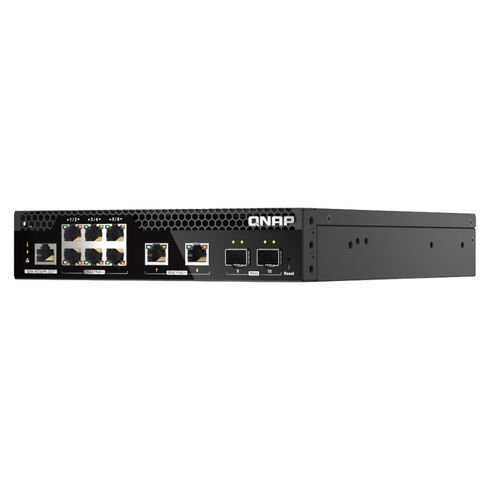

QSW-M2106PR-2S2T-US Qnap Systems Half Width Rackmount 6 Ports Layer 2 Managed Switch

Product Overview of Qnap Systems 6 Ports Managed Switch

The Qnap Systems QSW-M2106PR-2S2T-US occupies a unique intersection between compact form factor, high‑speed uplinks, and intelligent Power over Ethernet. Designed as a 6‑port managed switch in a half‑width rackmount chassis, it combines 10GbE (SFP+ and copper) with 2.5GbE PoE+ ports to address modern edge networks, surveillance deployments, and SMB core‑to‑edge segmentation.

Main Specifications

• Manufacturer: Qnap Systems
• Part Number: QSW-M2106PR-2S2T-US
• Product Type: Layer 2 Managed Switch

Technical Specifications

• Data throughput capacity: 2.5 Gbps
• Total Number of Ports: 6 Ports
• Supports advanced 10 Gigabit Ethernet protocols
• Equipped with 1 GB installed RAM for smooth operations
• Power over Ethernet (PoE) functionality included
• Maximum PoE power consumption: 90W
• Designed for efficient energy utilization

Interface Configuration

• 6 × 2.5Gbps ports for mid-range connectivity
• 2 × 10Gbps SFP+ slots for fiber expansion
• 2 × 10GbE NBASE-T ports for high-speed data transfer

Connectivity Options

• Flexible port mix for diverse networking needs
• Supports both copper and fiber connections
• Ideal for scalable enterprise deployments

Key Advantages

• Enterprise-grade reliability with rack-mount form factor
• Balanced port distribution for versatile applications
• Enhanced bandwidth management with multi-speed support

Technical Benefits

• Efficient PoE integration for powering devices directly
• High-performance architecture for demanding workloads
• Future-ready design supporting next-gen networking standards

Qnap Systems QSW-M2106PR-2S2T-US Managed Switch

The Qnap Systems QSW-M2106PR-2S2T-US is a half-width rackmount Layer 2 managed network switch engineered to deliver advanced connectivity, intelligent traffic control, and enterprise-grade Power over Ethernet capabilities in a compact form factor. Designed for high-density deployments, the chassis integrates six multi-gigabit ports alongside two high-speed uplink interfaces, enabling flexible network architecture for modern data environments. Its rack-efficient housing supports side-by-side installation within standard 19-inch racks, optimizing space utilization in data cabinets, telecom closets, and edge infrastructure installations.

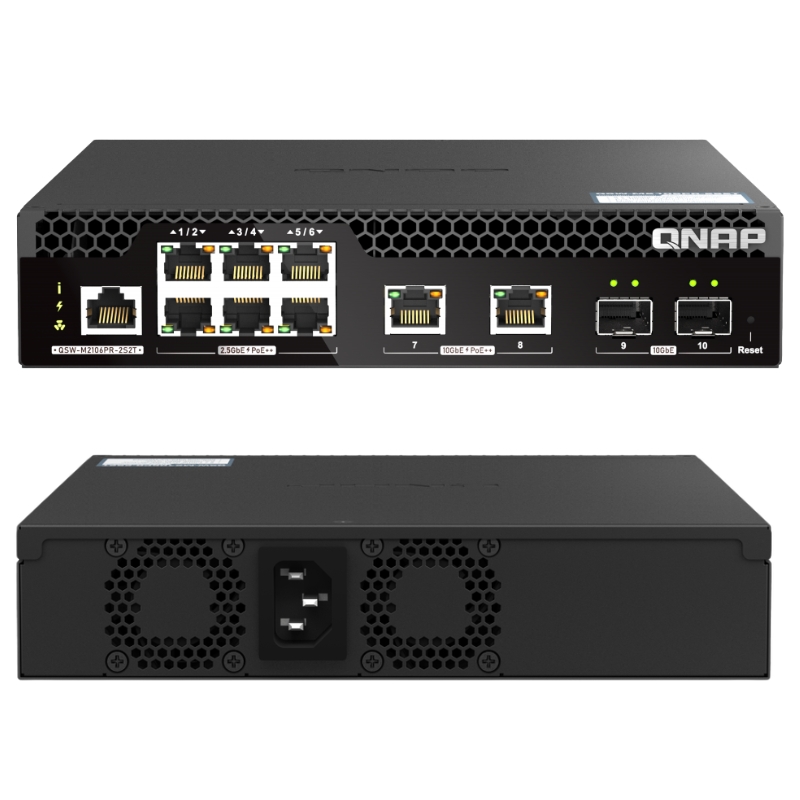

Compact Half-Width Rackmount

The mechanical layout emphasizes structural rigidity while minimizing physical footprint. The half-width form allows dual unit mounting within a single rack unit, which is particularly valuable in environments requiring multiple switching layers without sacrificing vertical rack space. Reinforced mounting brackets ensure stable installation, while precision vent placement promotes consistent airflow to maintain thermal stability during sustained operation.

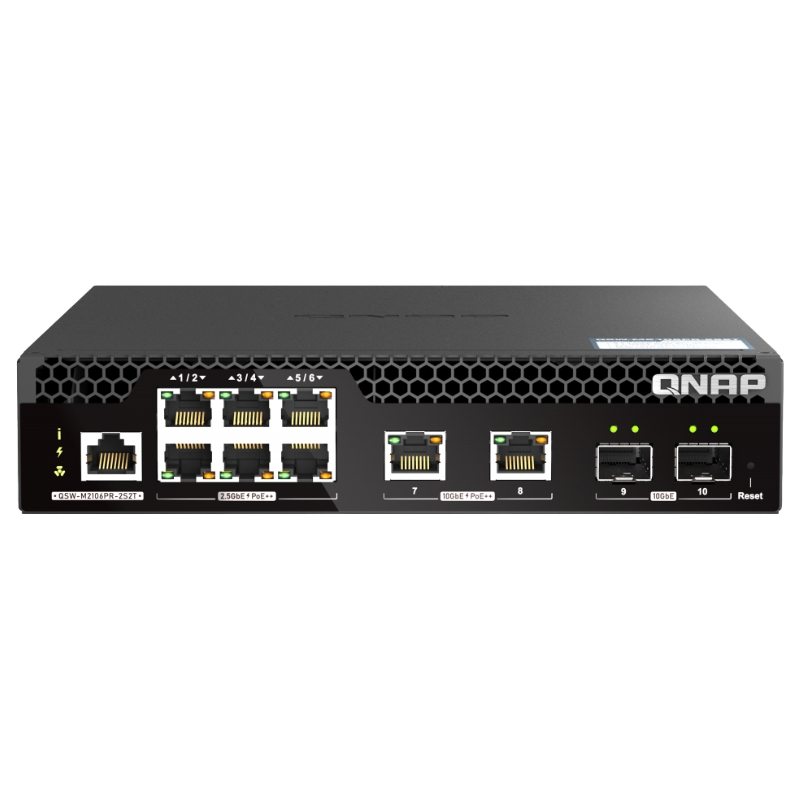

Port Configuration and Interface Density

This model integrates six 2.5 Gigabit Ethernet PoE+ ports engineered for high-throughput device connectivity and two dedicated uplink interfaces supporting 10 Gigabit Ethernet performance. The hybrid port design enables seamless integration between high-bandwidth backbone connections and edge devices such as wireless access points, surveillance cameras, VoIP systems, and high-performance workstations. Auto-negotiation support ensures compatibility across varying network speeds, allowing legacy and next-generation hardware to coexist efficiently.

Multi-Gigabit Ethernet Performance Capabilities

2.5GbE Access Layer Throughput

The QSW-M2106PR-2S2T-US six multi-gigabit access ports support 100M, 1G, and 2.5G speeds, enabling gradual network upgrades without requiring full infrastructure replacement. This adaptive bandwidth capability ensures optimal throughput for devices with differing interface standards. Each port supports full-duplex transmission and flow control mechanisms, allowing stable packet delivery even under heavy network load.

10GbE Uplink Integration

The QSW-M2106PR-2S2T-US dual uplink ports deliver 10 Gigabit Ethernet performance for aggregation and backbone connectivity. These high-speed interfaces facilitate rapid data transfer between switches, servers, and storage arrays, minimizing latency and congestion. The uplink architecture is designed to handle intensive workloads such as virtualization traffic, media streaming, backup synchronization, and real-time analytics.

Switching Capacity and Forwarding Rate

The switching fabric is engineered to sustain multi-gigabit traffic across all ports simultaneously without performance degradation. Hardware-based packet forwarding ensures line-rate throughput while maintaining low latency. The internal architecture is optimized to prevent bottlenecks during peak transmission, providing stable performance for bandwidth-intensive applications.

Integrated PoE+ Power System

Power over Ethernet Standards

The switch incorporates IEEE 802.3af and IEEE 802.3at compliant PoE+ functionality across its six multi-gigabit ports. This enables direct electrical power delivery through Ethernet cables, eliminating the need for separate power supplies for connected devices. The PoE+ implementation supports high-power endpoints such as PTZ cameras, WiFi 6 access points, digital signage, and industrial IoT hardware.

Power Allocation

The internal power management controller dynamically distributes power based on device demand. Automatic detection of connected equipment ensures that only the required wattage is delivered, reducing energy waste and protecting hardware from electrical overload. Administrators can monitor consumption levels and adjust allocation parameters through the management interface.

Power Protection

Advanced safeguards protect both the switch and connected devices. Overcurrent protection, voltage regulation, and thermal monitoring systems maintain operational stability during extended workloads. These protective mechanisms extend hardware lifespan and reduce the risk of network downtime caused by electrical anomalies.

Layer 2 Management Features

VLAN Segmentation Capabilities

The QSW-M2106PR-2S2T-US managed Layer 2 framework supports virtual LAN segmentation for network isolation and traffic prioritization. Administrators can configure multiple VLANs to separate departments, devices, or services while maintaining centralized management. Tagged and untagged VLAN modes enable flexible deployment scenarios across hybrid infrastructures.

Aggregation and Redundancy

Link aggregation technology combines multiple physical connections into a single logical link, increasing bandwidth and providing failover protection. If one cable connection fails, traffic automatically reroutes through remaining links, ensuring uninterrupted connectivity. This redundancy feature enhances reliability for mission-critical systems.

Loop Prevention Protocols

Spanning Tree Protocol support prevents network loops that could otherwise cause broadcast storms and performance degradation. The switch automatically detects redundant paths and selectively blocks them, maintaining a stable and efficient topology.

Hardware Reliability

Industrial-Grade Components

The internal circuitry is constructed with high-quality capacitors, shielded connectors, and reinforced PCB layers to maintain signal integrity at multi-gigabit speeds. These components are selected to withstand continuous operation in demanding network environments.

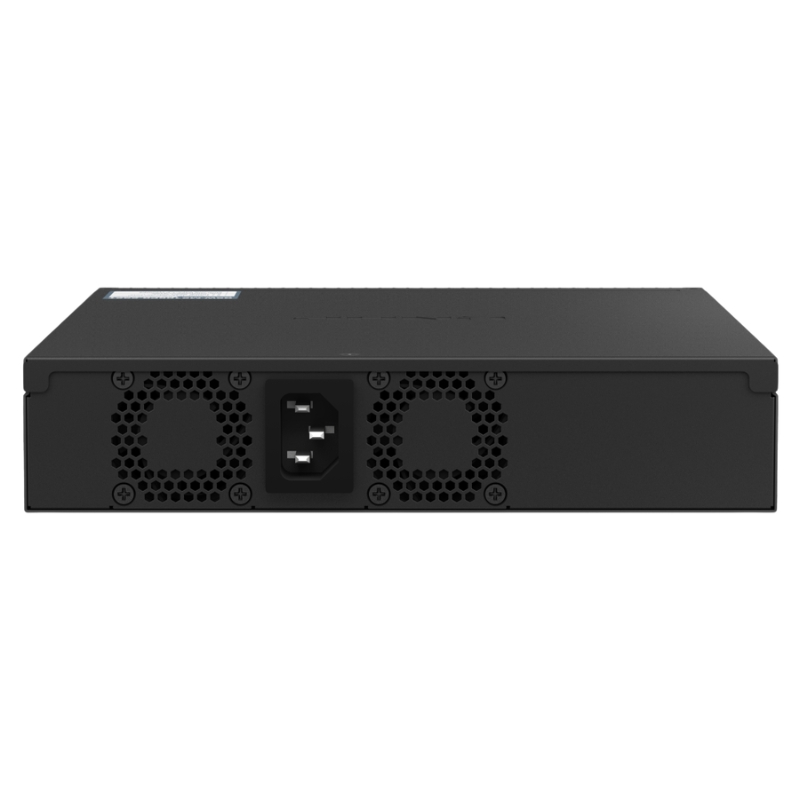

Efficient Cooling Design

Strategically positioned ventilation channels and intelligent airflow pathways dissipate heat effectively, preserving component performance during sustained data transmission. The cooling architecture minimizes thermal buildup without excessive acoustic output, making the unit suitable for office installations as well as server rooms.

Power Supply Stability

An integrated power supply module ensures consistent electrical delivery to both the switch electronics and PoE endpoints. Voltage stabilization circuitry prevents fluctuations that could disrupt data transmission or damage connected equipment.

Deployment Versatility

Rack and Desktop

The compact chassis supports multiple mounting orientations. It can be installed in racks, cabinets, or used as a standalone desktop switch. Rubberized feet provide stability for flat-surface placement, while mounting hardware enables secure rack integration.

Compatibility with Network Infrastructure

The switch interoperates seamlessly with routers, firewalls, servers, and storage systems from various manufacturers. Standard Ethernet compliance ensures broad compatibility across enterprise, commercial, and advanced home network deployments. Auto-MDI/MDIX detection eliminates the need for crossover cables, simplifying installation.

Scalable Expansion Capability

Organizations can deploy multiple units to expand port capacity or create segmented network zones. The high-speed uplink interfaces support cascading configurations, allowing administrators to scale infrastructure while maintaining consistent management policies.

Application Scenarios

High-Speed Edge Connectivity

The multi-gigabit ports enable direct connection of bandwidth-intensive devices such as network-attached storage systems, high-resolution video encoders, and advanced wireless access points. This ensures that edge devices can operate at maximum throughput without being constrained by traditional gigabit limitations.

Aggregation Layer Switching

With its dual 10GbE uplinks, the switch functions effectively as an aggregation node connecting multiple access switches to a central backbone. This role allows consolidation of traffic streams and efficient routing toward core infrastructure.

Power Distribution for Network Devices

PoE+ capability allows the switch to act as both a connectivity hub and power source. Deployments such as surveillance systems or distributed wireless networks benefit from simplified cabling and centralized power management.

Virtualized and Cloud-Integrated Environments

The high bandwidth capacity supports virtual machine traffic, cloud synchronization, and containerized workloads. Reliable packet handling ensures stable connectivity between virtualization hosts and storage resources, maintaining consistent performance across distributed computing systems.
