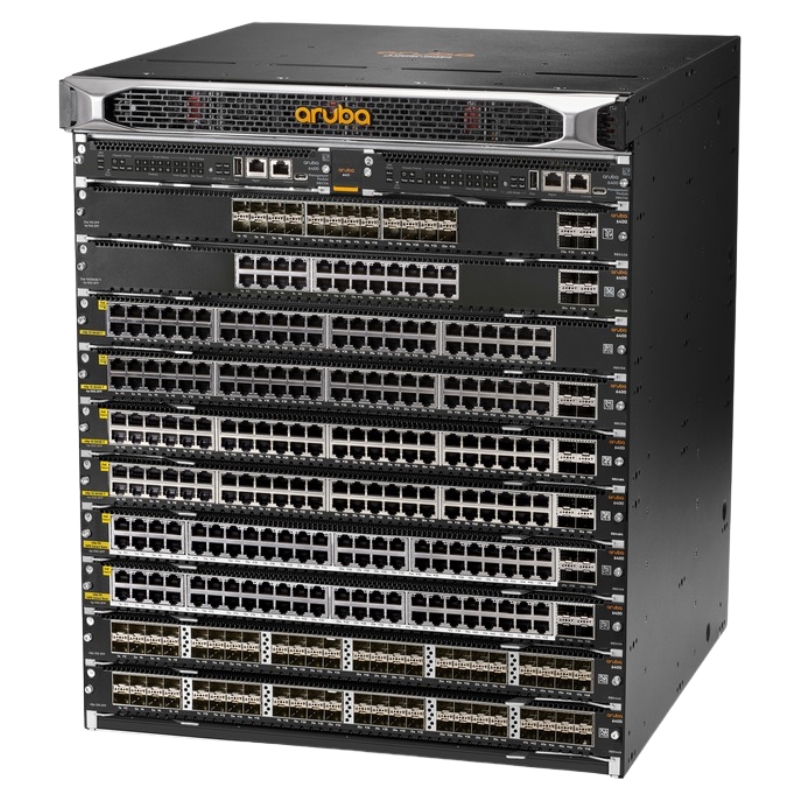

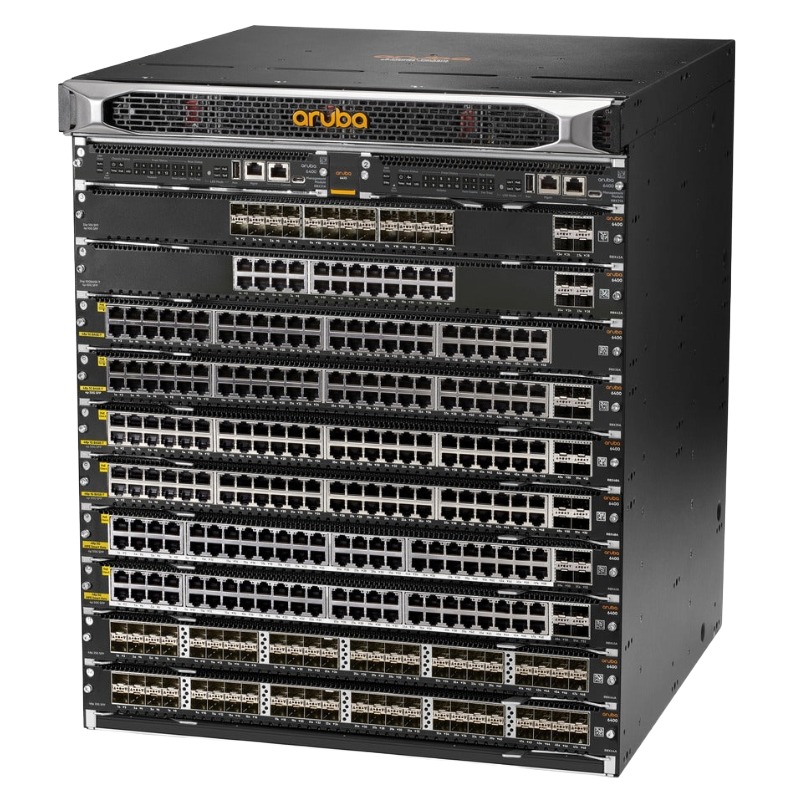

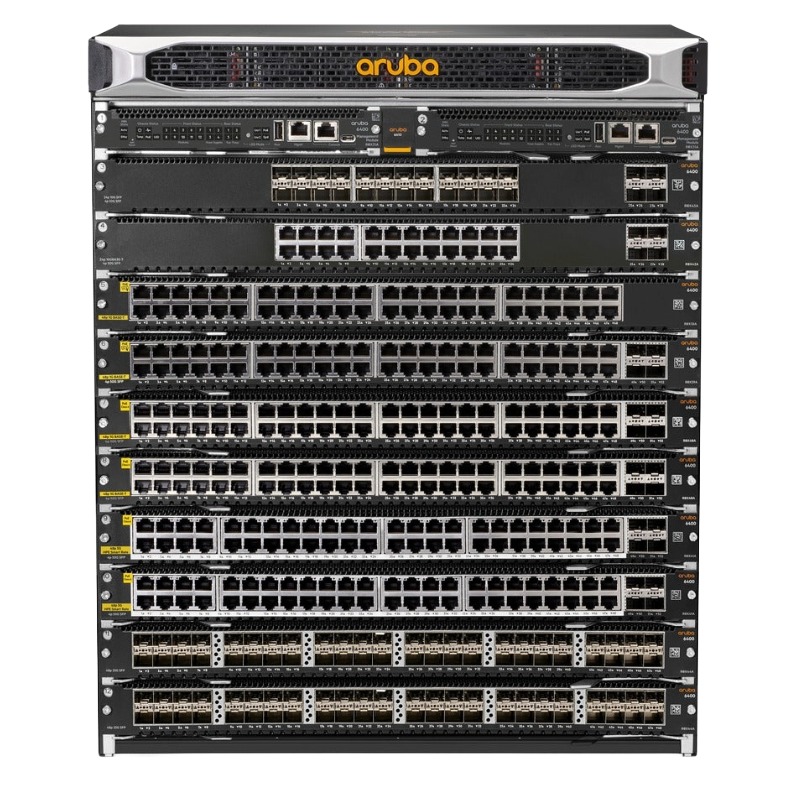

R0X27C HPE Aruba Networking CX 6410 v2 Switch Chassis

Advanced Networking Solution: HPE Aruba CX 6410 v2 Chassis

Elevate your enterprise network infrastructure with the high-performance HPE R0X27C Aruba CX 6410 v2, a scalable and secure Layer 3 stackable switch designed for modern data demands.

Core Specifications and Technical Attributes

• Manufacturer: HPE
• Model Identifier: R0X27C
• Device Classification: Enterprise-grade managed switch with Layer 3 capabilities
• Chassis Dimensions: 12U rack-optimized enclosure
• Power over Ethernet Support: Compliant with PoE+, delivering up to 30W per port

Enhanced Security and Protocol Compliance

• Authentication Protocols: SSHv2, RADIUS, TACACS+ for secure access control
• Industry Standards: IEEE 802.3af/at/bt for PoE compatibility

High-Performance Hardware Architecture

• Processing Unit: 1.8 GHz quad-core CPU for efficient traffic management
• Memory Capacity: 16 GB DDR4 RAM for high-speed data processing
• Storage: 32 GB flash memory for firmware and configuration storage

Connectivity and Expansion Capabilities

Interface Options

• 1 × USB-C console port for modern device connectivity
• 1 × RJ-45 console port for legacy system access
• 1 × USB Type-A port for peripheral connections
• 1 × RJ-45 management port for out-of-band administration

Modular Flexibility

• Module Slots: 1 pre-installed with capacity for 12 total modules

Power Configuration and Efficiency

• Power Supply: Hot-swappable internal PSU (not included by default)
• Supply Capacity: Supports up to 4 power modules for redundancy
• Electrical Requirements: 120/230V AC (50/60 Hz) auto-sensing input
• Energy Certification: 80 Plus Platinum rated for optimal power efficiency

Redundancy and Reliability Features

• Optional N+N power redundancy configuration available
• Field-replaceable power modules minimize downtime

R0X27C HPE Aruba 6410 V2 L3 Managed Switch Overview

The R0X27C HPE Aruba 6410 V2 is a next-generation Layer 3 managed switch engineered to meet the demanding networking requirements of modern enterprise environments. Built with robust hardware specifications and designed for scalability, the switch supports high-speed data processing, Power over Ethernet Plus (PoE+), and resilient infrastructure integration. Its modular chassis and line card design allow for exceptional flexibility and investment protection as network demands evolve.

High-Performance Quad-Core Architecture

At the heart of the Aruba 6410 V2 lies a Quad Core ARM Cortex A72 processor clocked at 1.8GHz. This powerful CPU ensures low latency, fast routing, and efficient packet processing. Accompanied by 16GB DDR4 ECC memory, the switch delivers reliable performance with error correction capabilities that are essential for mission-critical networks.

Advanced Packet Handling and Buffering

To handle burst traffic and data spikes, the R0X27C is equipped with a sophisticated 8MB shared packet buffer memory on each line card. This shared architecture maximizes memory utilization and enhances buffering capacity for unpredictable traffic patterns, improving performance during congestion.

Robust Storage and Memory Specifications

The switch features 32GB of onboard eMMC flash memory, which supports fast firmware access and configuration recovery. This embedded storage plays a critical role in boot time, configuration backups, and logging data locally without relying heavily on external resources.

ECC Memory: Ensuring Data Integrity

The use of Error-Correcting Code (ECC) memory in the core system offers an added layer of protection against memory errors that can corrupt data or cause system crashes. This is vital for network stability in large-scale enterprise environments where uptime and consistency are paramount.

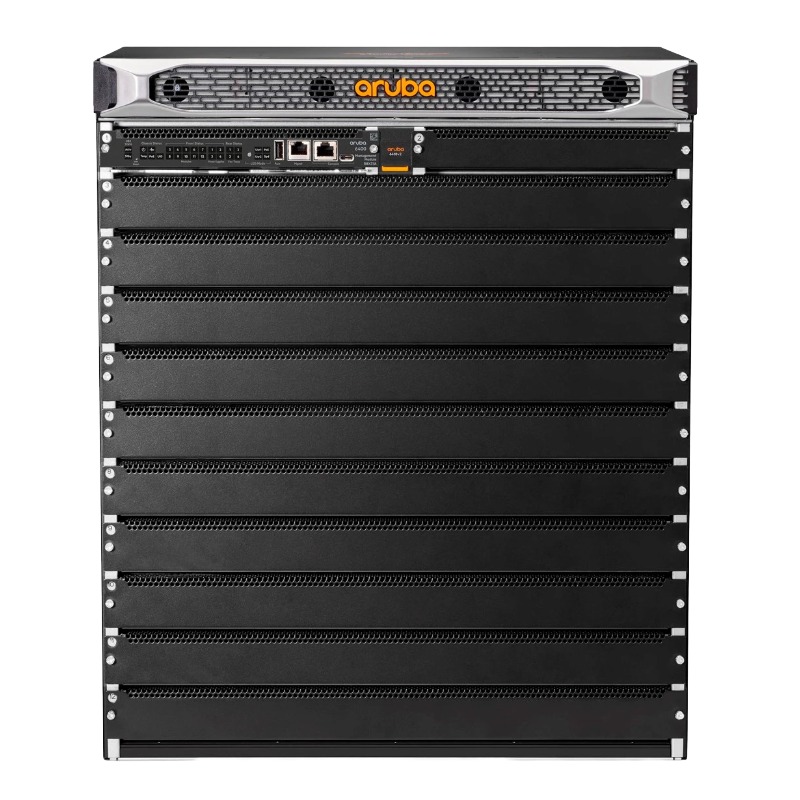

Scalable Modular Architecture for Future-Proof Networking

The Aruba 6410 V2 is designed with a modular approach, allowing organizations to tailor switch configurations according to their specific deployment needs. Expansion through line cards provides room for additional ports, higher capacity, and custom connectivity options.

Line Card Processing Power

Each line card is independently powered by a Dual Core ARM Cortex A72 1.8GHz processor and includes 4GB DDR4 memory. This localized processing significantly enhances distributed switching and offloads tasks from the central processor, improving performance across high-traffic environments.

Dedicated Resources per Line Card

The allocation of 8MB of shared packet buffer memory per line card ensures that each module can handle local traffic spikes efficiently without burdening the central system. This architectural choice supports network scalability and improves fault isolation.

Layer 3 Switching and Network Intelligence

As a full-featured Layer 3 managed switch, the R0X27C enables advanced routing protocols including OSPF, BGP, and static routing. This makes it ideal for complex enterprise environments requiring inter-VLAN routing, dynamic path optimization, and segmented network traffic management.

Centralized Control with Aruba OS-CX

Operating on the robust ArubaOS-CX platform, the switch benefits from a cloud-native microservices architecture that offers centralized management, deep telemetry, and network-wide automation capabilities. This simplifies operations and accelerates troubleshooting.

Enhanced Routing Capabilities

The Layer 3 capabilities of the switch support dynamic routing, equal-cost multi-path (ECMP), and policy-based routing (PBR), giving network administrators advanced tools to manage and optimize traffic patterns efficiently across enterprise networks.

PoE+ Support for Powered Devices

The Aruba 6410 V2 supports Power over Ethernet Plus (PoE+), which provides up to 30 watts per port. This allows seamless integration of powered devices such as wireless access points, IP phones, surveillance cameras, and more without requiring additional power infrastructure.

Efficient Power Delivery

Even though the switch chassis ships without power supplies, it allows flexible power configuration through separately ordered redundant power supply units. This design offers options for N+1 redundancy and load sharing, ensuring uninterrupted power delivery to all connected PoE+ devices.

Ideal for Smart Building and IoT Deployments

With PoE+ capabilities, the switch becomes an enabler of smart buildings and Internet of Things (IoT) applications. Enterprises can deploy sensors, cameras, and access control systems with simplified cabling and reduced deployment complexity.

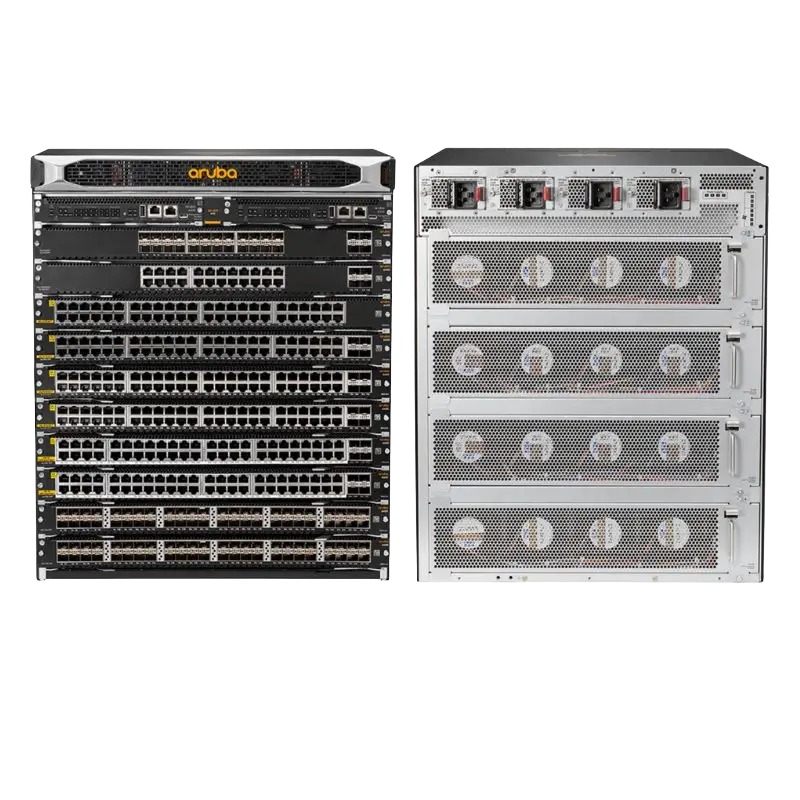

Rack-Mountable Design for Data Center and Enterprise Deployments

The R0X27C switch is rack-mountable, making it a perfect fit for data centers, server rooms, and structured cabling environments. Its 19-inch rack compatibility ensures seamless integration with standard network cabinets and enclosures.

Space-Efficient and Serviceable

The chassis is engineered for both density and serviceability, with front-facing ports and hot-swappable modules that make installation and maintenance convenient. Its modular power and fan assemblies contribute to ease of servicing without needing to power down the switch.

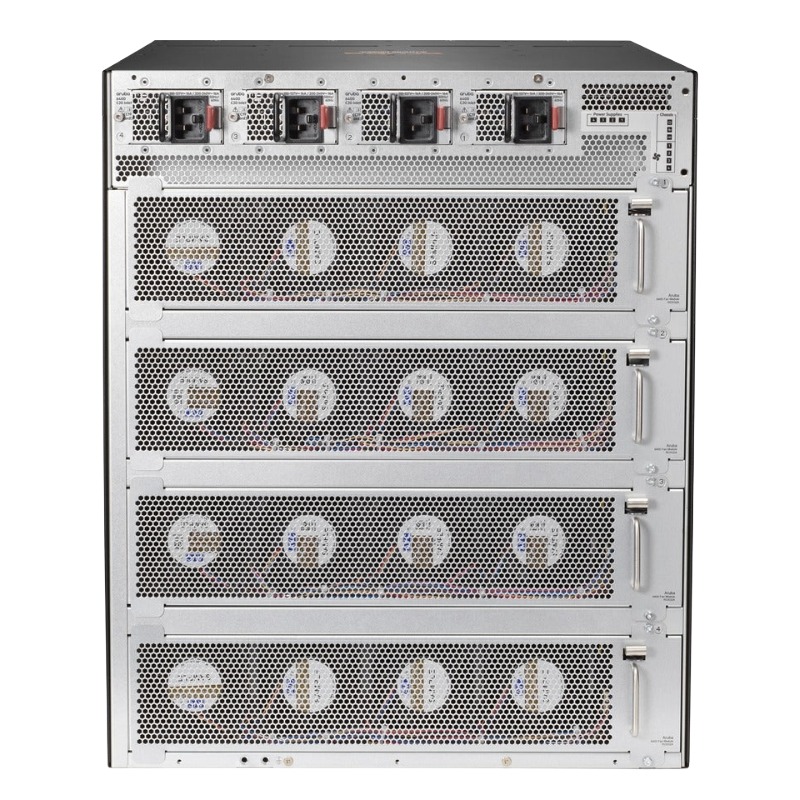

Cooling and Thermal Management

Designed with efficient airflow, the Aruba 6410 V2 switch supports front-to-back and back-to-front cooling depending on the deployment configuration. It uses intelligent fan control to maintain optimal operating temperature and extend hardware life.

Security, Compliance, and Management

Enterprise-grade security is built into the core of the Aruba 6410 V2 switch. It includes role-based access control (RBAC), Secure Shell (SSH), SNMPv3, and integration with AAA services like RADIUS and TACACS+. These features ensure controlled administrative access and secure data transmission.

Advanced Monitoring and Analytics

With support for Aruba NetEdit, Aruba Central, and CLI-based management, network administrators can easily monitor traffic patterns, set alerts, and conduct deep diagnostics. Real-time visibility into performance metrics reduces downtime and improves user experience.

Support for Automation and APIs

Built-in REST APIs and Python scripting support allow for powerful automation workflows. This facilitates zero-touch provisioning and configuration-as-code, reducing manual errors and deployment times in dynamic network environments.

Environmentally Conscious and Energy Efficient

Designed with energy efficiency in mind, the Aruba 6410 V2 switch supports dynamic power scaling, advanced chipset optimization, and intelligent port activation. These features contribute to reduced operational costs and help meet green IT objectives.

Energy Efficient Ethernet (EEE) Support

By leveraging EEE standards, the switch dynamically adjusts power consumption based on network load, leading to significant energy savings over time. This makes it an ideal option for organizations looking to reduce their environmental footprint.

RoHS and Environmental Compliance

The R0X27C meets stringent RoHS and WEEE compliance regulations, confirming that it’s manufactured with reduced hazardous substances and designed for responsible end-of-life recycling.

Flexible Deployment and Expansion Options

Whether deployed as a standalone core switch or as part of a larger switching fabric, the Aruba 6410 V2 offers flexible deployment models that cater to enterprise campus, data center, and distributed office architectures.

Chassis-Based Investment Protection

Its modular chassis design allows organizations to grow their network by simply adding more line cards or upgrading existing ones. This protects initial investments while ensuring adaptability to future growth without full system replacement.

Power Supply Options (Ordered Separately)

To ensure full flexibility, power supplies are sold separately. This gives organizations the freedom to select AC, DC, or redundant power configurations based on their specific deployment environments and reliability requirements.
