HPE Aruba R8N86A Networking CX 6000 48G 4SFP Switch

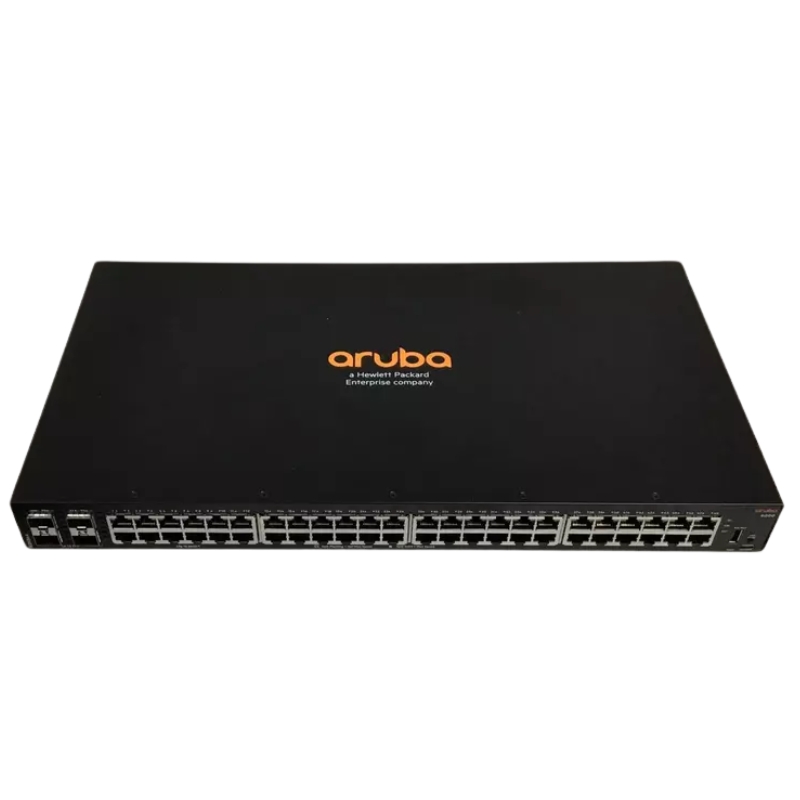

HPE R8N86A Aruba 6000 48G 4SFP Switch

Overview

The HPE R8N86A Aruba 6000 Series Switch is an advanced networking device designed for high-performance and reliability in enterprise and data center environments. This fully managed, stackable switch offers a range of features and specifications that make it an ideal choice for organizations requiring robust networking solutions. The switch provides extensive port options, high throughput, and advanced management capabilities, ensuring optimal network performance and flexibility.

Key Features

Device Specifications

The HPE R8N86A switch is engineered to deliver exceptional performance and versatility:

• Device Type: Switch - 48 Ports - L3 - Managed - Stackable. This configuration highlights the switch's capabilities as a Layer 3 device, which includes advanced routing features, and its ability to be managed and stacked for expanded network capacity.
• Enclosure Type: Side-To-Side Airflow, Rack-Mountable 1U. The switch's design features side-to-side airflow to ensure effective cooling, and its 1U height allows for easy rack mounting, making it suitable for data centers and network closets.
• Subtype: Gigabit Ethernet. The switch supports Gigabit Ethernet, providing high-speed connectivity essential for modern network demands.

Port Configuration and Connectivity

The switch offers a comprehensive set of ports and connectivity options:

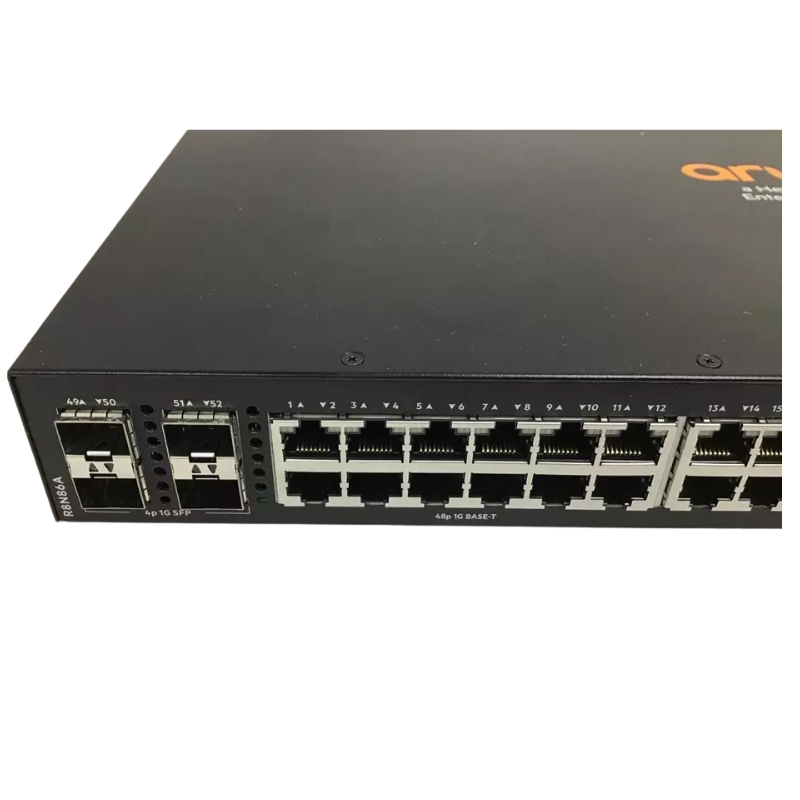

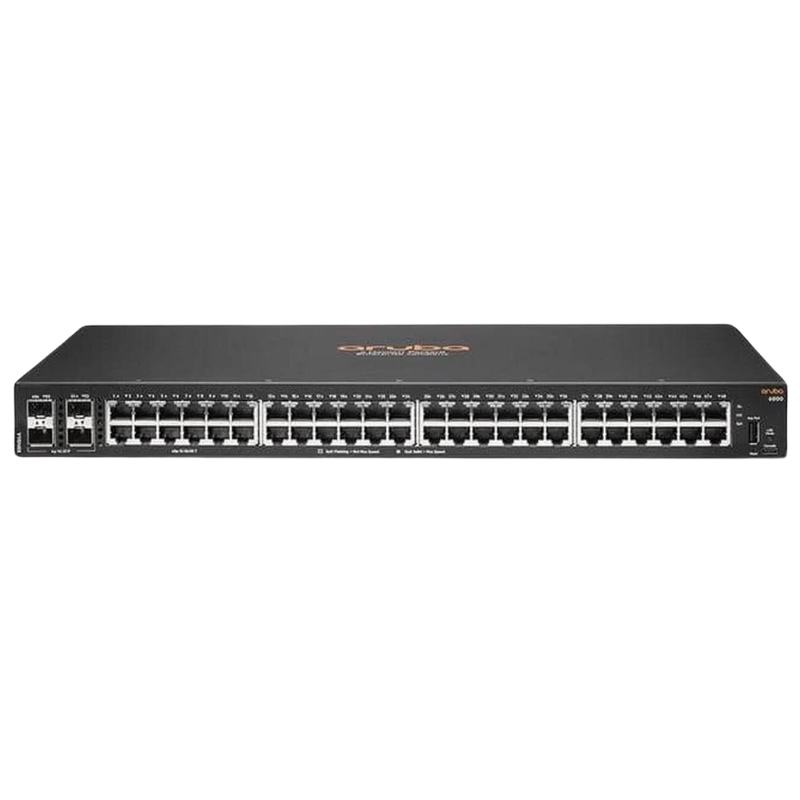

• Ports: 48 x 10/100/1000 + 4 x Gigabit SFP. The switch includes 48 Ethernet ports that support speeds up to 1 Gbps, with Power over Ethernet (PoE) capabilities. Additionally, it features 4 Gigabit SFP ports for flexible uplink and expansion options.
• Expansion and Connectivity Interfaces: The device includes 48 x 10/100/1000 Base-T RJ-45 ports, 4 x Gigabit LAN SFP ports, 1 x USB Type-A port, and 1 x USB-C console port. These interfaces provide extensive connectivity and management options, facilitating integration with various network setups.

Performance Metrics

The HPE R8N86A is engineered to deliver high performance across several key metrics:

• Packet Buffer Size: 12.38 MB. This sizable buffer helps manage network traffic efficiently, reducing packet loss and improving overall performance.
• Throughput: 77.3 Mpps (Million Packets per Second). High throughput allows the switch to handle a significant amount of network traffic, making it suitable for data-intensive applications.
• Switching Capacity: 104 Gbps. This capacity supports extensive data movement and ensures smooth operation in high-traffic environments.
• Latency (1 Gbps): 1.9 µs. Low latency ensures quick data transmission, which is critical for real-time applications and services.

Capacity and Scalability

The switch supports various network configurations and growth requirements:

• Switched Virtual Interfaces (SVIs): 16. SVIs allow for the creation of multiple VLANs, enhancing network segmentation and management.
• ARP Entries: 1024. The switch can manage a substantial number of ARP (Address Resolution Protocol) entries, supporting efficient network address resolution.
• IPv4 Routes (Unicast): 512. It supports up to 512 unicast routes for IPv4, facilitating complex routing setups.
• IPv6 Routes (Unicast): 512. Similarly, it supports up to 512 unicast routes for IPv6, ensuring compatibility with modern network requirements.
• IGMP Groups: 512. The switch supports multicast group management with up to 512 IGMP (Internet Group Management Protocol) groups.
• MLD Groups: 512. Supports up to 512 MLD (Multicast Listener Discovery) groups for IPv6 multicast traffic management.
• IPv4 ACL Entries (Ingress): 256. Provides advanced security and traffic management through IPv4 ACLs (Access Control Lists).
• IPv6 ACL Entries (Ingress): 128. Supports IPv6 ACLs for enhanced security and traffic control.
• MAC ACL Entries (Ingress): 256. Allows for detailed traffic control based on MAC addresses.

MAC Address Table and Frame Support

The HPE R8N86A efficiently manages MAC address entries and large frame sizes:

• MAC Address Table Size: 8192 Entries. Accommodates a large number of MAC addresses, supporting extensive network devices.
• Jumbo Frame Support: 9198 Bytes. Enables the handling of larger packets, reducing overhead and improving performance for large data transfers.

Routing Protocols

Supports essential routing protocols for efficient network management:

• IGMPv2, IGMP, IGMPv3: Supports multiple versions of IGMP for effective multicast traffic management and group membership handling.

Remote Management and Security

The switch offers advanced remote management and security features to streamline administration and protect network integrity:

• Remote Management Protocols: Includes SNMP (Simple Network Management Protocol) versions 1, 2c, and 3, RMON (Remote Monitoring) versions 1, 2, 3, and 9, HTTP, CLI (Command Line Interface), ICMP (Internet Control Message Protocol), DHCP (Dynamic Host Configuration Protocol), and RADIUS. These protocols provide extensive options for managing and monitoring the switch.
• Encryption Algorithm: SSL (Secure Sockets Layer) for secure communication.
• Authentication Methods: Includes Secure Shell (SSH), RADIUS, TACACS+ (Terminal Access Controller Access-Control System Plus), and SSH version 2 for secure access and authentication.

Advanced Features

The switch includes a range of features to enhance network functionality and performance:

• Flow Control: Manages data flow to prevent network congestion.
• BOOTP and ARP Support: Facilitates network booting and address resolution.
• VLAN and Diffserv Support: Supports virtual LANs and differentiated services for improved network segmentation and quality of service.
• IPv6 Support: Ensures compatibility with IPv6 addressing and future network requirements.
• SNTP Support: Provides network time synchronization.
• sFlow: Enables network traffic monitoring and analysis.
• Multiple Spanning Tree Protocol (MSTP) Support: Enhances network redundancy and stability.
• Trivial File Transfer Protocol (TFTP) Support: Facilitates file transfers for network management.
• Access Control List (ACL) Support: Allows for granular control over network traffic based on defined policies.
• MLD Snooping: Enhances multicast traffic management for IPv6 networks.
• Trusted Platform Module (TPM): Provides hardware-based security features.
• LACP and LLDP Support: Facilitates link aggregation and device discovery.
• DHCP Client: Simplifies IP address assignment through dynamic configuration.
• Management Information Base (MIB): Supports detailed monitoring and management.
• Neighbor Discovery Protocol (NDP): Assists in discovering neighboring network devices.
• ICMP, DNS Client, LLDP-MED, UDP Support: Supports various protocols and services for comprehensive network management.
• Rapid Spanning Tree Protocol (RSTP): Improves network stability and convergence time.
• IPv6 Addressing: Supports IPv6 addressing for modern network needs.
• Any Source Multicast (ASM): Facilitates multicast traffic distribution.

Compliant Standards

The switch adheres to several industry standards to ensure compatibility and performance:

• IEEE 802.3: Ethernet standards.
• IEEE 802.1d: Spanning Tree Protocol.
• IEEE 802.1q: VLAN tagging.
• IEEE 802.3ab: Gigabit Ethernet over twisted pair.
• IEEE 802.1p: Priority tagging.
• IEEE 802.3x: Flow control.
• IEEE 802.3ad (LACP): Link Aggregation Control Protocol.
• IEEE 802.1w: Rapid Spanning Tree Protocol.
• IEEE 802.1s: Multiple Spanning Tree Protocol.
• IEEE 802.3at: Power over Ethernet (PoE) enhancements.
• IEEE 802.3az: Energy-efficient Ethernet.

Power Specifications

Power management details for efficient operation:

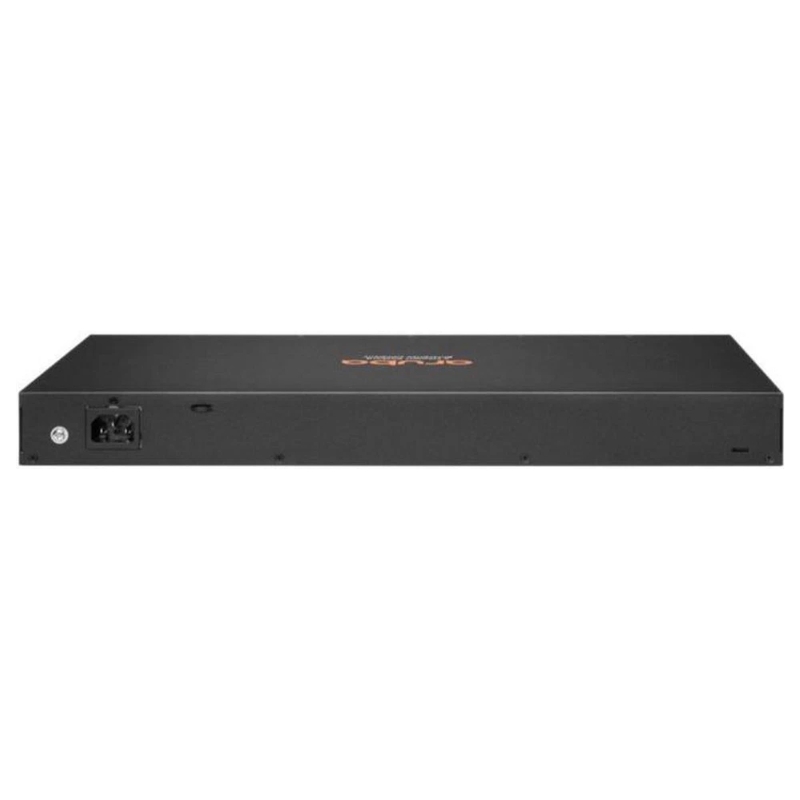

• Power Device: Internal Power Supply.
• Voltage Required: AC 100 - 127 V / 200 - 240 V (50/60 Hz).
• Power Consumption Operational: 44.2 Watts. This efficient power usage ensures low operational costs and reduced environmental impact.

Memory and Processing

The switch includes robust memory and processing capabilities to handle complex networking tasks:

• Processor: 1 x ARM A9, 1.016 GHz. Provides the processing power needed for high-performance networking operations.
• RAM: 4 GB DDR3 SDRAM. Sufficient memory for efficient data handling and management.
• Flash Memory: 16 GB. Offers ample storage for operating system, configurations, and firmware.
