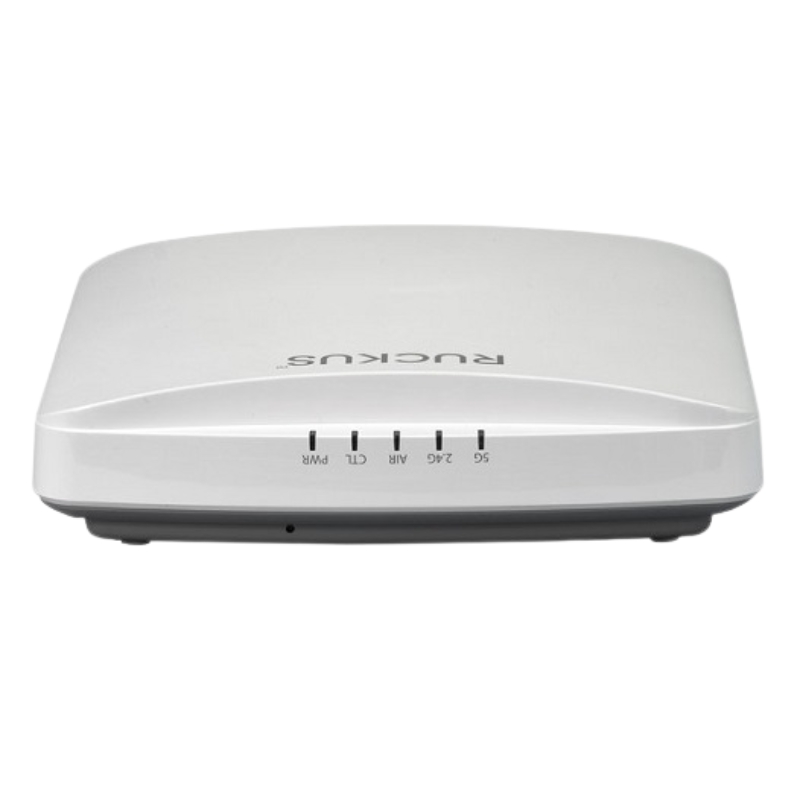

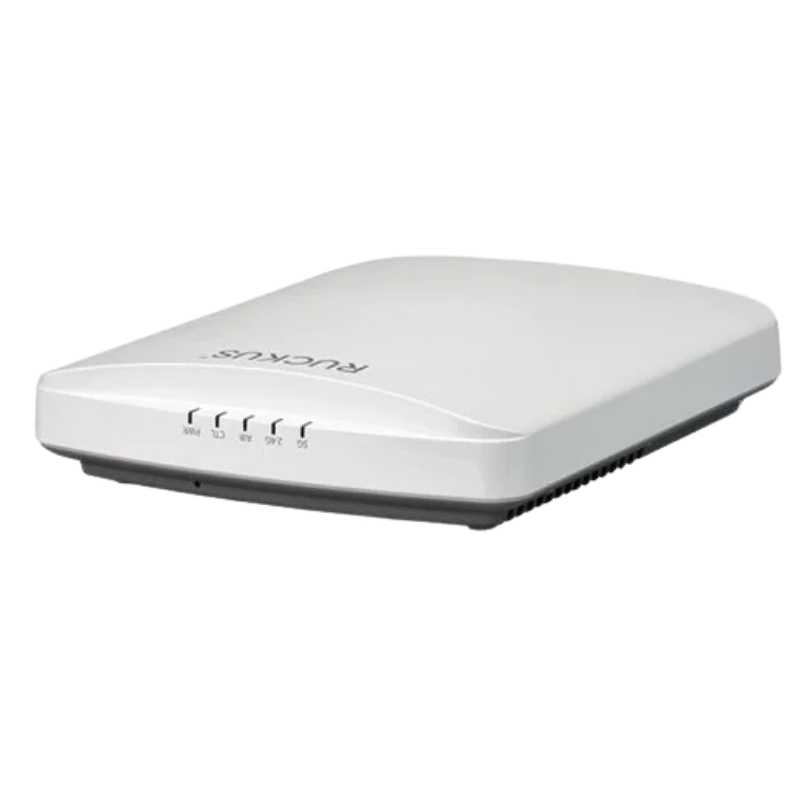

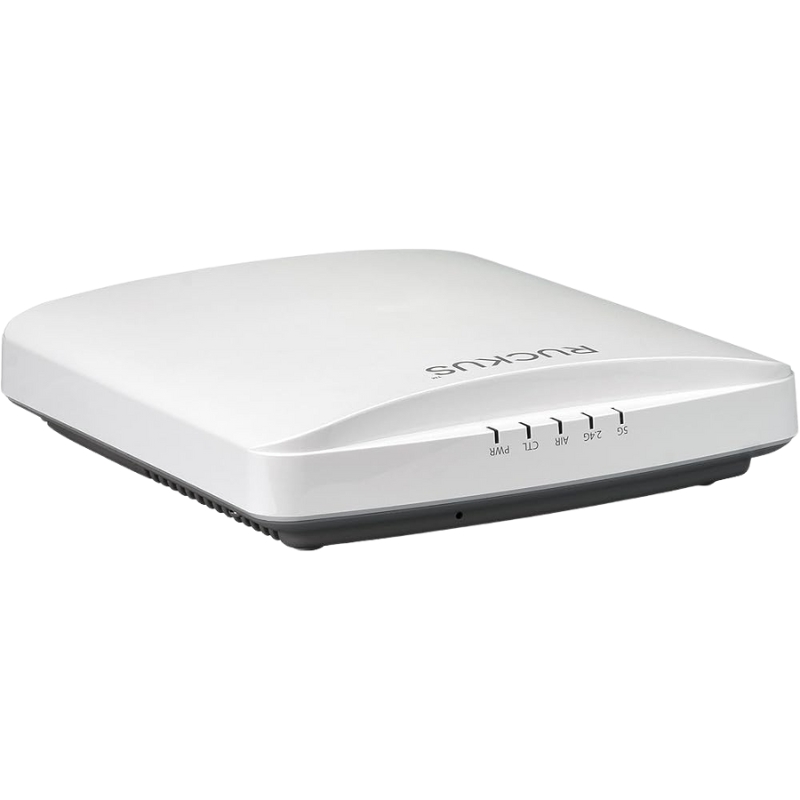

901-R650-WW00 Ruckus Zoneflex R650 2.5 Gigabit Ethernet Wall Mountable Wireless Access Point

Deep Dive into the Ruckus R650 802.11ax Access Point

The Ruckus 901-R650-WW00 R650 is more than just an access point; it is a sophisticated network appliance designed to optimize the wireless experience for every connected device. It leverages the latest Wi-Fi 6 standard to provide increased data throughput, superior capacity in device-dense areas, and improved power efficiency. This model is a testament to Ruckus's commitment to innovative RF technology and network intelligence, setting a high bar for what organizations should expect from their wireless LAN infrastructure.

Core Specifications and Hardware Architecture

At its heart, the R650 is built with a powerful multi-core processor and advanced radio technology to manage network traffic efficiently and intelligently.

Wireless Standards and Data Rates

The R650 is a dual-radio, dual-concurrent 4x4:4 Wi-Fi 6 access point. It supports the 802.11a/b/g/n/ac/ax standards, ensuring backward compatibility with all existing Wi-Fi clients while fully harnessing the benefits of Wi-Fi 6 with new devices. It boasts a staggering aggregate peak data rate of up to 2.50 Gbit/s (2.5 Gbps). This is achieved through a combination of advanced Wi-Fi 6 technologies including 1024-QAM modulation, which packs more data into each transmission, and OFDMA (Orthogonal Frequency Division Multiple Access), which allows the AP to serve multiple clients simultaneously within a single channel. The 2.4 GHz radio delivers up to 1.147 Gbps, while the 5 GHz radio delivers up to 2.4 Gbps, providing ample bandwidth for applications like 4K/8K video streaming, large file transfers, and latency-sensitive VoIP and video conferencing.

MIMO and BeamFlex+ Adaptive Antenna Technology

The R650 features 4x4:4 MIMO (Multi-User, Multiple Input, Multiple Output) technology in both frequency bands. This means it has four spatial streams for transmitting and receiving data, dramatically increasing capacity and reliability. However, the true differentiator is Ruckus's patented BeamFlex+ technology. Unlike standard static antennas, BeamFlex+ employs an array of antenna patterns that can be dynamically selected and optimized in real-time for each individual client device. This adaptive antenna system maximizes signal strength, improves signal-to-noise ratio, extends client range, and minimizes interference from other devices or neighboring networks, resulting in a consistently stronger and more reliable connection for every user.

Wired Connectivity and Power Options

To support its high wireless throughput, the R650 is equipped with versatile and high-speed wired uplinks.

Ethernet Ports and Uplink Capabilities

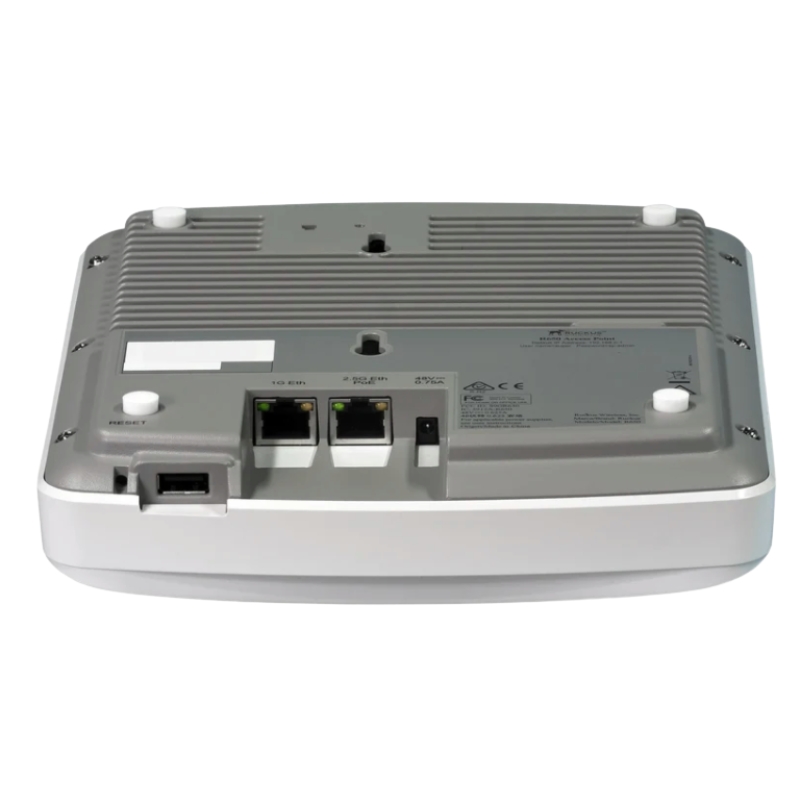

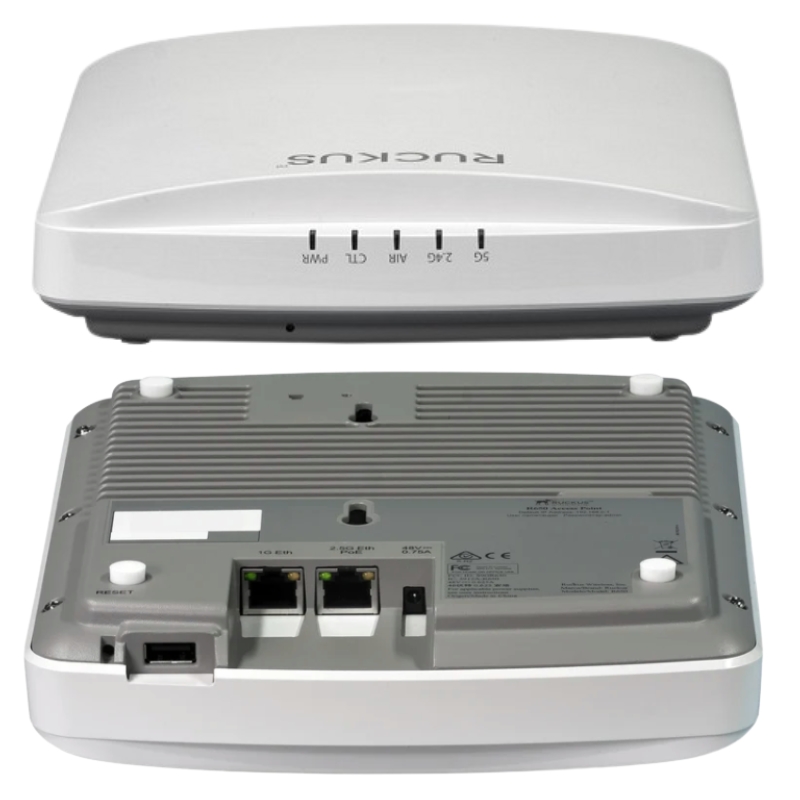

The access point features two auto-sensing RJ-45 network ports. The primary port is a multi-gigabit 2.5 Gigabit Ethernet port, which provides the necessary backhaul capacity to handle the combined maximum wireless traffic without becoming a bottleneck. This ensures that the full wireless performance can be utilized. The secondary port is a standard Gigabit Ethernet port, which can be used for connecting an additional device, such as a VoIP phone or a security camera, or can be configured for link aggregation or as a failover uplink. Both ports support IEEE 802.3at/af Power over Ethernet (PoE), providing flexible deployment options.

Power Consumption and PoE Requirements

The 901-R650-WW00 R650 has a maximum power consumption of 21.59 Watts. It is fully compliant with IEEE 802.3at (PoE+) specification, which delivers up to 30W over Ethernet. This means it can be powered directly from a compatible PoE+ switch or midspan injector, simplifying installation by eliminating the need for a separate power outlet at the mounting location. The efficient design ensures optimal performance while staying within the common power budget of modern PoE+ infrastructure.

Advanced Wi-Fi 6 Features for Modern Networks

The R650 implements the full suite of Wi-Fi 6 enhancements designed to improve efficiency and performance in congested environments.

OFDMA and MU-MIMO Efficiency

OFDMA allows the R650 to divide a wireless channel into smaller sub-channels (resource units), enabling it to communicate with multiple clients at the same time, even for small data packets. This drastically reduces latency and improves average throughput per user in high-density scenarios. Combined with UL/DL MU-MIMO, which allows the AP to transmit or receive data with multiple clients simultaneously using its multiple antennas, the R650 efficiently serves a large number of concurrent devices, such as in a lecture hall or an open-plan office.

Target Wake Time (TWT) for IoT

For battery-powered Internet of Things (IoT) devices like sensors, badges, and handheld scanners, the R650 supports Target Wake Time (TWT). This feature allows the access point to schedule specific wake-up times for IoT clients, enabling them to enter a deep sleep state for extended periods. This can reduce power consumption on client devices by up to 80%, significantly extending battery life and simplifying IoT deployments and maintenance.

Deployment and Management Flexibility

The R650 is designed for versatile installation and can be managed through Ruckus's industry-leading software platforms.

Network Management and Control Options

The R650 can operate as a standalone (Autonomous) access point, but its full potential is unlocked when managed by a Ruckus controller or through cloud-based management.

SmartZone and Unleashed Management

For large-scale deployments, the R650 can be managed by Ruckus SmartZone network controllers. For mid-sized and distributed deployments without a dedicated controller, the Ruckus Unleashed software is an ideal fit. Unleashed is a self-organizing, virtual controller software that runs on a master Ruckus AP (like the R650 itself), automatically managing a network of up to 128 access points with zero-touch provisioning and advanced features like Smart Meshing, all without any additional licensing fees.

Ruckus Cloud and Analytics

For the ultimate in simplified, cloud-native management, the R650 is fully compatible with Ruckus Cloud. This SaaS platform offers secure, intuitive management of distributed networks from a single web-based dashboard accessible from anywhere.

Security and Reliability Features

Enterprise security is integrated into the design of the R650, protecting both the network infrastructure and the data traversing it.

Integrated Network Security

The R650 901-R650-WW00 supports the latest WPA3 security protocol, offering enhanced cryptographic strength for personal and enterprise networks. It also supports WPA2 for legacy compatibility. For secure employee and guest access, it features built-in support for hotspots, captive web portals, and seamless integration with external RADIUS servers for 802.1X authentication. Its sealed design also includes physical security features like a Kensington lock slot to prevent theft.

ChannelFly and Adaptive RF Management

Ruckus's ChannelFly is an intelligent channel selection technology that uses machine learning to continuously assess the performance of all available channels in real-time. Instead of just selecting the "cleanest" channel based on interference, ChannelFly actively tests and chooses the channel that will provide the highest actual throughput for clients. This dynamic optimization, combined with adaptive power control, ensures the R650 delivers maximum performance and reliability even in the most challenging RF environments.

Ideal Use Cases and Application Scenarios

The R650's blend of high capacity, intelligent RF, and robust management makes it suitable for a wide range of demanding environments.

High-Density

In universities and large offices, the R650 can handle hundreds of simultaneous connections from laptops, tablets, and phones. OFDMA efficiently manages the traffic from collaborative apps, video lectures, and online testing, while BeamFlex+ ensures strong signals throughout classrooms and auditoriums, even at the edge of coverage areas.
