901-R670-XX00 Ruckus R670 9.3GBPS Max Rate Indoor Wireless Access Point

Understanding of Ruckus 901-R670-XX00 Wireless Access Point

The Ruckus 901-R670-XX00 R670 represents a monumental leap in enterprise wireless connectivity, engineered to harness the full potential of Wi-Fi 7 technology. As a 2x2:2 indoor access point, it delivers a staggering maximum PHY rate of up to 9.3 Gbps, setting a new benchmark for performance, capacity, and reliability in demanding network environments. This AP is not merely an upgrade; it is a foundational infrastructure component designed to support next-generation applications, hyper-dense client deployments, and latency-sensitive services for years to come.

Core Specifications

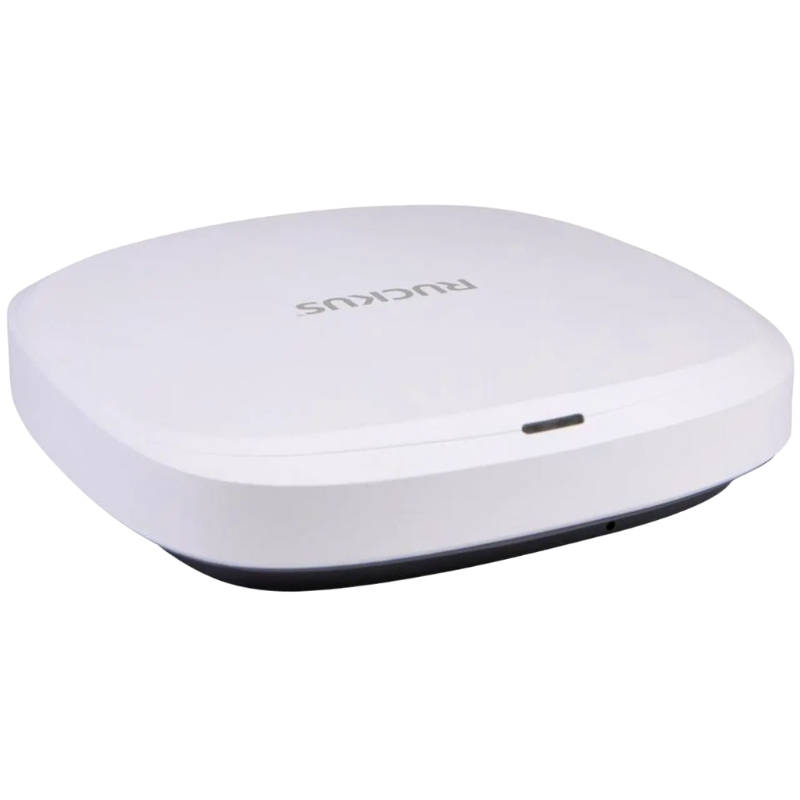

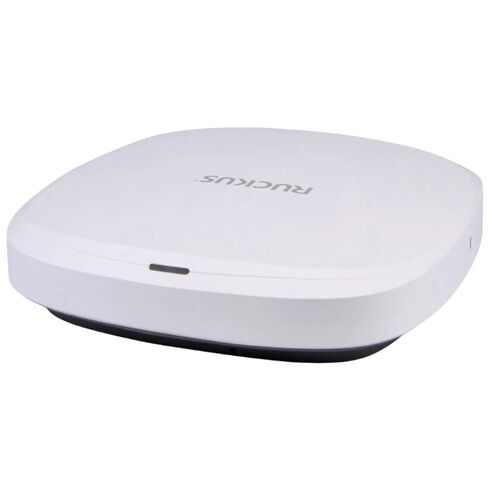

The Ruckus 901-R670-XX00 R670 features a sleek, low-profile physical design optimized for discreet ceiling or wall mounting in offices, classrooms, hospitals, and hospitality venues. Its internal, high-gain, directional antenna array is a hallmark of Ruckus engineering, focusing RF energy towards clients for better signal integrity and reduced interference.

Core Hardware Components

At its heart, the R670 is powered by a multi-core network processor optimized for handling the data plane and control plane complexities of Wi-Fi 7. It is equipped with dedicated radios for each of the three frequency bands, ensuring non-blocking performance.

Processing and Memory

A high-performance system-on-chip (SoC) couples with ample flash memory and RAM to manage thousands of client connections, advanced security encryption, and traffic shaping without bottlenecks.

Radio Composition

The AP features three discrete radios: one for the 2.4 GHz band (supporting 802.11ax/be), one for the 5 GHz band, and a dedicated third radio for the new 6 GHz spectrum. This discrete design prevents inter-band contention and allows for simultaneous, high-throughput operation across all bands.

Power and Connectivity Interfaces

The R670 offers flexible deployment options with multiple power and uplink choices. A standard 2.5 Gigabit Ethernet port with PoE++ (802.3bt) support provides both high-speed uplink and power over a single cable. A secondary 1 GbE port can be used for daisy-chaining another AP or for network segmentation. Local power via a DC adapter is also supported.

Key Specifications at a Glance

A detailed overview of the Ruckus R670's key technical parameters.

Wireless Standards

Compliant with IEEE 802.11be (Wi-Fi 7), 802.11ax (Wi-Fi 6E), and backward compatible with earlier a/b/g/n/ac standards. It carries necessary regional certifications (FCC, CE, etc.) for operation.

Radio Specifications per Band

2.4 GHz Band: 2x2 MIMO, up to 688 Mbps with 802.11be, support for 20/40 MHz channels.
5 GHz Band: 2x2 MIMO, up to 2882 Mbps, support for 20/40/80/160 MHz channels.
6 GHz Band: 2x2 MIMO, up to 5765 Mbps, support for 20/40/80/160/320 MHz channels (subject to regional availability).

Maximum Aggregate Data Rate

The combined theoretical maximum PHY rate across all three bands is 9.3 Gbps (688 Mbps + 2882 Mbps + 5765 Mbps).

Wired Connectivity

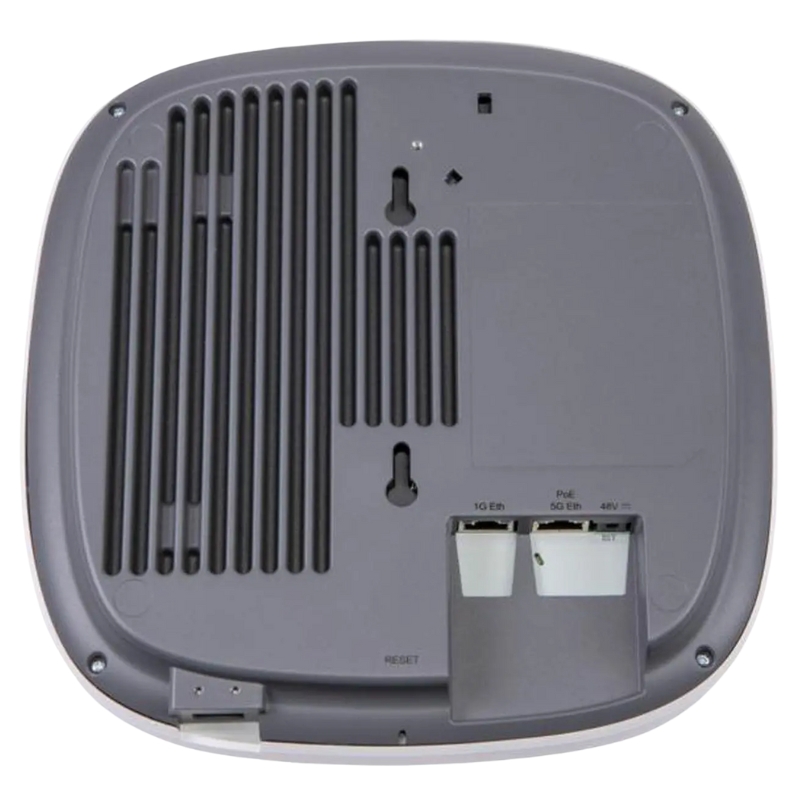

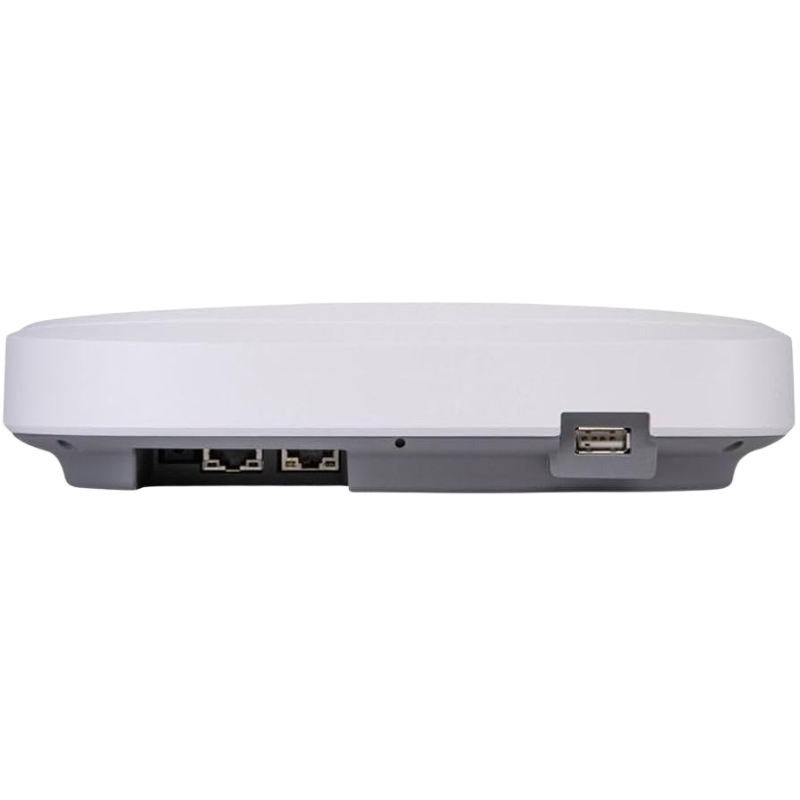

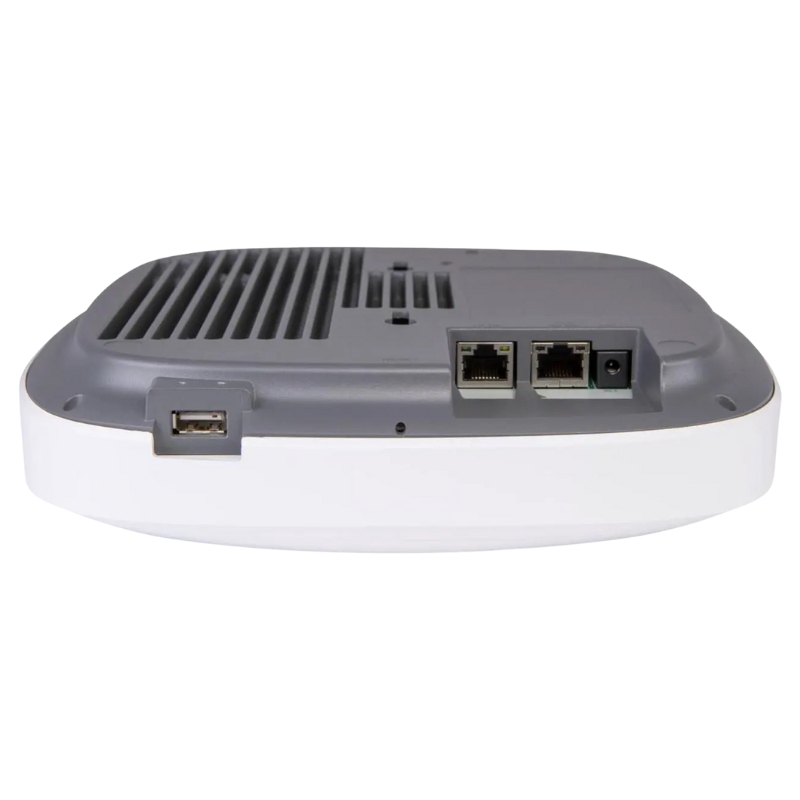

One (1) 2.5GbE Multi-Gigabit Ethernet port with 802.3bt PoE++ input. One (1) 1GbE Ethernet port with 802.3af/at PoE passthrough capability. USB 3.0 port for ancillary connectivity.

Powering Options

802.3bt PoE++ (recommended), 802.3at PoE+ (with reduced feature set), or local 12V/3A DC power adapter.

Mounting and Environmental

Designed for indoor operation with standard ceiling T-bar and wall mount options. Operating temperature range of 0°C to 40°C (32°F to 104°F).

Wi-Fi 7 Technological Breakthroughs

The R670 is more than an iteration; it's a leap forward, incorporating the full suite of IEEE 802.11be amendments to redefine wireless capability.

320 MHz Channel Bandwidth in 6 GHz

Within the 6 GHz band, the R670 can utilize ultra-wide 320 MHz channels. This effectively doubles the highway width compared to the widest Wi-Fi 6E channel, enabling monumental data throughput and reducing channel bonding complexity for simpler, cleaner spectrum utilization where available.

Impact on Throughput and Efficiency

The use of 320 MHz channels directly contributes to the maximum 9.3 Gbps link rate. It allows more data to be transmitted in a single cyclic prefix, drastically improving spectral efficiency and reducing overhead for latency-sensitive traffic.

4K QAM (Quadrature Amplitude Modulation)

THE Ruckus 901-R670-XX00 R670 implements 4096-QAM, a higher-order modulation technique. When client devices are in close proximity to the AP with excellent signal conditions, 4K QAM packs 20% more data into each transmitted symbol compared to the 1024-QAM of Wi-Fi 6, pushing the limits of peak data rates.

Multi-Link Operation (MLO)

This is a cornerstone of Wi-Fi 7's reliability and latency reduction. The R670 can establish multiple concurrent links with a compatible client across different frequency bands (e.g., 5 GHz and 6 GHz).

Load Balancing and Aggregation

MLO can balance traffic across links for optimal load distribution, preventing congestion on a single band.

Seamless Redundancy and Lower Latency

If one link experiences interference, traffic is instantly switched to another with no disconnection, crucial for real-time applications like gaming and video calls. It also enables packet duplication for ultra-reliable links, minimizing jitter.

Ruckus-Enhanced Performance

Beyond standard Wi-Fi 7 protocols, the R670 integrates unique Ruckus technologies that differentiate it in the enterprise market.

Ruckus BeamFlex+ Adaptive Antenna Technology

This patented technology features a dynamic antenna array that shapes signal patterns in real-time for each individual client device, rather than broadcasting omnidirectionally. This focuses energy, improves gain, mitigates interference, and extends effective range.

ChannelFly Dynamic Bandwidth Management

An intelligent predictive channel management system, ChannelFly automatically and continuously assesses the performance of all available channels, selecting the one that will provide the highest actual throughput—not just the cleanest—based on real-world conditions.

Unleashed Network

The R670 is typically deployed with the Ruckus Unleashed OS—a controller-less, distributed network management system. One AP acts as the virtual controller, providing a unified management interface for the entire network without the cost or complexity of a physical appliance.

Zero-Touch Provisioning and Scalability

New APs are automatically discovered and configured, scaling seamlessly to support hundreds of access points from a single intuitive interface.

Integrated Security and IoT Readiness

Unleashed includes WPA3-Enterprise encryption, a built-in firewall, and VLAN support. It also provides IoT device visibility and can create separate, secure SSIDs for IoT networks.

High-Density

In modern open-plan offices with hundreds of connected devices per square foot, the R670's high client count, MLO for reliable roaming, and BeamFlex+ to minimize device-to-device interference ensure consistent performance for video conferencing, large file transfers, and cloud applications.
