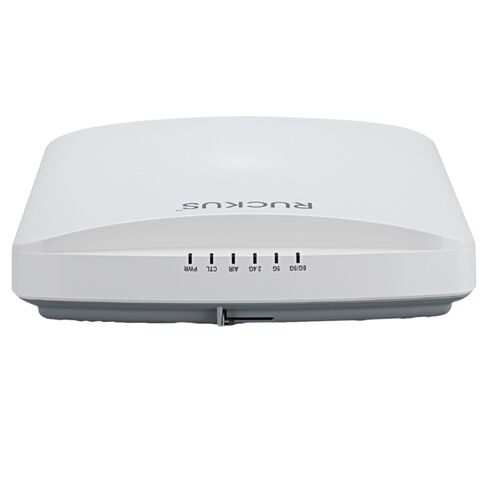

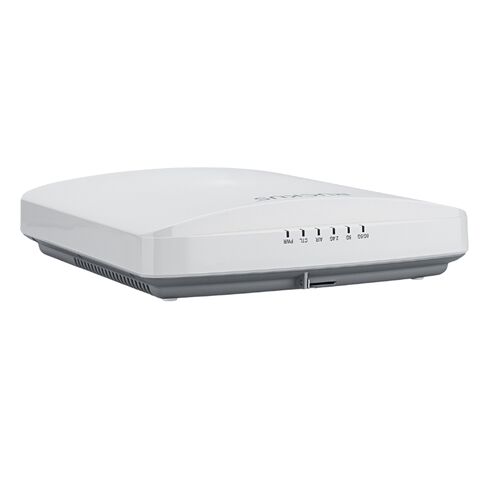

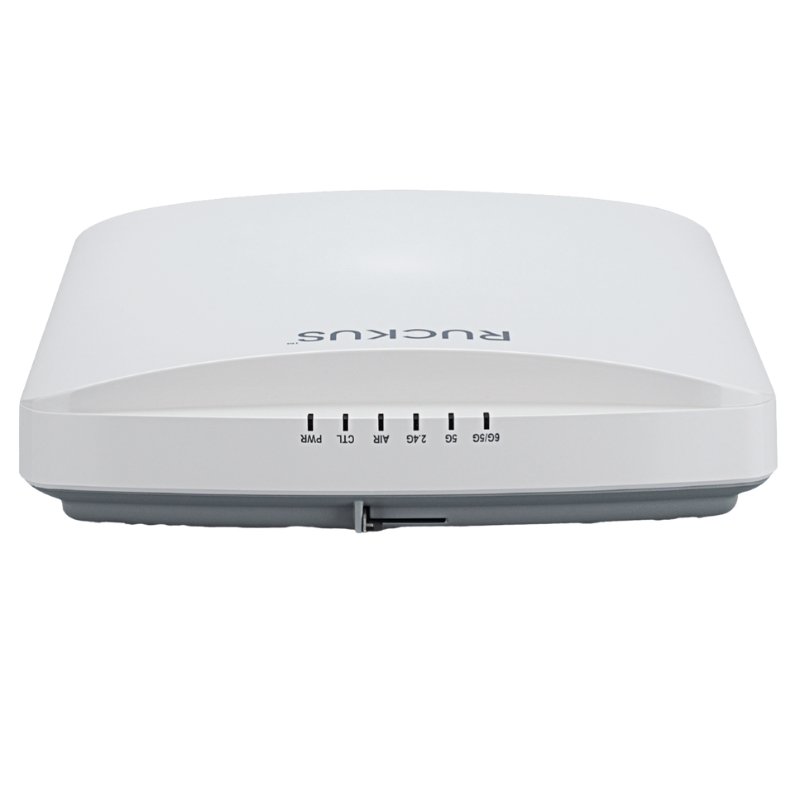

901-R760-US00 Ruckus R760 Wi-Fi 6GHz 3.35GBPS Indoor Wireless Access Point

Understanding of Ruckus 901-R760-US00 Wireless Access Point

The Ruckus 901-R760-US00 R760 represents a transformative leap in enterprise wireless connectivity. As a premier Indoor Wireless Access Point (AP) supporting the revolutionary 6GHz spectrum via Wi-Fi 6E, it is engineered to deliver unprecedented capacity, speed, and reliability. This AP is designed for high-density, mission-critical environments where consistent, low-latency performance is non-negotiable. It is the cornerstone for modern networks supporting advanced applications like AR/VR, 4K/8K video streaming, real-time collaboration, and IoT convergence.

Unleashing the Power of Wi-Fi 6E with Tri-Band Architecture

The R760’s core innovation lies in its support for Wi-Fi 6E, which extends the capabilities of Wi-Fi 6 into the newly opened 6GHz band. This creates a clean, uncongested spectrum highway alongside the traditional 2.4GHz and 5GHz bands.

Tri-Band Radio

The AP features a sophisticated tri-band radio design: one 2.4GHz radio (4x4:4), one 5GHz radio (4x4:4 with 160MHz channel support), and one groundbreaking 6GHz radio (4x4:4 with 160MHz channel support). This allows the R760 to concurrently operate across all three bands, maximizing network flexibility and client distribution.

2.4GHz Band: For Legacy and IoT Connectivity

The 2.4GHz radio provides robust coverage and backward compatibility for a wide range of legacy client devices and IoT sensors. Utilizing 802.11ax (Wi-Fi 6) protocols, it efficiently manages the often congested 2.4GHz spectrum, improving performance for devices that rely on this band.

5GHz Band: High-Performance Mainstay

The 5GHz radio delivers high-speed connectivity with support for 160MHz channels, enabling multi-gigabit throughput to compatible Wi-Fi 6 and Wi-Fi 5 clients. This band remains essential for current high-performance applications and devices not yet equipped for 6GHz.

6GHz Band: The Future of Wi-Fi

The 6GHz radio is the centerpiece of the R760. It offers up to 1.2GHz of additional spectrum, effectively quadrupling the available airwaves. This band is free from interference from older Wi-Fi standards and many common household devices. With seven contiguous 160MHz channels available, the R760 can provide sustained multi-gigabit speeds and ultra-low latency, creating an experience akin to wired Ethernet.

Key Specifications Summary

Wireless Specifications

Wi-Fi Standards: 802.11a/b/g/n/ac/ax (Wi-Fi 4, 5, 6, 6E). Concurrent Tri-Band Radio: 2.4GHz (4x4:4), 5GHz (4x4:4), 6GHz (4x4:4). Maximum PHY Data Rate: 3.35 Gbps aggregate. Channels: Support for 20, 40, 80, 160MHz (5/6GHz). Advanced Features: OFDMA, UL/DL MU-MIMO, BSS Coloring, TWT.

Hardware Specifications

Networking Interface: One 2.5GbE Multi-Gigabit Ethernet port (802.3at PoE+ in), One Gigabit Ethernet service port. PoE: PoE+ (802.3at) required. Antennas: Internal, software-defined adaptive antennas with BeamFlex+ technology. IoT Radios: Integrated BLE 5.0 and Zigbee. Mounting: Ceiling or wall mount (hardware included).

Ruckus BeamFlex+ Adaptive Antenna Technology

Superior performance in dense deployments is not just about radio count; it's about intelligent RF management. The R760 incorporates Ruckus's patented BeamFlex+ adaptive antenna technology, a key differentiator in the market.

BeamFlex+ Technology Deep Dive

BeamFlex+ is a system of software-selectable antenna patterns. For each client device, the AP dynamically selects the optimal antenna pattern from thousands of possibilities in real-time. This focuses signal energy directly at the client, extending range, improving signal-to-noise ratio (SNR), and reducing interference from neighboring devices or APs. This results in more consistent connections and higher effective throughput at the edge of the coverage area.

ChannelFly and SmartMesh Networking

The R760 901-R760-US00 features ChannelFly, an intelligent channel management system that uses machine learning to predict and select the highest throughput channel, not just the clearest one. Furthermore, it supports Ruckus SmartMesh Networking, allowing for wireless mesh uplinks in scenarios where running Ethernet cable is impractical. This mesh capability is self-forming, self-healing, and supports both the 5GHz and 6GHz bands for resilient backhaul.

Performance Specifications and Physical Design

The R760 is built to deliver on its performance promises with robust hardware specifications and a design suited for enterprise installation.

Throughput and Capacity

The AP boasts a staggering aggregate peak data rate of 3.35 Gbps. This is distributed across the bands: up to 1.15Gbps on 2.4GHz, up to 1.15Gbps on 5GHz, and up to 1.15Gbps on 6GHz. It is designed to handle a high density of concurrent clients, making it ideal for lecture halls, conference centers, packed stadiums, and large office floors.

Hardware and Connectivity

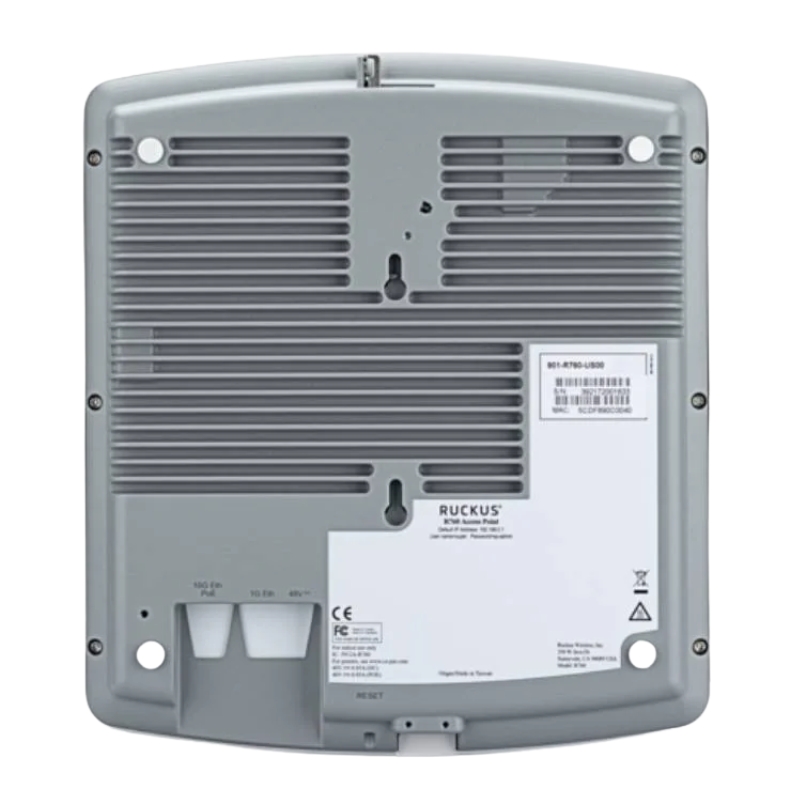

The R760 901-R760-US00 includes a 2.5GbE Multi-Gigabit Ethernet port with PoE+ (802.3at) input, ensuring the wired backhaul can support the full wireless capacity. It also features a dedicated service port for out-of-band management. The device is typically powered via Power over Ethernet (PoE+), simplifying installation. Its internal antenna design, optimized for BeamFlex+, provides a clean, aesthetic form factor suitable for ceiling or wall mounting in corporate, educational, and healthcare settings.

Security and IoT Readiness

Enterprise-grade security and scalable management are integral to the R760's design, preparing networks for future challenges.

Integrated Security Suite

The AP supports the latest WPA3 security protocols, including WPA3-Personal and WPA3-Enterprise with 192-bit encryption suite, providing robust protection for data in transit. It features integrated Firewall and RADIUS capabilities, and can segment traffic through multiple SSIDs and VLANs. Its support for Enhanced Open provides encryption even for open guest networks.

Management with Ruckus Unleashed and SmartZone

The R760 901-R760-US00 can be managed via multiple Ruckus platforms. For distributed deployments, Ruckus Unleashed provides a controller-less, virtualized system managed through a single AP. For large-scale, campus-wide deployments, it is fully compatible with Ruckus SmartZone network controllers, both physical and virtual, enabling centralized management of thousands of APs.

IoT Platform

Recognizing the growth of the Internet of Things, the R760 is equipped with Bluetooth Low Energy (BLE) 5.0 and Zigbee radios. This transforms the AP into a universal wireless gateway, capable of locating BLE tags, connecting to Zigbee sensors, and facilitating IoT onboarding and management without the need for separate, disparate IoT infrastructure.

Target Deployment Scenarios and Use Cases

The R760 is purpose-built for environments where wireless performance directly impacts operational success and user experience.

Ultra-High-Density Corporate and Educational Campuses

In modern open-plan offices and university lecture halls, hundreds of devices compete for airtime. The R760’s tri-band design, especially the pristine 6GHz spectrum, segregates high-performance clients from legacy ones, ensuring critical applications remain fast and responsive. BeamFlex+ technology optimizes coverage in challenging, reflective environments.

Healthcare and Clinical Environments

Hospitals rely on wireless for EHR systems, medical devices, and patient monitoring. The R760’s reliability, security, and IoT capabilities are crucial. The 6GHz band can be dedicated to low-latency medical data transmission, while the integrated BLE and Zigbee can support asset tracking, patient wearables, and environmental sensors.

Next-Generation Hospitality

Luxury hotels, convention centers, and stadiums require a premium guest experience. The R760 enables multi-gigabit internet access in hotel suites, supports high-bandwidth event streaming, and facilitates location-based services via its IoT radios. SmartMesh can simplify deployment in historic buildings where cabling is restricted.
