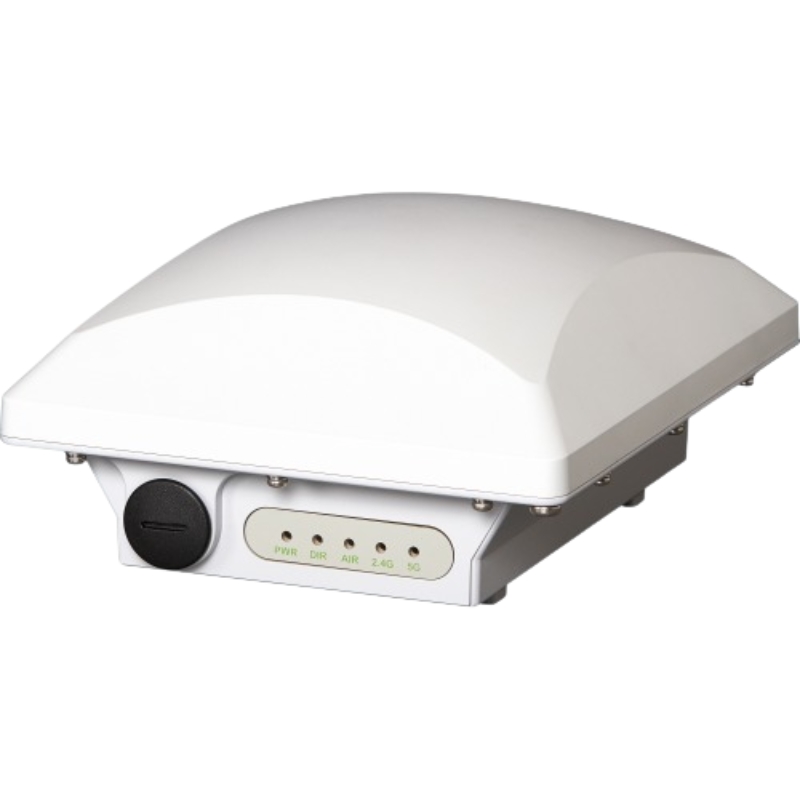

901-T301-US61 Ruckus ZoneFlex 1.17GBPS 5GHz Wall Mountable Wireless Access Point

Ruckus 901-T301-US61 5GHz Wireless Access Point

The Ruckus 901-T301-US61 ZoneFlex T301n represents a pinnacle in purpose-built, high-performance wireless access for environments demanding reliability, seamless coverage, and simplified management. Engineered specifically for wall and pole mounting, this 802.11ac Wave 2 access point delivers carrier-grade Wi-Fi to hotel rooms, dormitories, apartments, hospital rooms, and enterprise offices. Its sleek, low-profile design belies the powerful RF technology and robust feature set within, making it an ideal solution for both new installations and modernizations where aesthetics and performance must coexist.

Core Technology and Performance Specifications

At the heart of the T301's capability is its adherence to the IEEE 802.11ac Wave 2 standard, which introduces critical improvements over first-generation 802.11ac and older 802.11a/b/g/n technologies. This section details the core radio and performance specifications that define the product.

Dual-Band Radio Architecture

The T301 901-T301-US61 operates concurrently on the 2.4 GHz and 5 GHz frequency bands, allowing it to serve a wide variety of client devices efficiently. This simultaneous dual-band functionality is essential for balancing network load and maximizing airtime efficiency.

5 GHz Radio (802.11ac Wave 2)

This radio is the performance powerhouse of the access point. It supports 802.11ac Wave 2 features, including two spatial streams (2x2:2 MU-MIMO) and an 80 MHz channel bandwidth, to achieve a maximum data rate of 867 Mbps. The use of 80 MHz channels provides a wider data pipeline, significantly boosting throughput for compatible clients. Multi-User MIMO (MU-MIMO) capability allows the AP to communicate with multiple compatible clients simultaneously, rather than sequentially, increasing overall network efficiency and reducing latency in multi-device environments.

2.4 GHz Radio (802.11n)

This radio provides essential backward compatibility for legacy devices such as older smartphones, IoT sensors, and certain printers. It supports 802.11n with two spatial streams (2x2:2) and a 40 MHz channel bandwidth, delivering a maximum data rate of 300 Mbps. While the 5 GHz band is preferred for high-performance applications, the 2.4 GHz band offers better range and wall penetration for coverage in broader areas.

Aggregate Speed and Real-World Throughput

The "1.17Gbps" specification is the sum of the maximum theoretical speeds of both radios (867 Mbps + 300 Mbps). In real-world deployments, actual throughput is influenced by factors like client capabilities, environmental interference, network load, and distance from the AP. However, the T301's advanced RF management and BeamFlex+ adaptive antenna technology work to optimize real-world performance, consistently delivering high, stable data rates to users.

Physical Design

The Ruckus 901-T301-US61 ZoneFlex T301 is designed with deployment simplicity and aesthetic discretion in mind. Its compact, low-profile form factor allows it to blend seamlessly into various environments without being visually intrusive.

Mounting Options

A key feature of this model is its versatile mounting system, which grants network installers significant flexibility to place the AP exactly where coverage is needed most.

Wall Mountable

The included mounting bracket facilitates easy and secure installation on drywall, concrete, or plaster walls. This is ideal for positioning the AP centrally in offices, hotel rooms, classrooms, or hallways to provide optimal radial coverage. The design often allows for both horizontal and vertical orientation to suit the mounting surface.

Pole or Ceiling Mountable

For broader coverage in open areas like retail spaces, warehouses, or gymnasiums, the T301 can be mounted on electrical conduit poles, drop ceilings (using a tile bridge), or exposed structural elements. This versatility ensures the AP can be positioned at an optimal height for signal propagation, avoiding obstructions that could degrade performance.

Connectivity and Power

Network RJ-45 Port

The access point features a single 10/100/1000BASE-T Gigabit Ethernet port for its uplink connection. This port provides the critical backhaul to the local area network and the internet. It supports standards-based IEEE 802.3af/at Power over Ethernet (PoE), which significantly simplifies installation by allowing both data and electrical power to be delivered over a single Ethernet cable from a compatible PoE switch or midspan injector. This eliminates the need for a nearby AC power outlet, reducing installation costs and increasing placement options.

Advanced Ruckus Technologies for Superior Wi-Fi

Beyond standard Wi-Fi specifications, the T301 incorporates several proprietary Ruckus technologies that differentiate it from conventional access points, focusing on adaptive signal optimization and interference mitigation.

BeamFlex+ Adaptive Antenna Technology

This is a cornerstone Ruckus innovation. Unlike fixed-antenna APs that radiate signal equally in all directions, BeamFlex+ employs a patented antenna array with hundreds of unique antenna patterns. It intelligently selects and continuously adapts the optimal antenna pattern for each individual client device, in real-time, based on its location, motion, and the RF environment. This results in stronger received signal strength (RSSI), higher data rates at longer ranges, reduced packet retries, and increased resistance to multipath distortion and interference.

ChannelFly Dynamic Channel Selection

ChannelFly is an advanced, machine learning-based channel management technology. Instead of just scanning for the cleanest channel at boot-up, ChannelFly actively and continuously tests the performance of all available channels in the background. It uses this real-world performance data to dynamically steer the AP to the channel that will provide the highest actual throughput for clients, even as conditions change throughout the day. This leads to a more adaptive and higher-performing network than traditional static or event-driven channel selection methods.

SmartMesh Networking

For locations where Ethernet cabling is difficult or impossible to run to every AP, the T301 supports Ruckus SmartMesh technology. This allows the access point to form a self-healing, self-forming wireless mesh backhaul. One T301 with a wired connection can act as a root AP, while other T301 units can connect wirelessly as mesh points, extending the network seamlessly without new cables. The mesh is optimized for low latency and high throughput, maintaining a robust network fabric.

Management and Deployment Options

The Ruckus 901-T301-US61 ZoneFlex T301 is a versatile member of the ZoneFlex ecosystem and can be managed through several methods to suit different organizational needs and scales.

ZoneDirector Controller-Based Management

The T301 can be seamlessly adopted and managed by a Ruckus ZoneDirector physical wireless LAN controller. It simplifies operations with features like unified SSID and policy management, automatic RF optimization, and comprehensive reporting. This model is ideal for organizations that prefer an on-premises management solution.

SmartZone Virtual Controller / Cloud Management

For greater scalability or cloud convenience, the T301 is fully compatible with Ruckus's SmartZone portfolio, including virtual SmartZone (vSZ) appliances and the cloud-hosted Ruckus Cloud service. These platforms offer all the advanced features of a controller but with the flexibility of virtual deployment or the operational simplicity of a software-as-a-service model. They enable management of distributed networks from anywhere.

Standalone (Solo) Mode

The AP can also be configured to operate in standalone mode, functioning as an independent wireless router or access point with a web-based interface for local management. This is useful for very small deployments, testing, or temporary installations where a central controller is not present or required.

Target Deployment Scenarios and Use Cases

The combination of performance, adaptability, and manageability makes the Ruckus T301 an ideal solution for a wide array of business and institutional settings.

Small to Medium-Sized Businesses (SMBs)

For offices, retail stores, and professional practices, the T301 provides the reliable, high-speed Wi-Fi needed for productivity applications, cloud services, VoIP, and customer access. Its ease of installation and flexible management options fit the typical resource constraints of an SMB IT team.

Education

In K-12 classrooms or smaller college campuses, the T301 can handle dense concentrations of student devices (laptops, tablets, phones) accessing digital curriculum, video content, and online testing platforms. BeamFlex+ technology helps maintain connections for moving devices and in crowded RF environments.

Healthcare Clinics and Assisted Living

The need for reliable connectivity for electronic health records (EHR), medical devices, and guest internet in smaller medical facilities is met by the T301. Its stable performance supports both critical administrative functions and patient/visitor services.

Hospitality

For boutique hotels, bed-and-breakfasts, or restaurant chains, the T301 delivers strong in-room and common-area Wi-Fi for guests. The wall-mount design is discreet, and features like SmartMesh can help extend coverage to challenging areas without new cabling.

Advanced Security

Enterprise-grade security and traffic prioritization are built into the T301's functionality, especially when managed by a ZoneDirector or SmartZone platform.

Integrated Wireless Security

The AP supports the latest WPA3 and WPA2 personal and enterprise security protocols, including 802.1X/EAP with RADIUS integration for robust user authentication. It also features built-in SPI (Stateful Packet Inspection) firewall and wireless intrusion detection/prevention system (WIDS/WIPS) capabilities to protect the network from threats and rogue devices.

Band Steering and Load Balancing

To optimize network efficiency, the T301 can encourage dual-band capable clients to connect to the less congested and higher-capacity 5 GHz band, freeing up the 2.4 GHz band for legacy devices. Client load balancing helps prevent any single AP from becoming overloaded by distributing clients evenly across the available access points.
