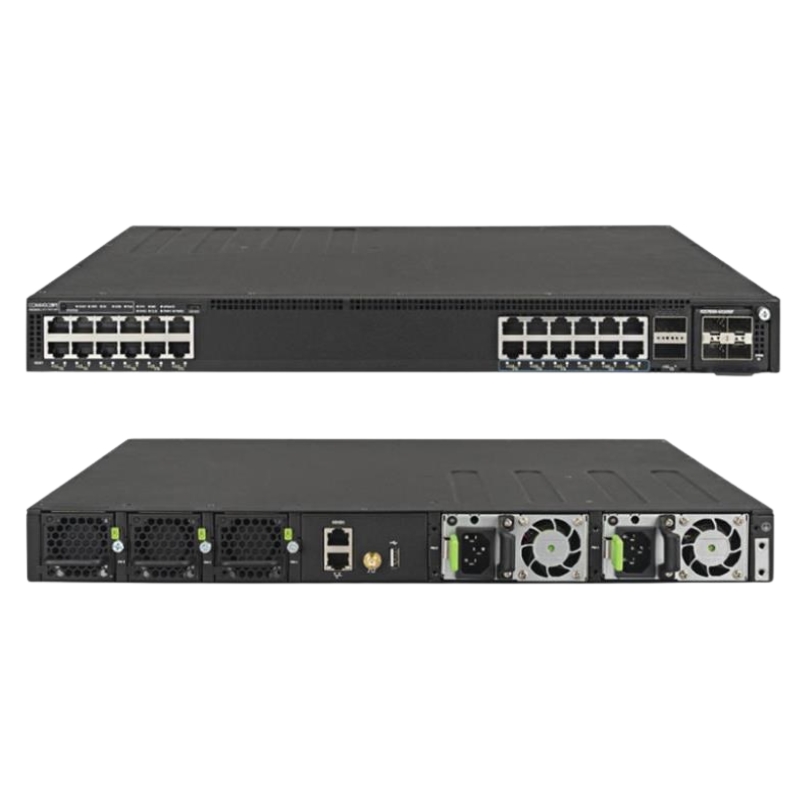

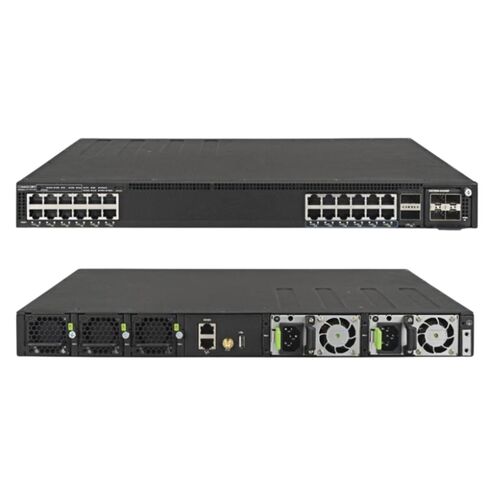

ICX7550-24XZP Ruckus 24-Ports POE++ 100 Gigabit Ethernet Switch

Ruckus ICX7550-24XZP 24-Ports 100GbE Switch Outline

The Ruckus ICX7550-24XZP is a powerful, rack-mountable Ethernet switch engineered to support modern enterprise networks, high-density wireless environments, and bandwidth-intensive applications. Designed in a compact 1RU form factor, this advanced Layer 2 and Layer 3 switch delivers exceptional throughput, scalable uplinks, and high-power PoE++ capabilities for next-generation connectivity.

General Product Information

• Manufacturer: Ruckus
• Part Number: ICX7550-24XZP
• Device Type: Managed Ethernet Switch
• Form Factor: 1U Rack-Mountable
• Switching Capacity: 100 Gbps
• Connectivity: Wired Networking

Advantages of Multigigabit Ethernet

• Future-ready support for bandwidth-heavy applications
• Backward compatibility with legacy network devices
• Reduced infrastructure upgrade costs
• Optimized performance for wireless access points

Advanced 100GbE Uplink Capabilities

• 4 Modular Ports: 1/10/25G SFP/SFP+/SFP28
• 2 x 40/100 Gbps QSFP28 uplink ports

Power Over Ethernet (PoE++) for High-Demand Devices

802.3bt PoE++ Support

• Wi-Fi 6 and Wi-Fi 6E access points
• High-definition IP surveillance cameras
• Video conferencing systems
• Smart building IoT equipment

Benefits of High-Power PoE

• Eliminates the need for separate power supplies
• Simplifies installation and cable management
• Reduces operational expenses
• Improves deployment flexibility

Layer 2 and Layer 3 Switching Capabilities

Comprehensive Networking Standards Compliance

• 802.3, 802.3ab, 802.3ae
• 802.3af, 802.3bt
• 802.1d, 802.1p, 802.1s, 802.1w
• 802.1x Authentication
• 802.1ab LLDP

Supported Routing Protocols

• RIP (Routing Information Protocol)
• OSPF (Open Shortest Path First)
• BGP (Border Gateway Protocol)
• VRRP (Virtual Router Redundancy Protocol)
• PIM (Protocol Independent Multicast)
• PBR (Policy-Based Routing)
• VRF (Virtual Routing and Forwarding)

Enhanced Network Security and Authentication

Strong Encryption Technologies

• AES (Advanced Encryption Standard)
• MACsec (Media Access Control Security)

Secure Access Control

• RADIUS Authentication
• TACACS / TACACS+ Support
• IEEE 802.1X Port-Based Authentication

Remote Management Protocols

• SNMP
• SSH
• HTTP / HTTPS
• DHCP

High-Performance Architecture

Memory and Processing Power

• Installed RAM: 4 GB
• Flash Memory: 4 GB

MAC Address Table Scalability

• 16,000 entries (Profile 1)
• 114,000 entries (Profile 2)
• 32,000 entries (Profile 3)

Versatile Use Cases

• Enterprise campus networks
• High-density wireless deployments
• Data center edge environments
• Educational institutions
• Healthcare facilities
• Smart building infrastructures

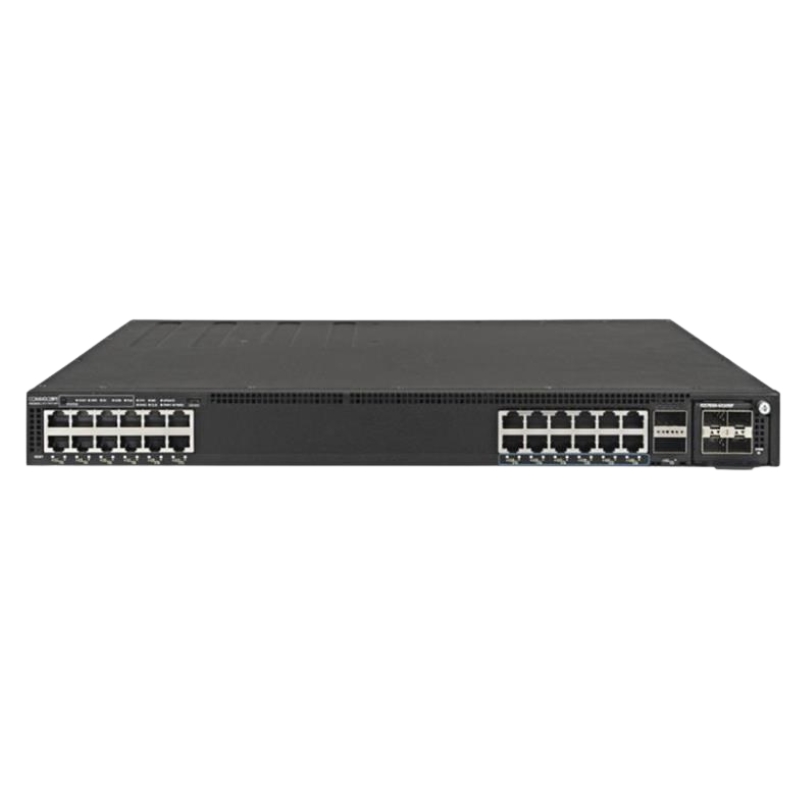

Physical Port Configuration

• 24 x 100/1000/2.5/5/10GbE RJ45 Multigigabit Ports
• 4 x 1/10/25G SFP/SFP+/SFP28 Modular Uplink Ports
• 2 x 40/100GbE QSFP28 Uplink Ports
• USB Port for configuration and file transfer

Ruckus ICX7550-24XZP 24-Port Ethernet Switch Overview

The Ruckus ICX7550-24XZP is a high-performance enterprise-grade switch designed to deliver exceptional speed, scalability, and advanced Power over Ethernet (PoE++) capabilities. With 24 multi-gigabit ports supporting 100 Mbps, 1 Gbps, 2.5 Gbps, 5 Gbps, and 10 Gbps speeds, this switch is engineered for modern networks that demand flexibility and efficiency. Additionally, it integrates 802.3bt PoE++ technology, enabling up to 90W per port, making it ideal for powering next-generation devices such as Wi-Fi 6/6E access points, high-definition surveillance cameras, and advanced IoT endpoints.

Key Features of the Ruckus ICX7550-24XZP

Multi-Gigabit Port Flexibility

The switch provides 24 ports that support multiple speed options, including 100 Mbps, 1 Gbps, 2.5 Gbps, 5 Gbps, and 10 Gbps. This ensures compatibility with a wide range of devices and future-proofs the network for evolving bandwidth requirements. Enterprises can seamlessly integrate legacy devices while preparing for high-speed applications.

802.3bt PoE++ Power Delivery

With PoE++ support, each port can deliver up to 90W of power. This capability is crucial for powering advanced devices such as pan-tilt-zoom security cameras, LED lighting systems, and next-generation wireless access points. The ICX7550-24XZP eliminates the need for separate power supplies, simplifying deployment and reducing infrastructure costs.

High-Speed Uplink Options

The switch includes multiple 100 Gigabit Ethernet uplink ports, ensuring that traffic from access devices can be aggregated and transmitted at lightning-fast speeds. These uplinks provide the backbone connectivity required for large-scale enterprise networks, data centers, and campus environments.

Performance and Scalability

Advanced Switching Capacity

The ICX7550-24XZP is built with a robust switching architecture that supports high throughput and low latency. This ensures smooth performance for bandwidth-intensive applications such as video conferencing, cloud computing, and real-time collaboration tools.

Stacking Capabilities

Enterprises can stack multiple ICX7550 switches to create a unified system with simplified management. Stacking enhances scalability, allowing organizations to expand their network without compromising performance or manageability.

Future-Proof Design

With support for multi-gigabit speeds and PoE++, the ICX7550-24XZP is designed to meet the demands of next-generation networks. It ensures that enterprises can adopt new technologies without requiring frequent hardware upgrades.

Security and Reliability

Advanced Security Features

The switch integrates enterprise-grade security protocols, including access control lists (ACLs), port security, and secure management interfaces. These features protect against unauthorized access and safeguard sensitive data across the network.

Redundancy and High Availability

The ICX7550-24XZP supports redundant power supplies and advanced failover mechanisms. This ensures continuous operation even in the event of hardware failures, making it suitable for mission-critical environments.

Applications of the Ruckus ICX7550-24XZP

Enterprise Networks

Large organizations benefit from the switch’s ability to handle high traffic volumes while providing reliable connectivity for thousands of users. Its PoE++ capabilities make it ideal for powering VoIP phones, wireless access points, and other essential devices.

Educational Institutions

Schools and universities require robust networking solutions to support e-learning platforms, digital classrooms, and campus-wide Wi-Fi. The ICX7550-24XZP delivers the performance and scalability needed to meet these demands.

Healthcare Facilities

Hospitals and clinics rely on secure, high-speed networks for patient records, telemedicine, and medical IoT devices. The ICX7550-24XZP ensures reliable connectivity while powering critical equipment through PoE++.

Smart Cities and IoT Deployments

With its ability to power IoT devices and support high-speed data transmission, the switch is an excellent choice for smart city infrastructure. It can support traffic cameras, sensors, and connected lighting systems.

Benefits of Deploying the ICX7550-24XZP

Cost Efficiency

By integrating PoE++ and multi-gigabit capabilities, the switch reduces the need for additional hardware. This lowers both capital and operational expenses for enterprises.

Ease of Management

The ICX7550-24XZP supports intuitive management interfaces, including web-based GUIs and command-line options. Network administrators can easily configure, monitor, and troubleshoot the switch.

Enhanced User Experience

With high-speed connectivity and reliable performance, end-users experience seamless access to applications, cloud services, and collaboration tools. This enhances productivity across the organization.

Deployment Scenarios

Campus Networks

The switch is ideal for campus environments where multiple buildings require high-speed interconnectivity. Its stacking and uplink capabilities ensure smooth communication across large areas.

Data Centers

In data centers, the ICX7550-24XZP provides reliable aggregation of access devices while supporting high-speed uplinks to core switches. Its scalability ensures that data centers can expand without bottlenecks.

Advanced Technologies Integrated

Quality of Service (QoS)

The ICX7550-24XZP includes advanced QoS mechanisms that prioritize critical traffic such as voice and video. This ensures smooth communication and collaboration across the enterprise.

Energy Efficiency

The switch is designed with energy-efficient components that reduce power consumption without compromising performance. This aligns with sustainability goals and lowers operational costs.

Automation and Orchestration

Enterprises can leverage automation tools to streamline configuration and management. The ICX7550-24XZP supports modern orchestration frameworks, making it easier to integrate into complex IT environments.
