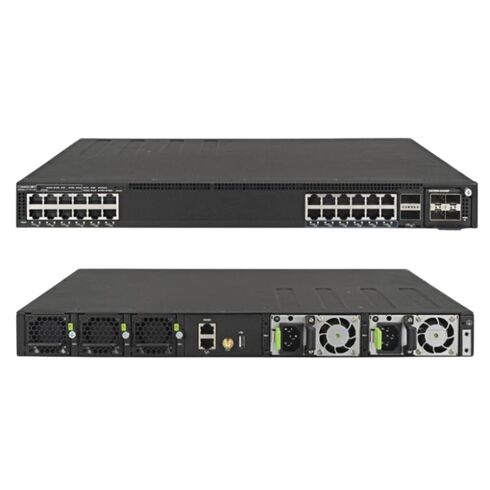

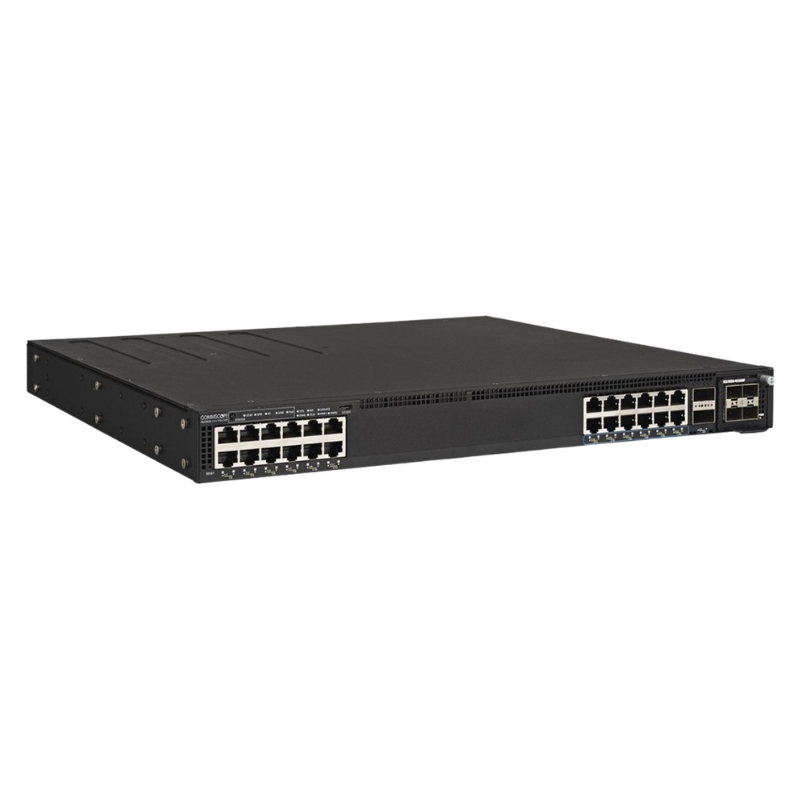

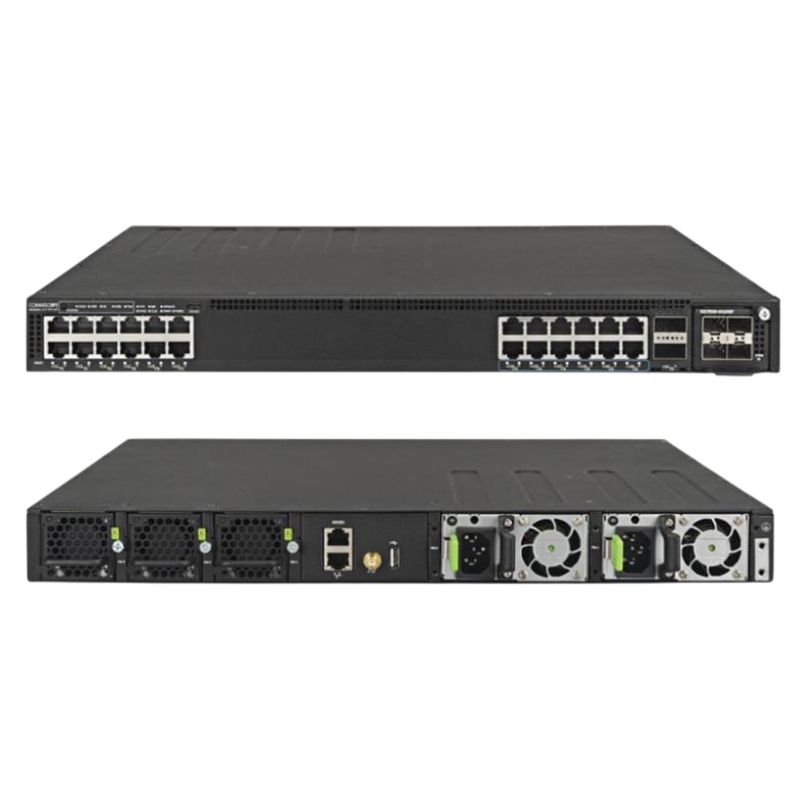

ICX7550-24ZP-E2 Ruckus 24 Ports 10GB PoE+ RJ45 2x QSFP28 Switch

Ruckus ICX7550-24ZP-E2 24-Port PoE+ Switch Outline

The Ruckus ICX7550-24ZP-E2 Ethernet Switch is a high-performance, enterprise-grade switching platform engineered to support modern campus, enterprise, and high-bandwidth environments. Designed for scalability, reliability, and superior throughput, this rack-mountable switch delivers multi-gigabit access, high PoE power output, and ultra-fast 100Gb uplink connectivity.

General Product Information

• Manufacturer: Ruckus
• Manufacturer Part Number: ICX7550-24ZP-E2
• Product Type: Ethernet Switch

Technical Specifications

• 24 high-speed PoE+ RJ-45 access ports
• 12x 2.5 Gigabit Ethernet PoE+ ports
• 12x 10 Gigabit Ethernet PoE+ ports
• 2x 100 Gigabit QSFP28 uplink/stacking ports
• Up to 2000W PoE power budget
• 700 Gbps switching capacity
• Support for stacking up to 12 switches
• Dual internal power supplies

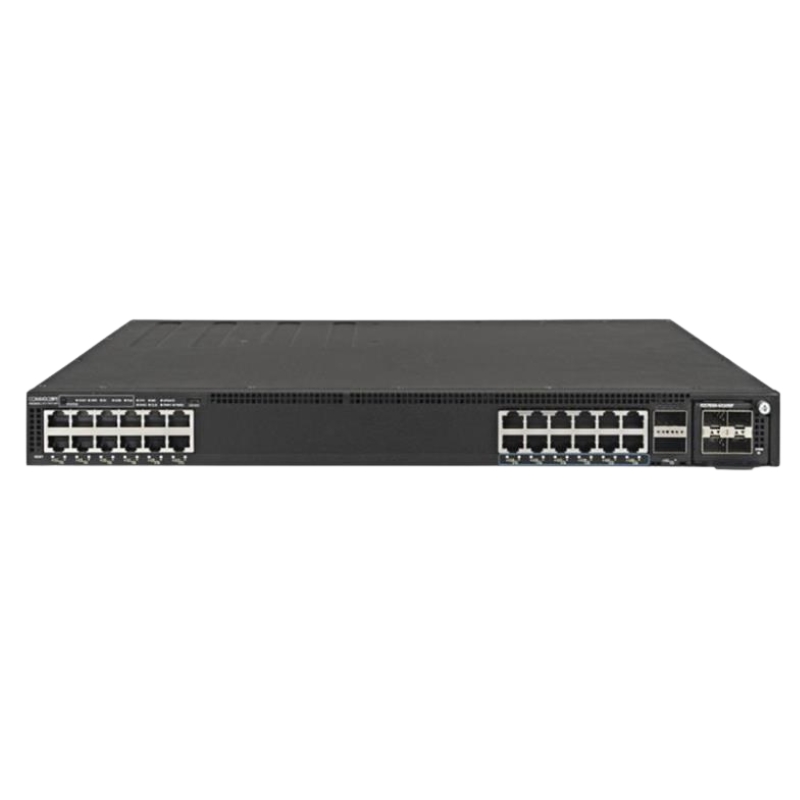

Comprehensive Port Configuration

High-Speed Multi-Gigabit Access Ports

• Eliminates network bottlenecks
• Maximizes performance of next-generation wireless infrastructure
• Reduces need for costly recabling
• Ensures backward compatibility with legacy Ethernet devices

100Gb QSFP28 Uplink & Stacking Ports

• 2x 100Gb QSFP28 uplink interfaces
• Uplink ports function as stacking ports
• Supports high-speed data aggregation

Power over Ethernet (PoE+) Capabilities

PoE Budget Specifications

• 1666W PoE budget (100–180V input)
• 2000W PoE budget (180–240V input)
• Maximum PoE output: 1200W

Ideal for Power-Hungry Devices

• High-performance wireless access points
• Pan-tilt-zoom (PTZ) surveillance cameras
• IP telephony systems
• Smart building and IoT devices

Stacking Architecture & Scalability

Stacking Features

• Stack up to 12 ICX7550 series switches
• Aggregate stacking bandwidth up to 960 Gbps
• Utilizes QSFP28 ports for stacking
• Compatible with various DAC cable options

Advantages of Switch Stacking

• Single logical management interface
• Improved redundancy and failover
• Simplified network expansion
• Reduced operational complexity

Performance & Switching Specifications

Performance Metrics

• Switching Capacity: 700 Gbps
• Forwarding Rate: 521 million packets per second (Mpps)

MAC Address Table Profiles

• 16,000 MAC addresses (Profile 1)
• 114,000 MAC addresses (Profile 2)
• 32,000 MAC addresses (Profile 3)

Expansion & Modular Flexibility

Supported Expansion Modules

• ICX7650-1X100GQ – 1-port 100Gb QSFP28 module
• ICX7650-2X40GQ – 2-port 40Gb QSFP+ module
• ICX7650-4X10GF – 4-port 1/10Gb SFP+ module

Benefits of Modular Design

• Investment protection
• Easy scalability
• Flexible deployment options
• Customizable network architecture

Management & Connectivity Interfaces

Comprehensive Management Ports

• 1x Out-of-Band Management RJ-45 Port
• 1x RJ-45 Console Port
• 1x USB Type-C Port
• 1x USB Type-A Port

Out-of-Band Management Advantages

• Secure remote troubleshooting
• Improved network reliability
• Separation of management and data traffic

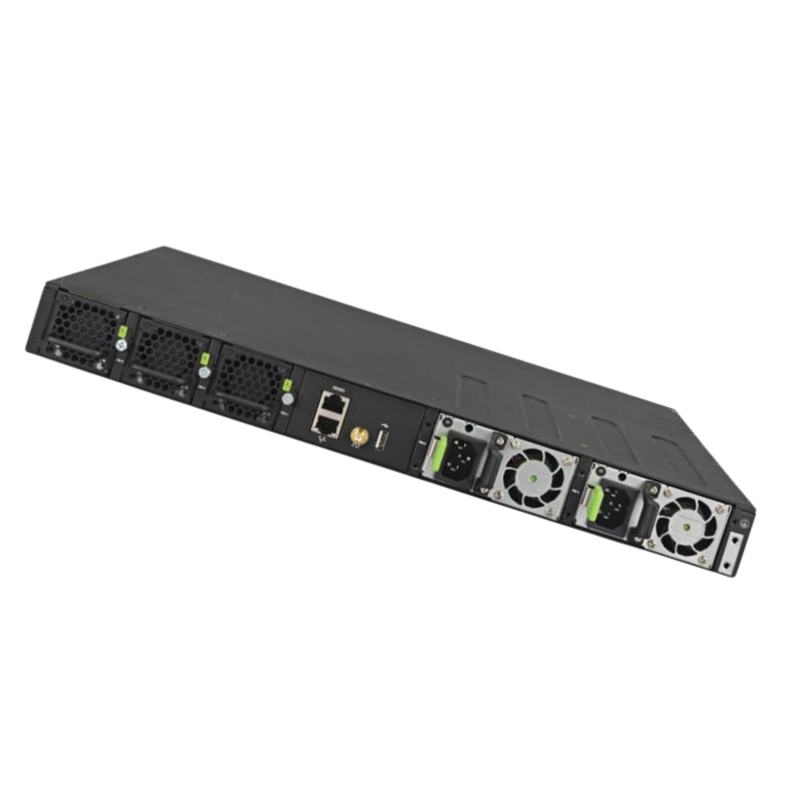

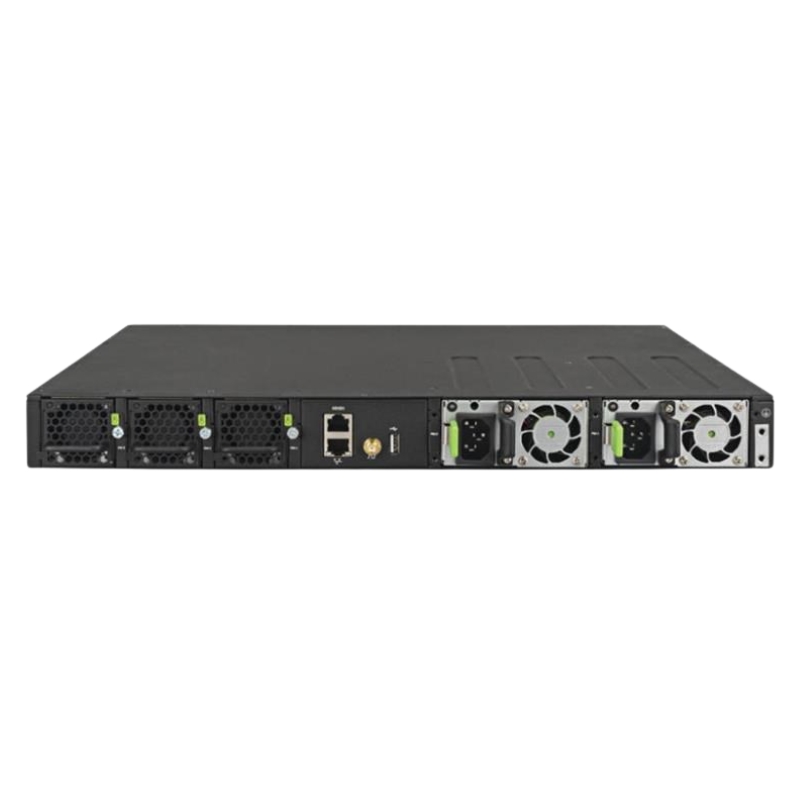

Power Supply & Redundancy

Dual Internal Power Supplies

• Maximum Supported: 2
• Supported PSU Model: RPS22-E (front-to-back airflow)

Redundant Power Benefits

• Minimized downtime
• Business continuity support
• Enhanced operational resilience

Cooling & Airflow System

Optimized Front-to-Back Airflow

• Supported Fan Model: ICX-FAN12-E (front-to-back airflow)
• Optimized cooling for rack deployment
• Maintains stable performance under heavy loads

Thermal Management Advantages

• Improved hardware longevity
• Reduced risk of overheating
• Energy-efficient cooling performance

Ideal Deployment Scenarios

Enterprise & Campus Networks

• Core and aggregation layer deployments
• High-density wireless infrastructures
• Large corporate campuses

Data Centers & High-Performance

• High-throughput server connectivity
• Storage networking applications
• Virtualized environments

Ruckus ICX7550-24ZP-E2 24 Ports QSFP28 Switch Overview

The Ruckus ICX7550-24ZP-E2 is a high-performance enterprise-grade switch designed to meet the growing demands of modern networks. With 24 multi-gigabit ports supporting 2.5GbE and 10GbE PoE+, along with two QSFP28 uplink ports, this switch is engineered for scalability, efficiency, and reliability. It is ideal for organizations requiring advanced connectivity for Wi-Fi 6/6E access points, high-bandwidth devices, and next-generation applications.

Key Features of the Ruckus ICX7550-24ZP-E2

Multi-Gigabit PoE+ Support

The switch provides 24 ports with 2.5GbE and 10GbE capabilities, ensuring seamless support for high-speed devices. With PoE+ functionality, it can power access points, IP cameras, VoIP phones, and other devices directly through Ethernet cables, reducing infrastructure complexity.

High-Capacity Uplinks

Equipped with two QSFP28 uplink ports, the ICX7550-24ZP-E2 enables 100GbE connectivity, ensuring that enterprises can scale their backbone networks without bottlenecks. This makes it suitable for data-intensive environments such as campuses, healthcare facilities, and large enterprises.

Advanced Performance and Reliability

The switch is built with advanced hardware and software capabilities to deliver consistent performance. It supports high throughput, low latency, and robust reliability, ensuring mission-critical applications run smoothly.

Benefits of Deploying the Ruckus ICX7550-24ZP-E2

Future-Proof Networking

With support for multi-gigabit speeds and next-generation uplinks, the ICX7550-24ZP-E2 ensures that organizations are prepared for future demands. As Wi-Fi 6 and Wi-Fi 7 technologies become mainstream, this switch provides the necessary bandwidth and power to support them.

Cost-Efficient Infrastructure

By integrating PoE+ capabilities, the switch reduces the need for separate power supplies for connected devices. This lowers installation costs and simplifies network management, making it a cost-effective solution for enterprises.

Scalability and Flexibility

The ICX7550-24ZP-E2 is designed to scale with organizational growth. Its modular architecture and high-capacity uplinks allow businesses to expand their networks without replacing core infrastructure.

Use Cases

Enterprise Networks

Large organizations benefit from the ICX7550-24ZP-E2’s ability to deliver high-speed connectivity and power to multiple devices simultaneously. It supports collaboration tools, video conferencing, and cloud applications seamlessly.

Campus Deployments

Universities and schools require robust networking solutions to support thousands of connected devices. The ICX7550-24ZP-E2 ensures reliable connectivity for students, faculty, and staff while powering access points across campus.

Healthcare Facilities

Hospitals and clinics rely on secure, high-speed networks for patient records, telemedicine, and connected medical devices. The ICX7550-24ZP-E2 provides the bandwidth and reliability needed for mission-critical healthcare applications.

Retail Environments

Retailers benefit from the switch’s ability to power IP cameras, POS systems, and digital signage while maintaining high-speed connectivity for customer Wi-Fi and backend operations.

Advanced Security Features

Network Protection

The ICX7550-24ZP-E2 includes advanced security protocols to safeguard enterprise networks. Features such as access control lists (ACLs), port security, and secure management interfaces help prevent unauthorized access.

Data Encryption

Secure communication protocols ensure that sensitive data remains protected during transmission. This is critical for industries such as finance and healthcare where compliance is mandatory.

Energy Efficiency

Smart Power Management

The ICX7550-24ZP-E2 is designed with energy-efficient technologies that reduce power consumption without compromising performance. Smart PoE allocation ensures that power is delivered only where needed.

Eco-Friendly Design

By minimizing energy usage, the switch contributes to sustainability initiatives. Organizations can reduce their carbon footprint while maintaining high-performance networking.

Comparison with Other Switches

ICX7550 vs. ICX7450

While the ICX7450 series provides reliable enterprise connectivity, the ICX7550-24ZP-E2 offers enhanced multi-gigabit support and higher uplink capacity, making it better suited for next-generation networks.

ICX7550 vs. ICX7650

The ICX7650 series is designed for core and aggregation layers, whereas the ICX7550-24ZP-E2 is optimized for access layer deployments with advanced PoE+ capabilities.

Deployment Scenarios

Access Layer Deployment

The ICX7550-24ZP-E2 is ideal for access layer deployments where multiple devices require both power and high-speed connectivity. It ensures seamless integration with distribution and core layers.

Aggregation Layer Deployment

With its QSFP28 uplinks, the switch can also serve as an aggregation device, connecting multiple access switches to the core network.

Support for Wi-Fi 6 and Wi-Fi 7

The ICX7550-24ZP-E2 is designed to support the bandwidth and power requirements of Wi-Fi 6 and upcoming Wi-Fi 7 access points, ensuring organizations remain ahead of technological advancements.

Cloud Integration

Seamless integration with cloud-based management platforms allows enterprises to adopt hybrid and cloud-first strategies without compromising network performance.
