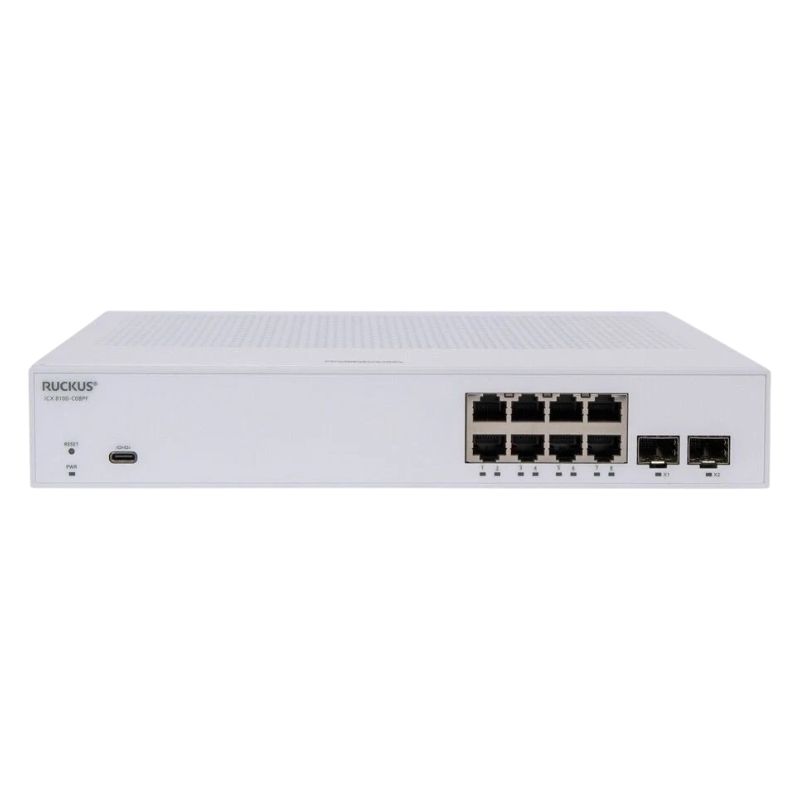

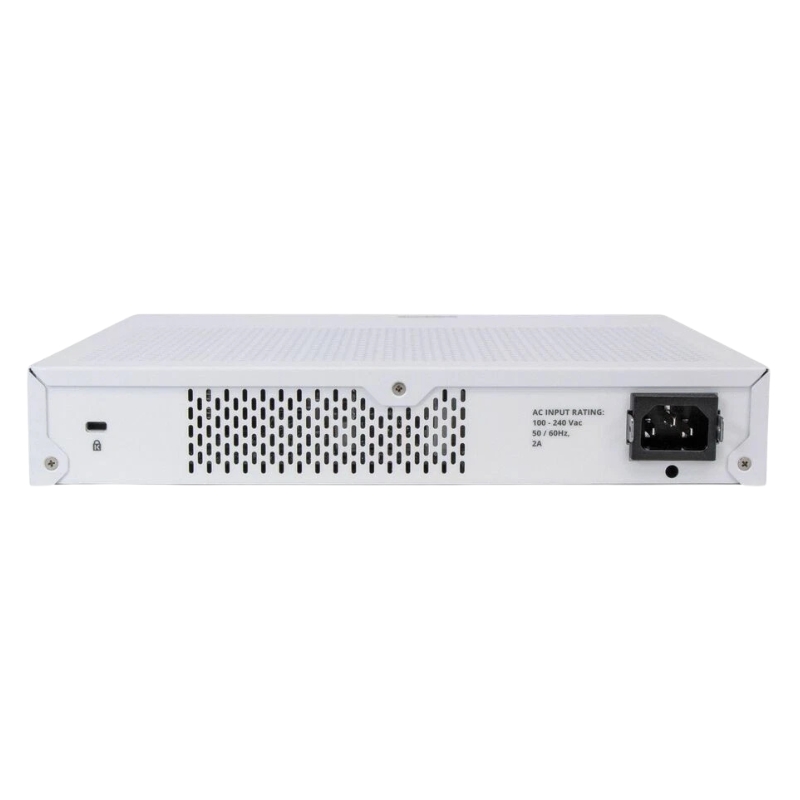

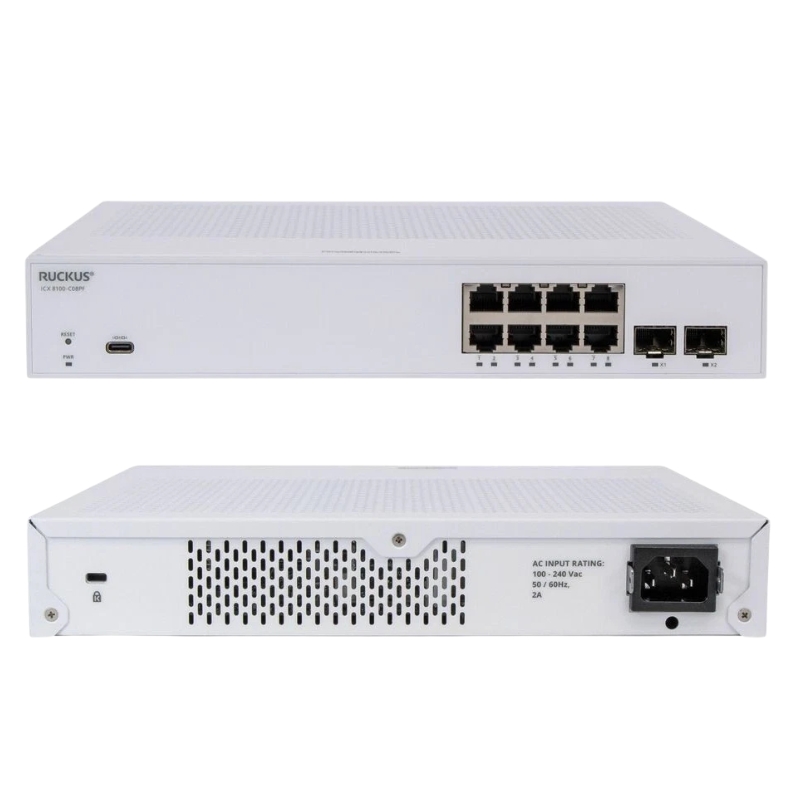

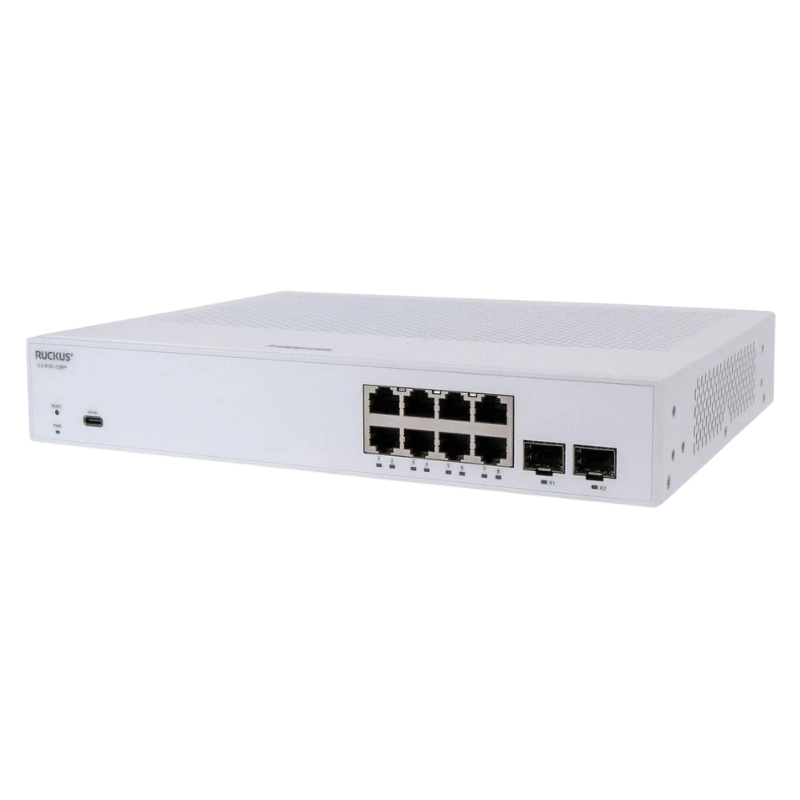

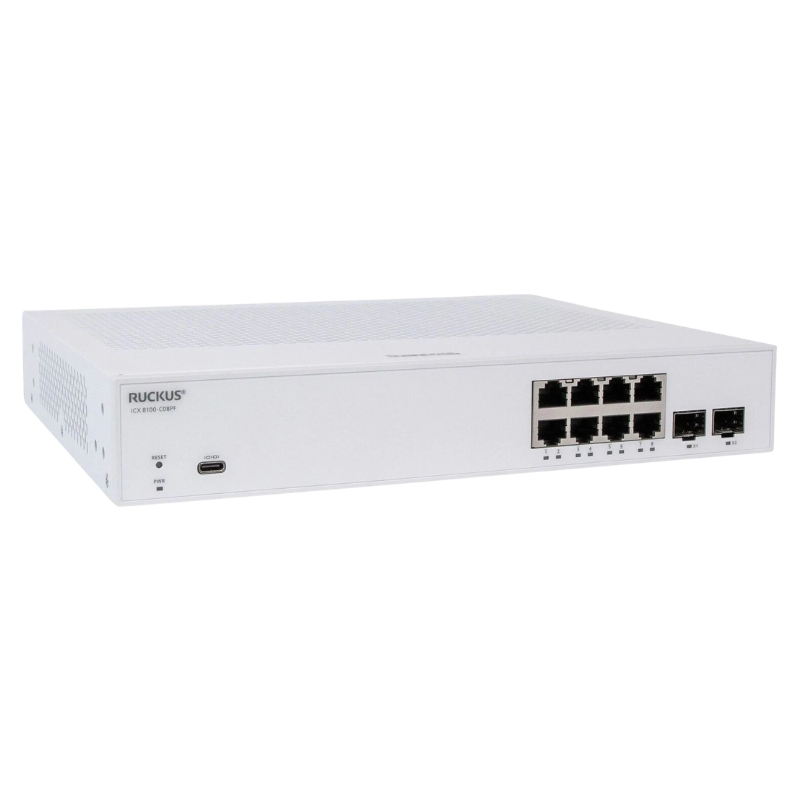

ICX8100-C08PF Ruckus ICX 8100 Compact 8×10/100/1000 Mbps PoE+ Gigabit Ethernet Switch

Ruckus ICX8100-C08PF 8-Port Gigabit Ethernet Switch Outline

The Ruckus ICX8100-C08PF is a high-performance, compact Gigabit Ethernet switch engineered to deliver reliable connectivity, advanced Layer 2 features, and robust Power over Ethernet Plus (PoE+) capabilities. Designed for small to medium-sized businesses, branch offices, retail environments, and enterprise edge deployments, this wired network switch ensures seamless data transmission, enhanced security, and simplified network administration.

General Information About this Ruckus ICX8100-C08PF

• Manufacturer: Ruckus
• Part Number: ICX8100-C08PF
• Product Type: Ethernet Switch
• Form Factor: Compact
• Connectivity: Wired

Technical Specifications

Network Interfaces

• 8 × 10/100/1000 Mbps RJ-45 PoE+ ports
• 2 × 1GbE SFP uplink ports
• USB Type-C management interface
• Total Ports: 11

Performance and Networking

• Data Transfer Rate: 1 Gbps
• MAC Address Table Size: 32K entries
• Jumbo Frame Support: 9216 Bytes
• Layer 2 switching functionality
• Gigabit Ethernet data link protocol

Power and Electrical Requirements

• PoE Support: Yes
• PoE Power Consumption: 124W
• Input Voltage: 100–240 VAC
• Frequency Range: 50–60 Hz

High-Speed Gigabit Connectivity

• Gigabit Ethernet data link protocol
• Low latency switching performance
• Optimized traffic handling
• Reliable wired networking

Port Configuration and Expansion

RJ-45 PoE+ Ports

• 8 × 10/100/1000BASE-T RJ-45 PoE+ ports
• IEEE 802.3at (30W Class 4) compliant
• Ideal for powering IP cameras and wireless access points
• Supports up to 124W PoE power budget

SFP Uplink Ports

• 2 × 1GbE SFP uplink ports
• Fiber connectivity for extended distance networking
• Flexible integration with aggregation or core switches

Additional Interface

• USB Type-C interface for management and configuration

Advanced Layer 2 Switching Features

Layer 2 Network Support

• VLAN support for network segmentation
• Optimized broadcast control
• Efficient MAC address learning
• 32K MAC address table capacity

Standards Compliance

• IEEE 802.1s (Multiple Spanning Tree Protocol)
• IEEE 802.1x (Port-based Network Access Control)
• IEEE 802.1p (Traffic Prioritization)
• IEEE 802.3at PoE+ standard

Comprehensive PoE+ Power Capabilities

Power over Ethernet (PoE+) Support

• Total PoE power budget: 124W
• Supports Class 4 PoE devices
• Reduces need for additional power outlets
• Streamlines cable management

Power Supply Specifications

• Device Type: Power Supply
• Input Voltage: 100–240 VAC
• Frequency: 50–60 Hz
• Energy-efficient design

Enhanced Network Security and Authentication

Secure Remote Management

• SSH (Secure Shell)
• Telnet
• SNMP (Simple Network Management Protocol)

Encryption and Access Control

• AES encryption algorithm
• RADIUS authentication
• TACACS and TACACS+ support
• IEEE 802.1x port-based authentication

Ideal Deployment Scenarios

• Branch offices
• Retail stores
• Educational institutions
• Healthcare facilities

Ruckus ICX8100-C08PF ICX 8100 Compact Switch Overview

The Ruckus ICX8100-C08PF ICX 8100 Compact 8×10/100/1000 Mbps PoE+ 802.3at, 30W Class 4 Gigabit Ethernet Switch is a high-performance, enterprise-grade networking solution designed to deliver reliable connectivity, advanced power-over-Ethernet capabilities, and compact deployment flexibility. This category of switches is engineered for modern organizations that require scalable, secure, and efficient network infrastructures. With its compact form factor, robust PoE+ support, and advanced management features, the ICX8100-C08PF stands out as a versatile option for businesses, educational institutions, healthcare facilities, and smart building environments.

Key Features of the ICX8100-C08PF

Compact Design for Flexible Deployment

The ICX8100-C08PF is built with a compact chassis that allows easy installation in space-constrained environments such as classrooms, retail stores, branch offices, and hospitality venues. Its small footprint makes it ideal for wall mounting, under-desk placement, or integration into cabinets where traditional rack-mounted switches may not fit.

Gigabit Ethernet Performance

Featuring 8 ports of 10/100/1000 Mbps Gigabit Ethernet, the switch ensures high-speed connectivity for devices such as IP phones, wireless access points, surveillance cameras, and desktop computers. Gigabit throughput guarantees smooth data transfer, reduced latency, and optimized performance for bandwidth-intensive applications like video conferencing and cloud-based collaboration.

PoE+ 802.3at Support

The ICX8100-C08PF supports Power-over-Ethernet Plus (PoE+) compliant with IEEE 802.3at standards, delivering up to 30W per port. This capability allows the switch to power devices such as high-performance wireless access points, PTZ cameras, and VoIP phones without requiring separate power supplies. The PoE+ functionality simplifies cabling, reduces installation costs, and enhances deployment flexibility.

Class 4 PoE for Advanced Devices

With Class 4 PoE support, the switch can handle demanding devices that require higher power budgets. This includes next-generation Wi-Fi 6 access points, advanced IP cameras with pan-tilt-zoom features, and smart IoT devices. By delivering consistent and reliable power, the ICX8100-C08PF ensures seamless operation of critical infrastructure.

Benefits of Deploying the ICX8100-C08PF

Enhanced Network Reliability

The ICX8100-C08PF is designed to provide consistent uptime and dependable performance. Its enterprise-grade architecture ensures that mission-critical applications remain accessible, minimizing downtime and disruptions. This reliability is crucial for organizations that depend on continuous connectivity for operations, communications, and customer engagement.

Scalability for Growing Networks

As organizations expand, their networking needs evolve. The ICX8100-C08PF offers scalability through stacking capabilities and seamless integration with other Ruckus ICX switches. This allows businesses to grow their networks without replacing existing infrastructure, ensuring long-term investment protection.

Energy Efficiency

The switch is engineered with energy-efficient technologies that reduce power consumption while maintaining high performance. Intelligent PoE management ensures that power is allocated only where needed, optimizing energy usage and lowering operational costs.

Applications of the ICX8100-C08PF

Education Environments

Schools and universities benefit from the ICX8100-C08PF by deploying it in classrooms, labs, and administrative offices. Its PoE+ support powers wireless access points for seamless connectivity, while its compact design fits easily into limited spaces. The switch ensures reliable access to digital learning platforms, video streaming, and collaborative tools.

Healthcare Facilities

In hospitals and clinics, the ICX8100-C08PF supports medical devices, IP cameras, and VoIP phones. Its reliable performance ensures uninterrupted communication between staff and secure access to patient records. PoE+ capabilities simplify the deployment of wireless access points in patient rooms and waiting areas.

Retail and Hospitality

Retail stores and hotels leverage the ICX8100-C08PF to power point-of-sale systems, surveillance cameras, and guest Wi-Fi access points. The switch’s compact size allows discreet installation, while its Gigabit performance ensures smooth transaction processing and customer connectivity.

Smart Buildings and IoT

The ICX8100-C08PF is ideal for smart building deployments where IoT devices such as sensors, lighting systems, and access control units require reliable connectivity and power. Its PoE+ support eliminates the need for separate power sources, streamlining installation and management.

Port Configuration

The switch features 8 Gigabit Ethernet ports with PoE+ support, providing flexible connectivity for a wide range of devices. Each port delivers up to 30W of power, ensuring compatibility with high-demand equipment.

Performance Metrics

With non-blocking architecture and wire-speed forwarding, the ICX8100-C08PF ensures optimal throughput and minimal latency. Its advanced switching capabilities support high-performance applications and large-scale deployments.

Management and Security

The switch offers advanced management options including CLI, web-based GUI, and SNMP support. Security features such as access control lists (ACLs), port security, and DHCP snooping protect against unauthorized access and network threats.

Advanced Features

Stacking Capabilities

The ICX8100-C08PF supports stacking with other ICX switches, enabling simplified management and scalability. Stacking allows multiple switches to operate as a single logical unit, reducing complexity and enhancing performance.

Quality of Service (QoS)

QoS features prioritize critical traffic such as voice and video, ensuring smooth communication and collaboration. This is essential for organizations that rely on real-time applications for productivity and customer engagement.

Resiliency and Redundancy

The switch includes resiliency features such as link aggregation and redundant power options. These capabilities enhance network stability and minimize the risk of downtime due to hardware failures or connectivity issues.

Advantages of the Ruckus ICX8100-C08PF

Future-Proof Investment

With support for advanced technologies and integration with Ruckus networking solutions, the ICX8100-C08PF is a future-proof investment. Organizations can deploy the switch today with confidence that it will support evolving networking needs.

Ease of Deployment

The compact design, PoE+ support, and intuitive management tools make the ICX8100-C08PF easy to deploy in diverse environments. Whether in a small office or a large enterprise, the switch simplifies installation and configuration.

Trusted Brand

Ruckus is a trusted name in networking, known for delivering reliable, high-performance solutions. The ICX8100-C08PF continues this tradition, offering organizations a dependable switch that meets modern connectivity demands.

Subcategory: Compact PoE+ Gigabit Switches

Defining Compact Switches

Compact switches are designed for environments where space is limited but performance cannot be compromised. They provide enterprise-grade features in smaller form factors, making them ideal for edge deployments and distributed networks.

Advantages of PoE+ Gigabit Switches

PoE+ Gigabit switches combine high-speed connectivity with power delivery, reducing infrastructure complexity. They enable organizations to deploy advanced devices without additional cabling or power supplies, streamlining operations and lowering costs.
