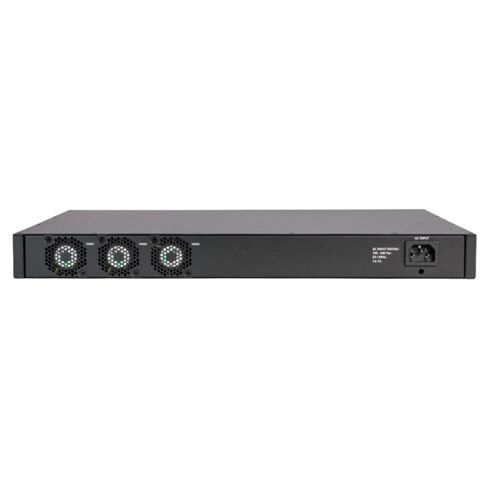

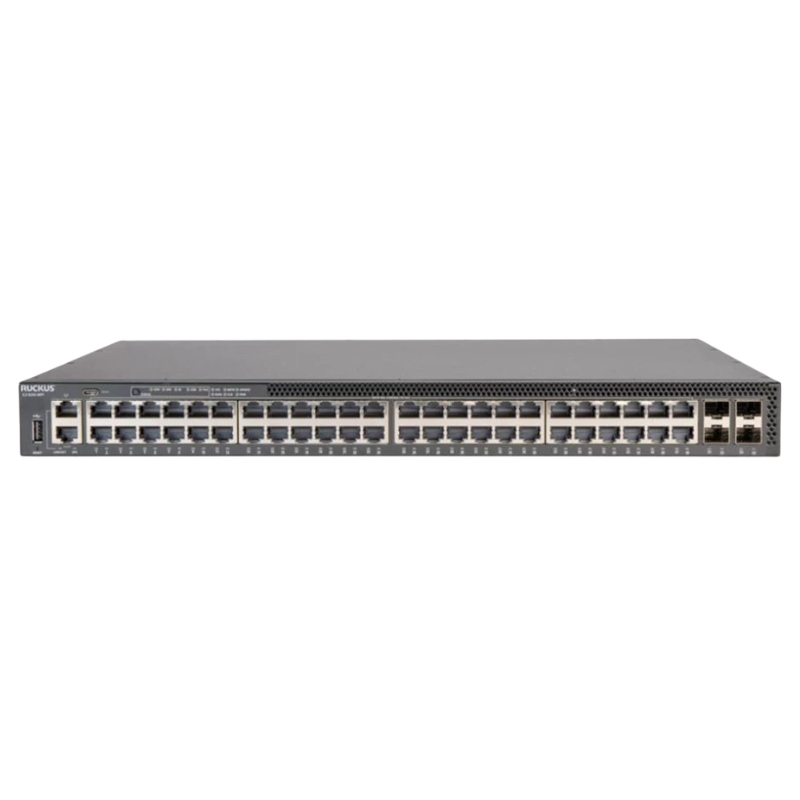

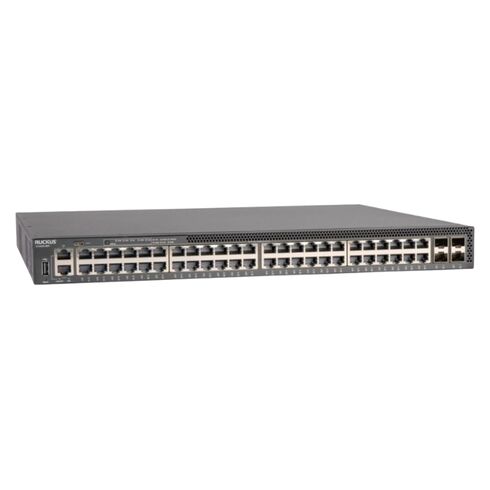

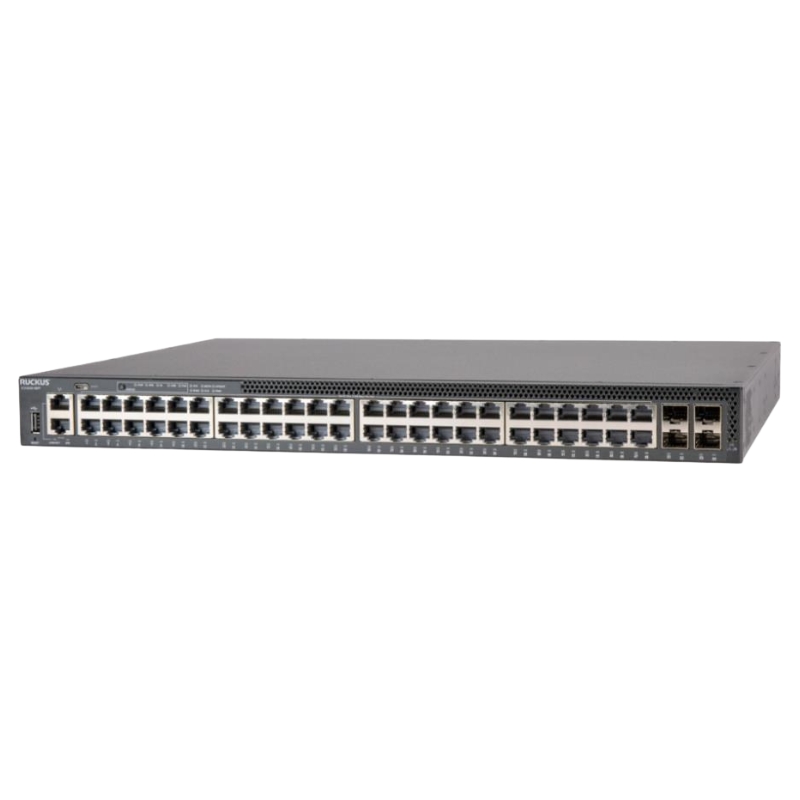

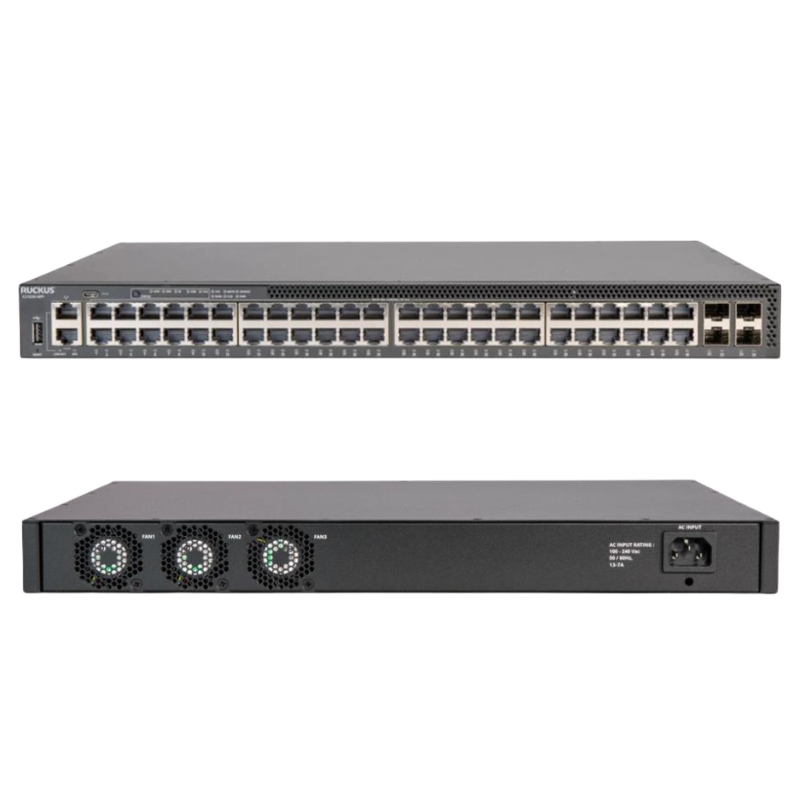

ICX8200-48 Ruckus ICX 8200 Series 48x 1GB RJ45 SFP28 Ethernet Switch

Ruckus ICX8200-48 ICX 8200 Series 48-Port Switch Outline

The Ruckus ICX8200-48 is a high-performance, enterprise-class Gigabit Ethernet switch engineered to deliver scalable connectivity, advanced stacking capabilities, and reliable Layer 2/Layer 3 switching for modern business networks. As part of the robust ICX 8200 Series, this 48-port switch combines powerful 1GbE access ports with ultra-fast 25GbE uplinks, making it ideal for campus networks, enterprise LANs, branch offices, and data-driven environments.

General Information about this Ruckus ICX8200-48

• Manufacturer: Ruckus
• Manufacturer Part Number: ICX8200-48
• Product Category: Managed Ethernet Switch
• Form Factor: 1U Rack-Mountable

Technical Specifications

Network Ports

• 48 x 10/100/1000 Mbps Gigabit Ethernet RJ45
• 4 x 1/10/25GbE SFP28 uplink/stacking ports

Performance Metrics

• Switching Capacity: 296 Gbps
• Forwarding Rate: 220 Mpps
• Aggregate Stacking Bandwidth: 1.2 Tbps
• Stacking Density: Up to 12 switches
• MAC Address Table Size: 32,000 entries

Physical & Power Details

• Form Factor: 1U Rack Mount
• Rack Mount Kit: Included
• Power Supply: Internal (Not Included)
• Fans: Not Included
• Airflow Direction: Front and Side to Back

High-Density Gigabit Access Ports

• Desktop computers and workstations
• IP phones and VoIP systems
• Wireless access points
• Security cameras
• Network printers and IoT devices

Ultra-Fast 25GbE SFP28 Uplink & Stacking Ports

• High-bandwidth aggregation to core switches
• Data center connectivity
• Server uplinks
• High-speed stacking between switches

Benefits of Switch Stacking

• Simplified network administration
• Centralized configuration management
• Improved redundancy and failover protection
• Scalable network growth
• Reduced operational complexity

Comprehensive Interface Configuration

• 48 × 10/100/1000 Mbps RJ-45 Ethernet ports
• 4 × 1/10/25GbE SFP28 uplink/stacking ports

Compact and Space-Efficient Form Factor

• Rack mounting kit included
• Ideal for data centers and network closets
• Optimized for organized cable management

Cooling and Airflow Design

Advanced Thermal Management

• Front and side to back airflow direction
• Supports external fan installation (not included)
• Ensures stable performance under continuous load

Ideal Deployment Scenarios

• Enterprise campus networks
• SMB network infrastructures
• Educational institutions
• Healthcare facilities
• Government offices
• Retail chains
• Data aggregation layers

Ruckus ICX8200-48 ICX 8200 Series Overview

The Ruckus ICX8200-48 ICX 8200 Series 48x 1GB RJ45 4x 25GB SFP28 Gigabit Ethernet Switch is a powerful enterprise-grade networking solution designed for scalability, performance, and reliability. This switch is part of the ICX 8200 Series, which delivers advanced features for modern data centers, campus networks, and high-performance enterprise environments. With 48 RJ45 Gigabit Ethernet ports and 4 high-speed 25Gb SFP28 uplinks, it provides seamless connectivity for demanding workloads and ensures future-proof infrastructure.

Key Features of the Ruckus ICX8200-48

High-Density Gigabit Connectivity

The switch offers 48x 1GB RJ45 ports, making it ideal for connecting a large number of devices such as servers, workstations, and access points. This density ensures that enterprises can scale their networks without compromising performance.

Advanced Uplink Options

With 4x 25GB SFP28 uplink ports, the ICX8200-48 provides high-speed backbone connectivity. These uplinks are crucial for aggregating traffic from multiple access switches and delivering it to core or distribution layers with minimal latency.

Enterprise-Grade Performance

The ICX8200-48 is engineered to handle intensive workloads. It supports advanced Layer 2 and Layer 3 features, ensuring efficient routing, switching, and traffic management. Enterprises benefit from robust performance across diverse applications, including cloud services, virtualization, and unified communications.

Benefits of Deploying Ruckus ICX8200-48

Scalability for Growing Networks

As organizations expand, the need for scalable networking solutions becomes critical. The ICX8200-48 supports stacking, allowing multiple switches to operate as a single logical unit. This simplifies management and enhances scalability without requiring complex configurations.

Future-Proof Infrastructure

With 25Gb uplinks, the ICX8200-48 ensures that enterprises are ready for next-generation applications and workloads. This future-proof design minimizes the need for frequent hardware upgrades, reducing long-term costs.

Enhanced Security Features

Security is a top priority in enterprise networks. The ICX8200-48 integrates advanced security protocols, including access control lists (ACLs), port security, and network segmentation. These features protect against unauthorized access and ensure compliance with industry standards.

Stacking Capabilities

The ICX8200-48 supports stacking of multiple units, enabling simplified management and improved redundancy. Stacking ensures that networks can grow seamlessly while maintaining centralized control.

Use Cases for Ruckus ICX8200-48

Campus Networks

In campus environments, the ICX8200-48 provides reliable connectivity for thousands of users. Its high-density ports and fast uplinks make it suitable for connecting classrooms, offices, and labs.

Data Centers

Data centers require high-speed, low-latency switches to handle massive traffic volumes. The ICX8200-48 delivers the performance and scalability needed for virtualization, cloud services, and storage networking.

Enterprise Applications

Enterprises benefit from the ICX8200-48’s ability to support unified communications, video conferencing, and collaboration tools. Its robust performance ensures smooth operation of mission-critical applications.

Subcategory: ICX 8200 Series Switches

Series Overview

The ICX 8200 Series is designed for enterprises seeking high-performance, scalable, and secure networking solutions. It includes multiple models with varying port configurations and uplink options, catering to diverse deployment scenarios.

Comparison with Other ICX Models

While the ICX8200-48 focuses on high-density Gigabit connectivity, other models in the series may offer different port combinations, such as 10Gb or 40Gb uplinks. This flexibility allows organizations to choose the right model based on their specific needs.

ICX8200-24 vs ICX8200-48

The ICX8200-24 provides 24 RJ45 ports, making it suitable for smaller deployments. In contrast, the ICX8200-48 doubles the port count, catering to larger enterprises and campus networks.

ICX8200-48 with SFP Options

Some variations of the ICX8200-48 may include additional SFP ports, offering flexibility for fiber connectivity. This is particularly useful in environments requiring long-distance connections.

Deployment Scenarios

Core Layer Deployment

The ICX8200-48 can serve as a core switch in medium-sized networks, aggregating traffic from multiple access switches and delivering it to distribution layers efficiently.

Access Layer Deployment

In access layer deployments, the ICX8200-48 connects end-user devices, providing reliable Gigabit connectivity. Its stacking capabilities simplify management across multiple access switches.

Distribution Layer Deployment

The switch is also suitable for distribution layer deployments, where it aggregates traffic from access switches and forwards it to core switches. Its high-speed uplinks ensure minimal bottlenecks.

Energy Efficiency

Power-Saving Features

The ICX8200-48 incorporates energy-efficient technologies, reducing power consumption without compromising performance. Features such as Energy Efficient Ethernet (EEE) help lower operational costs.

Green Networking

By minimizing energy usage, the ICX8200-48 contributes to sustainable networking practices. Enterprises benefit from reduced carbon footprints and compliance with environmental standards.

Reliability and Redundancy

High Availability

The ICX8200-48 supports redundant power supplies and fans, ensuring continuous operation even in the event of hardware failures. High availability features minimize downtime and maintain business continuity.

Resilient Architecture

Its resilient architecture ensures that traffic is rerouted automatically in case of link failures. This enhances reliability and prevents service disruptions.

Security Enhancements

Access Control

The ICX8200-48 enforces strict access control policies, ensuring that only authorized devices can connect to the network. This prevents unauthorized access and enhances overall security.

Network Segmentation

By segmenting networks into VLANs, administrators can isolate sensitive workloads and reduce the risk of breaches. Network segmentation also improves traffic management and performance.

Compliance Standards

The ICX8200-48 complies with industry security standards, making it suitable for organizations in regulated industries such as healthcare, finance, and government.
