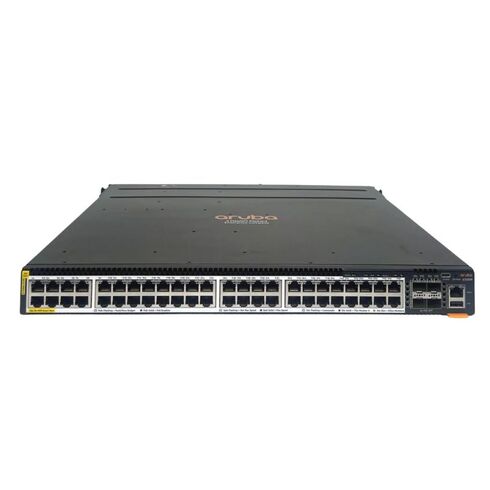

S3L76-61001 HPE 48 Port 6300L 100M/1G/2.5G/5G Smart Rate SFP56 Switch

Product Specifications

The HPE S3L76-61001 Aruba Networking 6300L switch offers a high-performance solution for various networking needs. With robust features and flexible options, this switch provides excellent connectivity and efficiency for modern data centers and enterprise networks.

Switch Model Details

• Device Type: Layer 3 Switch with 48 Ports
• Enclosure: 1U Rack-mountable
• Subtype: 5 Gigabit Ethernet Switch
• Power over Ethernet (PoE): PoE++ Supported (No Power Supply Included - Minimum of 1 Required)

Performance Features

• Switching Capacity: 780 Gbps
• Throughput: 580 Million Packets Per Second (Mpps)
• Maximum Stackable Units: 10 Units

Networking and Connectivity

• Ports: 48 x 100/1000/2.5G/5G PoE++ + 2 x 50Gb SFP56 + 2 x 25Gb SFP28 (Uplink)
• Remote Management Protocols: RMON, SNMP v2c, SNMP v3
• Optics Support: Includes LRM optics

Processor and Memory

• Processor: ARM Cortex-A72, 1.8 GHz
• RAM: 8 GB DDR4 SDRAM
• Flash Storage: 32 GB

Expansion and Connectivity Options

• RJ-45 Ports: 48 x 100/1000/2.5G/5G PoE++ (Class 8)
• Uplink/Stacking: 2 x 50Gb SFP56, 2 x 25Gb SFP28
• Console Management: 1 x RJ-45 Out-of-band Network Management
• USB: 1 x USB Type A Host

Power Requirements and Redundancy

• Power Supply: Internal, Hot-pluggable (No Power Supply Included)
• Maximum Supported Power Supplies: 2
• Redundancy: Optional Power Redundancy with 1+1 Scheme (Requires Optional Power Supply)

Additional Features

• Layer 2 Switching: Essential for network traffic management
• Packet Buffer: 8MB for handling larger packets and improving performance
• HPE SmartRate: Supports faster speeds over copper cables
• PoE Class 8: Provides power to devices like IP phones and wireless access points

Key Advantages

• Flexible, stackable architecture for scalable network expansion
• Advanced PoE capabilities to power network devices
• High throughput and switching capacity to handle demanding applications
• Comprehensive remote management for streamlined network operations

HPE 48 Port 6300L Smart Rate SFP56 Switch - High-Performance Networking

The S3L76-61001 HPE 48 Port 6300L 100M/1G/2.5G/5G Smart Rate SFP56 Switch is a cutting-edge networking solution designed for enterprises and data centers seeking high-speed, secure, and scalable connectivity. With its advanced Smart Rate technology, it delivers exceptional performance, flexible deployment options, and intelligent management capabilities.

Key Features of the HPE 6300L 48-Port Smart Rate Switch

Smart Rate Multi-Gigabit Ports

The HPE 6300L switch is equipped with 48 multi-speed Smart Rate ports, supporting speeds of 100M, 1G, 2.5G, and 5G. These ports allow seamless connectivity for modern applications, ensuring high-speed data transfer without requiring infrastructure overhauls.

Advanced SFP56 Uplink Ports

Designed for superior performance, this switch features SFP56 uplink ports that provide high-bandwidth connectivity to core networks and aggregation layers, minimizing bottlenecks and maximizing throughput.

Enterprise-Grade Security

Security is a top priority with the HPE 6300L switch, featuring robust security measures such as:

• Access Control Lists (ACLs) for traffic filtering
• IEEE 802.1X authentication for secure user access
• MACsec encryption to safeguard data transmission
• DHCP Snooping to prevent unauthorized access

Intelligent Network Management

The HPE 6300L switch is designed with advanced network management capabilities, including:

• HPE Aruba Central for cloud-based monitoring and configuration
• CLI and Web UI for easy local management
• SNMPv3 support for remote monitoring

Power and Efficiency

With energy-efficient Ethernet (EEE) and PoE+ support, this switch optimizes power usage while delivering high-performance networking for connected devices such as VoIP phones, security cameras, and wireless access points.

Applications of the HPE 6300L Smart Rate Switch

Enterprise Networking

Enterprises benefit from the switch’s advanced security, high-speed connectivity, and intelligent management, ensuring seamless communication and data transfer.

Data Center Aggregation

With high-bandwidth uplinks and flexible port configurations, this switch is an excellent choice for data center aggregation, supporting virtualized workloads and cloud applications.

Education and Research

Educational institutions rely on the HPE 6300L for high-speed connectivity across classrooms, laboratories, and administrative offices, supporting digital learning environments.

Technical Specifications of the HPE 6300L 48-Port Switch

Hardware Specifications

• Ports: 48 x 100M/1G/2.5G/5G Smart Rate ports
• Uplink Ports: SFP56 high-speed uplinks
• Power over Ethernet (PoE+): Yes
• Switching Capacity: High-performance backplane

Software Capabilities

• Security: 802.1X, MACsec, ACLs, DHCP Snooping
• Management: Aruba Central, SNMPv3, CLI
• Network Features: VLAN support, QoS optimization, multicast routing

The HPE 6300L 48-Port Smart Rate Switch

Future-Proof Your Network

With multi-gigabit support, cloud-managed options, and enterprise-grade security, the HPE 6300L is designed to meet the demands of future networking infrastructure.

High Reliability and Performance

Engineered for mission-critical applications, this switch delivers low-latency, high-speed connectivity to support businesses of all sizes.

Scalable and Flexible Deployment

Whether for small businesses, large enterprises, or campus networks, the modular design and feature-rich capabilities of this switch make it an ideal networking solution.
