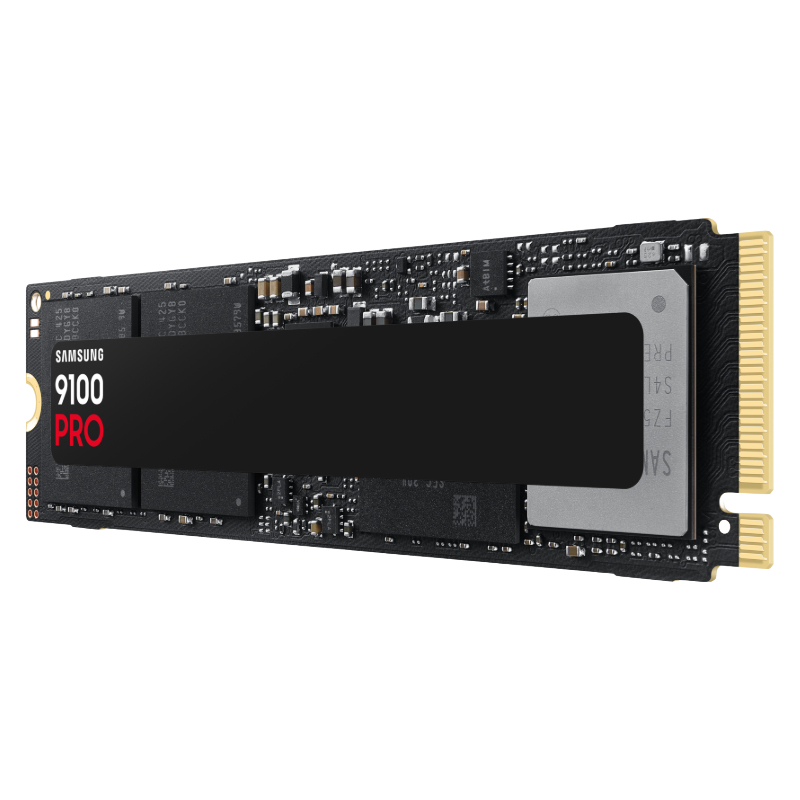

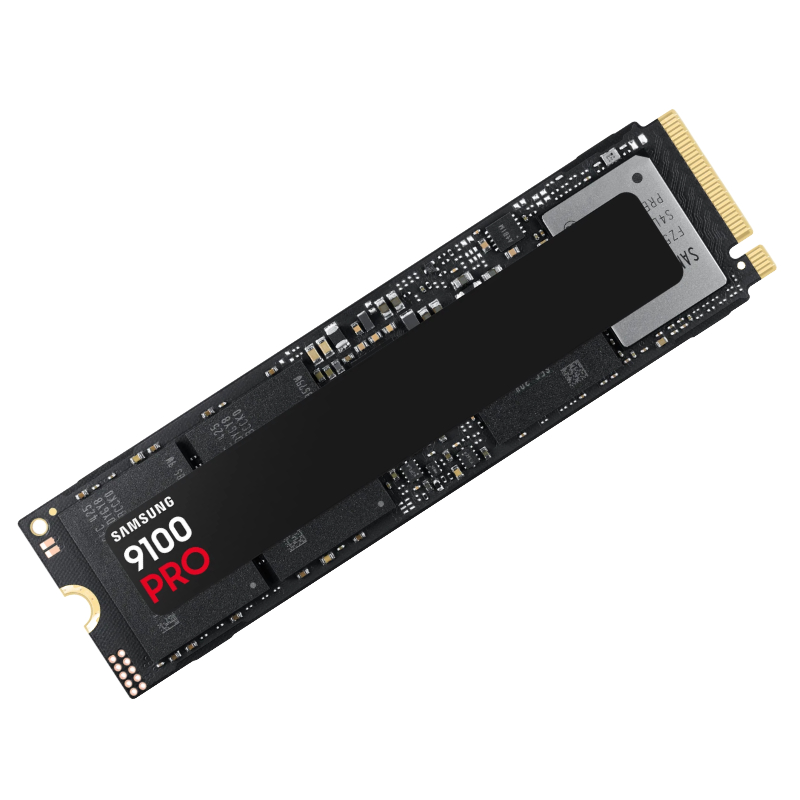

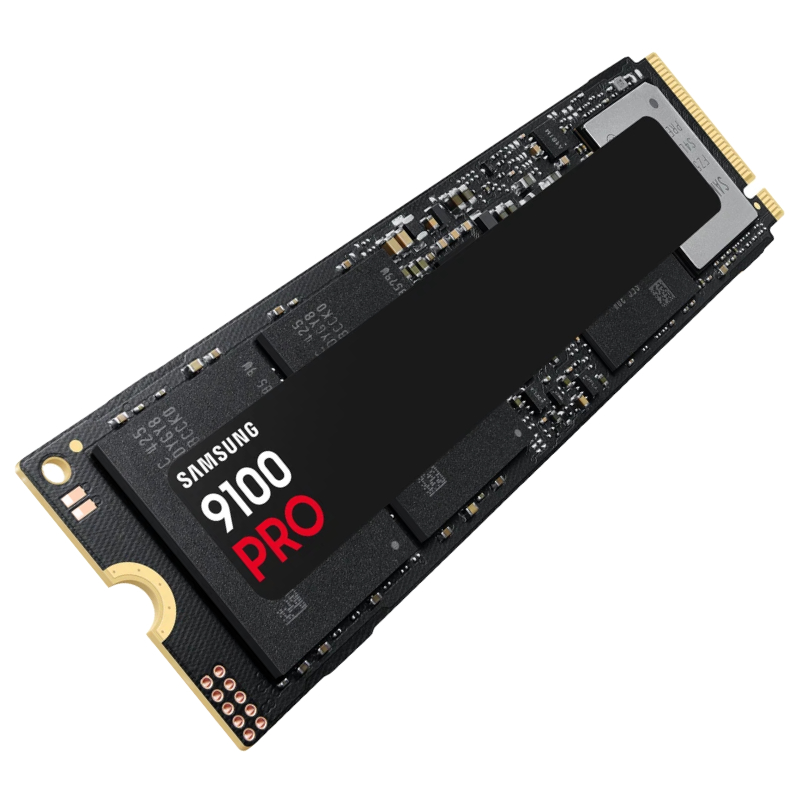

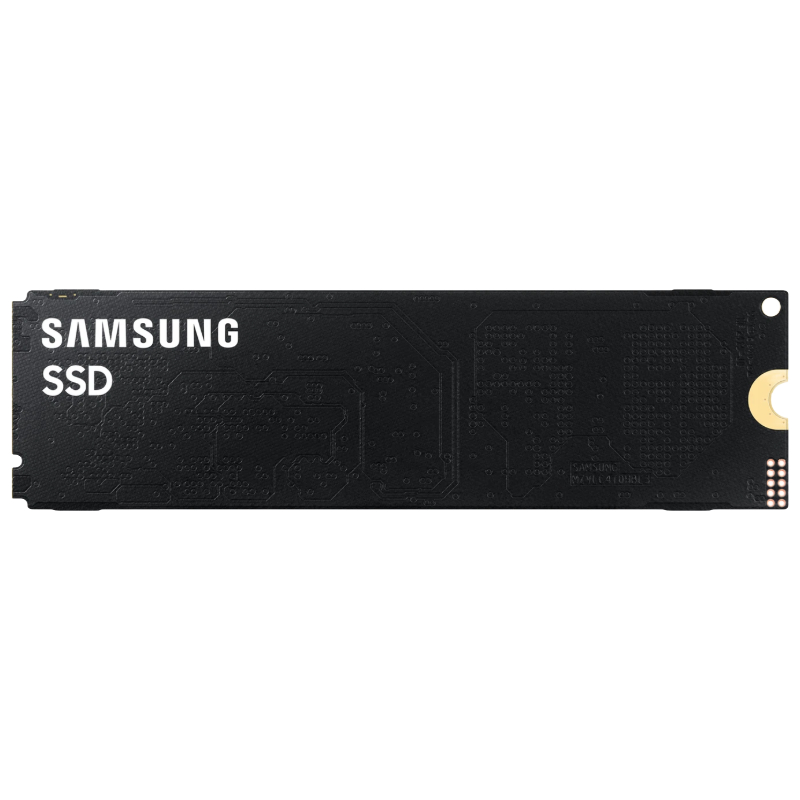

Samsung MZ-VAP1T0B 1TB M.2 2280 9100 PRO PCIe5.0 NVMe SSD

High-Performance PCIe 5.0 NVMe 2.0 SSD – Designed for Speed and Efficiency

This M.2 NVMe SSD with PCIe Gen 5.0 x4 connectivity is engineered for speed, reliability, and low power draw. It is ideal for demanding applications such as content creation, high-frequency trading, AI processing, and advanced gaming environments.

Technical Highlights & Hardware Features

• Connection Standard: PCI Express 5.0 x4 interface – next-generation bandwidth delivery
• NVMe Protocol: Version 2.0 for reduced latency and enhanced queue management
• Flash Type: Samsung V-NAND TLC – triple-level cell memory for reliable storage
• Integrated Cache: 1GB LPDDR4x DRAM for faster data buffering
• Physical Size: 80.15mm length × 22.15mm width × 2.38mm thickness

Speed & Performance Metrics

This SSD delivers ultra-high transfer speeds, significantly reducing load times and improving system responsiveness during intensive tasks.

• Maximum Sequential Read: Up to 14,700 MB/s
• Maximum Sequential Write: Up to 13,300 MB/s
• Peak Random Read IOPS: 1,850,000 operations per second
• Peak Random Write IOPS: 2,600,000 operations per second

Energy Usage & System Efficiency

Built with energy-conscious systems in mind, this drive balances blazing performance with intelligent power management to extend device longevity.

Operational Power Draw

• Active Read Power: 7.6 Watts during sustained read operations
• Active Write Power: 7.2 Watts under full write load

Idle State Consumption

• Idle Power (PS3 State): 4.0 milliwatts – efficient standby mode
• Deep Sleep Mode (PS4 State): 3.3 milliwatts – for ultra-low energy consumption

Endurance & Lifespan Rating

• TBW (Terabytes Written): 600TB – rated for extensive daily usage
• Perfect for professional workloads requiring long-lasting write capabilities
• Optimized to maintain consistent performance across its lifespan

Overview of the Samsung 9100 Pro Series

The Samsung MZ-VAP1T0B 9100 Pro 1TB M.2 2280 PCIe 5.0 NVMe 2.0 Internal Solid State Drive represents a significant leap in storage technology. As Samsung's inaugural PCIe 5.0 SSD, it delivers unparalleled performance, making it ideal for professionals and enthusiasts seeking top-tier storage solutions. With sequential read speeds up to 14,800 MB/s and write speeds up to 13,400 MB/s, this SSD sets new standards in data transfer rates.

Key Features

• Form Factor: M.2 2280
• Interface: PCIe 5.0 x4, NVMe 2.0
• Capacity: 1TB
• Sequential Read Speed: Up to 14,800 MB/s
• Sequential Write Speed: Up to 13,400 MB/s
• Random Read IOPS: Up to 1,850,000
• Random Write IOPS: Up to 2,600,000
• Controller: Samsung In-House Controller
• Cache Memory: 1GB Low Power DDR4X SDRAM
• Encryption Support: AES 256-bit, TCG/Opal, IEEE1667
• Warranty: 5-year limited or 600 TBW

Performance Benchmarks

The 9100 Pro series offers exceptional performance metrics:

• Sequential Read Speed: Up to 14,800 MB/s
• Sequential Write Speed: Up to 13,400 MB/s
• Random Read IOPS: Up to 1,850,000
• Random Write IOPS: Up to 2,600,000

These speeds are achieved through the integration of Samsung's Presto PCIe 5.0 controller and V-NAND TLC memory, ensuring high throughput and low latency for demanding applications.

Power Efficiency

Despite its high performance, the 9100 Pro maintains impressive power efficiency:

• Average Power Consumption: 7.6W (Read), 7.2W (Write)
• Idle Power Consumption: 4 mW
• Device Sleep Power Consumption: 3.3 mW

These figures highlight Samsung's commitment to balancing performance with energy efficiency, making the 9100 Pro suitable for both desktop and mobile platforms.

Thermal Management

Effective thermal management is crucial for maintaining optimal performance. The 9100 Pro series addresses this with:

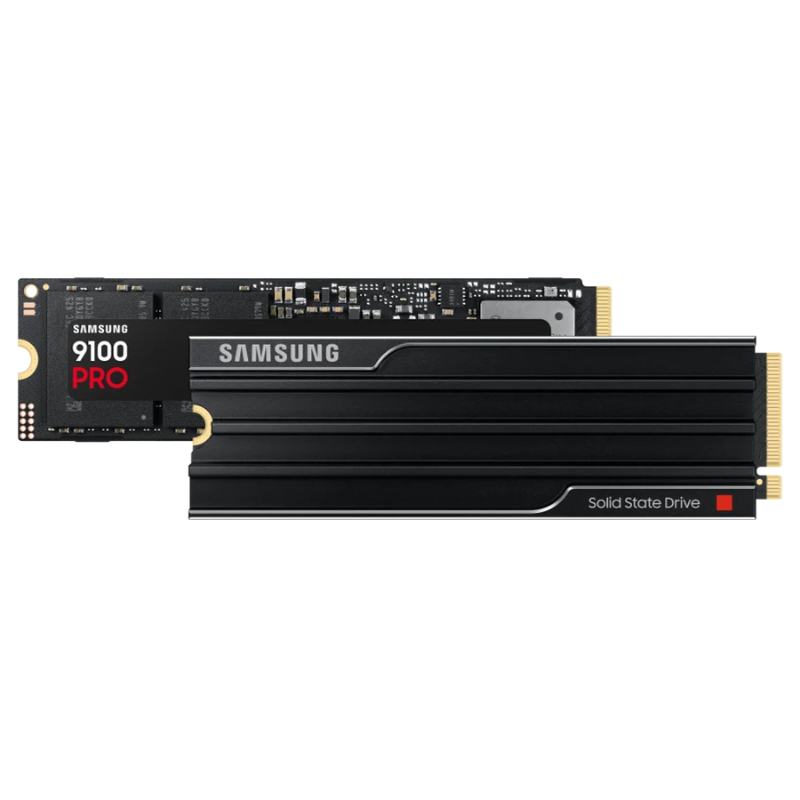

• Heatsink Compatibility: Available with an optional 8.8mm thick heatsink compliant with PCI-SIG D8 specifications.
• Operating Temperature Range: 0°C to 70°C
• Shock Resistance: 1,500 G & 0.5 ms (Half sine)

These features ensure that the SSD operates within safe thermal limits, even under heavy workloads.

Security Features

The 9100 Pro incorporates advanced security protocols to protect data integrity:

• Encryption: AES 256-bit Full Disk Encryption
• Compliance: TCG/Opal 2.0, IEEE1667 (Encrypted drive)
• TRIM Support: Yes
• S.M.A.R.T Support: Yes
• Auto Garbage Collection: Yes

These features safeguard against unauthorized access and ensure data remains intact over time.

Software Support

Samsung provides comprehensive software tools to manage and optimize the 9100 Pro:

• Samsung Magician Software: Offers firmware updates, performance optimization, and drive health monitoring.
• Device Sleep Mode Support: Yes

These tools enhance user experience by providing control over drive settings and performance tuning.

Use Cases

Professional Content Creation

For video editors, 3D modelers, and other content creators, the 9100 Pro's high sequential write speeds facilitate rapid data transfers, reducing bottlenecks during intensive tasks.

High-Performance Gaming

Gamers benefit from reduced load times and seamless gameplay, with the SSD's high read speeds ensuring quick access to game assets.

Data-Intensive Applications

Applications requiring fast data access, such as data analytics and scientific simulations, can leverage the 9100 Pro's low latency and high throughput.

Comparison with Previous Generations

Compared to its predecessor, the 990 Pro PCIe 4.0 SSD, the 9100 Pro offers:

• Sequential Read Speed: Up to 14,800 MB/s vs. 7,450 MB/s
• Sequential Write Speed: Up to 13,400 MB/s vs. 5,000 MB/s
• Random Read IOPS: Up to 1,850,000 vs. 1,000,000
• Random Write IOPS: Up to 2,600,000 vs. 1,000,000

These improvements demonstrate the significant advancements in storage technology with the introduction of PCIe 5.0.

Conclusion
