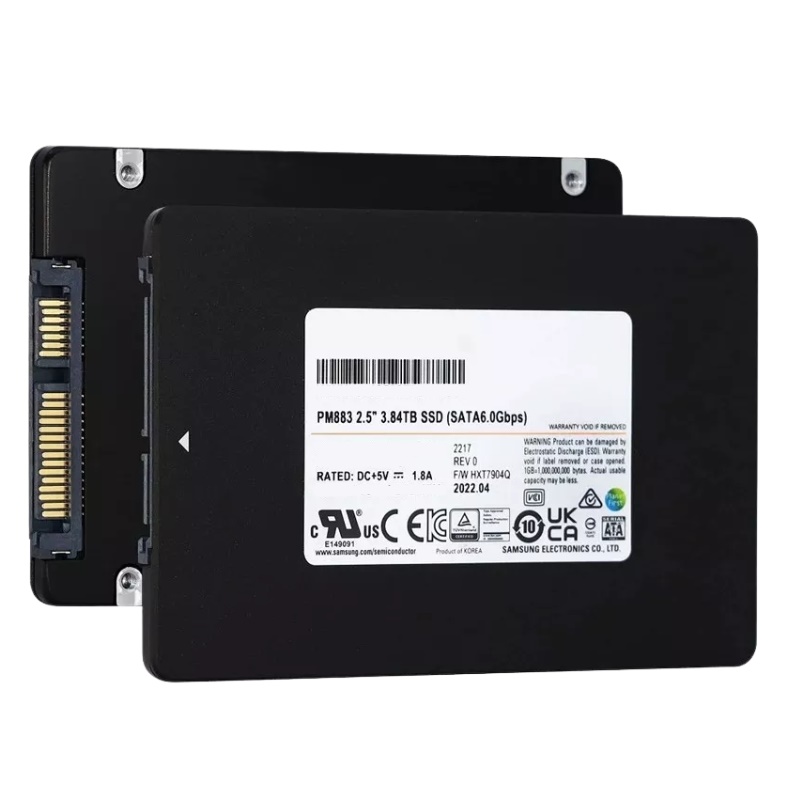

MZ7LH3T8HMLT-00AK4 Samsung PM883 3.84TB SATA 6GBPS 2.5inch SSD

Highlights of Samsung 3.84TB SSD

MZ7LH3T8HMLT-00AK4 Samsung PM883 3.84TB SATA 6Gbps 2.5-Inch SSD is a high-capacity internal solid-state drive designed for enterprise-level performance and reliability.

General Details

• Brand: Samsung
• Model Number: MZ7LH3T8HMLT-00AK4
• Device Category: Internal Solid State Drive

Technical Specifications

• Capacity: 3.84TB
• Data Protection: Hardware Encryption
• Encryption Standard: 256-bit AES
• Flash Memory: 3D Triple-Level Cell

Design & Interface

• Form Factor: 2.5-Inch
• Connection Type: SATA 6Gb/s
• Bytes Per Sector: 512

Advanced Features

• Native Command Queuing
• TRIM Support
• Power Disable Pin

Performance Details

• Drive Writes Per Day (DWPD): 1.3
• Endurance: 5466TB
• Transfer Speed: 600 Mbps (external)

Sequential Operations

• Maximum Sequential Read: 550 MB/s
• Maximum Sequential Write: 520 MB/s

Random Operations

• 4KB Random Read: 98,000 IOPS
• 4KB Random Write: 28,000 IOPS

Latency

• Average Latency: 40

Reliability & Durability

• MTBF: 2,000,000 Hours
• Unrecoverable Bit Error Rate (UBER): 1 sector per 10¹⁷ bits read

Expansion & Connectivity

• Interface: 1 x SATA 6Gb/s
• Compatible Bay: 2.5-Inch

Environmental Parameters

• Operating: 0°C to 70°C
• Non-Operating: -40°C to 85°C
• Temperature Gradient: 30°C per hour

Humidity

• Operating Humidity: 5% - 95% (non-condensing)

Samsung PM883 3.84TB SATA Enterprise SSD Overview

The Samsung MZ7LH3T8HMLT-00AK4 PM883 3.84TB SATA 6Gbps 2.5-inch Enterprise Internal Solid State Drive represents a high-performance storage solution designed for enterprise-grade data centers and mission-critical applications. Engineered with Samsung’s advanced V-NAND technology, this drive provides unparalleled reliability, efficiency, and speed for businesses that demand consistent performance across demanding workloads.

Enterprise-Grade Performance

Built to meet the rigorous demands of modern enterprise environments, the PM883 delivers sustained sequential read and write speeds that ensure seamless data access and high throughput for server applications. Its 3.84TB capacity allows organizations to consolidate storage while maintaining optimal performance for large datasets, virtual machines, and database operations. The SATA 6Gbps interface ensures compatibility with a wide range of enterprise servers, storage arrays, and legacy systems without compromising speed or reliability.

V-NAND Technology for Enhanced Reliability

The PM883 series utilizes Samsung’s 3D V-NAND architecture, which stacks memory cells vertically to achieve higher density and better endurance. This technology reduces the risk of data corruption and ensures that the drive maintains consistent performance even under heavy workloads. V-NAND also provides lower power consumption compared to traditional planar NAND, reducing operational costs and heat generation within data center environments.

Optimized for Mixed Workloads

This SSD is specifically optimized for mixed-use scenarios that combine read-intensive and write-intensive tasks. Enterprise applications, including virtualization, online transaction processing, and high-performance computing, benefit from the drive’s balanced read/write capabilities. With a high IOPS rating, the PM883 minimizes latency and enhances system responsiveness, ensuring critical business operations run smoothly without bottlenecks.

Endurance and Data Integrity

The Samsung PM883 is designed to withstand continuous enterprise-level operations. Its high endurance rating allows for sustained write cycles over the life of the drive, providing organizations with confidence in long-term storage reliability. The drive incorporates advanced error correction and wear-leveling algorithms that preserve data integrity, ensuring that even under high-stress conditions, data loss is minimized. This makes it ideal for server farms, cloud storage environments, and other enterprise-critical infrastructures.

Compatibility and Integration

The 2.5-inch form factor and SATA 6Gbps interface of the PM883 allow it to integrate seamlessly with most enterprise servers and storage solutions. Its standard design ensures ease of deployment within existing infrastructures without requiring major modifications. The drive also supports TRIM and S.M.A.R.T. commands, which enhance system management and maintain consistent performance over time. IT administrators can monitor health metrics and manage storage efficiently across multiple devices.

Power Efficiency for Cost-Effective Operation

Power efficiency is a key advantage of the PM883 SSD. Its low power draw during read and write operations contributes to reduced energy consumption in large-scale data centers, lowering operational costs. This efficiency is particularly important for enterprises running 24/7 environments, where energy usage directly impacts the total cost of ownership. The combination of high performance and low power consumption makes the PM883 an environmentally friendly and economically sensible storage solution.

Enterprise Applications of the PM883 Series

The PM883 series is engineered to support a wide array of enterprise applications. Its performance characteristics make it ideal for database management, virtualization, cloud computing, and high-speed transactional systems. Data centers benefit from the drive’s ability to handle large-scale storage with consistent performance, reducing latency and ensuring reliable access to critical business information.

Virtualization and Cloud Environments

In virtualized environments, the PM883 enhances system responsiveness by providing fast and reliable storage for virtual machines. Its 3.84TB capacity allows for the consolidation of multiple virtual machines on a single drive without sacrificing performance. Cloud service providers and enterprise IT departments can leverage the PM883 to maintain uptime, ensure smooth operation of applications, and support large-scale deployments with minimal maintenance requirements.

High-Performance Databases

For high-performance database applications, the PM883 provides low-latency access to frequently used data. Enterprise databases, including transactional and analytical systems, benefit from the drive’s consistent IOPS and sequential throughput. This ensures that critical queries and operations complete efficiently, supporting business intelligence, reporting, and analytics without disruption.

Data Center Scalability

Data centers looking to scale storage capacity without compromising speed can utilize the PM883’s high-density 3.84TB capacity. The drive’s design allows for seamless integration into storage racks and server enclosures, enabling easy expansion and upgrade paths for growing infrastructures. Samsung’s robust manufacturing quality ensures that each drive meets strict enterprise reliability standards, supporting long-term scalability strategies.

Advanced Features for Enterprise SSDs

The Samsung PM883 is equipped with advanced features that cater to the needs of enterprise environments. These features include predictive failure analysis, advanced error correction, and firmware-level optimizations that maintain drive health and performance over time. The integration of these technologies ensures maximum uptime and minimizes the risk of unexpected failures, which is crucial for critical business operations.

Security and Data Protection

Enterprise data security is enhanced with the PM883 through support for AES 256-bit encryption, ensuring that sensitive information remains protected even if the drive is removed from the system. The drive’s firmware supports secure erase and data sanitization functions, which comply with regulatory standards and corporate data protection policies. This makes the PM883 a trusted solution for enterprises with strict compliance requirements.

Firmware and Software Management

Samsung provides comprehensive management software for the PM883 series, allowing IT administrators to monitor performance, manage firmware updates, and ensure consistent drive health. The software supports proactive maintenance, including wear-level monitoring and predictive failure alerts. This reduces the likelihood of unplanned downtime and simplifies the management of large-scale storage deployments.

Consistent Quality and Reliability

Every Samsung PM883 SSD undergoes rigorous quality control and testing processes to ensure maximum reliability and durability. Enterprise-grade components and Samsung’s expertise in flash memory technology result in a drive capable of withstanding continuous operational workloads. Organizations can trust the PM883 to deliver consistent performance over extended periods, making it an essential component of high-availability data centers.
