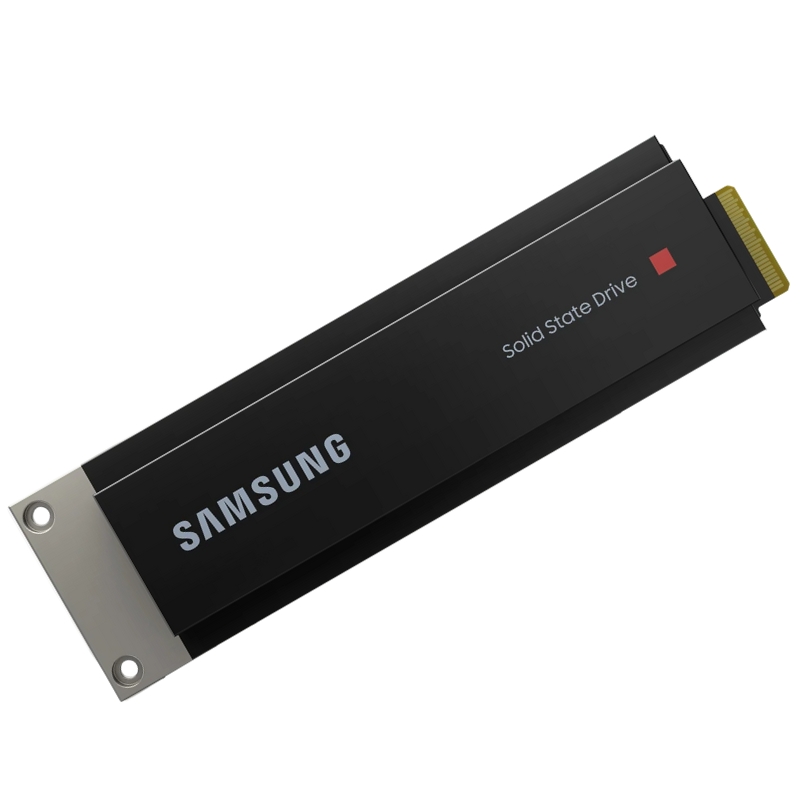

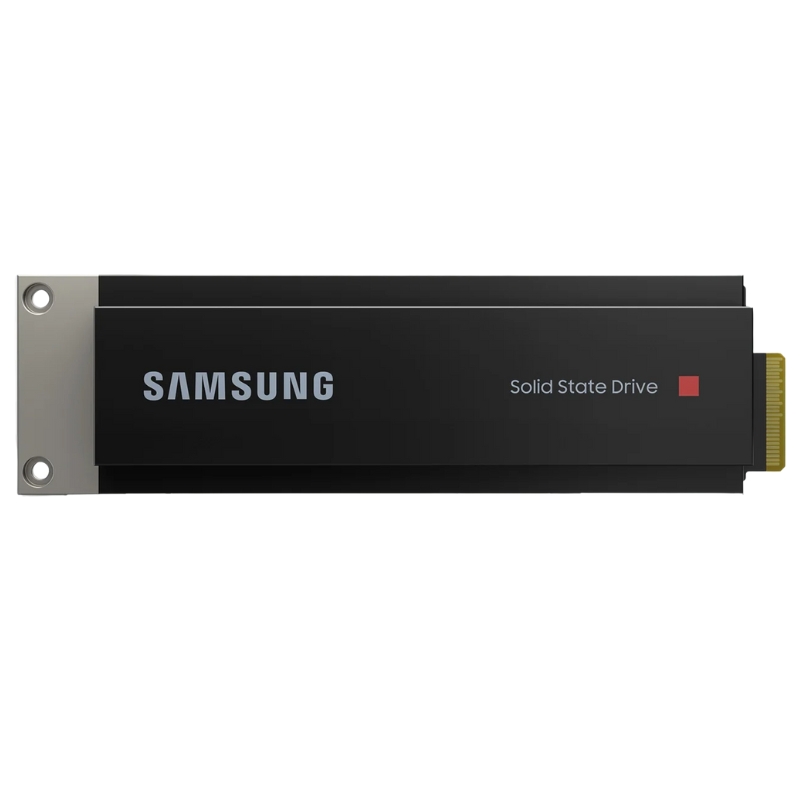

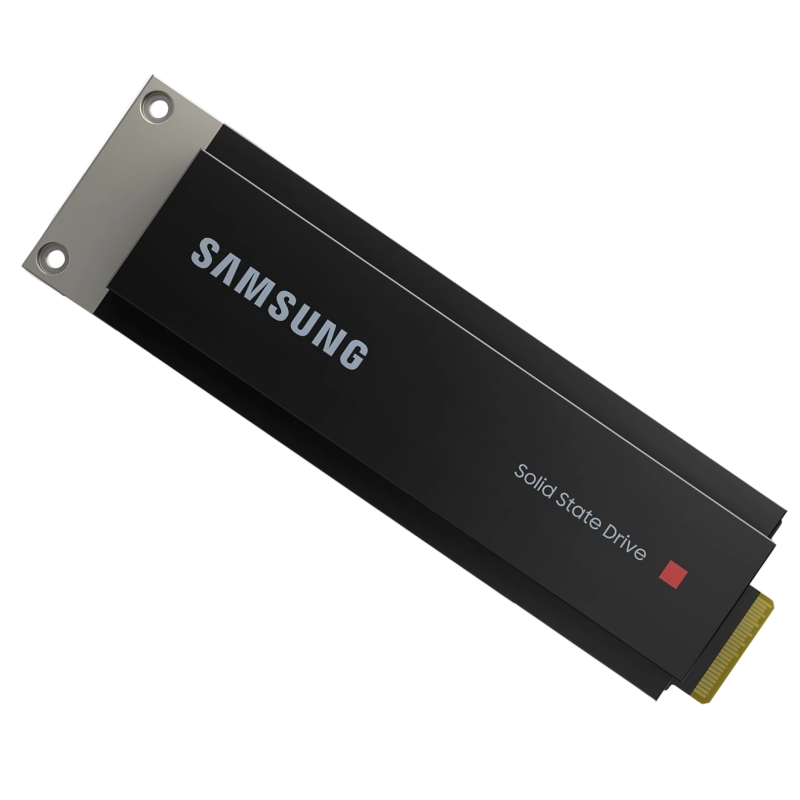

MZTL67T6HBLC PM9D3A Samsung 7.68TB PCI-Express E1.S SSD

Samsung PM9D3A E1.S PCI-E Gen5 SSD Overview

The Samsung PM9D3A E1.S MZTL67T6HBLC represents a paradigm shift in enterprise and data center storage solutions. As a PCI-Express Gen.5 x4 NVMe Solid State Drive in the compact E1.S form factor, this 7.68TB behemoth is engineered for the most demanding workloads of the modern era. It is not merely an incremental upgrade but a foundational technology built from the ground up to leverage the unprecedented bandwidth of the PCIe 5.0 interface, delivering blistering speeds, exceptional power efficiency, and rock-solid reliability that hyperscalers, cloud providers, and enterprise IT departments demand.

The Architectural Leap

The EDSFF E1.S form factor is a purpose-built specification designed for the unique thermal, power, and density requirements of next-generation servers and storage platforms. The Samsung PM9D3A leverages this design to its fullest.

E1.S is the Future of Data Center Storage

Unlike traditional 2.5-inch U.2 drives, the E1.S's "gum stick" design allows for superior airflow and thermal management—a critical factor for high-power PCIe Gen5 devices. Its narrow profile enables high-density configurations within a 1U server chassis, allowing data centers to achieve petabytes of storage in a fraction of the rack space. The 9.5mm thickness variant, like this PM9D3A model, provides the physical room necessary for advanced controller and NAND packaging, as well as more robust heatsinking solutions to sustain peak performance.

Hot-Swap Capability

The E1.S form factor is designed for tool-less serviceability and front-hot-swap capabilities. This means a failed or failing drive can be identified, removed, and replaced from the front of the server without powering down the entire system or sliding the chassis out of the rack. This dramatically reduces maintenance overhead and improves overall system uptime, a key metric for any mission-critical deployment.

Unleashing Unprecedented Speed

PCI-Express Generation 5 doubles the bandwidth per lane compared to the previous PCIe Gen4 standard. With a x4 lane configuration, the PM9D3A E1.S drive offers a theoretical interface bandwidth of up to 32 GT/s (Giga Transfers per second), or approximately 16 GB/s in each direction (read/write). This massive pipeline eliminates storage bottlenecks, ensuring that the fastest CPUs and GPUs are constantly fed with data.

Real-World Performance Benchmarks

While specifications can vary based on workload and system configuration, the Samsung PM9D3A is engineered to deliver exceptional sequential read and write speeds that push the limits of the PCIe 5.0 interface. Expect sequential read performance to approach or exceed 13,000 MB/s and sequential writes to reach similarly staggering figures. More importantly, its random read/write IOPS (Input/Output Operations Per Second) are designed to be astronomically high, making it ideal for random-access-heavy applications like database transactions, virtualization, and AI/ML data processing.

Sustained Performance and The Role of DRAM

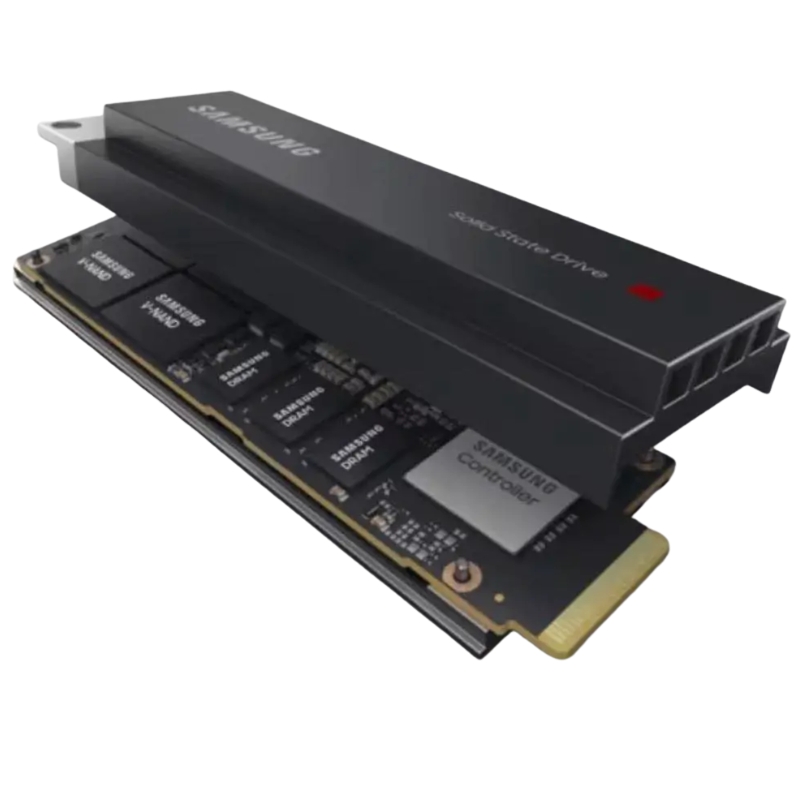

Many drives offer high burst speeds but throttle under sustained workloads due to thermal constraints. The PM9D3A is built differently. It incorporates a high-performance, power-efficient controller paired with a large pool of DRAM cache. This DRAM acts as a buffer and mapping table, ensuring consistent performance even during extended periods of heavy write activity. The combination of the E1.S thermal advantages and Samsung's advanced firmware allows this drive to maintain its world-class performance profile over time, not just in short benchmarks.

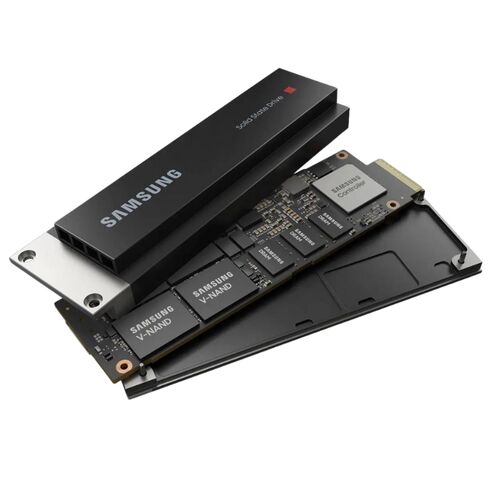

7.68TB of Cutting-Edge V-NAND Technology

At the heart of this drive lies Samsung's industry-leading V-NAND (Vertical NAND) memory cells. This 7.68TB capacity point is a sweet spot for enterprise applications, offering a massive pool of high-speed storage for everything from large-scale virtual machines to immense data lakes.

Density and Reliability

Achieving this density in a single E1.S device is a testament to Samsung's manufacturing prowess. The use of their latest-generation, high-density NAND chips means fewer components are needed, which inherently improves reliability by reducing potential points of failure. Each cell is meticulously engineered for endurance and data retention.

Advanced Error Correction and Data Protection

To ensure data integrity, the PM9D3A employs a robust suite of error correction codes (ECC) far more advanced than those found in consumer drives. This technology continuously scans for and corrects bit errors, safeguarding data against corruption. This is coupled with end-to-end data path protection, which ensures that data is verified as it moves between the host, the drive's DRAM, and the NAND media itself.

Power Efficiency

In a large data center, power consumption and cooling are primary operational expenses. A key advantage of the PCIe Gen5 architecture and the PM9D3A's design is improved power efficiency. While the peak power draw may be higher during active transfers, the drive completes tasks so much faster that it can return to a low-power idle state more quickly. This "race to idle" strategy, combined with advanced power state management, means the overall energy consumed per terabyte transferred is significantly lower than that of previous-generation drives, reducing the total cost of ownership.

Thermal Management and Throttling

The Samsung PM9D3A E1.S 9.5mm drive is designed with an integrated heat spreader or is intended to be used with a server's proprietary airflow or heatsink system. Its firmware includes sophisticated thermal throttle algorithms that carefully balance performance and temperature to prevent overheating without causing noticeable performance dips under normal operating conditions. This predictable behavior is essential for system integrators designing cooling solutions.

Endurance, TBW, and Mean Time Between Failures (MTBF)

Enterprise and data center workloads are characterized by constant, heavy write cycles. The Samsung PM9D3A is built to endure this punishment.

Terabytes Written (TBW) Rating

This 7.68TB model boasts an exceptionally high TBW rating, typically in the range of several full drive writes per day (DWPD) over its warranty period. This means you can write petabytes of data to the drive over its lifespan. This endurance is achieved through a combination of high-quality, enterprise-grade NAND, advanced wear-leveling algorithms that distribute writes evenly across all cells, and over-provisioning (reserving extra NAND capacity for maintenance operations).

Unmatched Reliability

The drive features a staggering MTBF (Mean Time Between Failures) rating, often exceeding 2 million hours. This statistic, derived from extensive accelerated life testing, provides a quantitative measure of the drive's predicted reliability and is a cornerstone of its value proposition for 24/7 operation.

Use Cases

The Samsung PM9D3A E1.S is not a general-purpose drive; it is a specialist for the most demanding computing environments.

Artificial Intelligence and Machine Learning

AI/ML training involves reading enormous datasets (training sets) and constantly writing checkpoints and model updates. The bandwidth of the PCIe Gen5 interface ensures that data-hungry GPUs are never left waiting, drastically reducing training times and accelerating time-to-insight.

High-Frequency Trading (HFT) and Financial Databases

In financial markets, every microsecond counts. The ultra-low latency and immense random read/write IOPS of the PM9D3A allow trading algorithms to access and process market data at unparalleled speeds, providing a critical competitive advantage.

High-Performance Computing (HPC) and Scientific Simulation

HPC clusters used for tasks like genomic sequencing, fluid dynamics, and cosmological modeling generate and consume vast amounts of data. This drive acts as a massive, incredibly fast scratch space for computational tasks, enabling researchers to solve more complex problems faster.

Cloud Storage Caching and Tiering

For cloud service providers, the PM9D3A can serve as a massive cache layer in front of slower, high-density QLC drives or even hard disk drives. Frequently accessed "hot" data is stored on these ultra-fast drives, ensuring maximum performance for end-users while keeping storage costs manageable.

Integration and Compatibility Considerations

Adopting this new technology requires careful planning.

Host System Requirements

To utilize a PCIe Gen5 SSD, the server platform must have a compatible PCIe Gen5 slot, typically found on the latest generation of server motherboards powered by Intel Xeon Scalable "Sapphire Rapids" or AMD EPYC "Genoa" processors. The system BIOS must also support the necessary interfaces for booting and configuration.

Operating System

Modern server-oriented operating systems like Linux (with recent kernels), Windows Server 2022, and VMware ESXi 8.0+ offer native support for NVMe and PCIe Gen5 devices. While dedicated drivers are often not required for basic functionality, installing the latest vendor-provided drivers and tools (e.g., Samsung's own management software) is recommended to unlock full performance and all advanced management features.
