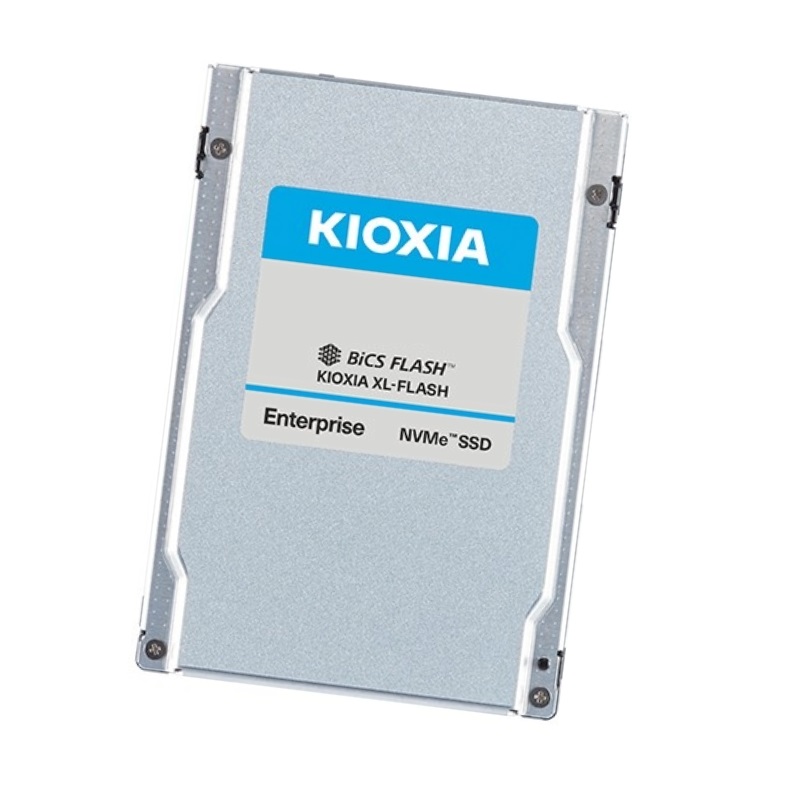

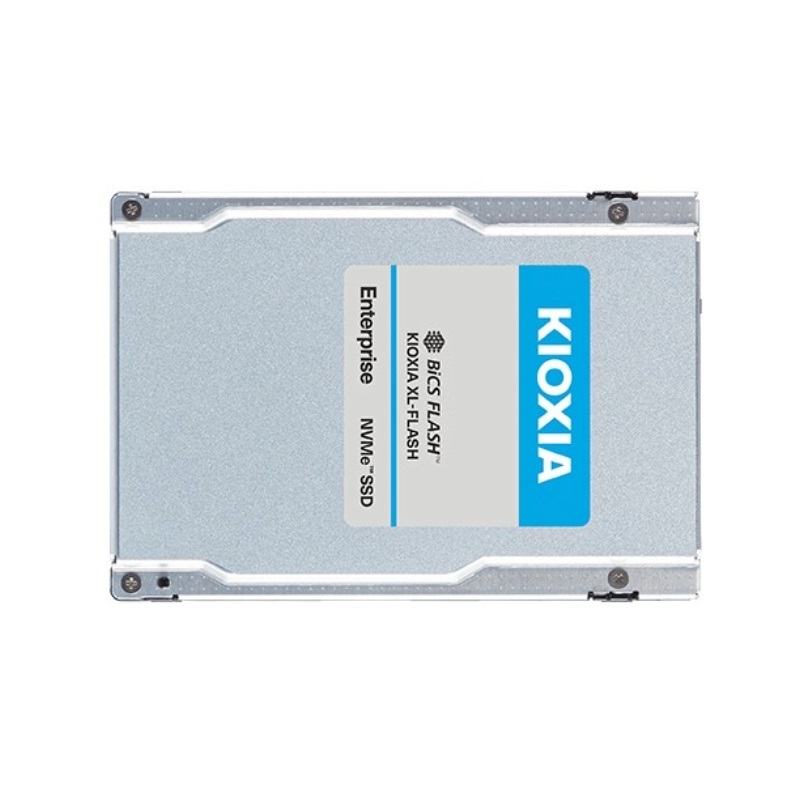

SDF1B86DAB01T Kioxia 960GB Read Intensive NVMe SSD

SDF1B86DAB01T
Hover on image to enlarge

Brief Overview of SDF1B86DAB01T

Kioxia 960GB Read Intensive PCI-Express Gen4 x4 (NVMe) BICS Flash TLC SSD SDF1B86DAB01T. New Sealed in Box (NIB) - Dell Version

QR Code of SDF1B86DAB01T Kioxia 960GB Read Intensive NVMe SSD
$450.00
$224.00
You save: $226.00 (50%)
Ask a question
+
Quote
Additional 7% discount at checkout
SKU/MPNSDF1B86DAB01TAvailability✅ In StockProcessing TimeUsually ships same day ManufacturerKioxia Manufacturer Warranty3 Years Warranty from Original Brand Product/Item ConditionNew Sealed in Box (NIB) ServerOrbit Replacement WarrantySix-Month (180 Days)
Our Advantages
  • Free Ground Shipping
  • — Min. 6-month Replacement Warranty
  • — Genuine/Authentic Products
  • — Easy Return and Exchange
  • — Different Payment Methods
  • — Best Price
  • — We Guarantee Price Matching
  • — Tax-Exempt Facilities
  • — 24/7 Live Chat, Phone Support
Payment Options
  • — Visa, MasterCard, Discover, and Amex
  • — JCB, Diners Club, UnionPay
  • — PayPal, ACH/Wire Transfer
  • — Apple Pay, Amazon Pay, Google Pay
  • — Buy Now, Pay Later - Affirm, Afterpay
  • — GOV/EDU/Institutions PO's Accepted
  • — Invoices
Delivery
  • — Deliver Anywhere
  • — Express Delivery in the USA and Worldwide
  • — Ship to -APO -FPO
  • For USA - Free Ground Shipping
  • — Worldwide - from $30
Description

Product Overview of Kioxia SDF1B86DAB01T SSD

Main Specifications

  • Type: Internal Solid State Drive
  • Capacity: 960 GB
  • NAND Flash Memory: BiCS Flash™ Triple-level Cell (TLC)
  • Form Factor: 2.5-inch, 15mm thickness
  • Interface: PCIe® 4.0, NVMe™ 1.4
  • Maximum Interface Speed: 64 GT/s (PCIe® Gen4 x4)
  • Flash Memory Type: BiCS Flash™ TLC

Performance Specifications

  • Sustained 128 KiB Sequential Read Speed: 6,250 MB/s
  • Sustained 128 KiB Sequential Write Speed: 1,700 MB/s
  • Sustained 4 KiB Random Read IOPS: 850,000 IOPS
  • Sustained 4 KiB Random Write IOPS: 53,000 IOPS

Power Requirements

  • Supply Voltage: 12 V ± 10%, 3.3 V ± 15%
  • Power Consumption (Active): 19 W (Typical)
  • Power Consumption (Idle): 5 W (Typical)

Reliability

  • MTTF (Mean Time to Failure): 2,500,000 hours
  • DWPD (Drive Writes Per Day): 1

Physical Dimensions

  • Thickness: 15 mm ± 0.5 mm
  • Width: 69.85 mm ± 0.25 mm
  • Length: 100.45 mm (maximum)
  • Weight: 130 g (maximum)

Environmental Tolerances

Temperature

  • Operating: 0°C to 70°C
  • Non-Operating: -40°C to 80°C

Humidity

  • Operating: 5% to 95% relative humidity

Vibration Resistance

  • Operating Vibration: 21.27 m/s² {2.17 Grms} (5 to 800 Hz)

Shock Resistance

  • Operating Shock: 9.8 km/s² {1,000 G} (0.5 ms)

Capacity

The Kioxia SDF1B86DAB01T NVMe SSD boasts an impressive storage capacity of 960GB. This substantial capacity makes it an ideal choice for users who require ample space to store their data, files, and applications. Whether you are a creative professional working with large media files or a gamer looking to install numerous games, the 960GB capacity ensures that you will have enough room to accommodate all your needs.

Ample Storage Space

With 960GB of storage, you can say goodbye to the constant struggle of managing your data and juggling between different storage devices. This SSD provides you with a vast amount of space to store your files, documents, photos, videos, and more without worrying about running out of storage.

Efficient Data Management

The generous capacity of the Kioxia SDF1B86DAB01T NVMe SSD allows you to keep all your data in one place, making it easier to manage and organize. Gone are the days of searching through multiple drives or cloud storage services to find what you need. With this SSD, you can store and access all your important files conveniently.

Smoother Workflow

Having a larger storage capacity means that you can keep all your applications and software on the SSD without having to constantly uninstall and reinstall them to free up space. This ensures a smoother workflow, as you can quickly launch your favorite applications without any delays or interruptions.

Future-Proofing

As technology advances and file sizes continue to grow, having a high-capacity SSD like the Kioxia SDF1B86DAB01T NVMe SSD ensures that you are prepared for the future. With 960GB of storage, you can confidently handle larger files and data-intensive tasks without worrying about running out of space.

Seamless Multimedia Experience

If you are a content creator or a media enthusiast, the 960GB capacity of this NVMe SSD is particularly beneficial. It allows you to store and work with high-resolution photos, videos, and audio files without compromising on quality or performance. You can edit, render, and export your multimedia projects effortlessly, ensuring a seamless creative process.

Game Storage

For gamers, the 960GB capacity is a game-changer. You no longer have to prioritize which games to keep installed and which to uninstall due to limited storage space. With this SSD, you can have all your favorite games ready to play at any time, eliminating the need for time-consuming installations and downloads.

Intended Use

The Kioxia SDF1B86DAB01T NVMe SSD is designed specifically for read-intensive applications. This makes it an excellent choice for users who require fast and reliable access to large amounts of data. Whether you are working with databases, performing data analytics, or running virtual machines, the read-intensive nature of this SSD ensures optimal performance and efficiency.

Enhanced Read Performance

The read-intensive design of the Kioxia SDF1B86DAB01T NVMe SSD prioritizes fast read speeds. This means that you can quickly access your data and retrieve information without any significant delays. Whether you are accessing large files or performing data-intensive tasks, the enhanced read performance of this SSD ensures a smooth and efficient experience.

Optimized Workloads

The read-intensive nature of this SSD makes it ideal for workloads that primarily involve reading data rather than constant writing. Applications such as database servers, web servers, and content delivery networks benefit greatly from the optimized read performance offered by this SSD. It ensures that these workloads can be handled efficiently, reducing latency and improving overall system responsiveness.

Faster Data Retrieval

With the Kioxia SDF1B86DAB01T NVMe SSD's read-intensive design, you can quickly retrieve data from your storage, accelerating your workflow. This is particularly beneficial for tasks that involve accessing large databases or performing data analysis. The faster data retrieval allows you to access information promptly, enabling more efficient decision-making and analysis.

Improved Virtual Machine Performance

Virtual machines require fast and reliable read access to their disk images. The read-intensive nature of this SSD ensures that virtual machines can be launched and operated smoothly. It reduces the time it takes for the virtual machine to access its disk image, improving overall performance and responsiveness.

Reduced Power Consumption

Read-intensive SSDs typically consume less power compared to their write-intensive counterparts. This is because the read operations are generally less power-intensive. By using the Kioxia SDF1B86DAB01T NVMe SSD for read-intensive workloads, you can benefit from reduced power consumption, leading to lower energy costs and longer battery life for portable devices.

Extended Lifespan

The read-intensive design of this SSD results in a longer lifespan compared to write-intensive SSDs. Since the majority of the workload involves reading data rather than writing, the wear and tear on the NAND flash memory cells are reduced. This extended lifespan ensures that you can rely on the Kioxia SDF1B86DAB01T NVMe SSD for a longer period, providing excellent value for your investment.

In conclusion, the Kioxia SDF1B86DAB01T NVMe SSD's 960GB capacity offers ample storage space for users, allowing efficient data management, smoother workflows, and future-proofing. Additionally, its read-intensive design enhances read performance, optimizes workloads, and improves virtual machine performance, while also reducing power consumption and extending the SSD's lifespan. Whether you are a professional dealing with large files or require fast access to data-intensive applications, this SSD is a reliable choice that delivers exceptional performance and reliability.

Features
Manufacturer Warranty:
3 Years Warranty from Original Brand
Product/Item Condition:
New Sealed in Box (NIB)
ServerOrbit Replacement Warranty:
Six-Month (180 Days)
