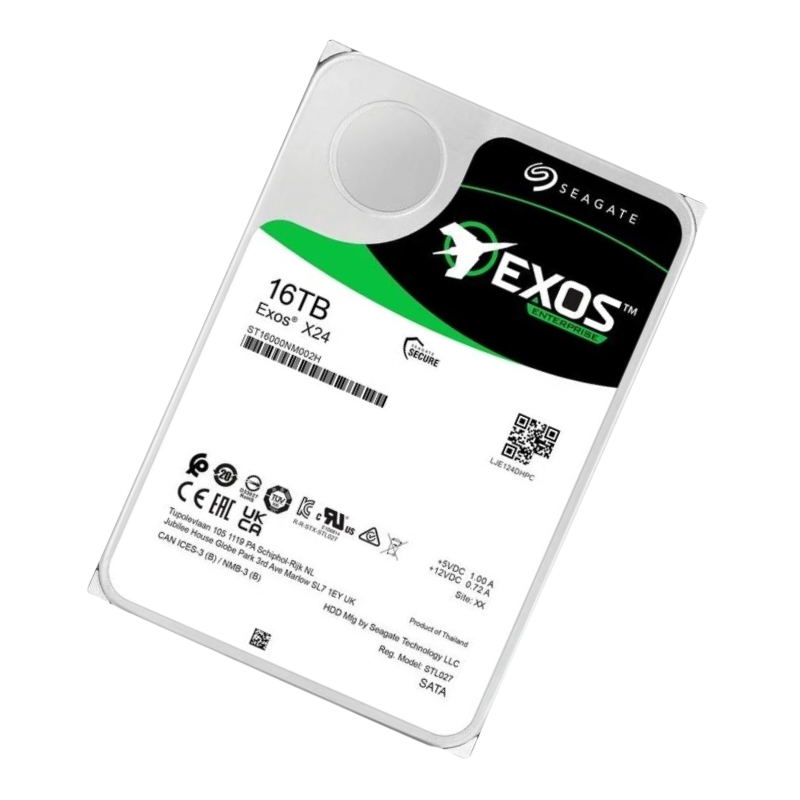

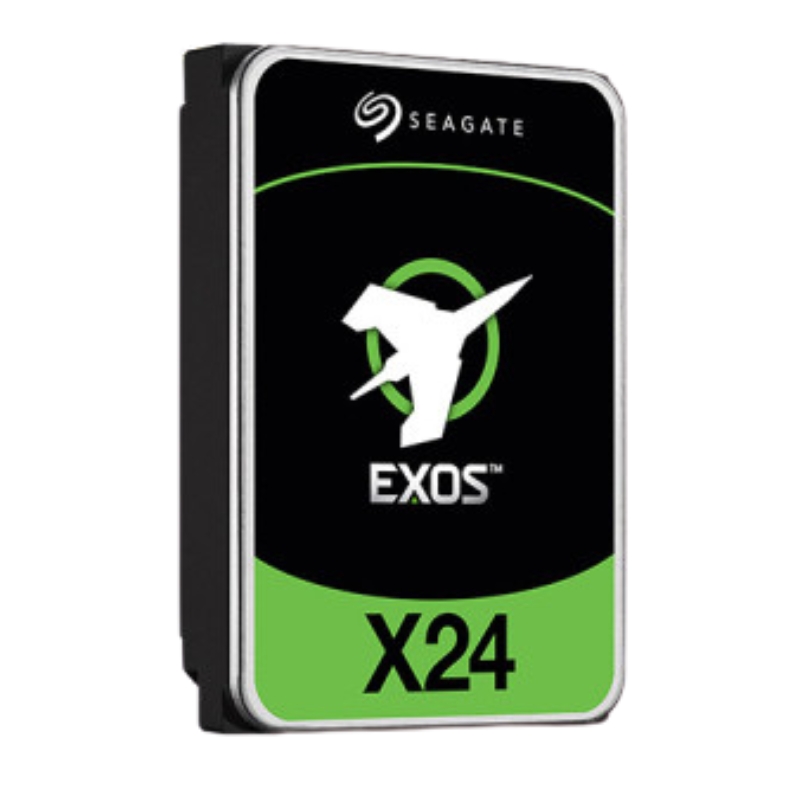

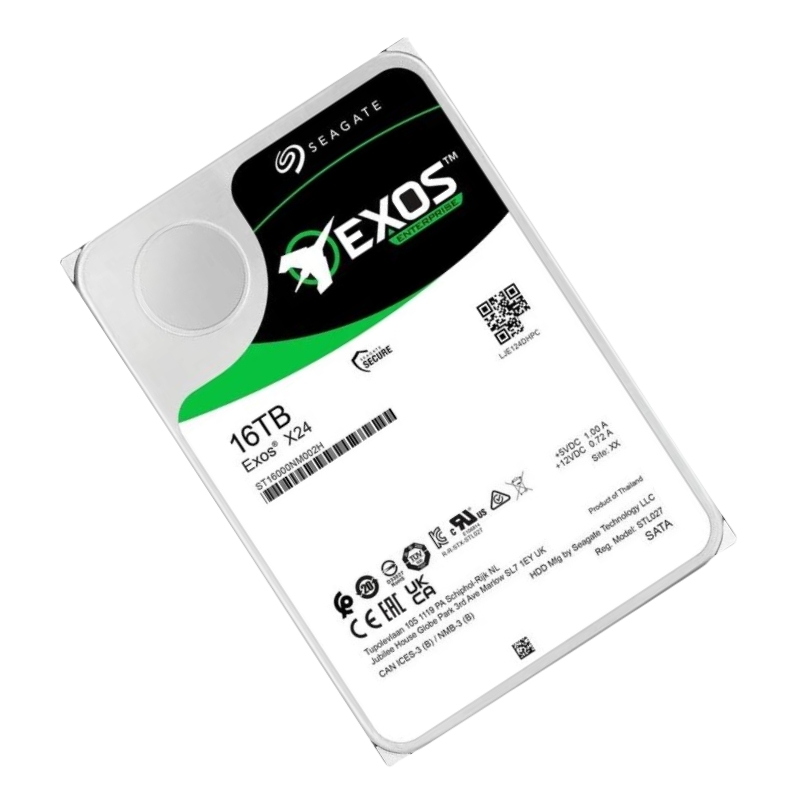

ST16000NM002H Seagate SATA 6Gbps 512MB Cache I 3.5-Inch Hard Drive.

Overview of Seagate Exos X24 16TB SATA Hard Drive

The Seagate Exos X24 ST16000NM002H is a high-capacity 16TB enterprise-grade storage solution engineered for demanding data center environments. Built for scalability, endurance, and consistent performance, this 3.5-inch SATA hard disk is designed to support modern cloud infrastructure and large-scale data workloads.

General Information

• Brand: Seagate
• Part Number: ST16000NM002H
• Series: Exos X24
• Product Type: Internal Hard Drive

Technical Specifications

• Storage: 16 Terabytes
• Form Factor: Internal 3.5-inch
• Connection Type: SATA 6Gb/s
• Sector Sizes: 512e and 4Kn (4096 bytes)
• Reliability: 2.5 million hours MTBF
• Design: Helium-sealed for efficiency
• Recording Technology: Conventional Magnetic Recording (CMR)
• Advanced Features: Superparity, Low Halogen
• Hot-plug Capability: Supported
• Security: RSA 3072 firmware verification

Storage

• Massive 16TB storage capacity for high-density environments
• 3.5-inch internal enterprise HDD form factor
• SATA 6Gb/s interface for stable connectivity
• 7200 RPM rotational speed for balanced performance
• 512MB cache buffer for improved data handling

Performance and Throughput Capabilities

• Up to 285 MB/s sustained transfer rate
• Average latency of 4.16 ms for responsive access
• High IOPS performance for mixed workload environments
• Efficient 7200 RPM spindle speed for consistent throughput

Reliability Features

• Helium-sealed drive design for reduced friction and heat
• Conventional Magnetic Recording (CMR) technology
• PowerChoice and PowerBalance optimization features
• RSA 3072 firmware security validation
• Mean Time Between Failures (MTBF) up to 2.5 million hours

Interface

• SATA 6Gb/s and 3Gb/s interface compatibility
• Single-port connection design for enterprise deployments
• Supports 512e and 4Kn sector formatting

Physical Specifications and Build Quality

• Dimensions: 147.0 x 101.85 x 26.1 mm
• Weight: 685 grams
• Standard 3.5-inch enterprise HDD size

Compatible HPE ProLiant Server Series

• BL Series:BL420c, BL460c, BL465c, BL660c (Gen8/Gen9)
• DL Series:DL20, DL60, DL80, DL120, DL160, DL180, DL320e, DL360, DL380, DL560, DL580
• ML Series:ML110, ML150, ML310e, ML350 variants
• SL Series:SL230s, SL250s, SL270s
• XL Series:XL170r, XL190r, XL220a, XL230a, XL250a

Details of Seagate 16TB 7.2k RPM SATA 6Gbps Hard Drive

The Seagate ST16000NM002H Exos X24 16TB 7.2K RPM SATA 6Gbps 512MB Cache ISE 512e 3.5-inch hard drive belongs to a premium category of enterprise storage solutions designed for hyperscale environments, cloud infrastructures, and mission-critical data centers. This category of high-capacity enterprise HDDs is engineered to handle massive data workloads with consistent reliability, long-term endurance, and optimized cost per terabyte. As data generation accelerates across industries such as AI analytics, virtualization, cloud computing, and archival systems, the demand for dense and efficient storage solutions like this Exos X24 series continues to rise significantly.

Built on Seagate’s enterprise platform, the Exos X24 16TB drive is designed to deliver sustained performance under continuous 24/7 workloads. Unlike consumer-grade drives, this category focuses on workload optimization, vibration tolerance, and advanced firmware intelligence. These drives are commonly deployed in large-scale storage arrays, RAID systems, distributed cloud storage nodes, and high-density server enclosures where capacity scaling and data integrity are critical.

Storage

The Exos X24 platform represents Seagate’s next-generation enterprise hard drive architecture, optimized for maximum storage density and efficiency. With a 16TB capacity, this category of drives significantly reduces the physical footprint required to store large datasets, allowing data centers to achieve higher terabytes per rack unit. This efficiency is essential for modern hyperscale environments where rack space, cooling efficiency, and power consumption are key operational factors.

This category is built around helium-sealed drive technology, which reduces internal friction and allows for more platters to be included within the same 3.5-inch form factor. As a result, the drive achieves higher storage capacity while maintaining lower power consumption and reduced heat generation. This makes it ideal for dense server deployments where thermal management and energy efficiency directly impact operational costs.

Enterprise firmware in this category is designed to optimize read/write head positioning, improve error recovery processes, and enhance workload balancing. These improvements ensure that the drive performs consistently even under heavy multi-user environments typical of cloud storage systems and enterprise virtualization platforms.

Data-Intensive

The 16TB storage capacity of this Exos X24 drive places it within the ultra-high-capacity enterprise storage segment. This category is particularly suited for organizations dealing with exponential data growth, including big data analytics platforms, AI model training datasets, surveillance storage systems, and large-scale backup repositories.

By consolidating large volumes of data into fewer physical drives, organizations can reduce hardware complexity, minimize failure points, and streamline storage management. This approach also improves overall rack density, enabling data centers to scale storage capacity without requiring proportional increases in physical infrastructure.

The high capacity also supports tiered storage architectures, where frequently accessed data is stored on high-performance SSDs while archival or infrequently accessed data is stored on high-capacity HDDs like this Exos X24 drive. This hybrid approach balances performance and cost efficiency effectively.

Performance: 7,200 RPM

Operating at 7,200 RPM, this category of enterprise hard drives delivers a balanced performance profile suitable for sequential workloads and large-scale data transfers. While not optimized for ultra-low latency applications, 7.2K RPM drives excel in environments where sustained throughput and reliability are more important than raw IOPS performance.

This rotational speed is ideal for backup operations, archival storage, media repositories, and cloud storage nodes where data is accessed in bulk rather than in frequent random read/write cycles. The consistent rotational speed ensures predictable performance, which is essential for enterprise workload planning and system optimization.

Additionally, 7.2K RPM drives typically offer improved power efficiency compared to higher-speed enterprise drives, making them suitable for large-scale deployments where energy consumption must be carefully managed.

Interface: SATA 6Gbps

The SATA 6Gbps interface in this category ensures broad compatibility with existing enterprise storage infrastructure. SATA remains one of the most widely adopted storage interfaces due to its balance of performance, cost-effectiveness, and ease of integration. This allows the Exos X24 series to be deployed across a wide variety of server configurations without requiring specialized hardware controllers.

The 6Gbps transfer rate supports efficient data movement for high-capacity workloads, enabling smooth sequential read and write operations. While enterprise SAS drives may offer higher performance in certain scenarios, SATA-based enterprise drives like this one provide a cost-optimized alternative for large-scale storage deployments where capacity is the primary requirement.

This interface also supports hot-plug or standard internal configurations depending on system architecture, making it flexible for different deployment models including direct-attached storage (DAS) and network-attached storage (NAS) systems.

Advanced Format and Security Integration

This category supports 512e (512-byte emulation) advanced format technology, which allows compatibility with legacy systems while benefiting from modern storage efficiency improvements. This ensures seamless integration into both older and newer enterprise storage infrastructures without compatibility issues.

Additionally, ISE (Instant Secure Erase) functionality enhances data security by enabling rapid sanitization of the drive when decommissioned or repurposed. This feature is particularly important in regulated industries such as finance, healthcare, and government sectors where data security compliance is mandatory.

The combination of 512e formatting and secure erase capabilities makes this category suitable for organizations that require both backward compatibility and advanced security controls.

Reliability

Drives in the Exos X24 category are designed for continuous 24/7 operation, making them suitable for mission-critical environments where downtime is not acceptable. Enterprise-grade components, vibration resistance technologies, and advanced firmware algorithms work together to ensure long-term durability.

Rotational vibration sensors help maintain performance stability in multi-drive environments, where physical movement and heat can affect performance. Error correction and predictive failure analysis technologies further enhance reliability by identifying potential issues before they lead to data loss.

This level of durability makes the category ideal for hyperscale data centers, cloud service providers, and enterprise storage arrays that require consistent uptime and predictable performance.

Scalability and Cloud Storage Infrastructure

One of the defining characteristics of this category is its scalability. With 16TB per drive, organizations can rapidly expand storage capacity without significantly increasing hardware footprint. This is especially important in hyperscale environments where thousands of drives may be deployed across distributed systems.

The high-density nature of these drives reduces the number of required storage units, simplifying maintenance, reducing power consumption, and improving overall system efficiency. This scalability makes the Exos X24 series a preferred choice for cloud storage providers and large enterprise data centers.

As data continues to grow exponentially, scalable storage categories like this ensure that infrastructure can evolve without major architectural overhauls.

Energy Efficiency

Energy efficiency is a critical factor in enterprise storage planning. The Exos X24 category is designed to optimize power usage while maintaining high-capacity performance. Lower watt-per-terabyte ratios contribute to reduced operational costs in large-scale deployments.

Efficient thermal design reduces cooling requirements, which is one of the largest cost factors in data center operations. By minimizing heat output, these drives help organizations reduce HVAC load and improve overall energy efficiency.

Over time, these efficiencies translate into significant cost savings, especially in environments deploying thousands of drives across multiple data center locations.
