ST18000NM002J Seagate X18 18TB HDD 7.2K RPM SATA 6GBPS.

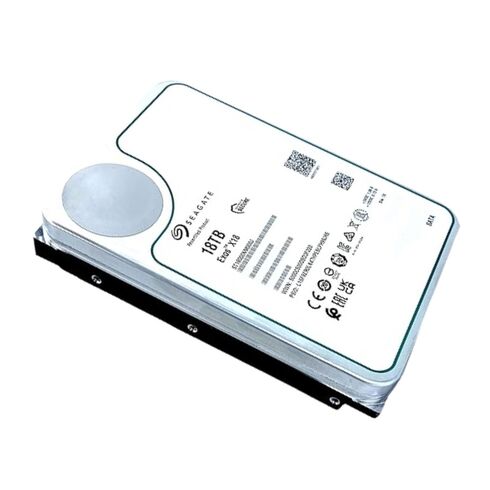

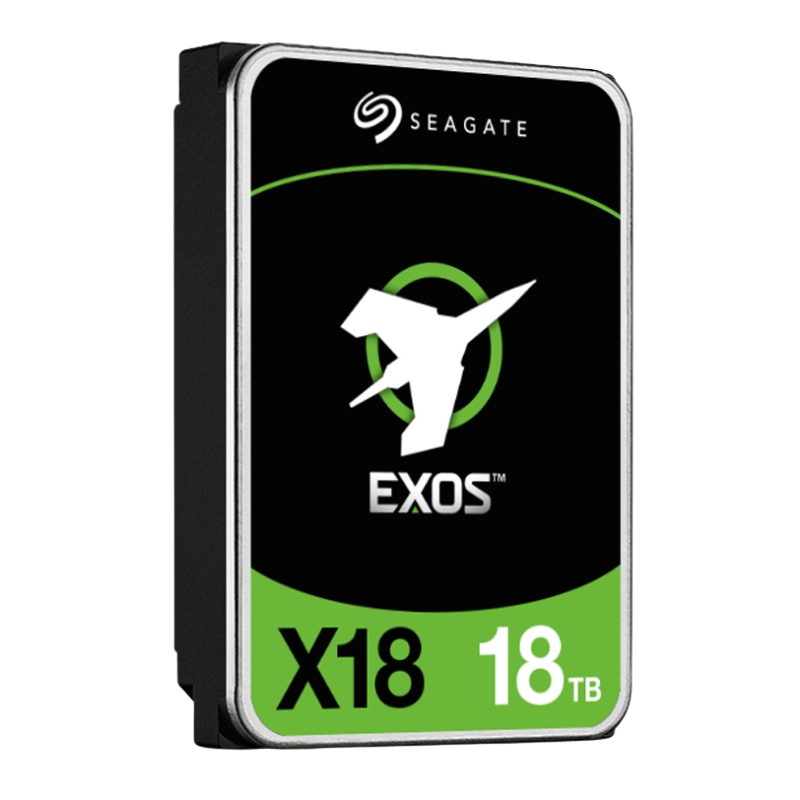

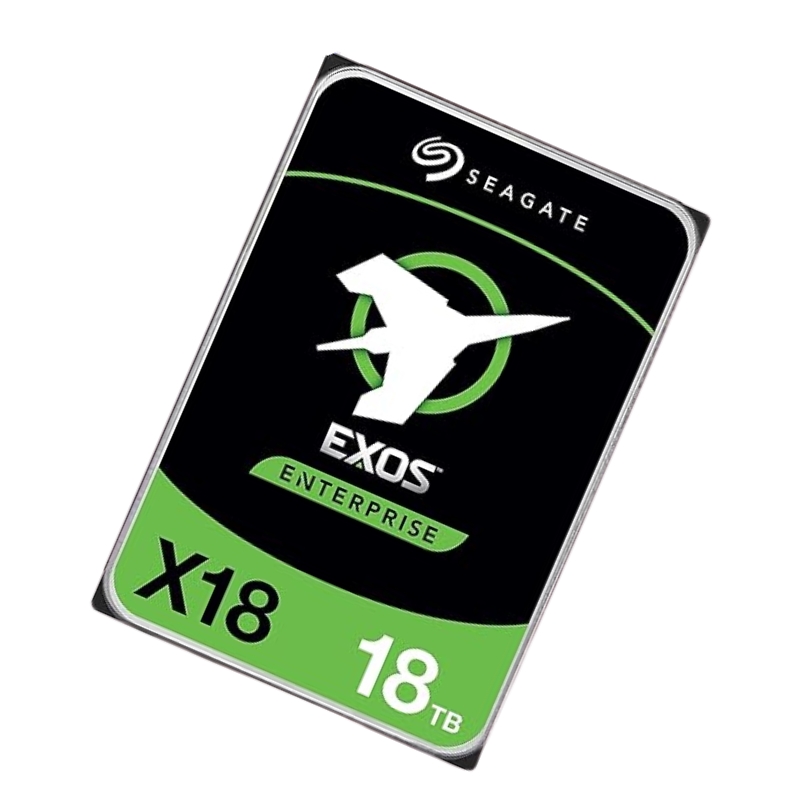

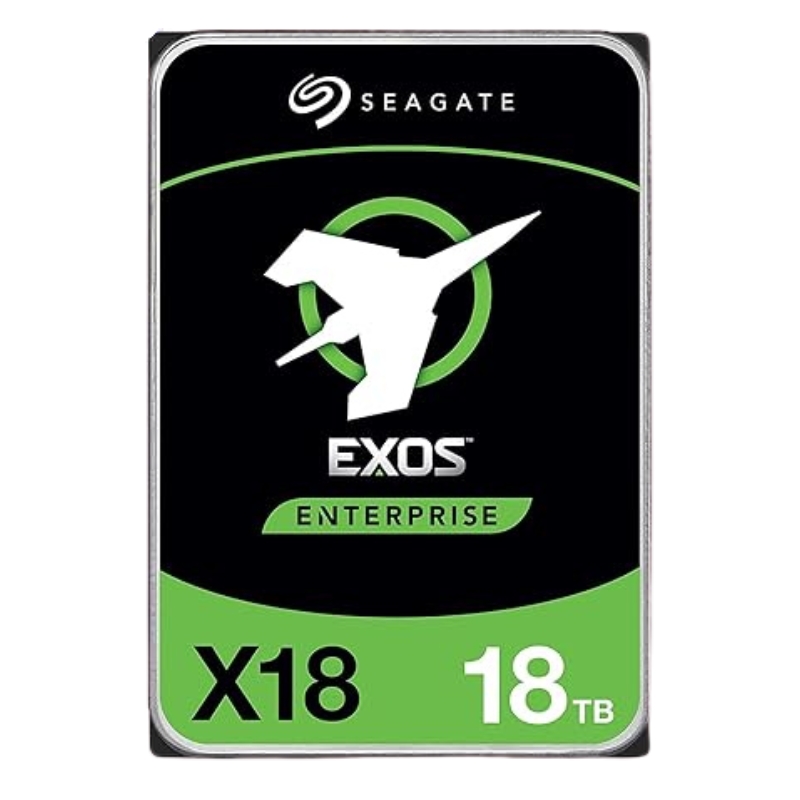

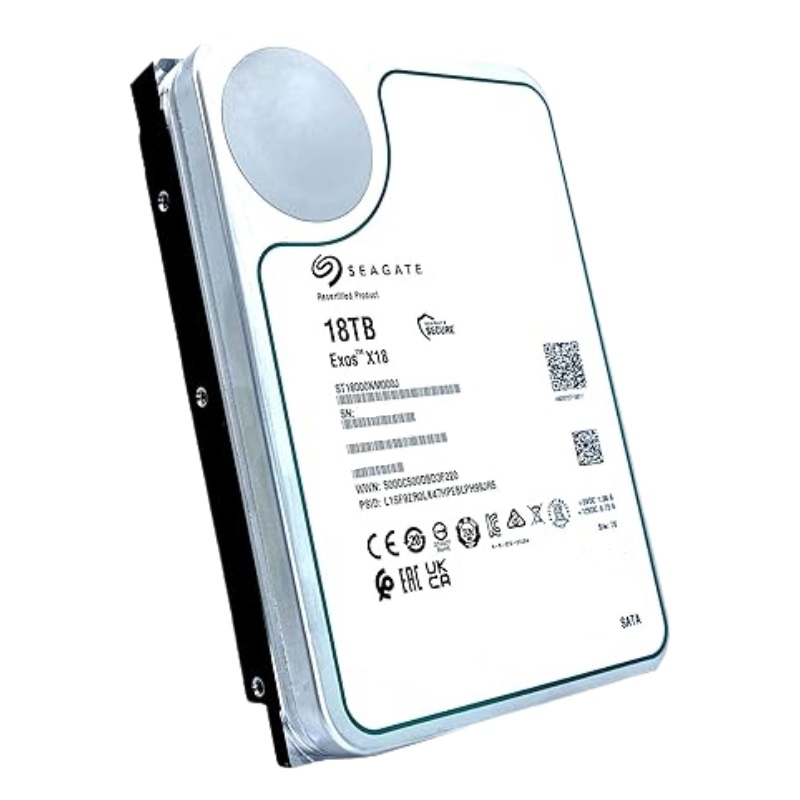

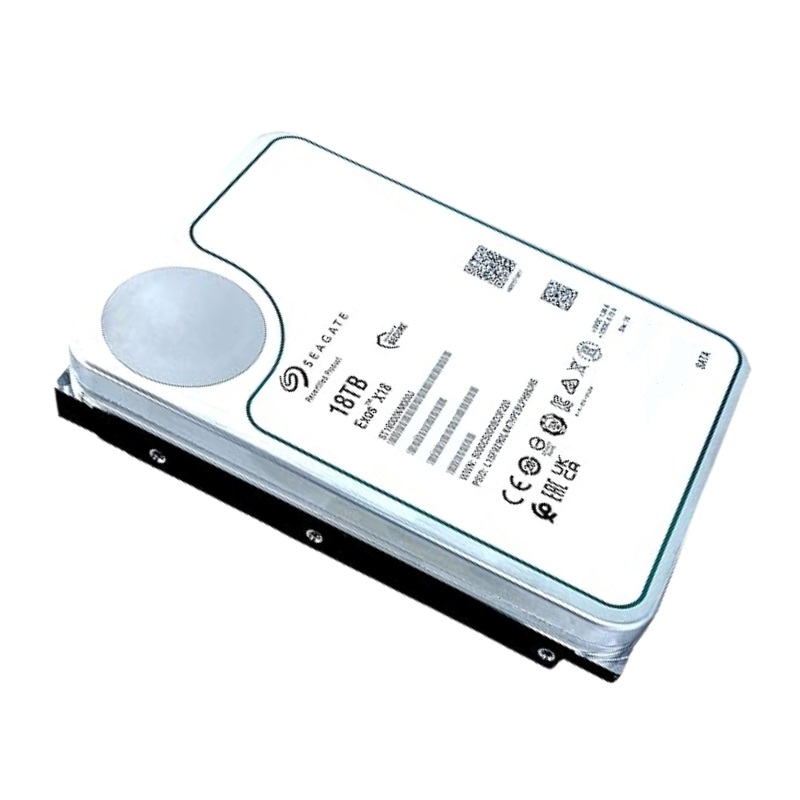

Seagate ST18000NM002J Exos X18 18TB Hard Drive

The Seagate Exos X18 18TB SATA Hard Disk Drive represents a premium-grade storage solution engineered for mission-critical workloads and large-scale data ecosystems. Built for enterprise environments, this 3.5-inch internal HDD delivers exceptional storage density combined with long-term reliability and optimized power efficiency.

General Information

• Manufacturer: SEAGATE
• Model Number: ST18000NM002J
• Product Line: Exos X18
• Drive Type: Enterprise Internal Hard Disk Drive

Technical Specifications

• Storage Capacity: 18TB
• Interface: SATA 6Gb/s (Backward compatible with 3Gb/s)
• Form Factor: 3.5-inch internal drive
• Buffer Memory: 256MB cache

Recommended Application Scenarios

• Hyperscale cloud computing and distributed infrastructures
• Massive scale-out data center deployments
• Big data analytics and high-throughput computing environments
• High-density RAID storage arrays
• Enterprise-grade external storage systems
• Distributed file systems such as Hadoop and Ceph clusters
• Backup and disaster recovery solutions including disk-to-disk and virtual tape systems
• Centralized video surveillance storage platforms

Drive Performance Metrics

• Rotational Speed: 7200 RPM
• Interface Transfer Rate: 6.0 Gb/s and 3.0 Gb/s
• Sustained Data Transfer Rate: Up to 261 MB/s (OD)
• Random Read/Write Performance (4K QD16): 170 / 550 IOPS
• Average Latency: 4.16 ms
• Single interface port configuration for stability

Dimensions and Build Specifications

• Length: 147.0 mm
• Width: 101.85 mm
• Height: 26.1 mm
• Weight: 670 grams
• Form Factor: Standard 3.5-inch enterprise drive

Sector Configuration Options

• 512e Sector Sizes: 512, 520, 528 bytes per sector
• 4Kn Sector Sizes: 4096, 4160, 4224 bytes per sector

Compatibility

Advanced Format Support

• 512e sector formats: 512, 520, 528 bytes per sector
• 4Kn sector formats: 4096, 4160, 4224 bytes per sector
• Seamless integration with legacy and modern storage systems

Key Operational Advantages

• High-capacity storage consolidation for reduced hardware footprint
• Enhanced durability for 24/7 enterprise workloads
• Optimized performance for cloud and big data applications
• Advanced security and firmware protection mechanisms
• Energy-efficient architecture for sustainable data center operations

Seagate ST18000NM002J Exos X18 18TB Hard Drive

The Seagate ST18000NM002J Exos X18 18TB Enterprise Hard Drive represents a high-density storage solution engineered for demanding enterprise environments where scalability, reliability, and sustained performance are essential. Built within the Exos X18 platform, this drive is designed to support hyperscale data centers, cloud service providers, large-scale surveillance systems, and mission-critical storage arrays that require consistent throughput and long-term endurance.

As a member of the Seagate Exos enterprise family, this 18TB HDD integrates advanced mechanical engineering with refined firmware optimization to deliver dependable operation under continuous 24/7 workloads. The combination of a 7,200 RPM spindle speed, SATA 6Gbps interface, and 256MB cache buffer ensures efficient handling of large sequential workloads, making it suitable for bulk data storage, backup repositories, and distributed storage architectures.

Enterprise Storage Segment and Data Center Integration

Enterprise storage drives such as the Exos X18 series are designed to support the exponential growth of digital data across cloud computing environments. The ST18000NM002J plays a critical role in providing scalable storage capacity for object storage systems, cold and warm data tiers, and high-capacity archival layers. Its architecture is optimized to reduce latency bottlenecks while maintaining cost-effective terabyte-per-dollar efficiency.In hyperscale environments, storage density is a defining factor in infrastructure design. With 18 terabytes of native capacity per drive, organizations can significantly reduce rack space requirements while increasing total storage availability. This allows data centers to optimize power consumption, cooling efficiency, and physical footprint without compromising data integrity or access speed.

Rotational Speed and Mechanical Precision

Operating at 7,200 RPM, the Seagate Exos X18 balances performance and endurance in enterprise workloads. This rotational speed is widely adopted in nearline enterprise HDDs due to its ability to maintain stable throughput while minimizing mechanical wear. The precision-engineered actuator assembly ensures accurate head positioning across high-density platters, enabling consistent read and write performance even under heavy workloads.

SATA 6Gbps Interface Throughput

The integration of a SATA 6Gbps interface ensures compatibility with a broad range of enterprise storage systems while delivering reliable data transfer rates. Although enterprise SAS drives often dominate high-performance environments, SATA-based enterprise drives like this model provide a cost-efficient alternative for large-scale sequential storage applications where ultra-low latency is not the primary requirement.

256MB Advanced Cache Buffer

A significant feature of the ST18000NM002J is its 256MB multi-segmented cache memory. This buffer enhances data flow efficiency by temporarily storing frequently accessed or in-transit data, reducing mechanical latency and improving sustained throughput. The cache architecture is particularly beneficial in workloads involving large file transfers, backup operations, and streaming data environments.

Performance Optimization for Enterprise Workloads

The Exos X18 is optimized primarily for sequential workloads, which are common in enterprise storage environments. Applications such as data archiving, video surveillance recording, and cloud storage replication benefit significantly from its high sustained transfer rates. The drive’s firmware intelligently manages read/write head movement to minimize seek times and improve overall efficiency.

Multi-Drive RAID Environments

In RAID configurations, the ST18000NM002J contributes to high-capacity arrays that deliver redundancy, scalability, and improved throughput. Its consistent performance characteristics ensure predictable behavior when deployed in RAID 0, RAID 5, RAID 6, and hybrid storage architectures. This makes it an ideal candidate for enterprise NAS and SAN systems requiring both capacity and reliability.

Workload Rating and Endurance Design

The drive is engineered for heavy-duty enterprise workloads with high annualized workload ratings. It is designed to sustain continuous operation under multi-user environments, supporting extensive read/write cycles without significant degradation in performance. The mechanical components are reinforced to withstand vibration, thermal fluctuations, and long operational hours typical in data center conditions.

Cloud Storage Infrastructure

Cloud service providers rely heavily on high-capacity drives like the ST18000NM002J to store vast amounts of user-generated data. These environments demand predictable performance, high availability, and efficient scaling, all of which are supported by the Exos X18 architecture.

Energy Efficiency and Operational Optimization

Despite its high capacity, the Exos X18 is designed with energy-efficient operation in mind. It utilizes adaptive power states that reduce energy consumption during idle periods while maintaining readiness for immediate data access. This contributes to lower operational costs in large-scale deployments where hundreds or thousands of drives may be in use.

NAS and Distributed Storage Systems

Network-attached storage systems benefit from the drive’s high capacity and consistent performance characteristics. In distributed storage architectures, multiple ST18000NM002J drives can be combined to create scalable storage pools that support enterprise data sharing, redundancy, and virtualization workloads.

Big Data and Analytics Infrastructure

In big data ecosystems, massive datasets must be stored efficiently for processing and analysis. The Exos X18 supports these environments by providing high-capacity storage nodes that can be integrated into analytics clusters, enabling organizations to process large-scale datasets effectively.

Hybrid Storage Architectures

Many enterprises adopt hybrid storage strategies combining SSDs for high-speed operations and HDDs for bulk storage. The ST18000NM002J serves as a foundational layer in these architectures, providing cost-effective high-capacity storage for less latency-sensitive data.

Compatibility and System Integration

The Seagate Exos X18 is widely compatible with enterprise-grade servers, storage enclosures, and modular array systems. Its SATA 6Gbps interface allows seamless integration into existing infrastructures without requiring specialized controller hardware, making deployment straightforward in mixed storage environments.
