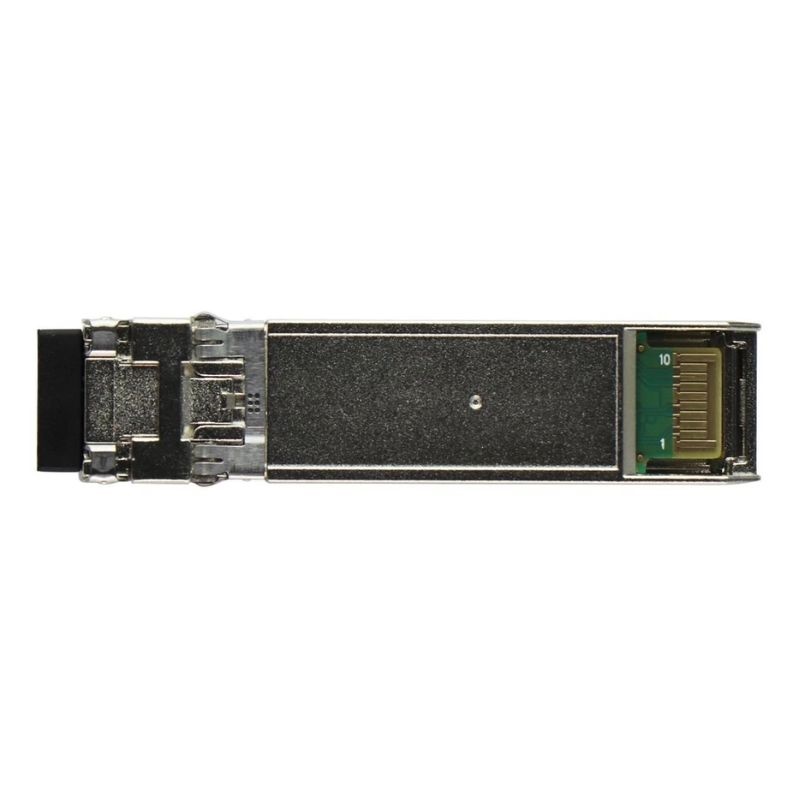

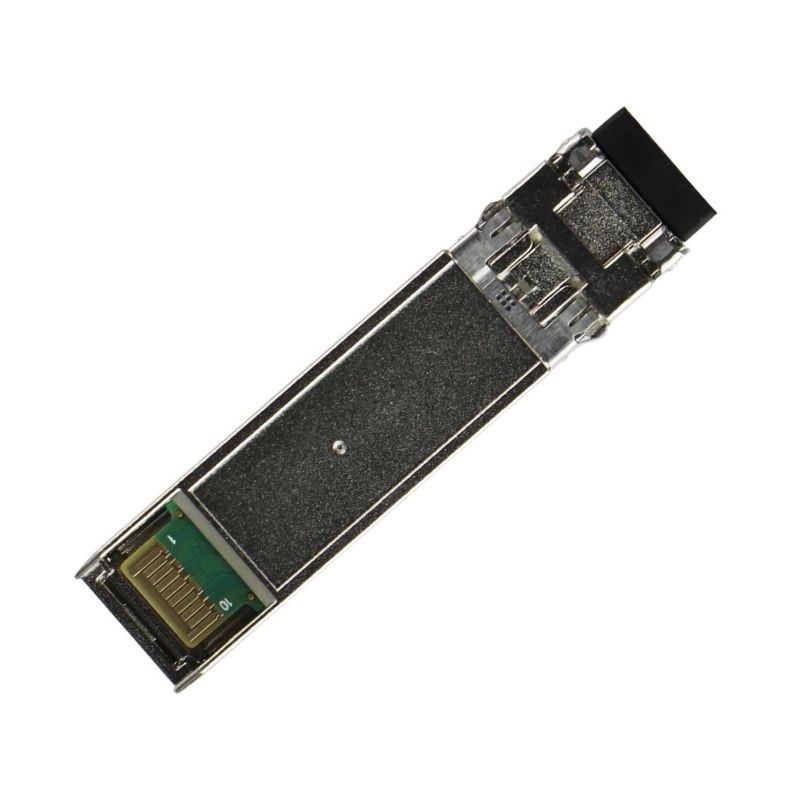

SFPP-10G-LR-C Juniper Networks 10 Gigabit Ethernet SMF 10km 1310nm Transceiver

Overview of the Juniper SFPP-10G-LR-C Transceiver

Discover the Juniper Networks SFPP-10G-LR-C, a high-performance 10 Gigabit Ethernet optical transceiver designed to deliver exceptional connectivity over long distances using Single-Mode Fiber (SMF). Built with reliability and speed in mind, it is ideal for high-bandwidth networks requiring robust, low-latency data transmission.

Specifications

• Brand: Juniper
• Model Number: SFPP-10G-LR-C
• Product Type: SFP+ Transceiver Module

Key Features

• Speed: 10 Gigabit Ethernet
• Transceiver Type: SFP+ (Small Form-factor Pluggable)
• Connector Type: Duplex LC
• Digital Optical Monitoring: Supported, ensuring real-time performance tracking
• Breakout Capable: Not supported
• Standards Compliance: 10GBASE-LR
• Operating Temperature Range: -5°C to 70°C
• Maximum Power Consumption: 1.0 W

Performance

• Signal Rate: 10 Gbps per lane
• Wavelength Range (Transmitter and Receiver): 1260 nm to 1355 nm
• Maximum Distance: 10 km
• Cable Type: Single-Mode Fiber (SMF), 9/125 Micrometer core/cladding size
• Power Output and Sensitivity:
• Transmitter Output Power (min): -8.2 dBm
• Transmitter Output Power (max): 0.5 dBm
• Receiver Input Power (min): -14.4 dBm
• Receiver Input Power (max): -1.0 dBm
• Receiver Sensitivity (OMA, max): -14.1 dBm
• Stressed Receiver Sensitivity (OMA, max): -10.3 dBm

Compatibility

• Plugs natively into SFP+ ports on Juniper Networks hardware.
• Serves as a 100% compatible equivalent to Juniper OEM part number SFPP-10G-LR.
• Integrates with Juniper MX Series Universal Routing Platforms.
• Works with Juniper EX Series Ethernet Switches.
• Supports deployment in Juniper QFX Series Data Center Switches.
• Operates on Juniper ACX Series Universal Metro Routers.
• Interoperates with other standard 10GBASE-LR compliant third-party network devices.

The Juniper 10 Gigabit Ethernet SMF Transceiver

The SFPP-10G-LR-C Juniper Networks 10 Gigabit Ethernet transceiver is a high-performance optical networking module designed for long-reach data transmission over single-mode fiber (SMF). Operating at a wavelength of 1310nm, this SFP+ (Small Form-Factor Pluggable Plus) module supports data rates up to 10Gbps and is optimized for reliable connectivity across distances of up to 10 kilometers. It is widely deployed in enterprise, data center, service provider, and metropolitan area network infrastructures where stable, high-speed optical communication is essential.

This category of Juniper optical transceivers plays a critical role in modern networking architectures by enabling scalable bandwidth expansion, low-latency data transmission, and efficient fiber utilization. The SFPP-10G-LR-C is engineered to meet stringent performance standards while ensuring interoperability with compatible Juniper switches, routers, and network devices.

High-Speed 10G Optical Networking Capabilities

The 10 Gigabit Ethernet capability of the SFPP-10G-LR-C makes it an essential component in high-throughput network environments. It supports full-duplex transmission, allowing simultaneous sending and receiving of data at 10Gbps speeds. This ensures minimal congestion and maximum efficiency in backbone connections, aggregation layers, and inter-switch links.

Designed for modern enterprise workloads, this transceiver supports data-intensive applications such as virtualization, cloud computing, storage replication, and high-frequency trading systems. The consistent performance at high bandwidth levels ensures smooth operation even under peak network traffic conditions.

1310nm Wavelength Optical Performance

The SFPP-10G-LR-C operates at a 1310nm wavelength, which is ideal for long-reach optical communication over single-mode fiber. This wavelength is widely used in telecommunications and enterprise networking due to its low dispersion characteristics and ability to maintain signal integrity over extended distances.

The 1310nm spectrum offers improved performance in environments where signal attenuation and chromatic dispersion must be minimized. This makes it a preferred choice for backbone network links between buildings, campuses, and data center interconnections.

Single-Mode Fiber (SMF) Integration and 10km Reach

The SFPP-10G-LR-C is specifically engineered for single-mode fiber environments, which allow light signals to travel long distances with minimal loss. With a transmission range of up to 10 kilometers, this module is ideal for metropolitan area networks (MANs), campus networks, and inter-building connectivity.

Single-mode fiber technology ensures that only one mode of light propagates through the fiber core, significantly reducing modal dispersion and enabling long-range transmission with high clarity. This makes the SFPP-10G-LR-C a reliable solution for organizations requiring stable connectivity across geographically distributed infrastructure.

Juniper Networks Compatibility and Ecosystem Integration

As a Juniper Networks-certified transceiver, the SFPP-10G-LR-C is designed for seamless integration with Juniper switches and routing platforms. This ensures full compatibility with Junos OS environments and eliminates interoperability issues commonly encountered with third-party optics.

The module is typically used in Juniper EX Series switches, MX Series routers, and QFX Series data center switches, where high-speed optical uplinks are required. Its plug-and-play functionality simplifies deployment and reduces configuration complexity.

Form Factor and Hot-Pluggable Design

The SFP+ form factor of the SFPP-10G-LR-C ensures compact integration into high-density networking equipment. Its hot-pluggable capability allows network administrators to install or replace modules without powering down systems, minimizing downtime and maintaining continuous network availability.

This feature is particularly valuable in mission-critical environments where service interruptions must be avoided. The modular design also enables flexible scaling of network capacity as bandwidth requirements grow.

Enterprise and Data Center Use Cases

The SFPP-10G-LR-C transceiver is widely used across enterprise IT infrastructures and data center environments where high-speed, reliable optical connectivity is required. It supports both horizontal and vertical scaling of network architectures, enabling organizations to expand their infrastructure without compromising performance.

In data centers, it is commonly used for spine-leaf architecture interconnects, server aggregation, and storage network connectivity. In enterprise environments, it supports inter-office connectivity and high-speed WAN links.

Signal Integrity and Reliability Engineering

One of the core strengths of the SFPP-10G-LR-C is its robust signal integrity performance. It incorporates advanced optical components designed to maintain consistent signal quality even in demanding network conditions. Built-in digital diagnostics monitoring (DDM) allows real-time tracking of operating parameters such as temperature, optical power, and voltage.

This ensures proactive maintenance and reduces the risk of unexpected failures. Network administrators can monitor transceiver health and identify potential issues before they impact network performance.

Energy Efficiency and Thermal Design

The SFPP-10G-LR-C is designed with energy efficiency in mind, consuming minimal power while maintaining high-performance transmission capabilities. Its optimized thermal design ensures stable operation even in high-density switch environments where heat dissipation is a critical concern.

Efficient power usage contributes to reduced operational costs in large-scale deployments, particularly in data centers where hundreds or thousands of transceivers may be in use simultaneously.

Fiber Infrastructure Requirements and Best Practices

Proper deployment of the SFPP-10G-LR-C requires adherence to single-mode fiber infrastructure standards. Clean fiber connectors, proper cable management, and adherence to bending radius guidelines are essential for maintaining optimal performance.

LC duplex connectors are typically used with this module, ensuring secure and stable optical coupling. Proper inspection and cleaning of fiber ends are recommended before installation to avoid signal degradation.

Network Architecture Role and Scalability

In modern network architecture, the SFPP-10G-LR-C serves as a key building block for scalable, high-speed connectivity. It enables efficient design of hierarchical network models, including access, aggregation, and core layers.

Its long-range capability allows network architects to reduce the number of intermediate devices required, simplifying infrastructure design and improving overall network performance.

Performance Optimization in High-Traffic Networks

The SFPP-10G-LR-C is optimized for environments with sustained high traffic loads. Its stable optical signaling ensures consistent throughput even under heavy utilization, making it suitable for mission-critical applications. It minimizes retransmissions and packet errors, contributing to improved Quality of Service (QoS) in enterprise and carrier-grade networks.

Industrial and Enterprise Deployment Scenarios

The SFPP-10G-LR-C is used across a wide range of industries including telecommunications, cloud service providers, financial institutions, healthcare networks, and large-scale enterprise IT systems. Its reliability and performance make it suitable for environments where downtime is not acceptable. It supports critical digital infrastructure that demands high availability and continuous connectivity.

Compatibility Advantages in Mixed Network Environments

In environments where multiple network technologies coexist, the SFPP-10G-LR-C provides reliable interoperability within Juniper ecosystems while maintaining standardized optical performance. This allows seamless integration with existing fiber infrastructure without requiring major redesigns. Its adherence to industry standards ensures predictable behavior in heterogeneous networking environments.
