02-SSC-6447 Sonicwall Tz270 High Availability Firewall Security Appliance

SonicWall TZ270 High Availability Firewall

The SonicWall TZ270 Gigabit Ethernet High Availability Firewall represents a significant advancement in network security for distributed enterprise environments, branch offices and mid-sized organizations. This next-generation firewall appliance delivers enterprise-grade security features in a compact, cost-effective form factor, specifically engineered to protect against modern cyber threats while ensuring continuous business operations through high availability capabilities.

Platform Architecture and Performance Specifications

Built on SonicWall's proprietary security processing architecture, the TZ270 model 02-SSC-6447 incorporates multi-core processors with dedicated security cores to deliver uncompromised performance even with all security services enabled. The appliance supports genuine gigabit Ethernet throughput for both firewall and VPN traffic, ensuring that security measures do not become network bottlenecks.

Hardware Specifications and Physical Characteristics

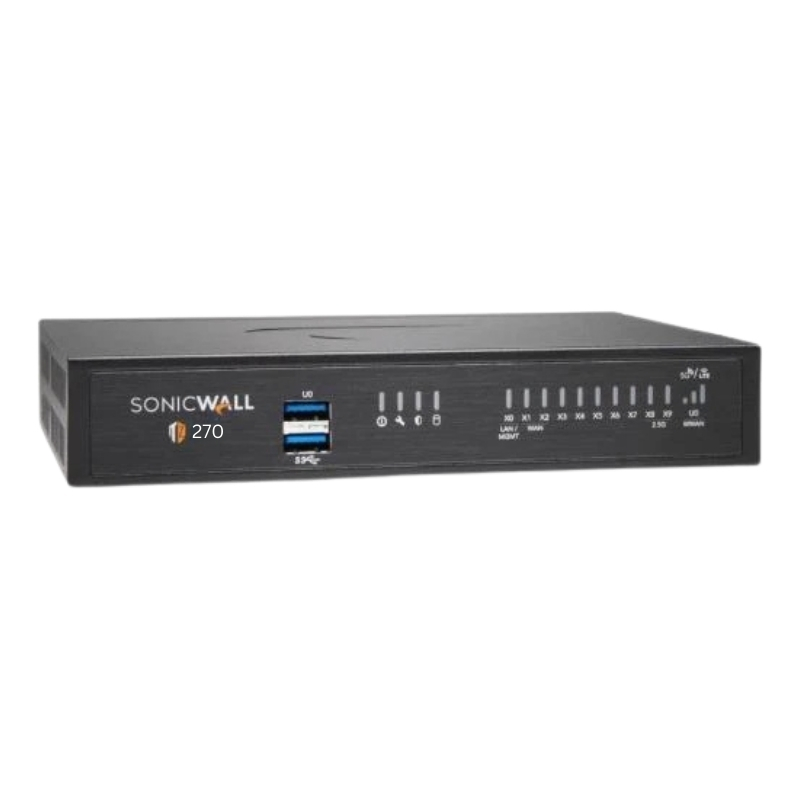

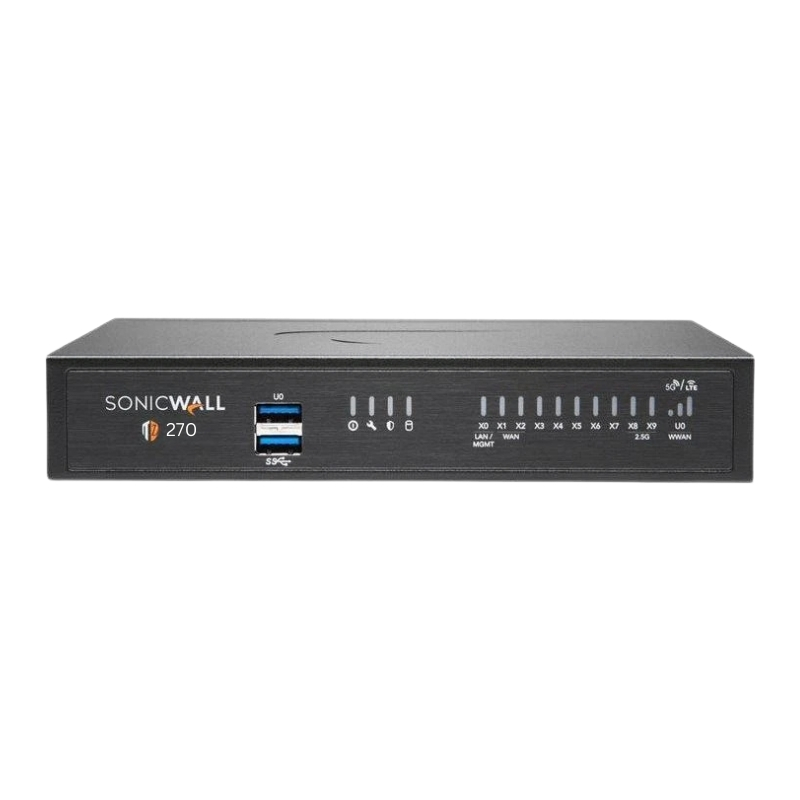

The TZ270 High Availability model features a ruggedized metal chassis designed for continuous operation in diverse environmental conditions. The compact 1U form factor makes it suitable for space-constrained installations while maintaining enterprise-level reliability. The system includes comprehensive cooling mechanisms to ensure optimal thermal management during sustained high-traffic periods.

Interface Configuration and Network Connectivity

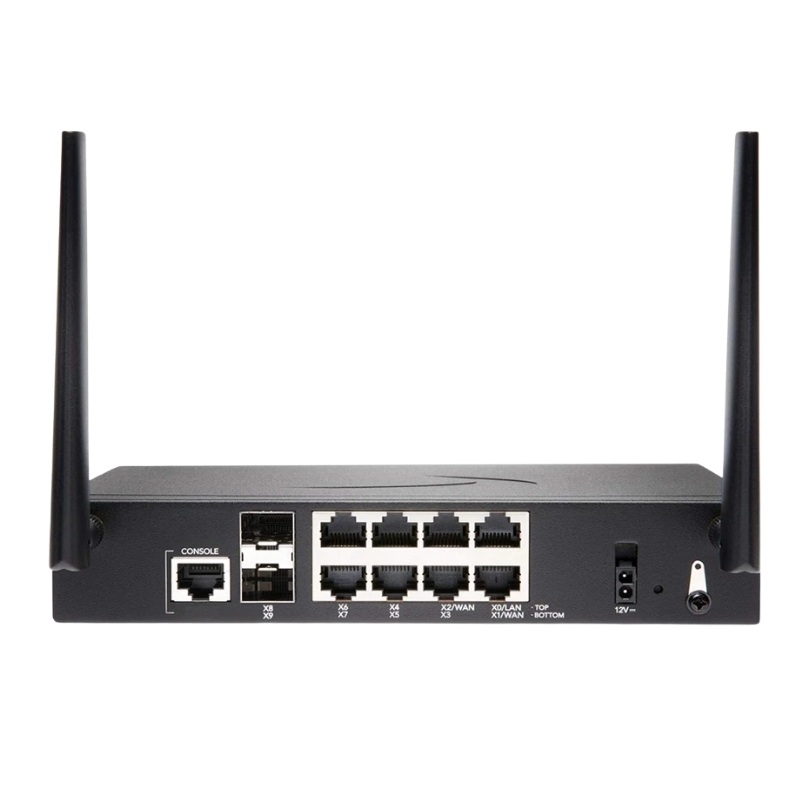

This security appliance includes multiple Gigabit Ethernet ports configured for flexible deployment scenarios. The interface complement includes dedicated HA (High Availability) ports for synchronization and heartbeat communication between paired units, WAN ports for internet connectivity, and LAN ports for internal network segmentation. All ports support auto-negotiation and auto-MDI/MDIX for simplified deployment.

Power Supply and Environmental Specifications

The TZ270 HA firewall includes an internal power supply with universal input voltage support (100-240V AC), making it suitable for global deployment. The appliance operates within a wide temperature range and maintains stability under varying humidity conditions, ensuring reliable performance in diverse office environments without requiring specialized climate control systems.

High Availability

The High Availability configuration of the SonicWall TZ270 firewall ensures continuous network protection and uninterrupted business operations through sophisticated failover mechanisms. This capability is critical for organizations that cannot tolerate network downtime or security service interruptions.

Active-Passive HA Implementation

The TZ270 supports stateful high availability in active-passive mode, where two identical appliances work in tandem to provide redundant protection. The primary unit handles all network traffic while continuously synchronizing connection state information, security policies, and configuration details with the secondary standby unit. In the event of primary unit failure, the standby unit automatically assumes processing responsibilities within seconds, maintaining existing connections and ensuring transparent failover.

State Synchronization and Session Preservation

Comprehensive state synchronization between HA pairs includes maintenance of TCP session tables, UDP association tracking, IPsec security associations, and application-level connection states. This detailed state preservation ensures that active communications sessions continue uninterrupted during failover events, providing a seamless experience for users and applications.

HA-Specific Hardware Components

Dedicated HA ports on the TZ270 appliance facilitate high-speed, secure communication between paired units. These specialized interfaces manage heartbeat monitoring, configuration synchronization, and state table replication without consuming bandwidth on production network interfaces. The dedicated HA links utilize encrypted communication to prevent interception or manipulation of synchronization data.

Failover Detection Mechanisms

Multiple independent failover detection systems continuously monitor the health of the primary firewall unit. These include hardware monitoring of internal components, network interface availability checking, path verification through ICMP probes, and application-level service responsiveness validation. The sophisticated failure detection algorithms can distinguish between transient network issues and genuine hardware or software failures to prevent unnecessary failovers.

Comprehensive Security Suite

The SonicWall TZ270 High Availability Firewall incorporates a multi-layered security architecture that defends against increasingly sophisticated cyber threats. The integrated security services work in concert to provide protection across network, application, and content layers without compromising performance.

Next-Generation Firewall Engine

At the core of the TZ270's protection capabilities is SonicOS, the proprietary operating system that enables deep packet inspection at wire speed. The stateful inspection firewall processes traffic at layers 2 through 7, enforcing security policies based on application identity, user information, content type, and threat intelligence rather than merely port and protocol information.

Application Intelligence and Control

The firewall includes sophisticated application identification capabilities that can recognize thousands of applications regardless of port, protocol, or evasive techniques. Granular application control policies enable organizations to manage bandwidth utilization, enforce acceptable use policies, and prevent data loss through unauthorized applications.

SSL/TLS Decryption and Inspection

With the majority of network traffic now encrypted, the TZ270 provides comprehensive SSL/TLS decryption capabilities to inspect encrypted communications for hidden threats. The system can decrypt and inspect HTTPS, SMTPS, POP3S, and other encrypted protocols while maintaining compliance with privacy requirements through selective decryption policies.

Advanced Threat Protection

The integrated Capture Advanced Threat Protection service provides multi-engine sandboxing to detect and block zero-day threats and advanced malware. Suspicious files are detonated in a virtualized environment that analyzes behavior and communication patterns to identify malicious activity that would evade traditional signature-based detection.

Real-Time Deep Memory Inspection

This proprietary technology examines the memory space of executing processes within files to identify malware that uses fileless techniques, obfuscation, or polymorphism to evade detection. By analyzing the actual execution behavior rather than static file characteristics, RTDMI provides protection against the most evasive threats.

Cloud-Assisted Security Services

The TZ270 leverages SonicWall's cloud intelligence to receive real-time updates on emerging threats, malicious domains, and suspicious IP addresses. This collective security intelligence enhances the local protection capabilities with global threat visibility, ensuring rapid response to new attack campaigns.

Intrusion Prevention System

The integrated IPS utilizes a massive signature database continuously updated by SonicWall's security research team. The system can detect and block network-based attacks, vulnerability exploits, and malicious traffic patterns with customizable sensitivity levels to balance security and performance requirements.

Vulnerability-Based Protection

Beyond generic attack patterns, the IPS can specifically target exploitation attempts for known vulnerabilities in operating systems, applications, and network services. This vulnerability-focused protection provides defense against attacks even when patches cannot be immediately applied.

Protocol Anomaly Detection

The IPS engine includes deep understanding of standard protocol behavior and can identify deviations that may indicate evasion techniques, reconnaissance activities, or malformed packet attacks. This protocol validation provides protection against attacks that manipulate protocol implementations.

Secure Remote Access and Site-to-Site Connectivity

The SonicWall TZ270 High Availability Firewall provides robust VPN capabilities to enable secure communications for remote users and interconnected sites. The VPN implementation balances strong encryption with performance considerations to ensure productivity is not compromised by security measures.

IPsec VPN Performance and Scale

With hardware-accelerated cryptographic processing, the TZ270 delivers gigabit-grade IPsec VPN throughput, supporting numerous concurrent site-to-site and client-to-site tunnels. The appliance can maintain multiple site-to-site VPN connections to other SonicWall firewalls or standards-compliant third-party devices.

Policy-Based VPN Routing

Granular control over VPN traffic flow enables organizations to implement sophisticated routing policies that determine which traffic should traverse VPN tunnels versus accessing resources directly from remote locations. This policy-based approach optimizes performance and reduces bandwidth costs.

SSL VPN Remote Access

The integrated NetExtender SSL VPN functionality provides secure remote access for mobile users and teleworkers without requiring pre-deployed client software. Browser-based access offers convenience for occasional users while the full tunnel client option delivers complete network integration for regular remote workers.

Multi-Factor Authentication Integration

Comprehensive support for multi-factor authentication systems enhances remote access security. Integration capabilities include RADIUS, LDAP, SonicWall's own authentication solutions, and third-party token-based systems to ensure that compromised credentials alone cannot grant network access.
