SP7501-D Dell SFP+ 10GBASE-T Transceiver Module - 30M Reach on CAT6A/7

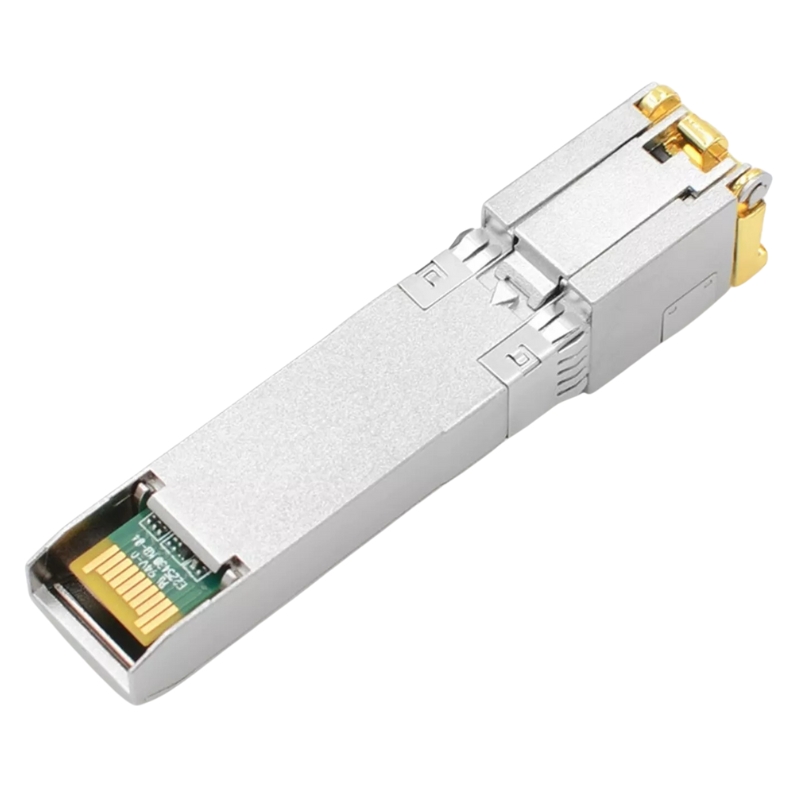

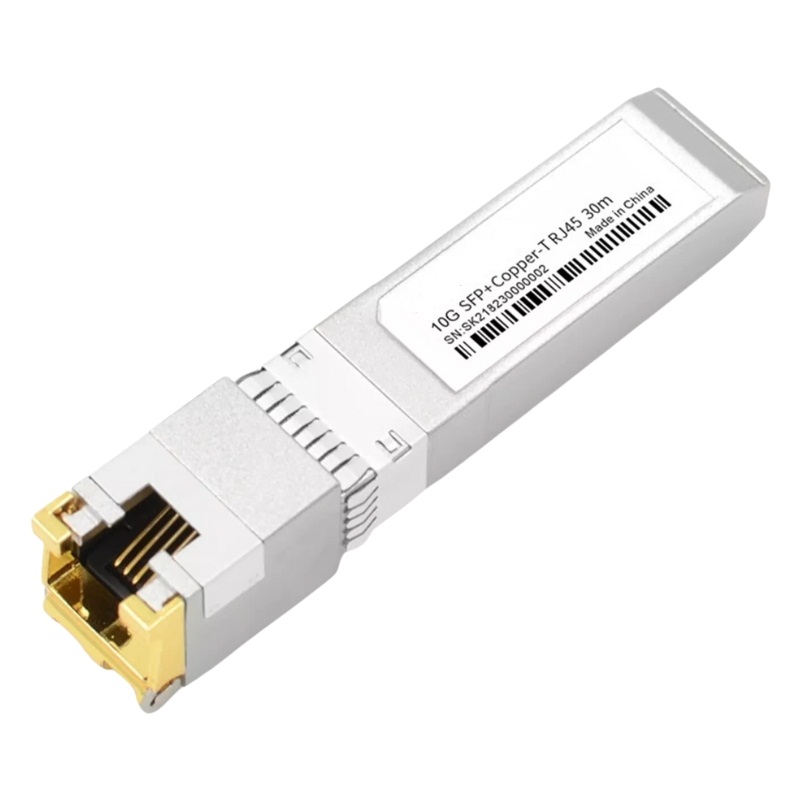

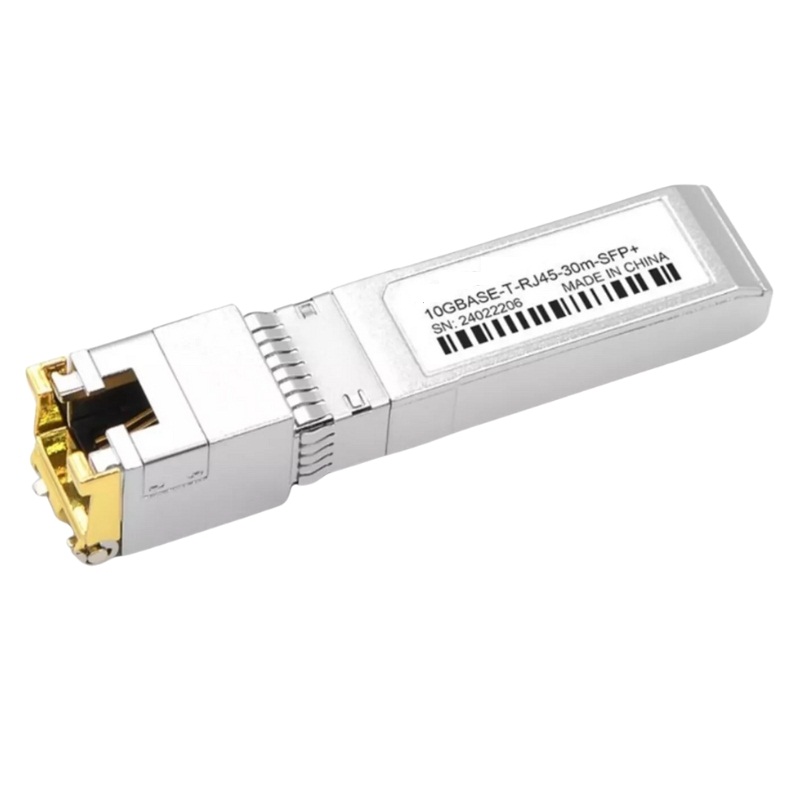

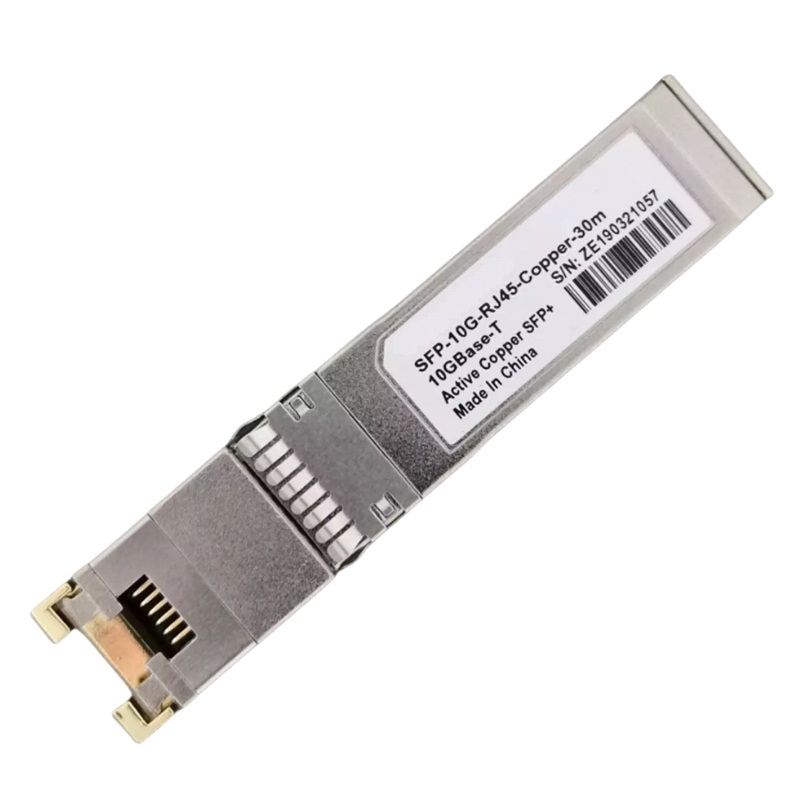

Dell SP7501-D SFP+ Copper Transceiver Module

The Dell SP7501-D SFP+ 10GBASE-T Transceiver Module is a high-performance copper networking solution designed to enable fast, reliable, and flexible Ethernet connectivity in enterprise environments. Built for seamless integration into Dell networking infrastructure, this plug-in SFP+ module supports multi-speed data transmission and delivers efficient short-range connectivity over standard twisted-pair copper cabling.

Product Information

• Manufacturer: Dell
• Part Number: SP7501-D
• Product Type: SFP+ Transceiver Module
• Media Type: Copper (Twisted Pair Ethernet)
• Form Factor: SFP+ Plug-in Module
• Interface: 1 x 10GBASE-T Ethernet

Supported Ethernet Data Rates

• 10GBASE-T: Up to 10 Gbps
• Gigabit Ethernet (1GbE): 1 Gbps
• Fast Ethernet (100MbE): 100 Mbps

Supported Cabling Technologies

• Category 6A (Cat6a) Ethernet Cable
• Category 7 (Cat7) Shielded Twisted Pair Cable
• Category 5e (Cat5e) for lower-speed operation

Advantages of Copper-Based SFP+ Modules

• Lower installation cost compared to fiber optics
• Easy deployment using existing structured cabling
• Flexible network upgrades without infrastructure overhaul
• Ideal for short-range high-speed connections

Maximum Supported Distances

• 10GbE over Cat6a/Cat7: Up to 30 meters
• 1GbE / 100MbE over Cat5e: Up to 100 meters

Supported Network Interfaces

• 10GBASE-T Ethernet Port (RJ-45 via SFP+ adapter)
• Standard SFP+ slot compatibility
• Multi-speed Ethernet switching environments

Performance Advantages

• Low latency copper-based data transmission
• High throughput up to 10 Gbps
• Stable connectivity for mission-critical workloads
• Optimized signal integrity over twisted pair cabling

Dell SP7501-D SFP+ 10GBASE-T Transceiver Module Overview

The Dell SP7501-D SFP+ 10GBASE-T transceiver module represents a critical component in modern high-speed Ethernet networking environments where flexibility, copper cabling efficiency, and 10 Gigabit performance converge. Designed to operate over standard twisted-pair copper cabling such as CAT6A and CAT7, this module enables organizations to extend 10GbE connectivity up to 30 meters, making it suitable for data center top-of-rack architectures, enterprise switching deployments, and high-performance workstation uplinks. Its compact SFP+ form factor ensures compatibility with a wide range of Dell networking equipment while maintaining energy efficiency and stable signal integrity across short-reach copper links.

Role of 10GBASE-T Technology in Modern Data Centers

10GBASE-T technology is widely adopted in enterprise networking due to its ability to deliver 10 Gigabit Ethernet speeds over traditional copper cabling. Unlike optical fiber solutions that require specialized transceivers and higher deployment costs, 10GBASE-T leverages existing structured cabling infrastructure, reducing installation complexity and operational expenditure. The Dell SP7501-D module embodies this advantage by enabling seamless integration into SFP+ ports while providing backward compatibility with network switches and servers designed for high-density workloads. This technology is particularly beneficial in environments where incremental upgrades from 1GbE to 10GbE are required without a full infrastructure overhaul.

Key Performance Characteristics of 10GBASE-T

The 10GBASE-T standard supports full-duplex data transmission at 10 Gbps over copper cabling using advanced modulation techniques such as PAM-16 signaling. This allows the Dell SP7501-D module to maintain stable throughput even in electrically noisy environments commonly found in data centers. Error correction mechanisms and adaptive equalization further enhance reliability, ensuring consistent performance across varying cable qualities and installation conditions. The 30-meter reach capability on CAT6A and CAT7 cabling makes it suitable for rack-to-rack connectivity, switch-to-server links, and high-density wiring closets.

Cable Compatibility and Signal Integrity Considerations

The Dell SP7501-D is optimized for CAT6A and CAT7 cabling standards, both of which provide improved shielding and reduced crosstalk compared to earlier CAT5e infrastructure. CAT6A supports 10GbE up to 100 meters in ideal conditions, but the module is specifically tuned for short-reach applications up to 30 meters to ensure reduced latency and power consumption. CAT7 cabling further enhances shielding through individually shielded twisted pairs, minimizing electromagnetic interference in dense rack environments. This makes the module particularly effective in mission-critical deployments where signal integrity is essential.

Architecture and Design of the Dell SP7501-D SFP+ Module

The Dell SP7501-D transceiver is engineered in a compact SFP+ form factor, allowing it to fit into high-density switch environments where port space is at a premium. Its design integrates a copper PHY interface that translates high-speed serial data from the host system into 10GBASE-T electrical signaling over twisted pair cabling. This conversion process is optimized to minimize latency while maintaining thermal efficiency. The module is hot-swappable, allowing network administrators to install or replace it without powering down critical infrastructure.

Thermal Management and Power Efficiency

One of the primary engineering challenges in 10GBASE-T SFP+ modules is heat dissipation, as copper-based transceivers typically consume more power than optical equivalents. The Dell SP7501-D incorporates advanced thermal regulation mechanisms to maintain optimal operating temperatures within switch chassis environments. This ensures stable performance even under continuous heavy network loads. Power optimization circuitry reduces energy consumption during idle periods, contributing to overall data center efficiency and lower operational costs.

Latency Optimization in Copper-Based 10GbE Modules

Latency is a critical metric in high-performance computing and storage networks. The Dell SP7501-D minimizes latency through optimized signal processing pathways and reduced conversion overhead between electrical and digital domains. While copper-based 10GBASE-T solutions inherently introduce slightly higher latency compared to direct attach copper or fiber, the module is engineered to keep this delay within acceptable enterprise thresholds. This makes it suitable for virtualization clusters, hyper-converged infrastructure, and latency-sensitive database applications.

Deployment Scenarios for Dell SP7501-D in Enterprise Networks

The Dell SP7501-D module is widely deployed across enterprise environments that require scalable and cost-effective 10GbE connectivity. Its compatibility with standard Ethernet switching platforms allows seamless integration into existing infrastructure without requiring major redesign. Organizations use this module in server-to-switch uplinks, storage network connections, and aggregation layer interconnects. Its ability to operate over copper cabling simplifies cable management and reduces dependency on fiber optic transceivers in short-reach environments.

Data Center Top-of-Rack Connectivity

In top-of-rack (ToR) architectures, the Dell SP7501-D provides a reliable method of connecting servers to ToR switches using short copper runs. This configuration reduces cable clutter and improves airflow within server racks. By enabling 10GbE connectivity over CAT6A or CAT7 cabling, the module supports high-density compute environments such as virtualization clusters, cloud infrastructure nodes, and containerized application platforms. The 30-meter reach is sufficient for most rack and adjacent rack deployments.

Enterprise Campus and Wiring Closet Integration

Beyond data centers, the Dell SP7501-D is also used in enterprise campus environments where wiring closets distribute network connectivity across office floors or building segments. The module supports high-speed connectivity between distribution switches and edge devices, ensuring smooth operation of bandwidth-intensive applications such as video conferencing, unified communications, and cloud-based productivity tools. Its copper-based design simplifies retrofitting older buildings with modern networking capabilities.

Compatibility with Dell Networking Ecosystems

The Dell SP7501-D is designed for seamless interoperability with Dell networking switches and server adapters that support SFP+ ports. This ensures consistent performance and compatibility across Dell enterprise infrastructure solutions. It integrates into Dell PowerSwitch environments and supports a wide range of Ethernet configurations, making it suitable for both legacy upgrades and new deployments. The module's firmware-level optimization ensures reliable handshaking and link negotiation with compatible network interfaces.

Integration with Network Interface Cards and Switches

When deployed alongside Dell network interface cards and managed switches, the SP7501-D ensures stable 10GbE link establishment without requiring additional configuration complexity. It supports auto-negotiation features that allow seamless communication between connected devices. This reduces deployment time and simplifies large-scale network rollouts where consistency and predictability are critical operational requirements.

Scalability in Hybrid Network Environments

Hybrid environments that combine fiber and copper infrastructure benefit from the flexibility of the Dell SP7501-D. It allows administrators to extend 10GbE connectivity into areas where fiber installation may be cost-prohibitive or physically challenging. This hybrid approach is commonly used in enterprise networks transitioning toward full fiber backbones while maintaining copper-based edge connectivity for cost efficiency.

Signal Transmission and Electrical Engineering Considerations

The Dell SP7501-D operates using advanced signal encoding techniques designed to maintain data integrity over twisted-pair copper cabling. 10GBASE-T signaling requires sophisticated digital signal processing to compensate for attenuation, crosstalk, and impedance variations. The module incorporates adaptive filtering and echo cancellation mechanisms that dynamically adjust to cable conditions, ensuring consistent throughput and minimal packet loss.

Electromagnetic Interference and Shielding Requirements

In high-density networking environments, electromagnetic interference can significantly impact copper-based transmissions. The use of CAT6A and CAT7 cabling with enhanced shielding mitigates these effects, ensuring stable performance for the Dell SP7501-D module. Proper grounding and structured cabling design further improve signal reliability, especially in environments with high electrical noise such as industrial facilities or densely packed server rooms.

Distance Limitations and Performance Optimization

While the module supports up to 30 meters of reach, optimal performance is achieved when cable runs are carefully managed to avoid sharp bends, excessive bundling, or proximity to high-power electrical equipment. These best practices help maintain signal clarity and ensure that the full 10GbE bandwidth is consistently available across the link. Network engineers often design rack layouts specifically to accommodate these physical constraints.

Use Cases in High-Performance Computing and Virtualization

The Dell SP7501-D is frequently deployed in environments that demand high throughput and low-latency networking. Virtualization clusters benefit from its ability to provide stable interconnectivity between compute nodes and storage systems. In high-performance computing environments, the module supports rapid data exchange between processing nodes, enabling efficient workload distribution and parallel processing.

Storage Network Connectivity

Storage area networks (SANs) and network-attached storage (NAS) systems often rely on 10GbE connectivity for fast data access. The Dell SP7501-D provides a reliable copper-based link that supports large data transfers, backup operations, and real-time replication tasks. Its stable throughput ensures minimal bottlenecks in storage-intensive workloads.

Cloud Infrastructure and Containerized Workloads

Modern cloud infrastructures and container orchestration platforms require scalable and efficient networking solutions. The Dell SP7501-D enables high-speed pod-to-pod and node-to-node communication, supporting microservices architectures and distributed applications. Its predictable performance characteristics make it suitable for dynamic workloads that scale horizontally across compute clusters.
