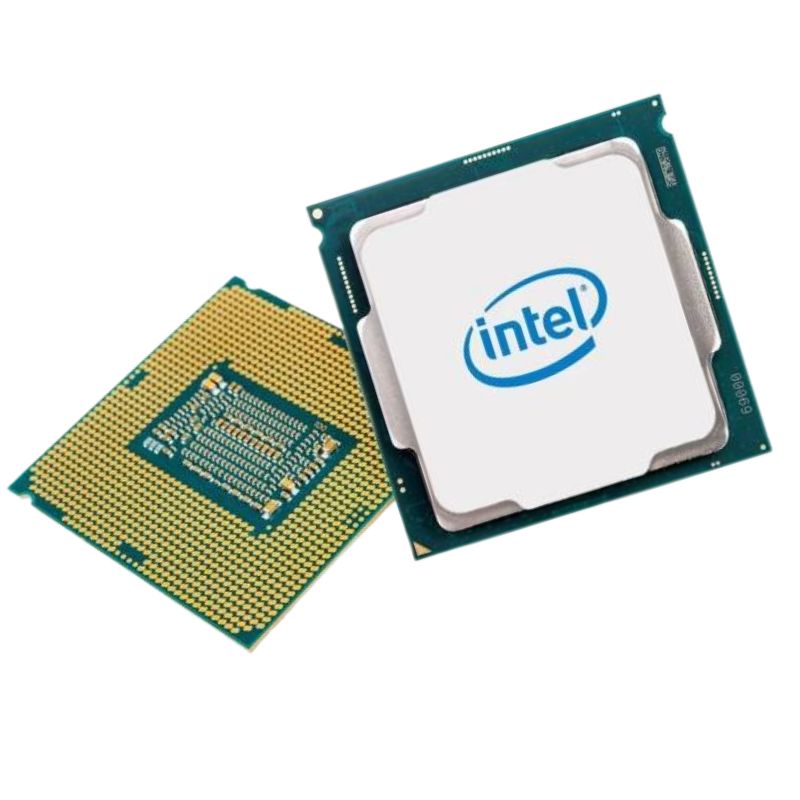

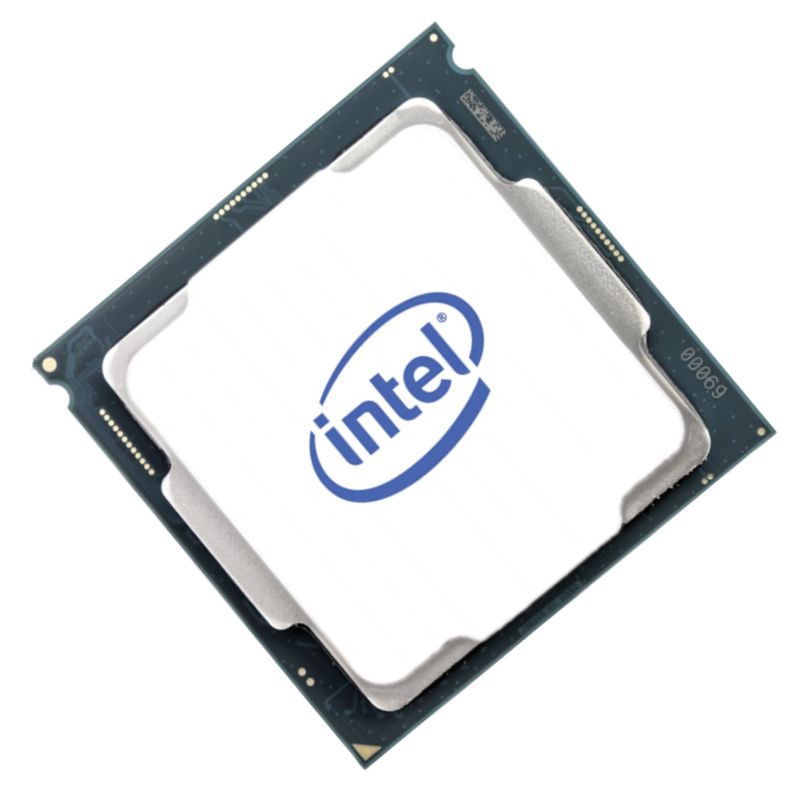

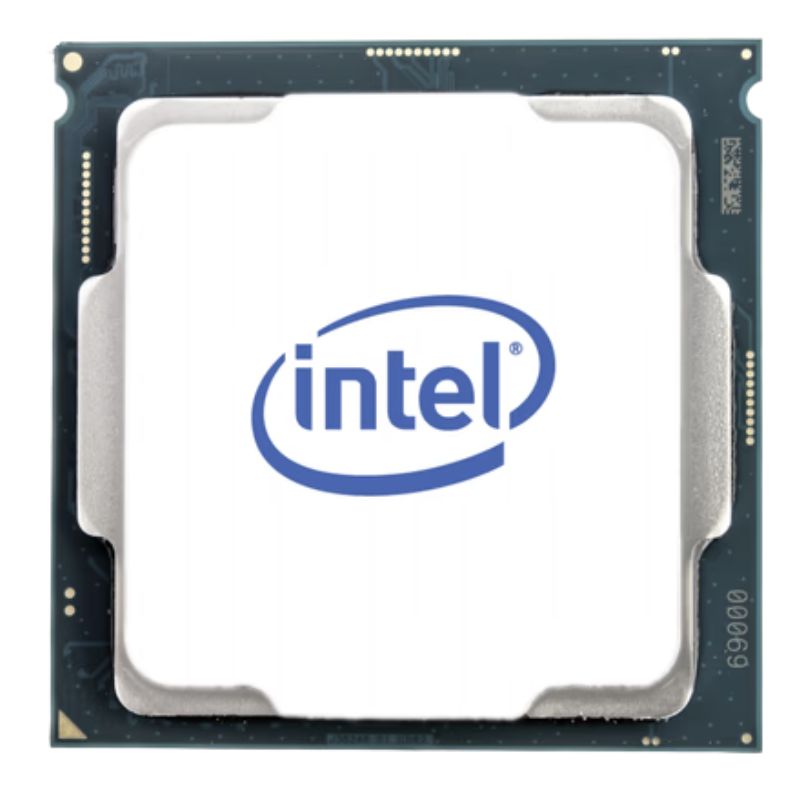

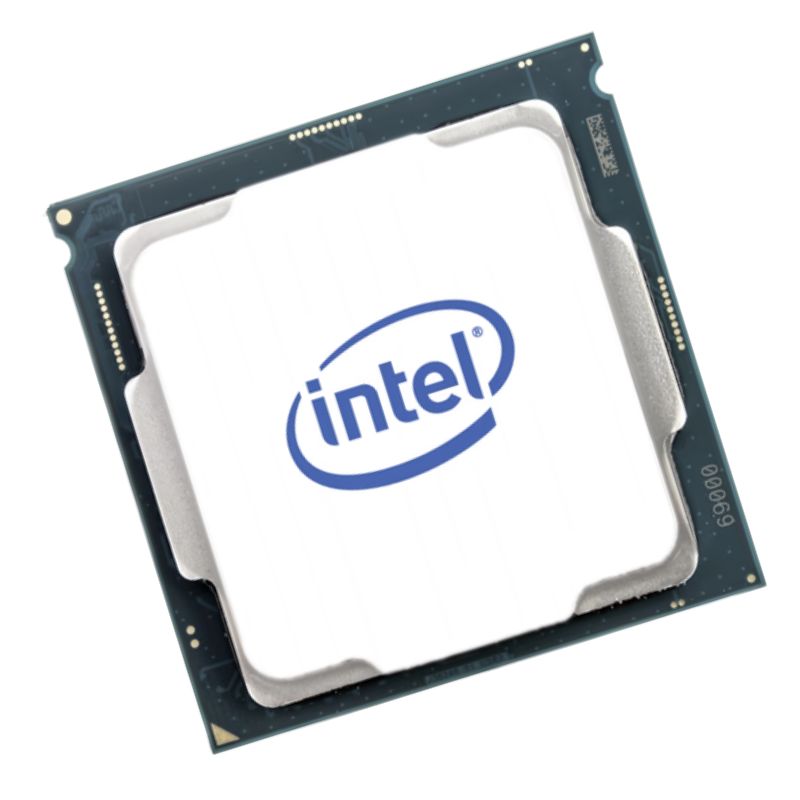

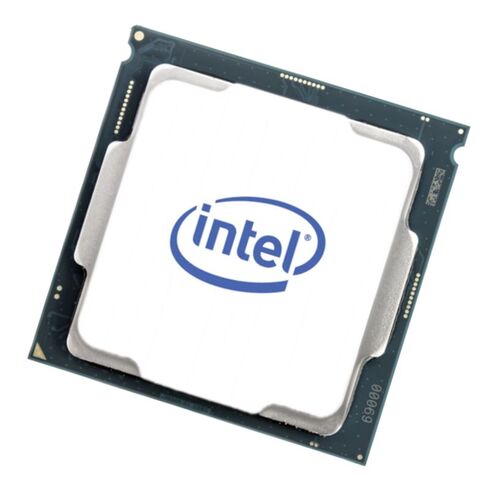

SRF9A Intel Xeon Gold 6212U 2.4GHz 24-core Processor

Intel Xeon Gold 6212U Processor

The Intel Xeon Gold 6212U 2.4GHz 24-core processor is designed to meet the demanding needs of modern enterprise environments. As part of the Cascade Lake family, this processor offers a balance of performance, scalability, and security, making it ideal for data centers, cloud computing, virtualization, and high-performance computing (HPC) applications. With 24 cores, 48 threads, and a TDP of 165W, the Xeon Gold 6212U provides robust performance for complex workloads while maintaining efficient power consumption.

Intel Xeon Gold 6212U Processor

• Product Line: 2nd Generation Intel Xeon Scalable Processors
• Codename: Previously known as Cascade Lake
• Target Market: Server and enterprise applications
• Processor Number: 6212U
• Status: Launched
• Release Date: Q2 2019
• Fabrication Process: 14 nm lithography

Performance Specifications

Core and Frequency Details

• Total Cores: 24 cores, designed for extensive parallel processing
• Total Threads: 48 threads, enabling superior multitasking capabilities
• Base Processor Frequency: 2.40 GHz, offering stable performance for various tasks
• Max Turbo Frequency: Up to 3.90 GHz, delivering enhanced performance during peak loads
• Cache Memory: 35.75 MB for rapid data access and improved efficiency
• Thermal Design Power (TDP): 165 W, balancing performance with energy consumption
• UPI Links: 0, not applicable for this processor

Additional Specifications

• Embedded Options: Not available

Memory Capabilities

Supported Memory Configuration

• Maximum Memory Capacity: Up to 1 TB, depending on memory type
• Memory Types: DDR4-2933 for high-speed data handling
• Maximum Memory Speed: 2933 MHz
• Memory Channels: 6 channels, optimizing data throughput and performance
• ECC Memory Support: Yes, providing error correction for data reliability
• Intel Optane DC Persistent Memory: Supported for additional memory flexibility

Expansion and Connectivity

Scalability and Interfaces

• Scalability: Suitable for single-socket configurations only (1S)
• PCI Express Version: 3.0, with up to 48 PCIe lanes for extensive connectivity options

Package Specifications

• Supported Socket: FCLGA3647
• Case Temperature (TCASE): 90°C
• Package Dimensions: 76.0mm x 56.5mm

Advanced Technologies

Performance Enhancements

• Intel Deep Learning Boost: Yes, for accelerated AI and machine learning performance
• Intel Speed Select Technology - Performance Profile: Not available
• Intel Speed Select Technology - Base Frequency: Not available
• Intel Resource Director Technology (RDT): Yes, for advanced workload management
• Intel Speed Shift Technology: Yes, for improved frequency adjustment responsiveness
• Intel Turbo Boost Technology 2.0: Yes, enhancing performance under high load
• Intel Turbo Boost Max Technology 3.0: Not supported
• Intel vPro Platform Compatibility: Yes, for enhanced manageability and security
• Intel Hyper-Threading Technology: Yes, providing efficient parallel processing
• Intel Virtualization Technology (VT-x): Yes, supporting robust virtual environments
• Intel Virtualization Technology for Directed I/O (VT-d): Yes, for improved I/O performance
• Intel VT-x with Extended Page Tables (EPT): Yes, enhancing virtual memory management
• Intel TSX-NI: Yes, for improved transaction processing
• Intel 64: Yes, supporting 64-bit computing
• Instruction Set Extensions: Supports Intel SSE4.2, AVX, AVX2, and AVX-512
• Number of AVX-512 FMA Units: 2, optimizing vector calculations
• Enhanced Intel SpeedStep Technology: Yes, for efficient power management
• Intel Volume Management Device (VMD): Yes, for enhanced storage management

Security and Reliability Features

Built-in Security Technologies

• Intel AES New Instructions: Yes, for accelerated data encryption
• Intel Trusted Execution Technology: Yes, enhancing secure computing environments
• Execute Disable Bit: Yes, providing additional protection against malware
• Intel Run Sure Technology: Yes, ensuring reliable performance for critical tasks
• Mode-based Execute Control (MBE): Yes, for improved security against certain threats

Key Specifications of the Intel Xeon Gold 6212U

The Xeon Gold 6212U is equipped with advanced features that enhance its performance in enterprise applications. It includes 24 cores and 48 threads, a 2.4GHz base clock speed, and support for up to 1TB of DDR4 memory, making it ideal for multi-threaded workloads and data-intensive operations. The processor’s 33MB cache provides quick access to frequently used data, enhancing overall efficiency and response times in high-demand environments.

Cascade Lake Architecture: A Foundation for Modern Computing

As part of Intel’s Cascade Lake architecture, the Xeon Gold 6212U benefits from several key enhancements over previous generations. These include improved memory support, built-in hardware security features, and optimized performance per watt. Cascade Lake processors are built for reliability, scalability, and efficiency, making them a preferred choice for enterprises looking to modernize their IT infrastructure.

Intel Turbo Boost Technology for Dynamic Performance

The Xeon Gold 6212U utilizes Intel Turbo Boost Technology, which allows the processor to dynamically increase its clock speed beyond the base 2.4GHz during periods of high demand. This feature ensures that the processor can handle peak workloads with ease, providing the extra performance needed for intensive applications such as data analysis, rendering, and simulation.

Advanced Multi-Threading with Hyper-Threading Technology

The 24-core, 48-thread configuration of the Xeon Gold 6212U supports Intel’s Hyper-Threading Technology, enabling each core to process two threads simultaneously. This multi-threading capability enhances parallel processing efficiency, making the processor well-suited for applications that require high levels of concurrency, such as virtualized environments and multi-user databases.

Large 33MB Cache for Enhanced Data Access

Equipped with a 33MB L3 cache, the Xeon Gold 6212U minimizes latency by providing faster access to frequently used data. This large cache size is particularly beneficial in data-centric applications, where rapid data retrieval is crucial to maintaining high performance. The extensive cache helps to streamline processes, reducing bottlenecks and enhancing overall system responsiveness.

Enhanced Security Features for Enterprise Reliability

Security is a top priority for enterprise environments, and the Intel Xeon Gold 6212U includes a suite of features designed to protect data and maintain system integrity. The processor offers Intel Software Guard Extensions (SGX), which secure sensitive data by isolating specific application code and data in memory. Intel Trusted Execution Technology (TXT) further enhances security by ensuring that the system only boots using trusted firmware.

Mitigations Against Side-Channel Vulnerabilities

The Xeon Gold 6212U is equipped with hardware-based mitigations against common side-channel attacks such as Spectre and Meltdown. These protections ensure that the processor operates securely without compromising on performance, providing peace of mind for businesses that handle sensitive information and require robust data protection measures.

Intel Secure Key and OS Guard for Enhanced Protection

Intel Secure Key provides hardware-based support for random number generation, enhancing the security of encryption processes. Additionally, Intel OS Guard protects the operating system from privilege escalation attacks, adding an extra layer of security that is crucial in enterprise settings where data integrity is paramount.

Intel Boot Guard: Safeguarding the Boot Process

Intel Boot Guard helps protect systems from unauthorized software and malware during the boot process. By ensuring that only trusted firmware is used, Boot Guard prevents malicious attacks at the most vulnerable stage of system operation, helping to maintain the overall security and reliability of the server environment.

Memory Capabilities: High Capacity and Performance

The Intel Xeon Gold 6212U supports a wide range of memory configurations, including up to 1TB of DDR4 RAM across six memory channels. This extensive memory support allows for high bandwidth and low latency, making the processor suitable for data-intensive applications such as databases, virtual machines, and real-time analytics.

Intel Optane DC Persistent Memory Support

Intel Optane DC Persistent Memory provides a new level of memory capacity and speed, sitting between traditional DRAM and storage. This technology offers persistent data storage that is significantly faster than traditional SSDs, enhancing application performance in scenarios where rapid data access and large memory capacities are required.

DDR4 Memory with ECC for Improved Data Integrity

The Xeon Gold 6212U supports DDR4 memory with Error-Correcting Code (ECC), which automatically detects and corrects common types of data corruption. ECC memory is critical in enterprise environments where data integrity and reliability are essential, ensuring that applications run smoothly without errors that could disrupt operations.

Scalable Memory for Growing Workloads

The scalability of the Xeon Gold 6212U’s memory support allows businesses to expand their memory capacity as their needs grow. This scalability ensures that the processor can continue to meet performance demands as workloads increase, providing a flexible solution that evolves with the organization’s IT requirements.

Power Efficiency and Management for Data Centers

With a 165W TDP, the Intel Xeon Gold 6212U is designed to deliver high performance without excessive power consumption. Advanced power management technologies help optimize energy use, making the processor an efficient choice for data centers focused on reducing operational costs and minimizing environmental impact.

Intel Speed Select Technology for Adaptive Performance

Intel Speed Select Technology (SST) allows the processor to allocate resources dynamically based on workload demands, optimizing both performance and power efficiency. SST enables data centers to prioritize specific workloads, providing the best possible performance for critical applications while maintaining overall energy efficiency.

Thermal Management for Consistent Operation

Advanced thermal management features help maintain optimal operating temperatures, even under heavy workloads. The processor’s ability to monitor and adjust performance based on thermal conditions ensures consistent operation, preventing overheating and extending the lifespan of the hardware.

Energy-Efficient Solutions for Sustainable Data Centers

The energy-efficient design of the Xeon Gold 6212U makes it an ideal choice for data centers that prioritize sustainability. By reducing power consumption without sacrificing performance, the processor helps organizations meet their environmental goals while maintaining high levels of computational power.

Scalability and Flexibility for Enterprise Applications

The Xeon Gold 6212U’s scalability makes it suitable for a wide range of enterprise applications. Its support for multi-socket configurations allows businesses to deploy dual or quad-processor systems, significantly increasing computational capacity. This scalability ensures that the processor can adapt to growing workloads and evolving business needs.

Compatibility with Leading Server Platforms

The Xeon Gold 6212U is compatible with a variety of server platforms from top manufacturers like Dell, HP, and Lenovo. This broad compatibility allows businesses to integrate the processor into existing infrastructures with minimal changes, maximizing their investment in current technology while enhancing overall performance.

Multi-Socket Configurations for Enhanced Performance

Support for multi-socket configurations enables businesses to expand their processing power by adding additional processors. This capability is particularly valuable in environments that require extensive parallel processing, such as scientific simulations, AI training, and financial modeling.

Flexible Deployment Across Cloud and On-Premises Environments

The Xeon Gold 6212U’s versatility makes it suitable for deployment in a range of environments, from traditional on-premises data centers to cloud and hybrid models. This flexibility ensures that businesses can adapt their IT strategies to meet changing demands, whether they are expanding their capabilities or transitioning to cloud-based solutions.

Applications and Use Cases

The Intel Xeon Gold 6212U is engineered for a variety of demanding applications, providing the performance, reliability, and scalability needed in today’s enterprise environments. From virtualization and cloud computing to AI and big data
