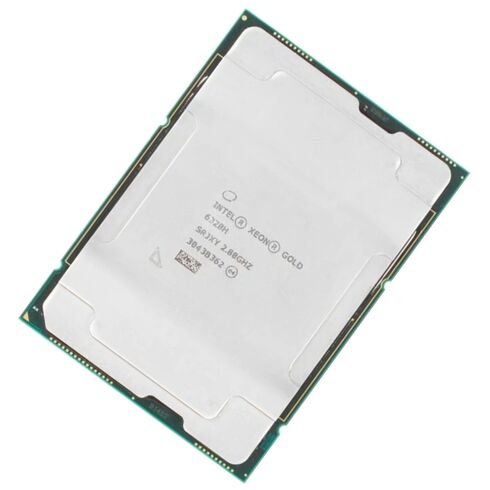

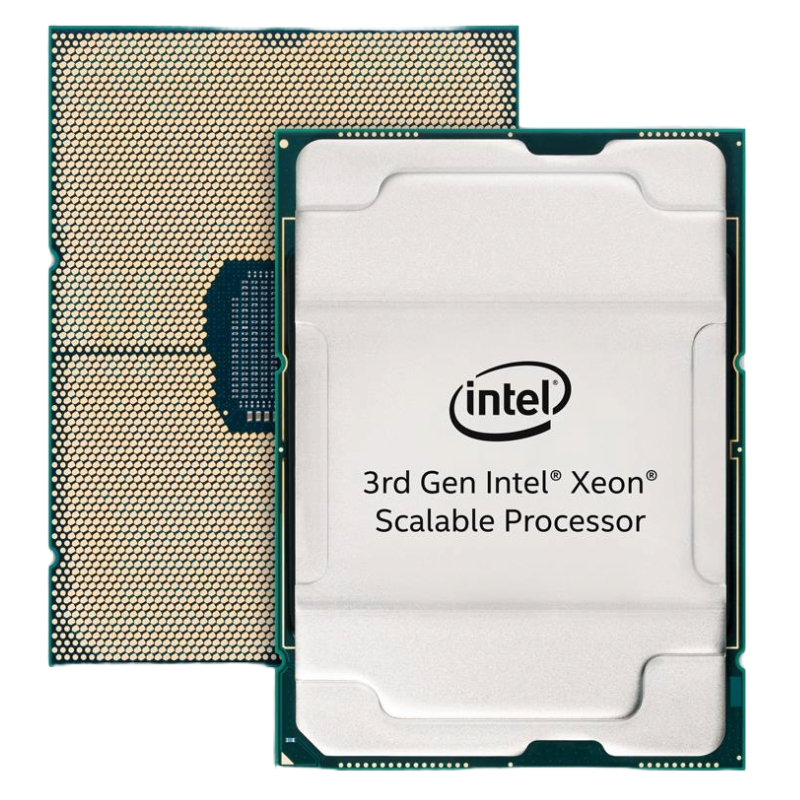

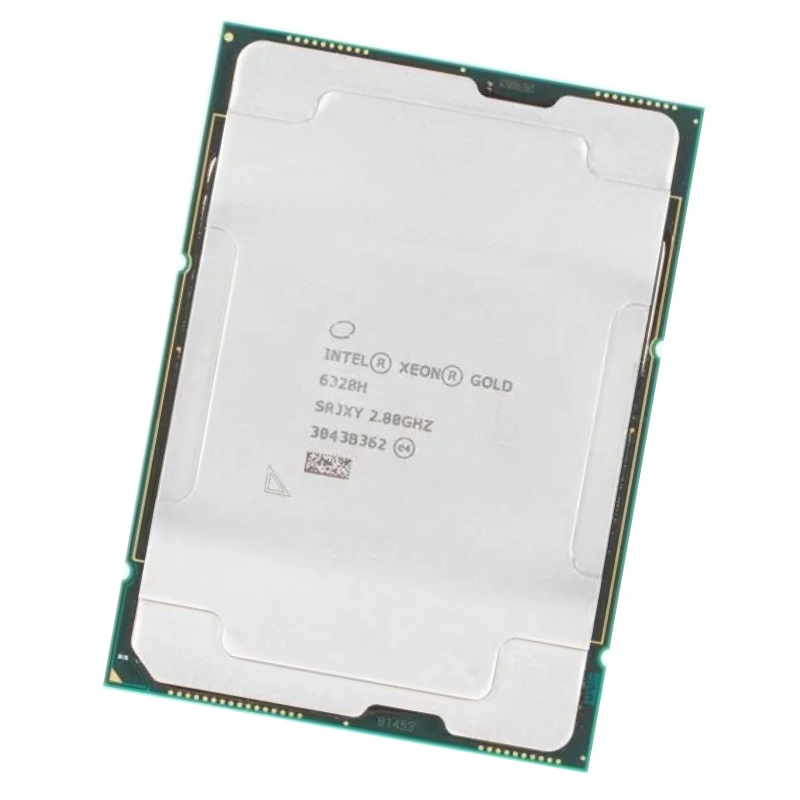

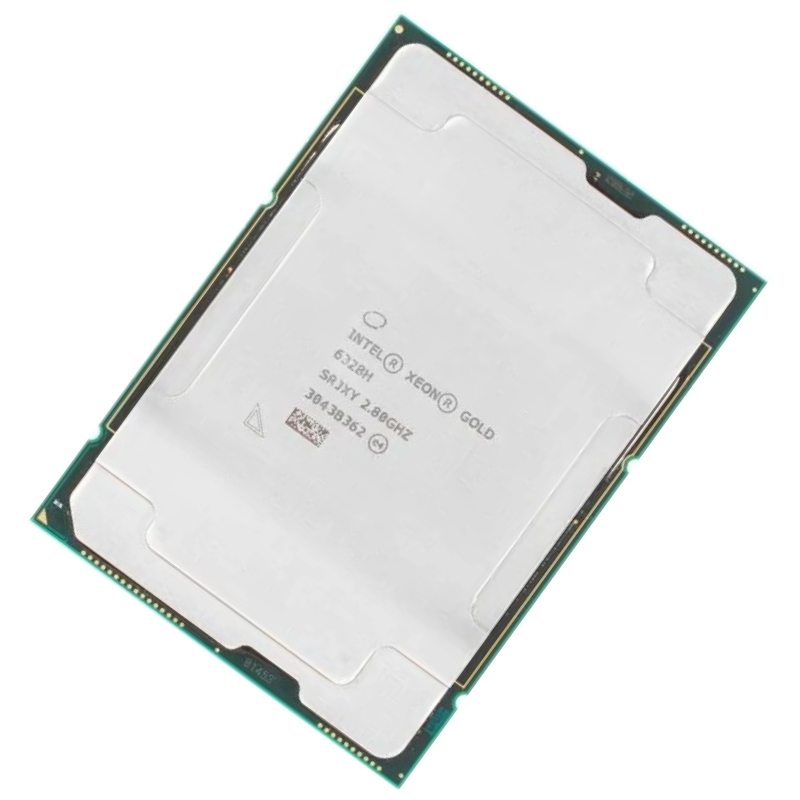

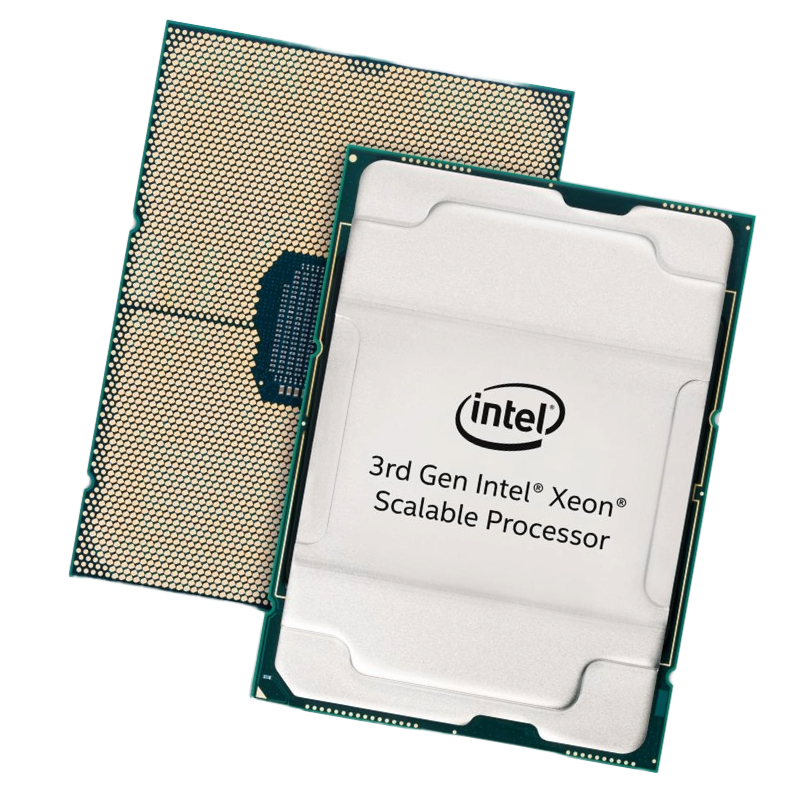

SRJXY Intel Xeon Gold 16 Core Processor 6328H 2.80GHz

Intel Xeon Gold 6328H Processor

Product Overview and Specifications

The Intel Xeon Gold 6328H, part number SRJXY, is a high-performance server processor designed to handle demanding workloads. As part of the 3rd Generation Intel Xeon Scalable (Gold 6300 Series), this processor leverages the Cooper Lake architecture to provide superior processing power, scalability, and advanced features for data centers and enterprise environments.

Product Highlights

• Manufacturer: Intel
• Part Number: SRJXY
• Processor Series: 3rd Gen Intel Xeon Scalable (Gold 6300 Series)
• Codename: Cooper Lake
• Socket Type: FCLGA4189

Performance and Technical Details

The Intel Xeon Gold 6328H is engineered to deliver robust performance across a wide array of applications, making it ideal for server environments, virtualization, and data-intensive tasks.

Core Performance Specifications

• Base Clock Speed: 2.80 GHz
• Max Turbo Frequency: 4.30 GHz
• Core Count: 16 cores
• Thread Count: 32 threads
• Cache Size: 22 MB
• Number of UPI Links: 6
• Manufacturing Process: 14 nm lithography
• Thermal Design Power (TDP): 165 W

Memory Specifications

• Maximum Memory Capacity: Up to 1.12 TB (1,120 GB), depending on memory type
• Supported Memory Types: DDR4 RDIMM
• Maximum Memory Speed: 2933 MHz
• Number of Memory Channels: 6
• Error-Correcting Code (ECC) Memory: Supported
• Intel Optane DC Persistent Memory: Supported

Expansion and Scalability Features

The Xeon Gold 6328H offers strong scalability and expansion capabilities, making it an excellent choice for multi-socket server configurations and environments requiring extensive PCIe connectivity.

Expansion Capabilities

• Scalability: Supports up to 4-socket (4S) configurations
• PCI Express Revision: 3.0
• Maximum PCIe Lanes: 48 lanes

Advanced Technologies

• Intel Speed Select Technology - Core Power: Allows for flexible and dynamic adjustment of core power
• Intel Speed Select Technology - Turbo Frequency: Enhances performance by dynamically adjusting turbo frequencies
• Intel Deep Learning Boost (DL Boost): Optimized for AI and machine learning workloads
• Intel Resource Director Technology (RDT): Provides enhanced control over resource allocation
• Intel Optane Memory: Supported for improved storage and memory performance
• Intel Speed Shift Technology: Enhances responsiveness through quicker frequency changes
• Intel Hyper-Threading Technology: Increases parallelism with multi-threading capabilities
• Intel Virtualization Technology (VT-x): Supports virtualization for multiple operating systems
• Intel Virtualization Technology for Direct I/O (VT-d): Improves security and performance of virtualized environments
• Extended Page Tables (EPT): Boosts virtualization performance by reducing overhead
• Intel Transactional Synchronization Extensions (TSX): Enhances performance for multi-threaded software
• Instruction Set Extensions: Intel SSE4.2, Intel AVX, Intel AVX2, Intel AVX-512
• Number of AVX-512 FMA Units: 2 units for enhanced floating-point computation
• Enhanced Intel SpeedStep Technology: Balances power and performance based on workload
• Intel Volume Management Device (VMD): Simplifies NVMe SSD management

Security and Reliability Features

The Xeon Gold 6328H incorporates numerous security enhancements to protect data and ensure system reliability, making it ideal for sensitive enterprise environments.

Security Technologies

• Intel Advanced Encryption Standard New Instructions (AES-NI): Accelerates data encryption and decryption
• Execute Disable Bit: Reduces exposure to malicious code attacks
• Intel Run Sure Technology: Ensures reliable performance through advanced error detection
• Mode-Based Execute Control (MBE): Provides additional layers of execution security

Applications and Use Cases

The Intel Xeon Gold 6328H is versatile, designed to meet the needs of a wide range of professional environments. Its advanced features make it suitable for various high-performance applications.

Enterprise Servers

With 16 cores and high processing frequencies, this processor excels in enterprise servers, delivering the power needed for data-intensive applications, transaction processing, and large-scale databases.

Data Center Deployments

The Xeon Gold 6328H enhances data center efficiency by providing high processing power and supporting advanced memory configurations. It is ideal for cloud computing, data analytics, and large-scale virtualization environments.

High-Performance Workstations

Suitable for high-end workstations, this processor supports intensive computing tasks, such as scientific modeling, engineering simulations, and media rendering, ensuring smooth and efficient operation of complex applications.

Virtualization and Cloud Computing

Its high core and thread count make the Xeon Gold 6328H a perfect fit for virtualization environments, ensuring efficient management of virtual machines and optimal performance in cloud infrastructures.

Installation and Maintenance Tips

Proper installation and maintenance of the Xeon Gold 6328H are critical to maximizing its performance and ensuring long-term reliability. Follow these guidelines for best results.

Processor Installation

• Socket Compatibility: Ensure compatibility with FCLGA4189 sockets to avoid installation issues.
• System Check: Verify that the motherboard and power supply are compatible with the processor's requirements.

Cooling Solutions

• Cooling Requirements: Due to its 165W TDP, an efficient cooling system is essential to maintain optimal performance.
• Heatsink and Fan: Use a high-quality heatsink and fan assembly to manage heat dissipation effectively.

Power Supply and System Compatibility

• Power Supply: Ensure that the power supply unit (PSU) can handle the Xeon Gold 6328H and other system components.
• Motherboard and Cooling: Confirm that all system components are compatible to avoid performance bottlenecks.
