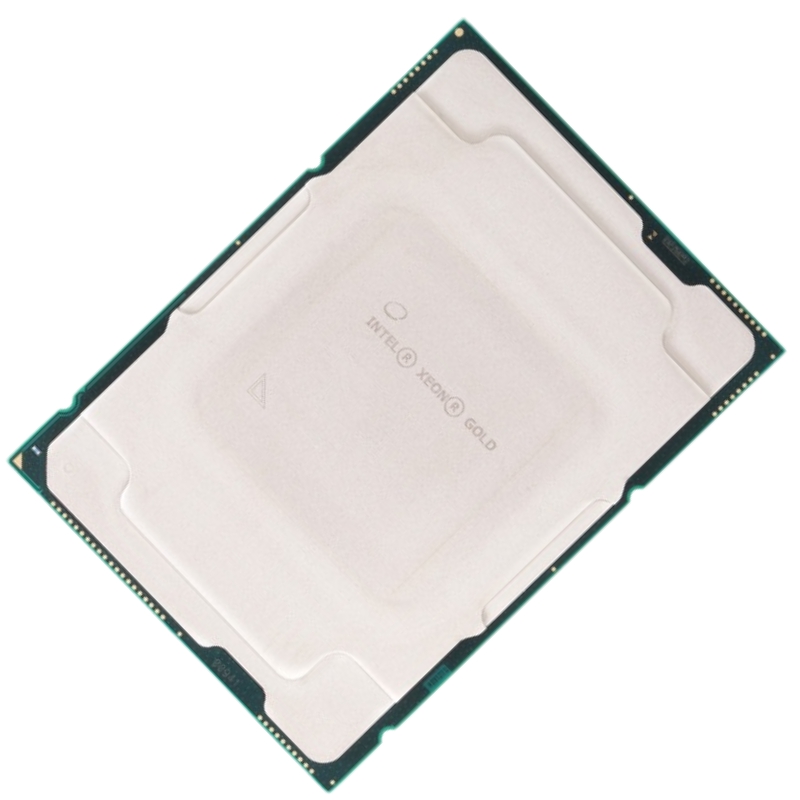

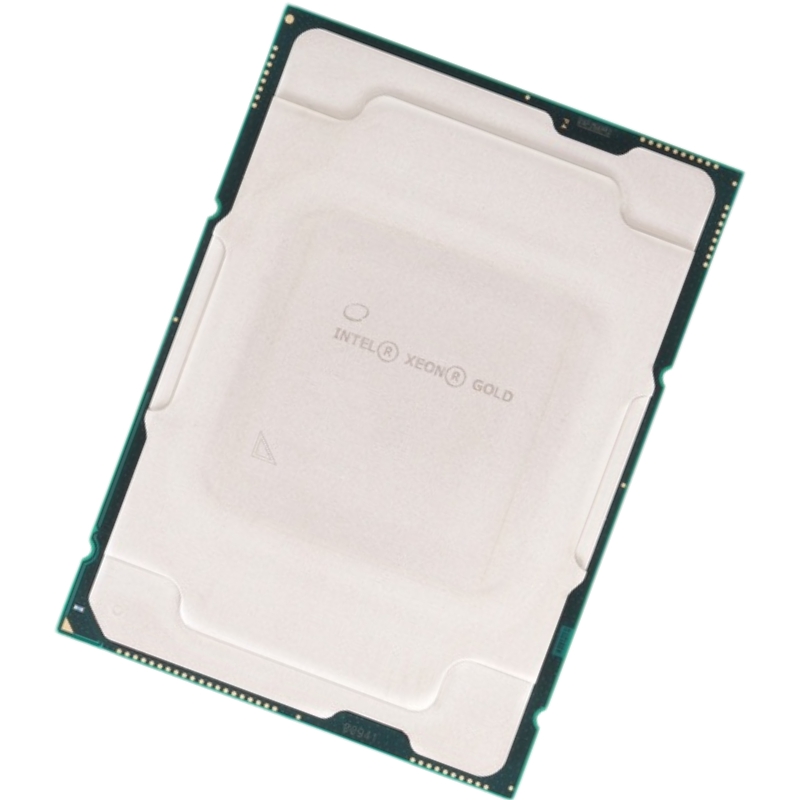

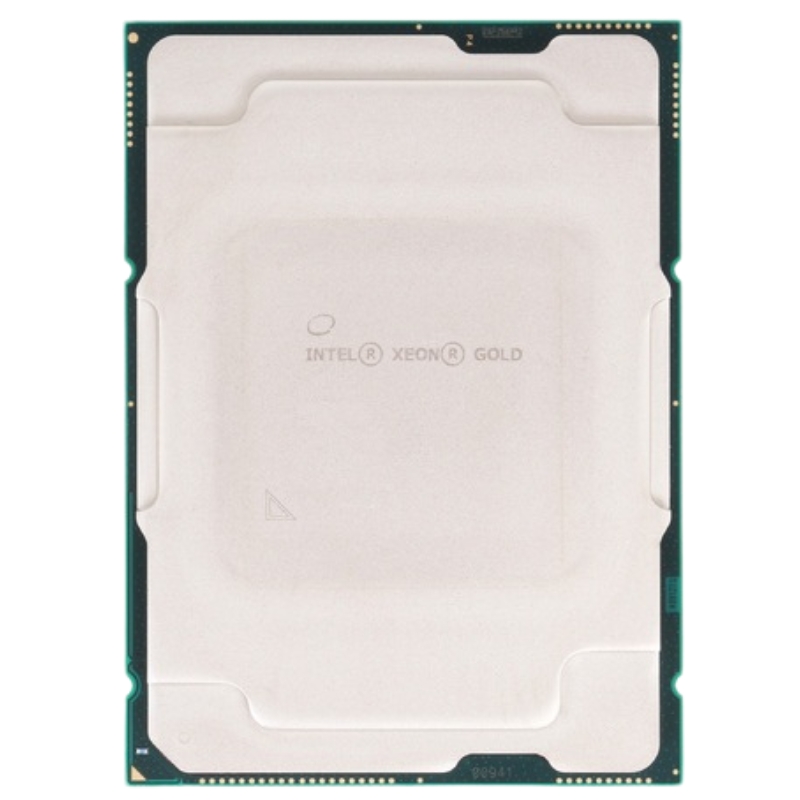

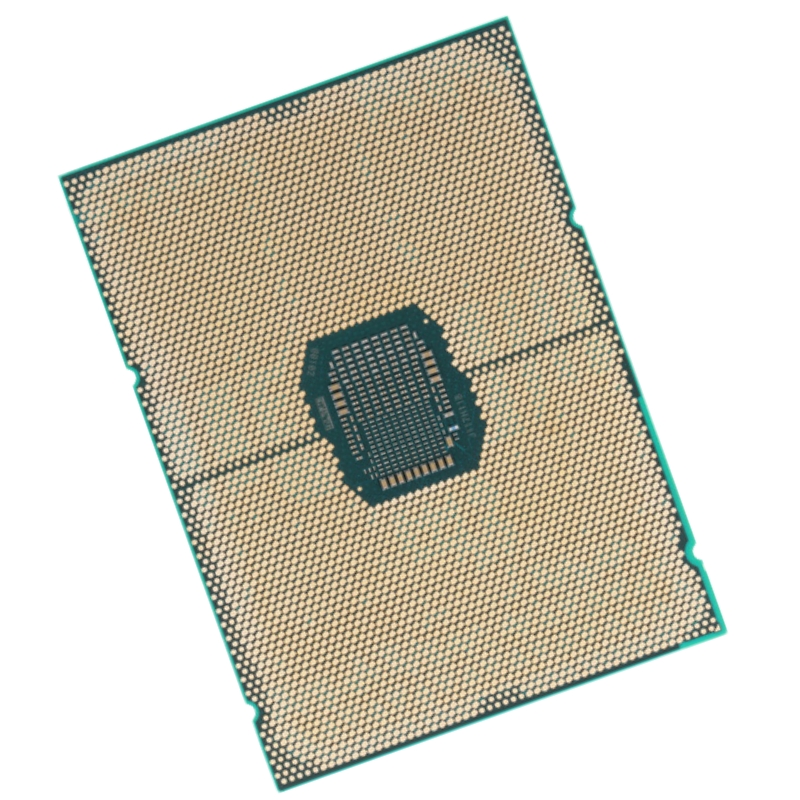

Intel Xeon Gold 6338T 2.1GHz 24 Core Processor SRKXF

Overview of Intel Xeon Gold 6338T Processor

The Intel Xeon Gold 6338T is a powerful processor designed for demanding workloads in enterprise data centers, cloud computing, and high-performance computing environments. With 24 cores, 48 threads, and a base clock speed of 2.1 GHz, the Xeon Gold 6338T delivers excellent performance for multi-threaded applications, virtualization, and complex data processing tasks. This processor is equipped with a 36MB L3 cache and supports DDR4-3200 memory, enhancing overall system responsiveness and data handling capabilities.

Intel Xeon Gold 6330N Processor Details

Product Specifications

• Manufacturer: Intel
• Part Number: SRKXF
• Processor Series: 3rd Generation Intel Xeon Scalable (Gold 6300 Series)
• Code Name: Ice Lake
• Supported Sockets: FCLGA4189

Performance and Core Features

• Base Frequency: 2.10 GHz
• Maximum Turbo Frequency: 3.40 GHz
• Core Count: 24 cores with 48 threads
• Cache Size: 36MB
• Intel UPI Speed: 11.2 GT/s
• Number of UPI Links: 3
• Process Technology: 10nm lithography
• Thermal Design Power (TDP): 165W

Memory Capabilities

• Maximum Memory Size: Up to 6TB (6,000GB) depending on memory type
• Supported Memory Types: DDR4
• Memory Speed: Up to 3200 MHz
• Number of Memory Channels: 8 channels
• ECC Memory: Error-Correcting Code supported
• Intel Optane DC Persistent Memory: Supported

Expansion and Scalability Options

• Scalability: 2-socket (2S) configuration support
• PCI Express Version: 4.0
• Maximum PCIe Lanes: 64 lanes

Advanced Technologies

• Intel Speed Select Technology: Customizable Core Power, Turbo Frequency, and Base Frequency features
• Intel Deep Learning Boost (DL Boost): Optimized for AI and machine learning tasks
• Intel Resource Director Technology (RDT): Enhances resource allocation and management
• Speed Shift Technology: Provides dynamic performance adjustments
• Turbo Boost Technology 2.0: Increases performance during peak loads
• Hyper-Threading Technology: Allows multiple threads per core for enhanced processing
• Intel Virtualization Technology (VT-x and VT-d): Enables robust virtualization and direct I/O capabilities
• Transactional Synchronization Extensions (TSX): Supports advanced synchronization for multithreading
• Intel 64: Full 64-bit support
• Instruction Set Extensions: SSE4.2, AVX, AVX2, AVX-512 with 2 FMA units
• Intel Volume Management Device (VMD): Manages NVMe SSDs efficiently

Security and Reliability Features

• Intel Advanced Encryption Standard (AES-NI): Enhances data encryption performance
• Software Guard Extensions (SGX): Provides secure enclaves for data protection with Intel SPS
• Trusted Execution Technology (TXT): Ensures platform integrity during boot
• Execute Disable Bit: Reduces exposure to viruses and malicious attacks
• Intel Run Sure Technology: Boosts system reliability and uptime
• Mode-Based Execute Control (MBE): Provides enhanced control over code execution
• Total Memory Encryption (TME): Protects data at rest by encrypting system memory
• Platform Firmware Resilience (PFR): Strengthens firmware security
• Max Enclave Page Cache (EPC) Size: Up to 64GB for SGX
• Intel Crypto Acceleration: Boosts cryptographic performance

High-Core Count for Enhanced Multitasking

The 24-core configuration of the Intel Xeon Gold 6338T allows it to handle a wide range of workloads simultaneously. This high core count is particularly advantageous in environments where multitasking and parallel processing are crucial, such as database management, virtual machine hosting, and data analytics. The processor’s multi-core architecture ensures that tasks are efficiently distributed across cores, maximizing utilization and performance.

Improved Efficiency with 48 Threads

Equipped with Intel Hyper-Threading technology, the Xeon Gold 6338T effectively doubles its execution capabilities by supporting 48 threads. This feature enables each core to handle two threads concurrently, optimizing the processor’s efficiency and performance under heavy workloads. Hyper-Threading is especially beneficial in multi-user environments where numerous tasks are processed simultaneously, enhancing throughput and minimizing latency.

Optimized for Virtualization and Cloud Computing

The high core and thread count of the Xeon Gold 6338T make it an ideal choice for virtualization and cloud computing. Its ability to support multiple virtual machines with minimal performance degradation ensures that businesses can optimize resource allocation, improve server density, and reduce total cost of ownership. The processor’s architecture is designed to handle high virtual machine workloads, making it suitable for cloud service providers, enterprise IT infrastructures, and managed hosting environments.

Performance Features of Intel Xeon Gold 6338T

The Intel Xeon Gold 6338T is engineered with several performance-enhancing features that improve its ability to handle complex, data-driven tasks. From high base and turbo clock speeds to advanced cache management, this processor delivers exceptional performance for a wide range of applications.

Base Clock Speed of 2.1 GHz

The base clock speed of 2.1 GHz ensures consistent performance for general-purpose computing tasks, making it a reliable choice for everyday server operations. This clock speed balances power consumption and processing power, allowing the Xeon Gold 6338T to deliver stable performance without excessive energy use. The steady clock rate is particularly beneficial for applications that require constant, predictable performance, such as web servers, content management systems, and database queries.

Intel Turbo Boost Technology

Intel Turbo Boost Technology dynamically increases the processor’s clock speed when higher performance is needed, boosting the frequency above the base level. This allows the Xeon Gold 6338T to reach higher speeds during peak workloads, optimizing performance for time-sensitive tasks such as financial modeling, scientific simulations, and video rendering. The Turbo Boost feature ensures that the processor can adapt to varying workloads, providing additional power when it is most needed.

Enhanced Cache with 36MB L3 Cache

The 36MB L3 cache plays a critical role in improving data access speeds and overall processing efficiency. By storing frequently used data close to the cores, the cache reduces the time needed to retrieve information, enhancing performance in data-intensive applications. The large cache size supports the processor’s ability to handle complex calculations, large datasets, and memory-intensive tasks, making it ideal for use in data analytics, AI, and machine learning.

Memory and Storage Capabilities

Memory performance is a key aspect of the Intel Xeon Gold 6338T, with support for high-speed DDR4 memory and advanced storage technologies that boost data throughput and system responsiveness.

Support for DDR4-3200 Memory

The Intel Xeon Gold 6338T supports DDR4-3200 memory, providing high bandwidth and low latency for demanding applications. The processor’s six memory channels allow for significant memory expansion, enabling the system to handle large datasets with ease. This high memory bandwidth is essential for workloads that require fast data access, such as big data analytics, in-memory databases, and high-performance computing.

Scalable Memory Capacity

With support for substantial memory configurations, the Xeon Gold 6338T provides flexibility in scaling memory capacity to match application requirements. This scalability is critical in environments where data growth is continuous, such as financial services, scientific research, and large-scale simulations. The processor’s ability to support extensive memory configurations ensures that performance remains robust even as data volumes increase.

Intel Optane Persistent Memory Compatibility

The Xeon Gold 6338T is compatible with Intel Optane Persistent Memory, which combines the speed of traditional memory with the persistence of storage. This technology enhances system performance by providing fast access to large datasets, significantly improving application response times. Optane memory is particularly beneficial for workloads that require quick data retrieval and high throughput, such as AI training, database acceleration, and virtual machine hosting.

Energy Efficiency and Thermal Design

Designed with a focus on energy efficiency and thermal management, the Intel Xeon Gold 6338T provides high performance without compromising on power consumption or heat generation. Its 165W TDP ensures that it can deliver powerful processing while maintaining manageable energy and cooling requirements.

165W Thermal Design Power (TDP)

The Xeon Gold 6338T’s TDP of 165W reflects its energy-efficient design, which balances power consumption with high performance. This TDP rating ensures that the processor can deliver exceptional performance under load while remaining within the thermal constraints of modern server environments. The efficient power profile supports deployment in energy-conscious data centers, where minimizing operational costs and environmental impact are top priorities.

Advanced Power Management Features

Intel Xeon Gold processors incorporate advanced power management technologies, including dynamic voltage and frequency scaling, which optimize power usage based on workload demands. These features allow the processor to adjust its power consumption in real time, reducing energy usage during low-demand periods and maximizing performance when needed. This intelligent power management helps data centers reduce overall energy costs and supports sustainable computing practices.

Efficient Thermal Management

Thermal management is critical to maintaining the performance and reliability of the Intel Xeon Gold 6338T. The processor’s design includes integrated thermal sensors and advanced cooling technologies that help regulate temperature and prevent overheating. Proper thermal management ensures that the processor operates within safe temperature limits, extending its lifespan and maintaining consistent performance under heavy workloads.

Security Features and Data Protection

Security is a core focus of the Intel Xeon Gold 6338T, with a range of built-in technologies designed to protect data integrity, enhance system security, and safeguard critical applications from cyber threats.

Intel Software Guard Extensions (SGX)

Intel SGX provides a secure enclave for sensitive data and code, protecting it from unauthorized access even if the rest of the system is compromised. This hardware-based security feature is crucial for applications that handle confidential information, such as financial transactions, healthcare records, and encrypted communications. SGX ensures that critical data remains protected against both external and internal threats, enhancing overall system security.

Intel Total Memory Encryption (TME)

Intel TME encrypts the entire system memory, providing a robust defense against physical attacks and unauthorized access. By encrypting data stored in memory, TME ensures that sensitive information is protected even if physical access to the system is gained. This feature is particularly important in data centers and cloud environments, where physical security can be a concern.

Enhanced Threat Detection and Mitigation

Intel Xeon Gold 6338T processors include advanced threat detection capabilities, such as Intel Threat Detection Technology (TDT) and Control-Flow Enforcement Technology (CET). These features work together to identify and prevent a range of cyber threats, including malware, ransomware, and advanced persistent threats (APTs). By integrating these security measures at the hardware level, the processor provides a strong defense against evolving cyber challenges, helping safeguard critical workloads.

Scalability and Multi-Socket Configurations

The Intel Xeon Gold 6338T is designed for scalability, supporting multi-socket configurations that allow businesses to expand their computing resources as needed. This flexibility is crucial in environments where computing demands can grow rapidly, such as cloud services, big data processing, and enterprise applications.

Support for Multi-Socket Setups

The Xeon Gold 6338T supports multi-socket configurations, enabling systems to be scaled up to meet increasing performance requirements. Multi-socket setups provide additional processing power and memory capacity, making them ideal for high-performance computing environments that require rapid data processing and parallel task execution. This scalability allows businesses to tailor their IT infrastructure to evolving needs without replacing existing hardware.

Balanced Performance and Scalability

With its combination of high core count, substantial memory support, and advanced interconnect technologies, the Xeon Gold 6338T delivers balanced performance and scalability. This balance is crucial in maintaining efficiency as systems grow, ensuring that expanded resources are utilized effectively without bottlenecks. The processor’s architecture is optimized for scale, making it an excellent choice for large-scale deployments in data centers and cloud environments.

Enhanced Interconnect Technologies

Intel Xeon Gold processors include advanced interconnect technologies, such as Intel Ultra Path Interconnect (UPI), which enhances communication between processors in multi-socket configurations. UPI improves data transfer rates and reduces latency, ensuring that processors work together seamlessly to deliver high performance. This technology is essential in multi-processor systems where efficient communication between CPUs is critical to overall system performance.
