SRN57 Intel Xeon Platinum 8580 60-Core 2.00GHz Processor

SRN57 Intel Xeon Platinum

The SRN57 Intel Xeon Platinum 8580 Processor is a high-performance computing solution designed to handle the most demanding workloads and applications. Featuring 60 cores, a base clock speed of 2.00 GHz, and an impressive 300MB L3 cache, this processor is engineered to deliver exceptional performance, scalability, and efficiency for enterprise and data center environments. Its advanced architecture and robust features make it suitable for a wide range of high-performance computing tasks, from virtualization and cloud computing to large-scale data analysis and scientific simulations.

Product Overview

• Category: 5th Gen Intel® Xeon® Scalable Processors
• Code Name: Formerly Emerald Rapids
• Segment: Server
• Processor Number: 8580
• Part Number: SRN57
• Process Technology: Intel 7

CPU Specifications

• Total Cores: 60
• Total Threads: 120
• Base Frequency: 2 GHz
• Max Turbo Frequency: 4 GHz
• Cache Size: 300 MB
• Intel® UPI Speed: 20 GT/s
• Maximum UPI Links: 4
• TDP (Thermal Design Power): 350 W

Supplemental Information

• Market Status: Launched
• Release Date: Q4'23
• Servicing Status: Baseline Servicing
• Usage Context: Server/Enterprise

Memory Specifications

• Maximum Memory Capacity: 4 TB (dependent on memory type)
• Supported Memory Types: DDR5 @ 5600 MT/s (1 DPC)
• Maximum Memory Channels: 8
• ECC Memory Support: Yes

Expansion and Connectivity

• Scalability: 2S
• PCI Express Revision: 5.0
• Maximum PCI Express Lanes: 80

Package Details

• Supported Sockets: FCLGA4677
• Package Carrier: E1A
• DTS Max Temperature: 98 °C
• Case Temperature: 81 °C
• Package Dimensions: 77.5mm x 56.5mm

Intel® On Demand Activation Model

• QAT: Available
• DLB: Available
• DSA: Available
• IAA: Available
• SGX512: Available

Advanced Technologies

• Intel Data Streaming Accelerator (DSA): 1 default device
• Intel Volume Management Device (VMD): Yes
• Intel Advanced Matrix Extensions (AMX): Yes
• Intel Speed Select Technology – Core Power: Yes
• Intel Speed Select Technology – Turbo Frequency: Yes
• Intel Deep Learning Boost: Yes
• Intel Speed Select Technology - Base Frequency: Yes
• High Priority Cores: 16
• High Priority Core Frequency: 2.2 GHz
• Low Priority Cores: 44
• Low Priority Core Frequency: 1.8 GHz
• Intel Resource Director Technology (RDT): Yes
• Intel Speed Shift Technology: Yes
• Intel Turbo Boost Technology 2.0: Yes
• Intel Hyper-Threading Technology: Yes
• Intel Transactional Synchronization Extensions: Yes
• Intel 64 Technology: Yes
• Instruction Set Extensions: Intel® AMX, Intel® SSE4.2, Intel® AVX, Intel® AVX2, Intel® AVX-512
• Number of AVX-512 FMA Units: 2

Security and Reliability Features

• Intel Trust Domain Extensions (TDX): Yes
• Intel Software Guard Extensions (SGX): Yes, with Intel® SPS
• Default Maximum Enclave Page Cache (EPC) Size for Intel® SGX: 512 GB
• Intel Crypto Acceleration: Yes
• Intel QuickAssist Software Acceleration: Yes
• Intel Platform Firmware Resilience Support: Yes
• Intel Control-Flow Enforcement Technology: Yes
• Intel Total Memory Encryption - Multi Key: Yes
• Intel Total Memory Encryption: Yes
• Intel AES New Instructions: Yes
• Intel OS Guard: Yes
• Intel Trusted Execution Technology: Yes
• Execute Disable Bit: Yes
• Intel Boot Guard: Yes
• Intel Run Sure Technology: Yes
• Mode-based Execute Control (MBEC): Yes
• Intel Virtualization Technology (VT-x): Yes
• Intel Virtualization Technology for Directed I/O (VT-d): Yes
• Intel VT-x with Extended Page Tables (EPT): Yes

Key Features

The SRN57 Intel Xeon Platinum 8580 Processor boasts an impressive 60 cores, providing unparalleled multitasking capabilities and processing power. This high core count enables the processor to handle multiple threads and concurrent workloads with ease, making it ideal for environments where high levels of parallel processing are required. Applications such as virtualization, large-scale data processing, and complex simulations benefit greatly from the processor’s ability to manage numerous tasks simultaneously.

Base Clock Speed

Operating at a base clock speed of 2.00 GHz, the SRN57 Xeon Platinum 8580 Processor delivers consistent performance across various computing tasks. This clock speed, while moderate, is optimized for stability and efficiency, ensuring reliable operation even under heavy workloads. The processor’s architecture is designed to maximize performance while maintaining power efficiency, making it suitable for high-performance computing environments.

Extensive 300MB L3 Cache

The SRN57 Xeon Platinum 8580 Processor features a substantial 300MB L3 cache, which plays a crucial role in enhancing system performance. The large cache size allows for rapid data retrieval and reduced latency, improving overall processing efficiency. By storing frequently accessed data closer to the processor, the cache helps minimize delays and speeds up data handling, which is particularly beneficial for data-intensive applications and workloads.

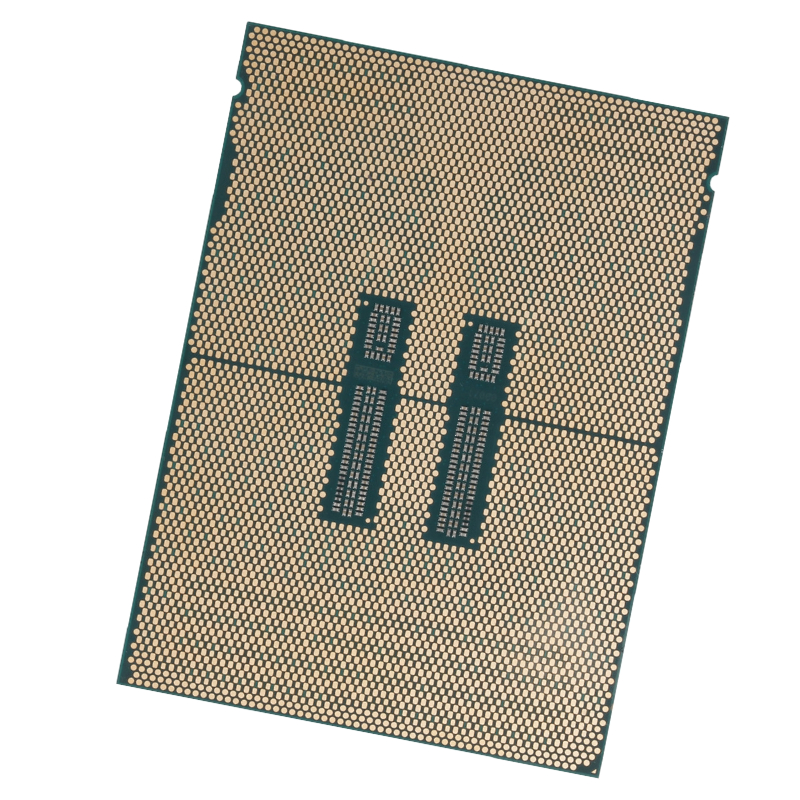

Socket FCLGA4677 Compatibility

The SRN57 Xeon Platinum 8580 Processor utilizes the Socket FCLGA4677 interface, which is designed to support high-performance processors and ensure reliable connectivity. This socket type provides a secure and stable connection between the processor and the motherboard, allowing for optimal performance and system stability. Compatibility with the FCLGA4677 socket ensures that the processor can be integrated into advanced server and workstation configurations that require high levels of processing power.

Performance and Efficiency

Thermal Management

Effective thermal management is essential for maintaining optimal performance and system stability. The SRN57 Intel Xeon Platinum 8580 Processor is designed with advanced cooling technologies to manage its thermal output efficiently. Proper cooling solutions, such as high-performance air or liquid cooling systems, are recommended to handle the processor’s heat and ensure stable operation. Effective thermal management helps prevent overheating and prolongs the processor’s operational lifespan.

Power Efficiency

The SRN57 Xeon Platinum 8580 Processor is engineered to deliver high performance while maintaining power efficiency. Its design minimizes power consumption, which helps reduce operational costs and supports environmentally friendly computing practices. Ensuring that the power supply unit (PSU) can provide adequate power to support the processor and other system components is crucial for reliable operation and to prevent power-related issues.

Advanced Technologies and Features

The SRN57 Xeon Platinum 8580 Processor supports Intel Optane Persistent Memory, a revolutionary technology that enhances memory capacity and performance. Intel Optane Persistent Memory provides high-speed, non-volatile storage that complements the processor’s capabilities, enabling faster access to large datasets and improved system responsiveness. This technology is especially useful for applications requiring large memory capacities and rapid data access, such as in-memory databases and large-scale virtualization.

Security Features

Intel Total Memory Encryption (TME)

Security is a critical aspect of modern computing environments, and the SRN57 Xeon Platinum 8580 Processor includes advanced security features to protect sensitive data. Intel Total Memory Encryption (TME) ensures that all data stored in memory is encrypted, safeguarding it from unauthorized access. This feature enhances data protection and maintains the integrity of sensitive information.

Intel Software Guard Extensions (SGX)

Intel Software Guard Extensions (SGX) provides secure enclaves for sensitive operations, offering an additional layer of protection for critical data and computations. SGX technology enables the creation of secure regions within the processor, where sensitive code and data can be processed securely. This feature is particularly valuable for applications that require secure data handling and protection against potential threats.

Applications and Use Cases

Data Centers and Cloud Computing

The SRN57 Intel Xeon Platinum 8580 Processor is highly suitable for data centers and cloud computing environments, where high performance and scalability are essential. Its high core count and extensive cache make it well-suited for handling virtualization, cloud services, and high-throughput applications. The processor’s ability to manage multiple concurrent tasks and process large volumes of data ensures optimal performance in demanding data center settings.

Enterprise Resource Planning (ERP)

For enterprise resource planning (ERP) systems and other business-critical applications, the SRN57 Xeon Platinum 8580 Processor provides the necessary performance and efficiency. Its high core count and large cache enable quick data processing and responsiveness, which are crucial for managing complex business operations and large databases. The processor’s reliability contributes to smooth and efficient ERP system operations.

High-Performance Computing (HPC)

In high-performance computing (HPC) environments, the SRN57 Xeon Platinum 8580 Processor excels in delivering the computational power needed for intensive simulations and computations. Its high core count and large cache facilitate efficient parallel processing and handling of large datasets. This makes it ideal for scientific research, financial modeling, and other applications requiring rapid and accurate computations.

Technical Specifications

Core and Thread Count

The SRN57 Intel Xeon Platinum 8580 Processor features 60 cores, allowing for efficient multitasking and parallel processing. This high core count enhances the processor’s ability to handle demanding workloads and applications simultaneously, making it suitable for high-performance computing environments that require substantial processing power.

Clock Speed and Turbo Boost Technology

Operating at a base clock speed of 2.00 GHz, the SRN57 Xeon Platinum 8580 Processor provides reliable performance for various computing tasks. The processor’s architecture is designed to maximize performance while maintaining power efficiency. Turbo Boost technology, if available, may dynamically increase the clock speed during peak workloads, delivering additional performance when needed. This technology optimizes the processor’s responsiveness based on real-time processing demands.

Cache Size and Memory Support

The processor’s 300MB L3 cache significantly improves data retrieval speeds and reduces latency, contributing to enhanced system performance. The SRN57 Xeon Platinum 8580 Processor supports advanced memory technologies, including Intel Optane Persistent Memory, which further enhances system responsiveness and capacity. The combination of a large cache and advanced memory support ensures efficient data handling and processing capabilities.

Thermal Design Power (TDP)

The SRN57 Xeon Platinum 8580 Processor is designed with a thermal design power (TDP) that supports efficient thermal management. Proper cooling solutions are essential to handle the processor’s TDP and maintain optimal performance. Effective thermal management helps prevent overheating and ensures stability and longevity of the processor and its associated components.

Security Features

The processor includes advanced security features to protect data and maintain system integrity. Intel Total Memory Encryption (TME) encrypts data stored in memory, while Intel Software Guard Extensions (SGX) provides secure enclaves for sensitive operations. These security technologies enhance data protection and safeguard against unauthorized access, ensuring the overall security of the computing environment.

Compatibility and Integration

To integrate the SRN57 Intel Xeon Platinum 8580 Processor into a server or workstation, it is crucial to ensure compatibility with the appropriate motherboard and chipset. The processor is compatible with specific Intel server chipsets and motherboards designed to support its advanced features and performance capabilities. Verifying compatibility is essential for achieving optimal system performance and reliable operation.

Cooling Solutions

Given the processor’s thermal design power (TDP), effective cooling solutions are required to manage its thermal output and maintain optimal performance. Advanced air or liquid cooling systems are recommended to handle the processor’s heat and ensure system stability. Proper cooling is vital for preventing overheating and extending the operational lifespan of the processor and surrounding components.

Power Supply Considerations

When deploying the SRN57 Intel Xeon Platinum 8580 Processor, it is important to use a power supply unit (PSU) capable of delivering adequate power to support the processor and other system components. The power supply should be rated to handle the combined power requirements of the processor, memory, storage, and peripherals. Ensuring sufficient power delivery is essential for reliable operation and to prevent power-related issues.
