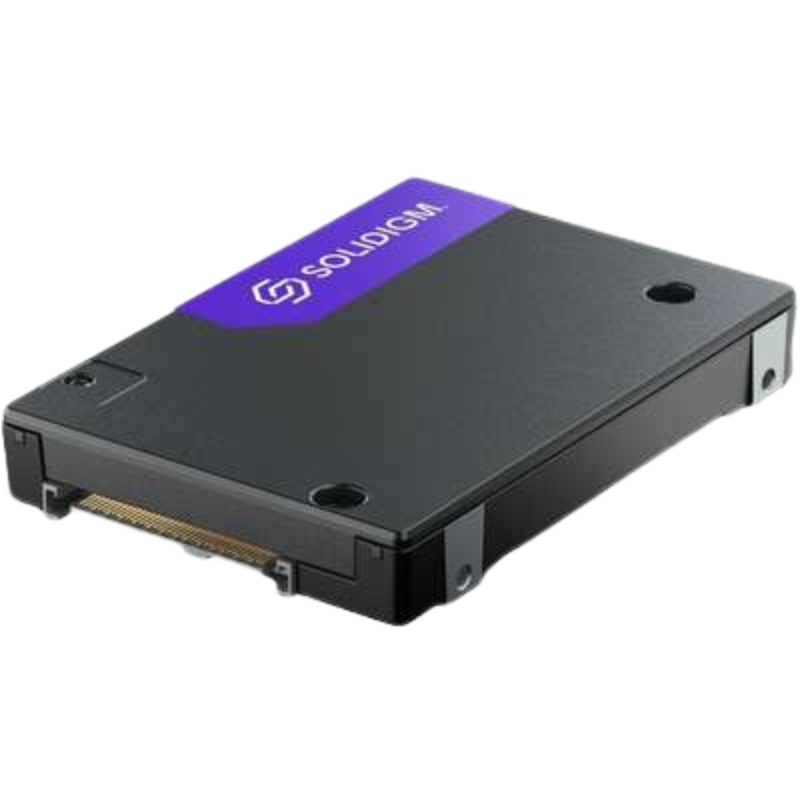

SB5PH27E064T001 Solidigm TLC D7-PS1030 6.4TB NVMe PCI-Express SSD

Solidigm SB5PH27E064T001 6.4TB SSD

PCI-Express 5.0 x4 Interface

The Solidigm SB5PH27E064T001 leverages the cutting-edge PCI-Express 5.0 interface with x4 lane configuration, delivering unprecedented bandwidth capabilities that significantly outperform previous PCIe 4.0 solutions. This advanced interface provides double the bandwidth of PCIe 4.0, enabling theoretical transfer speeds of up to 32 GT/s per lane and approximately 128 Gb/s total bandwidth. The implementation of PCIe 5.0 ensures this drive is future-proofed for next-generation server platforms and workstations that support this latest interface standard. The backward compatibility with PCIe 4.0 systems maintains investment protection while allowing for seamless migration paths as infrastructure evolves.

NVMe 2.0 Protocol

This Solidigm enterprise SSD incorporates the latest NVMe 2.0 protocol specifications, which introduce significant enhancements over previous versions. The updated protocol includes improved command sets, enhanced security features, and optimized power management capabilities specifically designed for enterprise environments. The NVMe 2.0 implementation supports zoned namespaces, key-value commands, and persistent memory region support, enabling more efficient data placement and retrieval operations. These protocol advancements contribute to reduced latency and improved quality of service metrics critical for mixed workload environments.

Advanced Flash Memory Architecture

V7 TLC NAND Technology

The Solidigm SB5PH27E064T001 utilizes state-of-the-art V7 TLC (Triple-Level Cell) NAND flash memory, representing the seventh generation of 3D NAND technology. This advanced memory architecture features 192 active layers with improved cell-to-cell interference reduction and enhanced read/write stability. The V7 TLC technology delivers exceptional density while maintaining robust endurance characteristics, achieving the optimal balance between cost, performance, and reliability for enterprise storage applications. The memory cells employ charge trap flash architecture with replacement gate technology, enabling higher programming speeds and lower power consumption compared to previous generations.

Advanced Error Correction and Data Integrity

Incorporating sophisticated low-density parity-check codes with soft-decision decoding algorithms, the V7 TLC NAND provides superior error correction capabilities. The implementation of multi-plane interleaving and advanced read-retry mechanisms ensures data integrity even under challenging environmental conditions. The flash management system includes dynamic read threshold calibration and adaptive program voltage optimization, which continuously adjusts to maintain optimal performance throughout the drive's operational lifespan.

D7-PS1030 Enterprise Controller

Multi-Core Processing Architecture

At the heart of the Solidigm SB5PH27E064T001 resides the custom-designed D7-PS1030 enterprise controller, featuring an advanced multi-core architecture optimized for parallel processing of I/O operations. The controller integrates multiple ARM Cortex-R82 cores with hardware acceleration engines dedicated to encryption, RAID parity calculations, and flash management tasks. This specialized processing architecture enables the drive to maintain consistent performance under heavy mixed workloads while minimizing CPU overhead on the host system. The controller's sophisticated queue management system supports deep command queues with intelligent scheduling algorithms that prioritize critical I/O operations.

Advanced Wear Leveling and Garbage Collection

The D7-PS1030 controller implements sophisticated wear-leveling algorithms that distribute write operations evenly across all available NAND blocks, maximizing the drive's endurance and operational lifespan. The dynamic and static wear-leveling mechanisms work in concert to prevent premature wear on specific memory regions. The background garbage collection system operates efficiently with minimal impact on foreground operations, utilizing predictive analytics to anticipate workload patterns and schedule reclamation activities during periods of lower activity.

Enterprise-Grade Capacity and Form Factor

6.4TB Storage Capacity Optimization

The 6.4TB capacity point represents an optimal balance between storage density and performance characteristics for enterprise applications. This capacity is achieved through precise NAND die configuration and over-provisioning strategies that ensure sustained performance under write-intensive workloads. The drive maintains approximately 7% additional capacity for background operations, wear leveling, and bad block management, though this over-provisioning is user-configurable to accommodate specific workload requirements. The 6.4TB capacity provides ample space for large datasets, virtual machine images, database instances, and other enterprise storage needs while maintaining exceptional performance consistency.

SFF (Small Form Factor) 2.5-inch Design

Mechanical Specifications and Compatibility

The Solidigm SB5PH27E064T001 adopts the industry-standard 2.5-inch Small Form Factor (SFF) design with a thickness of 15mm, ensuring compatibility with existing enterprise server and storage infrastructure. The drive's mechanical dimensions of 100.45mm x 69.85mm x 15mm conform to SFF-8639 specifications, allowing seamless integration into 2.5-inch drive bays across various server platforms and storage arrays. The robust aluminum housing provides effective thermal dissipation while protecting the internal components from physical shock and vibration encountered in data center environments.

Hot-Swap Capability and Backplane Compatibility

Designed for enterprise deployment scenarios, this SSD supports full hot-swap capability, enabling drive replacement and expansion without system downtime. The connector interface complies with SFF-8639 specifications, supporting both SATA-style power sequencing and PCIe-based hot-removal protocols. The drive incorporates advanced power loss protection circuitry that ensures data integrity during unexpected power interruptions or removal events, with built-in capacitors providing sufficient energy to complete pending write operations and flush cached data to non-volatile storage.

Performance Specifications and Capabilities

Sequential Read and Write Performance

The Solidigm SB5PH27E064T001 delivers exceptional sequential performance with read speeds exceeding 12,000 MB/s and write speeds reaching up to 7,000 MB/s under sustained workloads. These performance metrics represent significant improvements over PCIe 4.0-based solutions and enable faster data transfer for large file operations, backup processes, and content streaming applications. The sequential performance remains consistent across varying capacity utilization levels thanks to advanced write amplification reduction techniques and efficient garbage collection algorithms.

Random I/O Performance Characteristics

4KB Random Read and Write Operations

For random I/O workloads, which are critical for database operations and virtualized environments, the drive achieves up to 1,800,000 IOPS for 4KB random read operations and up to 550,000 IOPS for 4KB random write operations. These random performance capabilities are enabled by the highly parallel NAND architecture and sophisticated controller algorithms that minimize internal contention and maximize queue depth utilization. The drive maintains low queue depth performance excellence while scaling efficiently to high queue depths typical in enterprise server environments.

Mixed Workload Performance Optimization

The Solidigm SB5PH27E064T001 is specifically engineered to excel in mixed workload scenarios common in enterprise applications. With advanced quality of service features, the drive maintains consistent latency profiles even under varying ratios of read/write operations. The controller implements intelligent workload classification that dynamically adjusts resource allocation and scheduling priorities based on the characteristics of incoming I/O patterns, ensuring optimal performance for both transactional and throughput-oriented workloads simultaneously.

Power Efficiency

Active and Idle Power Consumption

The Solidigm SB5PH27E064T001 implements advanced power management features that optimize energy consumption across different operational states. During active operation, the drive consumes approximately 12-14 watts under typical workload conditions, with peak power consumption limited to 18 watts during maximum performance scenarios. In idle states, sophisticated power gating techniques reduce consumption to as low as 4 watts, while maintaining rapid transition capability to active states. These power efficiency characteristics contribute to reduced operational costs in large-scale deployments and support sustainability initiatives through lower energy requirements.

Enterprise Cooling Compatibility

The drive is designed to operate reliably in enterprise server environments with standard airflow cooling of 1.5-2.0 CFM across the drive surface. The thermal design incorporates materials with high thermal conductivity and optimized component placement to facilitate efficient heat transfer to the external environment. For high-density storage configurations, the drive supports extended temperature operation up to 70°C case temperature while maintaining full data integrity and performance characteristics.

Data Security and Protection Features

Hardware-Based Encryption Capabilities

The Solidigm SB5PH27E064T001 incorporates robust hardware-based encryption engines that support both AES-256 and XTS-AES encryption algorithms. The encryption/decryption processes occur transparently within the drive controller with minimal performance impact, providing comprehensive data-at-rest protection. The drive supports TCG Opal 2.01 and Enterprise security specifications, enabling seamless integration with enterprise security management frameworks. The cryptographic implementation includes side-channel attack mitigation and tamper-resistant key storage to prevent unauthorized access to encrypted data.

End-to-End Data Protection

Advanced ECC and RAID Protection

Comprehensive end-to-end data protection mechanisms ensure data integrity from the host interface through to the NAND flash memory. The protection scheme includes cyclic redundancy checks at multiple levels, parity protection for internal data paths, and sophisticated error correction codes capable of correcting multiple bit errors per codeword. The drive additionally implements internal RAID-like protection across NAND channels, allowing continued operation even in the event of complete NAND die failure within specified limits. These protection features work in concert to deliver exceptional data reliability with undetectable bit error rates exceeding 1x10^-17.

NVMe Management Interface

Comprehensive NVMe Management Interface implementation provides administrators with extensive control and monitoring capabilities through the admin command set. Supported features include firmware update management, namespace management, self-test initiation, and sanitization operations. The drive supports both vendor-specific and standardized log pages that provide detailed operational statistics and health information. The management interface is accessible through standard operating system utilities, vendor-specific tools, and industry-standard management frameworks such as Redfish and DMTF standards.
