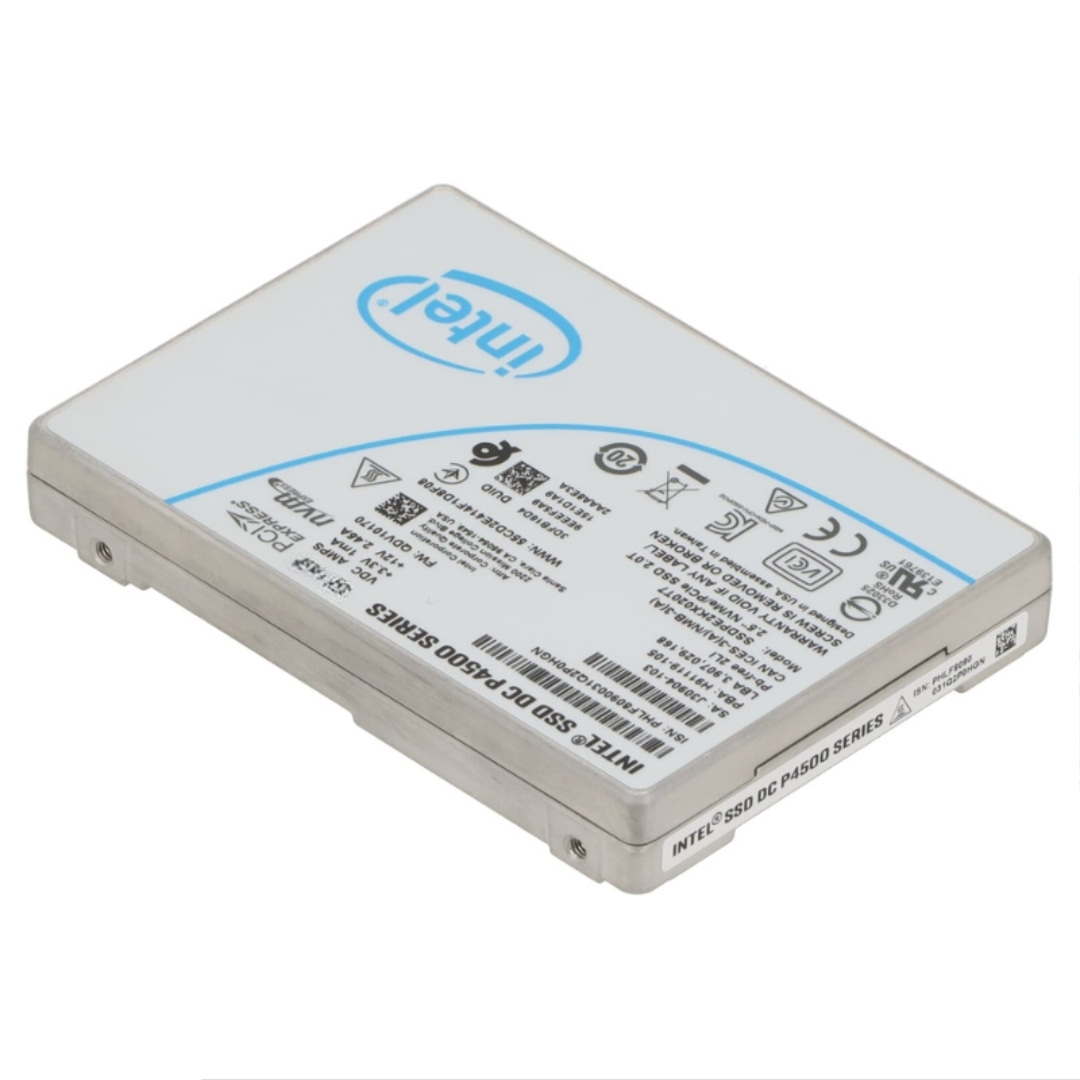

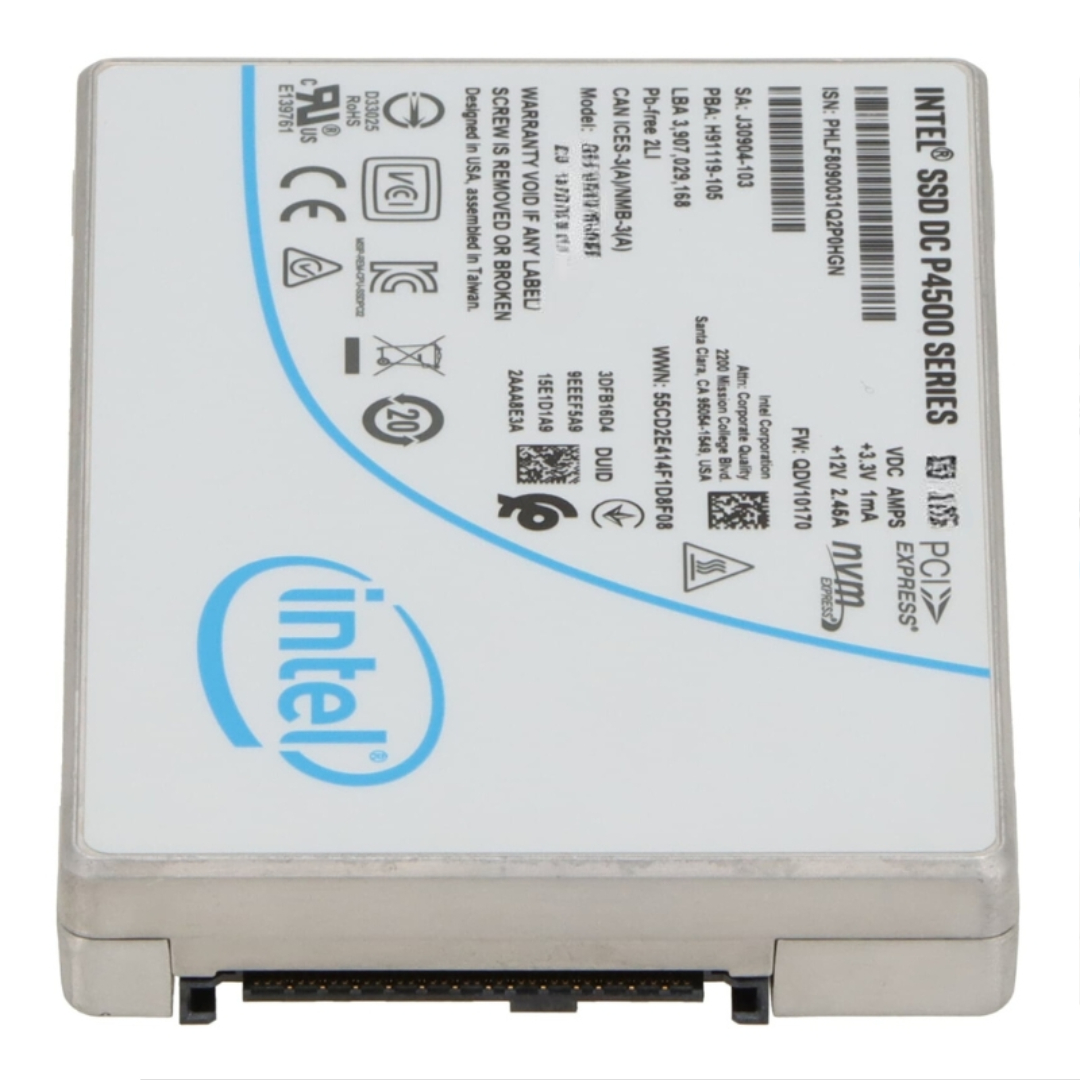

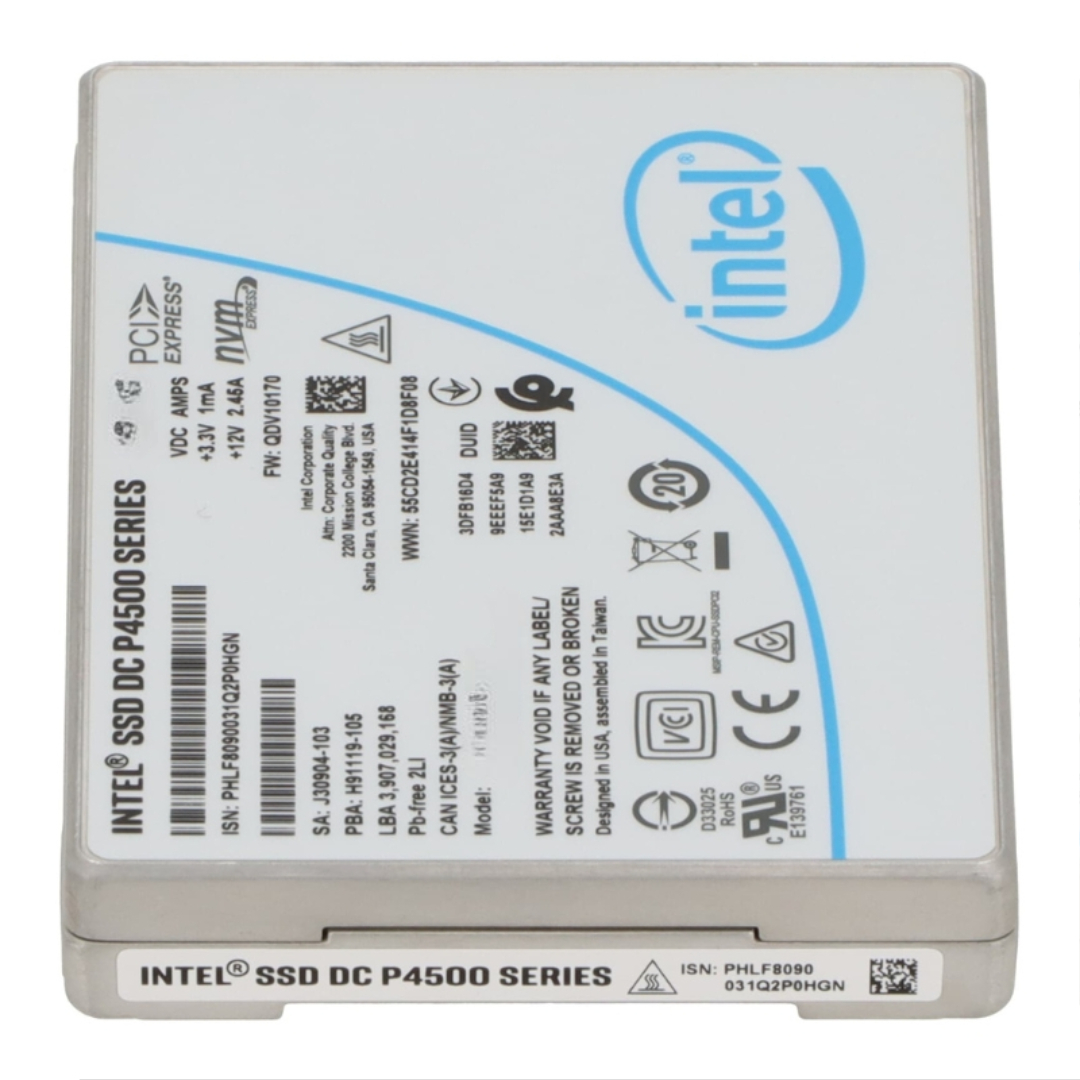

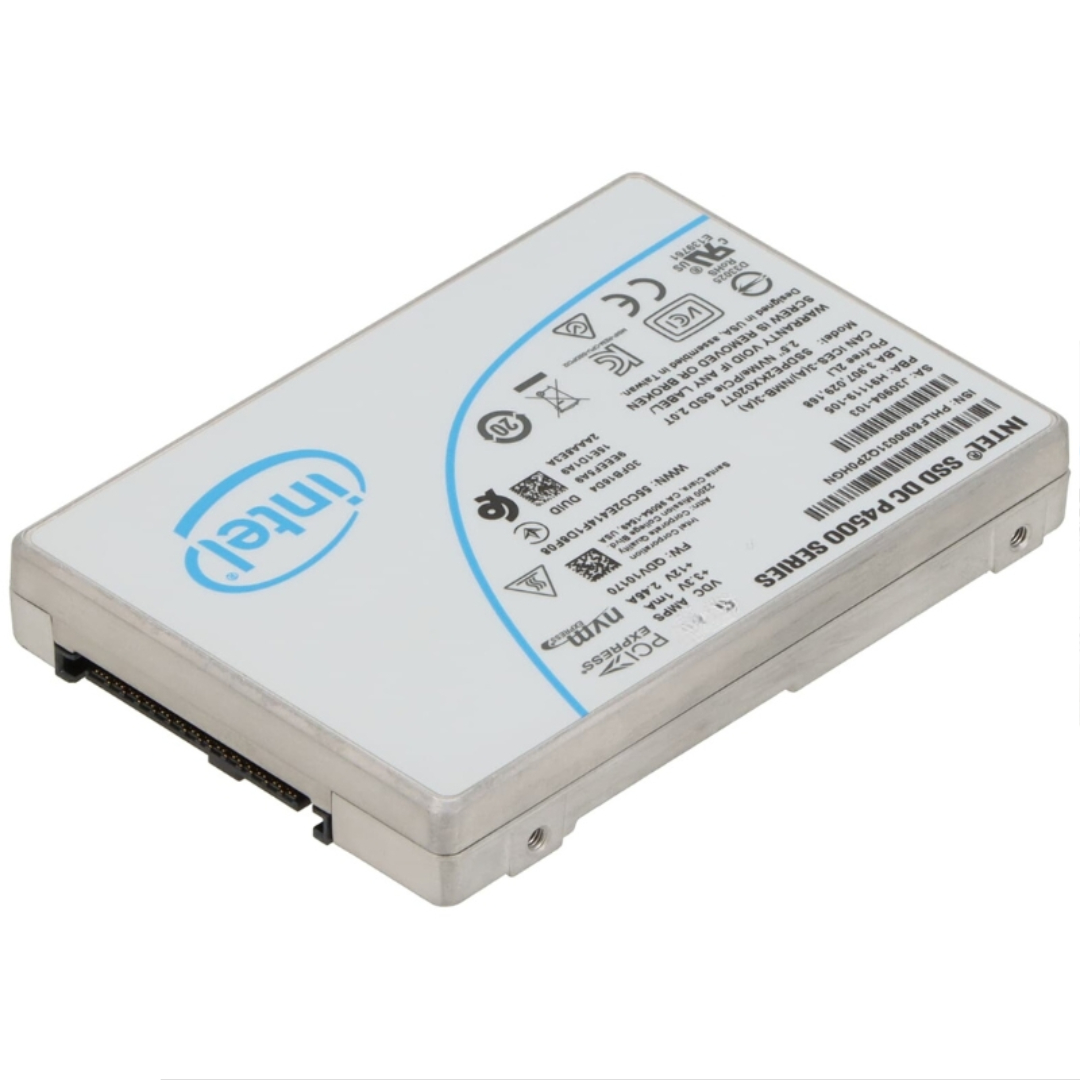

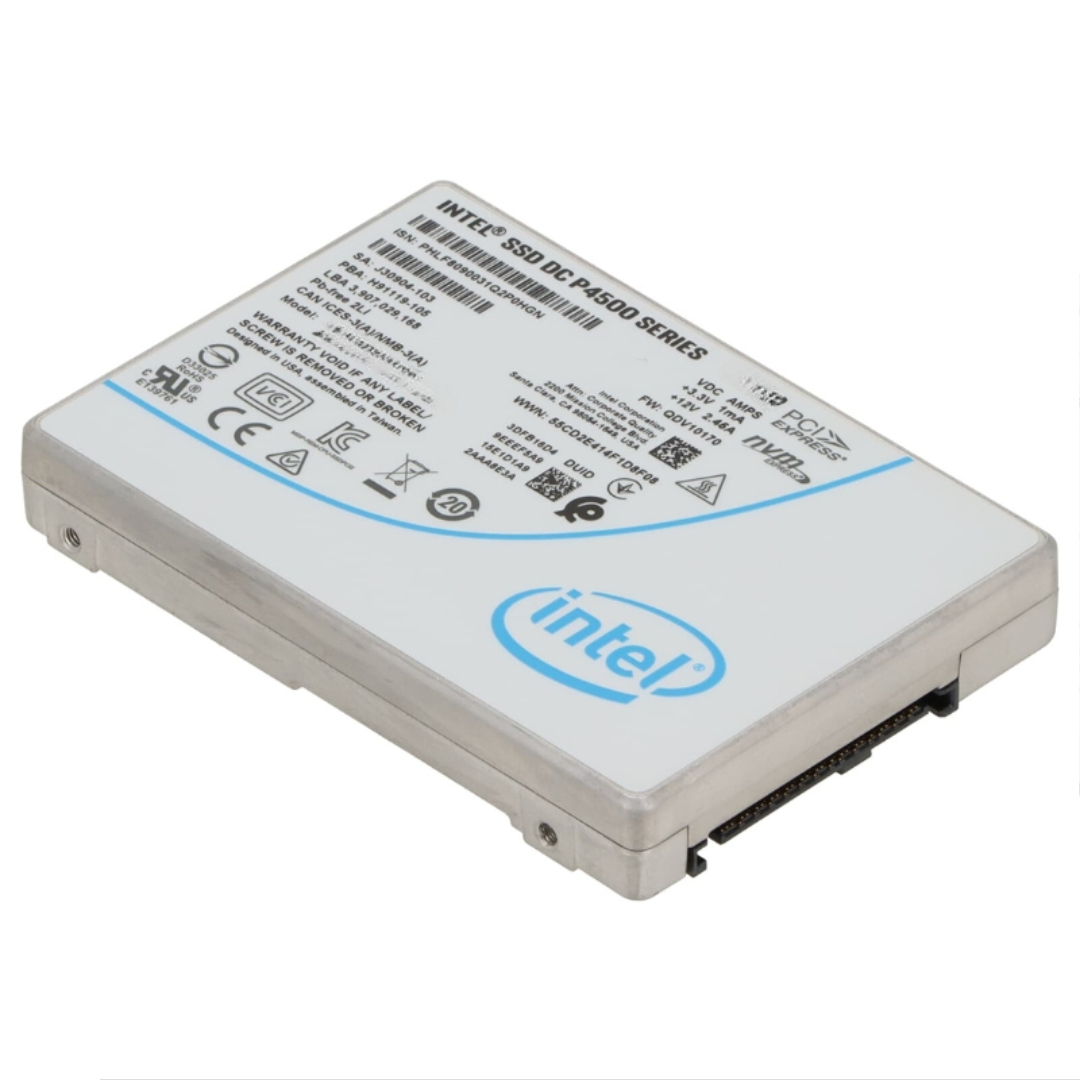

Intel DC P4500 Read Intensive Nvme 2TB 2.5inch PCI Express 3.1 X4 TLC Internal Solid State Drive SSDPE2KX020T7T

Intel DC P4500 Series Overview

The Intel DC P4500 SSDPE2KX020T7T is part of Intel's enterprise-grade solid-state drive lineup, engineered for read-intensive workloads and high-performance data center applications. Built with Intel’s innovative 3D TLC NAND flash memory, this 2TB NVMe SSD in a 2.5-inch U.2 form factor delivers reliability, scalability, and superior power efficiency. Supporting the advanced PCIe 3.1 x4 interface, the DC P4500 series offers ultra-fast throughput, minimal latency, and exceptional read optimization for modern storage infrastructures.

U.2 2.5-Inch NVMe Form Factor: High-Density & Hot-Swap Friendly

The U.2 2.5-inch form factor is widely used in modern enterprise servers and storage arrays. It combines the ease of hot-swap SATA drives with the high bandwidth capabilities of NVMe. The SSDPE2KX020T7T uses this interface to deliver both performance and serviceability, ideal for scalable rackmount server deployments.

This drive is specifically designed to integrate seamlessly into data center environments requiring flexible storage configurations. With U.2’s hot-plug capability, IT administrators can easily replace or upgrade drives without system downtime.

NVMe Protocol Advantage

NVMe (Non-Volatile Memory Express) is the protocol that leverages the PCI Express bus to significantly reduce latency and improve command queuing compared to SATA-based SSDs. The Intel DC P4500 NVMe SSD maximizes these benefits by implementing:

• Low latency queues for real-time data processing
• Massive parallelism with up to 64K queues
• Enhanced performance for random and sequential read workloads
• Efficient command set tailored for SSDs over legacy interfaces

Designed for Read-Intensive Applications

The Intel DC P4500 series is built specifically for read-centric environments, such as:

• Content Delivery Networks (CDNs)
• Media streaming platforms
• Big data analytics
• Online transaction processing (OLTP) with read-heavy patterns
• Virtualization and cloud boot drives

These scenarios demand high throughput, rapid access times, and low latency to serve end-users with minimal delay. The Intel SSDPE2KX020T7T shines in such use cases, ensuring a consistent Quality of Service (QoS).

Endurance and Reliability for Enterprise Environments

Endurance is a critical factor in choosing enterprise-grade SSDs. The DC P4500 offers an endurance rating of 0.8 DWPD for 5 years, which translates to around 2,920 TBW (Terabytes Written). Built with data integrity in mind, it incorporates:

• End-to-end data protection
• Power loss imminent (PLI) protection
• Thermal monitoring and throttling
• Error correction code (ECC) and RAID-like parity

PCIe Gen3 x4 Interface: Bandwidth for Modern Workloads

Leveraging the PCI Express Gen3 x4 interface, the Intel DC P4500 delivers consistent high-speed performance. With a total potential bandwidth of up to 4 GB/s, this interface ensures smooth operation of high-throughput applications including:

• Data warehousing
• Business Intelligence workloads
• Fast-access databases
• Read-heavy cloud-native apps

Thermal Efficiency and Operational Power Range

Thermal stability is crucial in densely packed data centers. The SSDPE2KX020T7T integrates advanced thermal monitoring sensors that automatically adjust drive performance when temperatures reach predefined thresholds. This thermal throttling ensures:

• Consistent performance under load
• Longer lifespan of NAND flash cells
• Reduced power draw in idle mode
• Dynamic power management for peak efficiency

Power-Loss Imminent Circuitry

The Intel P4500 is equipped with power-loss protection capacitors that ensure in-flight data is committed to the NAND during an unexpected power loss. This feature is crucial for data centers requiring non-volatile guarantees for data consistency and durability.

Intel VROC and Virtualization Support

The Intel DC P4500 SSD works seamlessly with Intel Virtual RAID on CPU (VROC) technology, allowing software-defined RAID arrays without the need for third-party HBAs. It is a powerful solution for:

• Hyper-converged infrastructure
• High Availability clusters
• VM hosting environments
• Storage spaces direct (S2D) configurations

Its NVMe support ensures minimal overhead in virtualized systems, giving IT administrators more control over storage tiers, caching policies, and redundancy.

Latency-Optimized NAND Architecture

With 3D TLC NAND optimized for latency and efficiency, the P4500 outperforms many MLC-based SSDs in read-heavy use cases. Each NAND cell is designed to maximize capacity while maintaining low error rates and read latency.

Advanced firmware and controller design allow the P4500 to deliver up to 620,000 IOPS for random reads, offering superior performance in real-world workloads.

Use Cases for Intel SSDPE2KX020T7T

The Intel DC P4500 SSD line is ideal for scenarios where read operations dominate. Examples include:

High-Performance Web Servers

Web servers demand lightning-fast access to static assets, databases, and cached content. The DC P4500 ensures near-instantaneous access times, enabling web applications to scale efficiently under heavy user loads.

Big Data and Analytics Platforms

Data-intensive applications, such as Apache Hadoop, Spark, or Elasticsearch, benefit from the high sequential and random read capabilities of the P4500. Its ability to rapidly access large data blocks accelerates analytics processing and reporting.

Streaming Video Services

For services delivering video on demand (VoD), fast read speeds are critical. The 2TB capacity, combined with high bandwidth, enables smooth buffering and playback even during peak usage hours.

Content Distribution Networks (CDNs)

CDNs must deliver cached assets across globally distributed nodes. The Intel DC P4500 supports rapid delivery of cached data with minimal latency, enhancing user experience across geographies.

Advantages Over SATA and SAS SSDs

Compared to SATA or SAS SSDs, NVMe drives like the SSDPE2KX020T7T deliver:

• Up to 6x the bandwidth
• Lower queue latency
• Improved power efficiency
• Scalability in multi-tenant environments
• Reduced CPU overhead

These performance advantages make NVMe SSDs the de facto standard for next-generation enterprise storage.

Environmental and Operational Standards

The Intel DC P4500 complies with various environmental and operational certifications, including:

• RoHS and REACH compliance
• UL and CE certifications
• IEC 60529-compliant casing
• Operating temperature range: 0°C to 70°C
• Vibration and shock resistance built for server-grade chassis

Drive Health Monitoring and Intel SSD Toolbox

Intel offers robust software tools for SSD management. With the Intel SSD Toolbox and Intel Data Center Tool (DCT), administrators can:

• Monitor SMART attributes
• Perform secure erase functions
• Update firmware seamlessly
• Analyze performance metrics

Self-Monitoring & Reporting Technology (SMART)

The DC P4500 supports full SMART diagnostics, enabling real-time health monitoring. Parameters such as wear leveling count, remaining life, power cycles, and error logs can be accessed to plan maintenance proactively.

Comparison with Similar Enterprise SSDs

When comparing the Intel SSDPE2KX020T7T to other 2TB enterprise SSDs in the same class, it offers a competitive advantage in:

• Lower read latency (sub-100 microseconds)
• Higher sustained sequential read throughput (3200 MB/s)
• Power-loss protection circuitry
• Robust thermal and error-handling mechanisms

Brands such as Samsung PM983, Micron 9300, and Western Digital Ultrastar DC SN640 are comparable alternatives, but Intel's firmware stability, support ecosystem, and VROC compatibility make the DC P4500 an industry favorite.

Scalability in Rack-Level Deployments

With its 2.5-inch U.2 format, the P4500 easily fits into high-density rack enclosures. Enterprises can install dozens of these SSDs in a single rack unit to build petabyte-scale storage systems with:

• High aggregate throughput
• Low power footprint
• Streamlined cabling and hot-swap convenience
