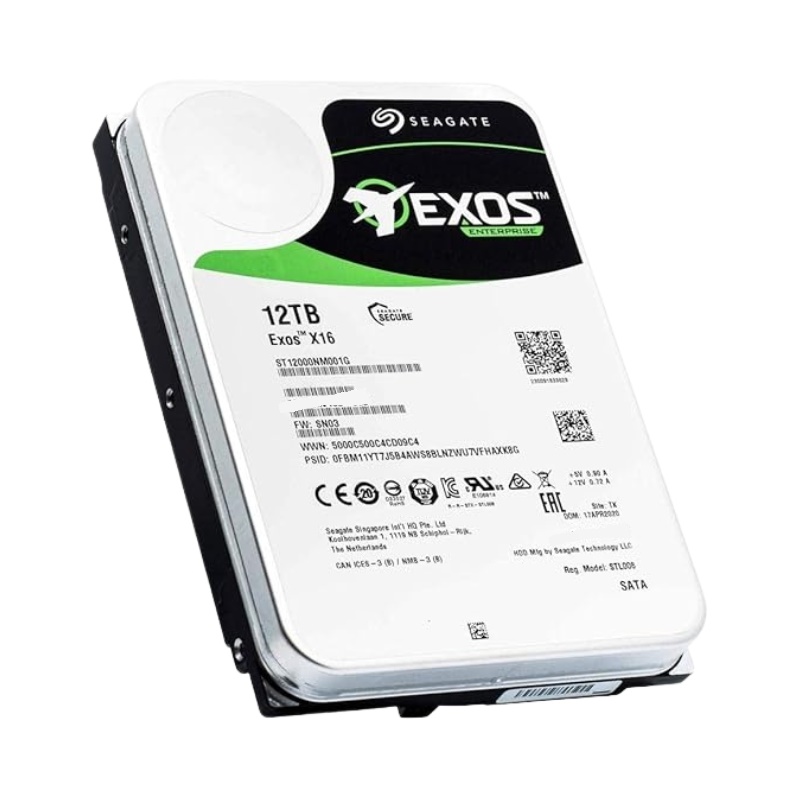

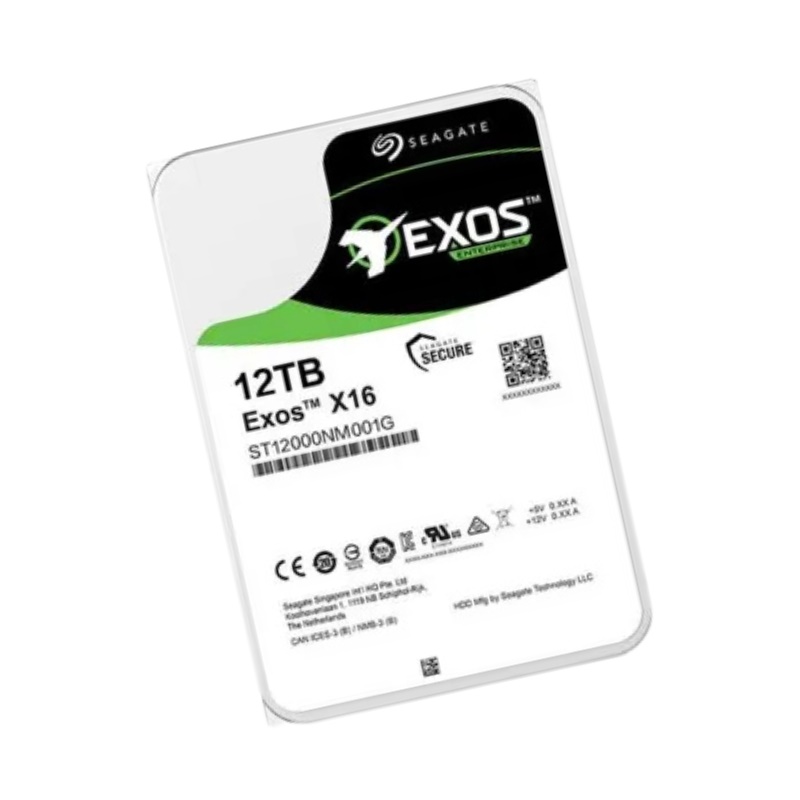

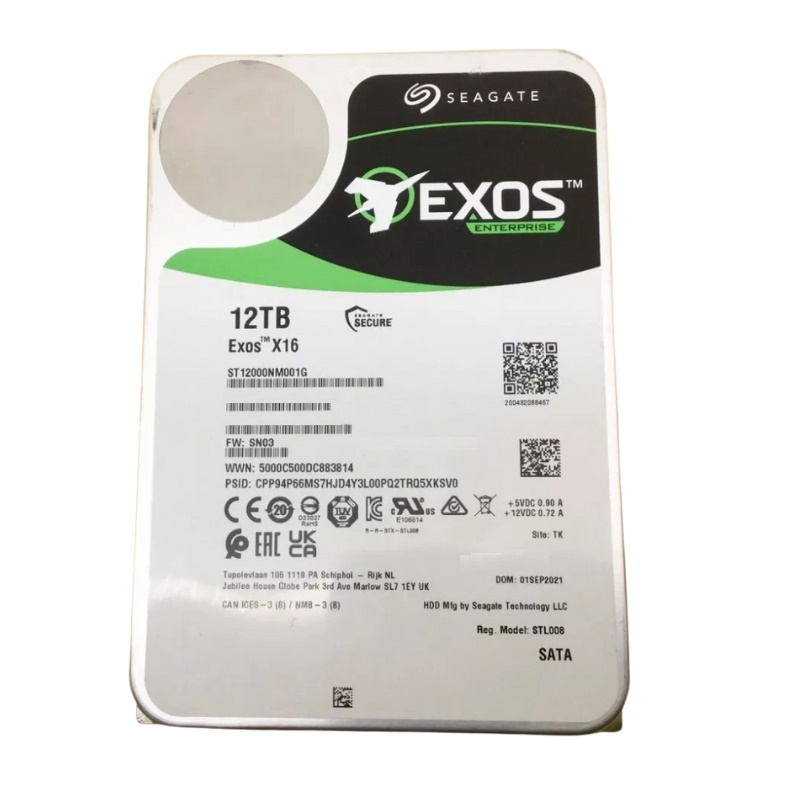

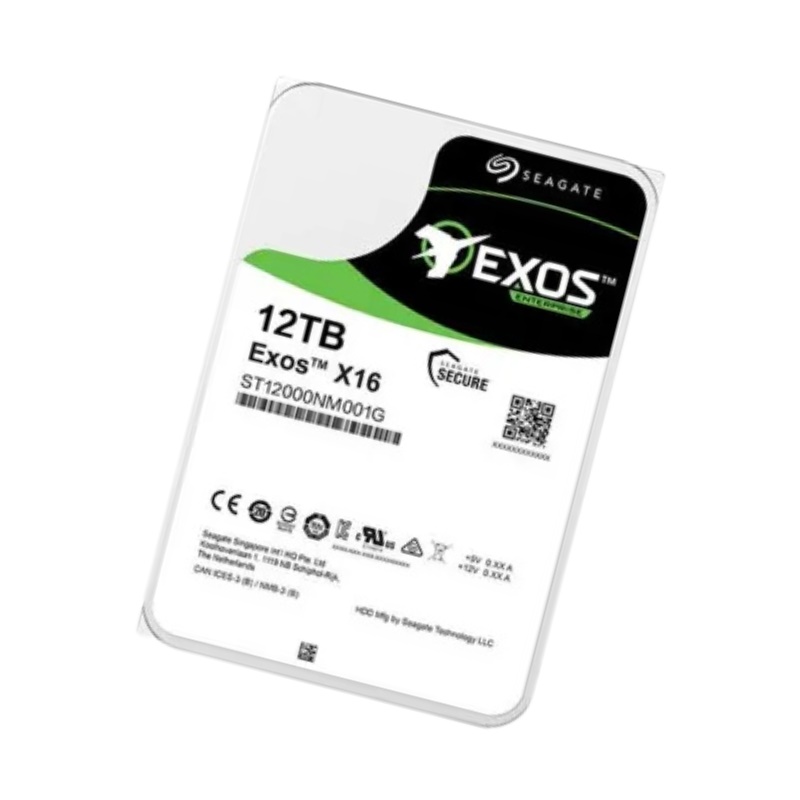

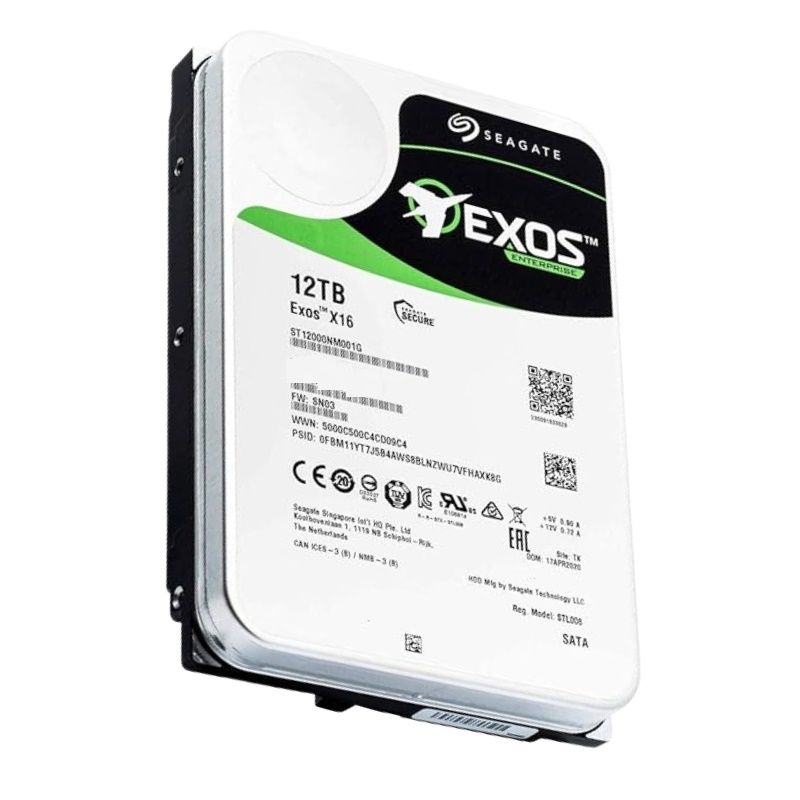

ST12000NM005G Seagate Exos X16 12TB 7.2K RPM SATA 6GBPS 3.5" Enterprise HDD

Overview of SEAGATE Exos X16 12TB Hard Drive

The SEAGATE Exos X16 12TB enterprise hard disk drive is engineered for mission-critical storage environments, delivering scalable capacity, consistent performance, and long-term reliability for modern data infrastructures.

General Information

• Brand: Seagate
• Model Number: ST12000NM005G
• Product Type: Enterprise-Class Hard Disk Drive

Technical Information

• Storage Capacity: 12TB
• Drive Type: Internal HDD
• Form Factor: 3.5-inch
• Interface: SATA 6Gb/s

Sector Formats

• 512e (512 bytes per sector emulation)
• 4Kn (4096 bytes native sector size)

Designed Use Cases and Deployment Scenarios

• Hyperscale cloud computing platforms and data centers
• Massively distributed storage architectures
• Big data analytics and processing systems
• High-density RAID storage configurations
• Enterprise external storage arrays
• Distributed file systems such as Hadoop and Ceph
• Backup, recovery, and disk-to-disk archival systems
• Surveillance and centralized video storage networks

Core Features and Engineering Highlights

• Helium-sealed drive architecture for improved efficiency
• PowerChoice™ energy management for optimized power usage
• SuperParity data integrity enhancement technology
• Low-halogen design for environmentally conscious deployment
• Hot-plug capable enterprise integration support
• Organic Solderability Preservative (OSP) protection
• RSA 2048-bit firmware authentication for security validation

Performance Characteristics

• Rotational Speed: 7200 RPM
• Interface Speed: 6.0 Gb/s and 3.0 Gb/s compatibility
• Max Sustained Transfer Rate: Up to 245 MB/s (OD)
• Random Read/Write (4K QD16 WCD): 170 / 440 IOPS
• Average Latency: 4.16 ms
• Buffer Memory: 256 MB cache
• Interface Ports: Single port configuration

Physical Design and Build Details

• Length: 147.0 mm
• Width: 101.85 mm
• Height: 26.11 mm
• Weight: 670 g

Durability and Lifecycle Engineering

• Mean Time Between Failures (MTBF): 2.5 million hours
• Built for continuous 24/7 enterprise workloads
• Enhanced vibration tolerance for multi-drive environments

Outline Seagate 12TB SATA 6Gb/s 3.5-inch Enterprise HDD

The Seagate ST12000NM005G Exos X16 12TB SATA 6Gb/s 3.5-inch hard drive is engineered as part of Seagate’s enterprise-grade Exos X16 family, designed to deliver high-capacity, high-reliability storage for demanding data center environments. Built for 24/7 operation, this drive targets large-scale storage infrastructures where performance consistency, durability, and efficiency are essential. Unlike consumer-grade storage devices, this model is optimized for heavy workloads, making it suitable for hyperscale cloud storage systems, enterprise servers, RAID arrays, and distributed storage architectures.

As data volumes continue to grow exponentially in modern IT ecosystems, the need for scalable and reliable storage solutions becomes more critical. The Exos X16 series addresses this challenge by combining high areal density, helium-sealed drive technology, and advanced firmware optimization. The ST12000NM005G model specifically represents a balance of capacity and performance efficiency, offering 12TB of storage in a standard 3.5-inch form factor with SATA 6Gb/s interface compatibility.

Advanced Design and Helium-Sealed Technology

One of the defining characteristics of the Seagate Exos X16 platform is its helium-sealed design. By replacing traditional air inside the drive with helium, internal friction and turbulence are significantly reduced. This enables the use of more platters within the same physical enclosure while consuming less power and generating less heat. The result is a highly efficient storage device capable of maintaining stable performance under continuous enterprise workloads.

The reduced air resistance inside the drive also contributes to lower mechanical stress on internal components, extending operational lifespan and improving reliability. This design choice is particularly valuable in large-scale data centers where thousands of drives operate simultaneously, and even small improvements in power efficiency translate into significant cost savings over time.

Mechanical Precision and Structural Stability

The Exos X16 architecture incorporates precision-engineered components designed to minimize vibration and maintain consistent read/write alignment. This is essential in multi-drive environments where rotational vibration can negatively impact performance. The ST12000NM005G model uses advanced vibration tolerance systems that help maintain data integrity even in densely packed storage enclosures.

Performance Characteristics of Seagate ST12000NM005G

The Seagate ST12000NM005G utilizes a SATA 6Gb/s interface, ensuring broad compatibility with enterprise servers, NAS systems, and storage arrays. While SATA is often considered a mainstream interface, Seagate has optimized this drive to extract maximum performance within its bandwidth limitations. The drive is engineered to deliver consistent throughput rates suitable for sequential read and write operations common in large-scale data storage environments.

In enterprise workloads, consistency is often more important than peak speed. The Exos X16 series is designed to maintain stable performance levels under sustained operations, reducing latency spikes and ensuring predictable data access times across workloads.

Rotational Speed and Data Throughput

The drive operates at a high rotational speed optimized for enterprise-class data handling. This ensures efficient access times and improved sequential performance. The combination of high-density platters and optimized firmware allows the ST12000NM005G to manage large file transfers, virtualization workloads, and backup operations with reliability.

In environments where continuous data ingestion is required, such as cloud storage platforms or surveillance systems, the drive’s ability to sustain long-duration workloads without performance degradation is a key advantage.

Cache Architecture and Data Handling Optimization

The integrated cache system plays a critical role in improving overall responsiveness. By temporarily storing frequently accessed data, the drive reduces mechanical movement and improves access efficiency. This is particularly useful in mixed workloads where random and sequential access patterns coexist.

The firmware-level optimization in the Exos X16 series further enhances caching behavior, enabling smoother transitions between read and write operations. This reduces bottlenecks and improves system-level performance when multiple drives are operating in RAID configurations.

Reliability and Enterprise Durability Standards

The Seagate ST12000NM005G is engineered for continuous operation environments. Unlike consumer drives that are designed for intermittent usage, this enterprise model is built to withstand constant read and write cycles. It is rated for high annual workload levels, making it suitable for mission-critical applications where downtime is not acceptable.

Data centers, cloud service providers, and enterprise IT infrastructures rely on such drives to ensure uninterrupted service availability. The Exos X16 series incorporates advanced error recovery systems and predictive failure analysis to reduce the risk of unexpected drive failure.

Mean Time Between Failures (MTBF) Engineering

A key metric in enterprise storage reliability is MTBF, which reflects the expected operational lifespan of the drive under controlled conditions. The ST12000NM005G is designed with a high MTBF rating, reflecting its suitability for long-term deployment in demanding environments. This is achieved through reinforced mechanical design, improved thermal regulation, and advanced firmware algorithms that reduce wear on internal components.

Error Correction and Data Integrity Systems

Data integrity is a critical requirement in enterprise storage. The drive includes advanced error correction mechanisms that detect and correct potential data corruption during read and write processes. These systems work in conjunction with host-level RAID configurations to ensure redundancy and prevent data loss.

The firmware continuously monitors drive health parameters, enabling predictive diagnostics that can alert system administrators before potential failures occur. This proactive approach enhances overall system reliability and reduces downtime risks.

Capacity Optimization and Storage Density

The 12TB capacity of the Seagate ST12000NM005G is achieved through high areal density technology, allowing more data to be stored per platter. This makes it ideal for environments where physical rack space is limited but storage demand is high. The Exos X16 platform maximizes storage efficiency without compromising performance or reliability.

Scalability in Enterprise Infrastructure

Scalability is a major advantage of high-capacity drives like this model. By reducing the number of physical drives required to achieve large storage pools, organizations can reduce infrastructure complexity, power consumption, and maintenance overhead. This is particularly beneficial in hyperscale data centers where thousands of drives may be deployed simultaneously.

Energy Efficiency and Thermal Performance

The helium-filled design significantly reduces internal drag, which in turn lowers power consumption. This efficiency translates into reduced heat generation, making cooling systems more effective and less energy-intensive. In large-scale deployments, these efficiencies contribute to substantial operational cost savings.

Thermal stability is also enhanced through optimized airflow design and intelligent firmware-driven power management. This ensures consistent performance even in high-density server racks where thermal buildup is a concern.

Use Cases and Application Scenarios

The ST12000NM005G is widely suitable for cloud storage environments where large volumes of data must be stored reliably and accessed efficiently. Its high capacity and consistent performance make it ideal for object storage systems and distributed file systems.

Enterprise Backup and Archival Systems

Backup systems require drives that can handle sustained sequential writes over long durations. This model is optimized for such workloads, ensuring reliable data backup and archival storage. Its durability ensures that stored data remains accessible over extended periods without degradation.

Data Analytics and Big Data Processing

Big data platforms require storage systems capable of handling large-scale data ingestion and processing. The Exos X16 series supports these requirements by offering high throughput and stable performance under heavy workloads. This makes it suitable for analytics clusters and distributed computing environments.

Surveillance and Media Storage Systems

Surveillance systems generate continuous streams of data that require reliable storage. The ST12000NM005G is capable of handling constant write operations, making it suitable for video surveillance storage solutions. Similarly, media production environments benefit from its high capacity and sequential performance capabilities.

RAID Compatibility and System Integration

The Seagate Exos X16 series is optimized for RAID configurations commonly used in enterprise storage systems. Whether deployed in RAID 5, RAID 6, or RAID 10 configurations, the ST12000NM005G maintains consistent performance and reliability. Its vibration resistance and error correction systems ensure stable operation even in large drive arrays.

Data Redundancy and Fault Tolerance

In RAID environments, redundancy is essential for preventing data loss. The drive’s firmware is designed to work efficiently with RAID controllers, ensuring fast rebuild times and minimal performance degradation during array recovery processes.

Firmware Intelligence and Adaptive Performance

The firmware embedded within the ST12000NM005G continuously adapts to workload demands. By analyzing access patterns, the drive can optimize read/write behavior for improved efficiency. This adaptive approach enhances performance consistency across varying enterprise workloads.

Predictive Health Monitoring

Predictive analytics play a major role in enterprise storage management. The drive monitors key health indicators such as temperature, vibration, and read/write error rates. This information can be used to predict potential failures and initiate preventive maintenance actions before data loss occurs.

Physical Design and Installation Considerations

The standard 3.5-inch form factor ensures compatibility with a wide range of server chassis and storage enclosures. This makes deployment straightforward in existing enterprise infrastructures without requiring specialized hardware modifications.

Rack Density Optimization

High-capacity drives like the ST12000NM005G contribute to improved rack density by reducing the total number of drives required for large storage arrays. This not only saves physical space but also simplifies cable management and system maintenance.

Vibration and Shock Resistance

Enterprise environments often involve high-density installations where vibration can affect performance. The Exos X16 series incorporates advanced vibration tolerance mechanisms that stabilize read/write head positioning, ensuring consistent performance even under mechanical stress.

Long-Term Value and Enterprise Investment Benefits

The Seagate ST12000NM005G provides long-term value by reducing total cost of ownership in enterprise environments. Its combination of high capacity, low power consumption, and extended reliability reduces operational expenses over time.

Scalable Growth Support

As data requirements grow, organizations can scale storage systems efficiently using high-capacity drives like the ST12000NM005G. This ensures a future-proof storage architecture capable of adapting to evolving data demands without major infrastructure redesign.
