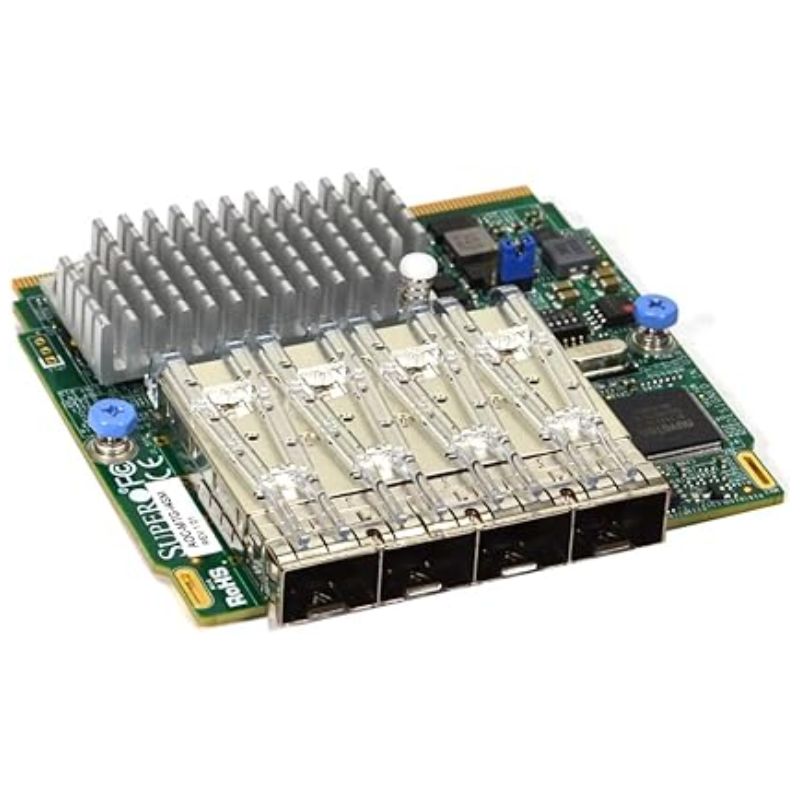

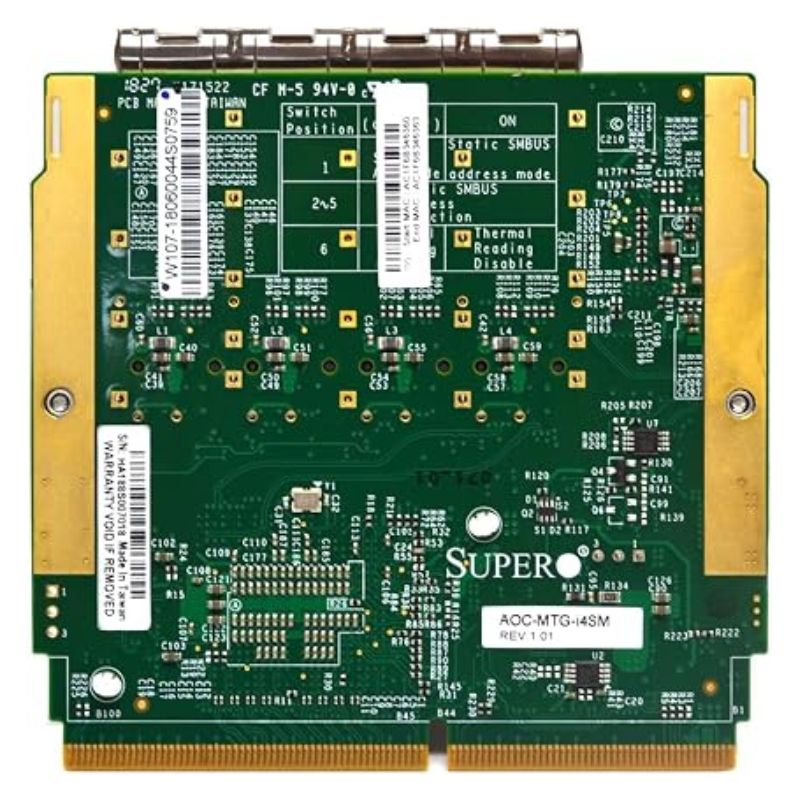

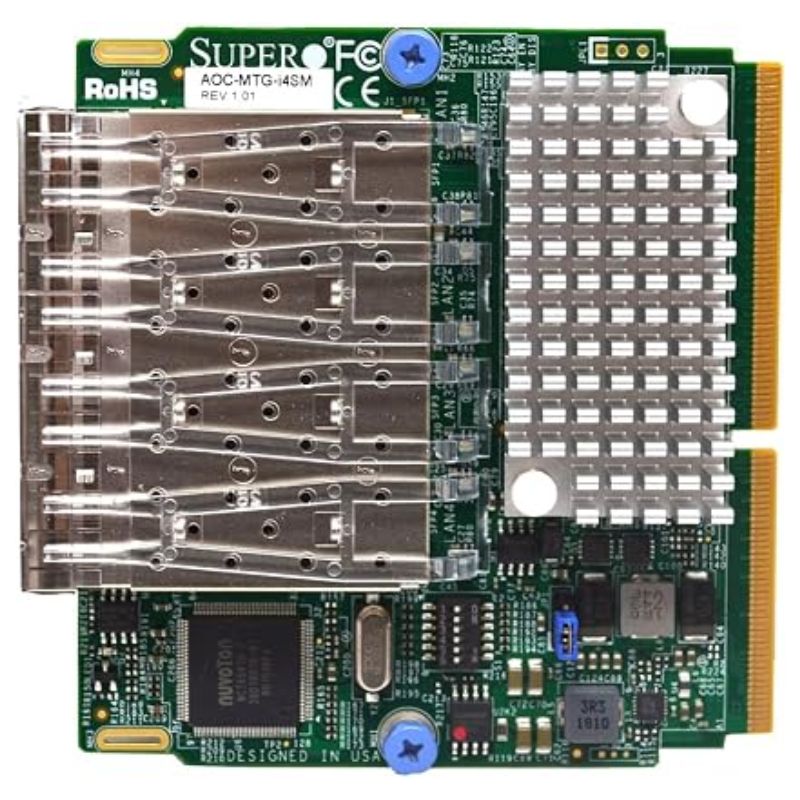

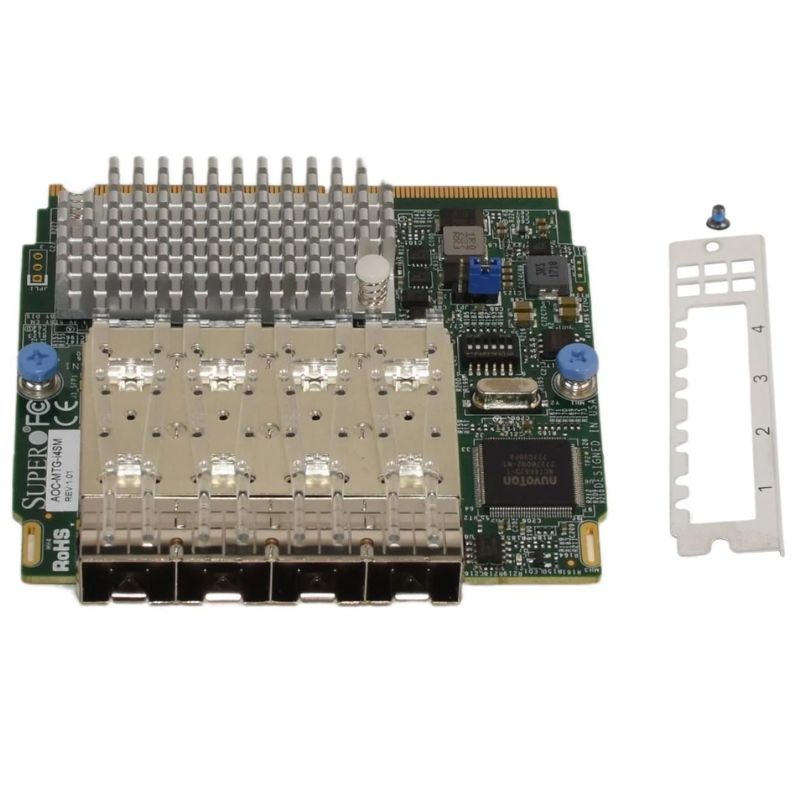

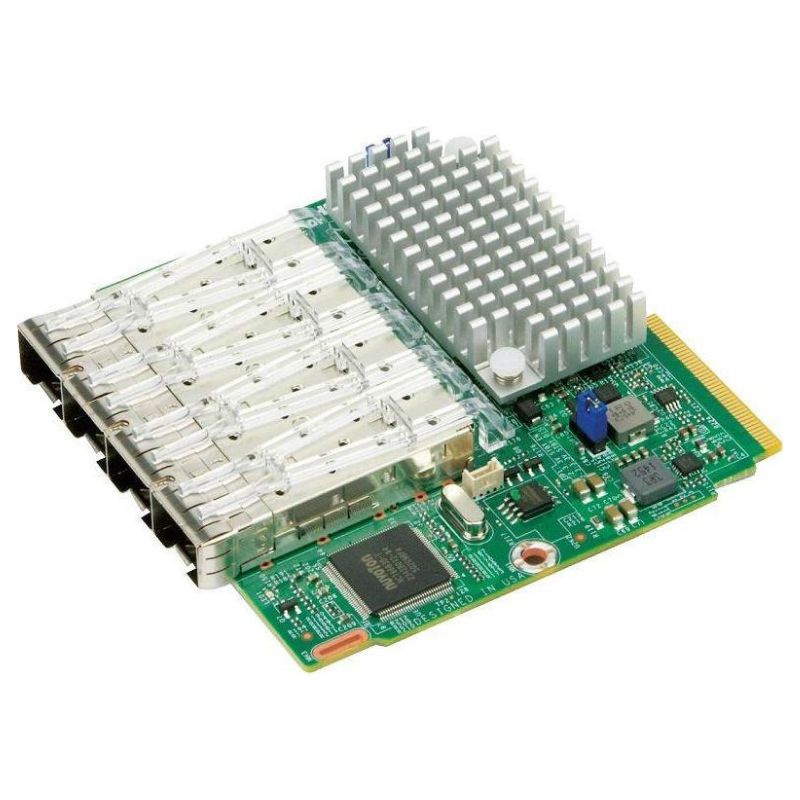

AOC-MTG-I4SM SuperMicro 4 Ports SIOM SFP PCIe Intel x710 10G Ethernet Adapter

SuperMicro AOC-MTG-I4SM 4-Port 10Gbps Network Adapter SFP+ PCIe 3.0 GE Super I/O Module (SIOM) Network Card

Overview

The SuperMicro AOC-MTG-I4SM is a high-performance 4-port 10 Gigabit Ethernet network adapter designed for Super I/O Module (SIOM) form factor. It utilizes the Intel XL710 controller to deliver advanced networking features, making it suitable for data centers, enterprise servers, and high-performance computing environments. With support for SFP+ interfaces and PCIe 3.0, this network card ensures efficient and reliable connectivity.

Key Features

• Quad SFP+ connectors supporting 10Gbps per port
• Super I/O Module (SIOM) form factor
• Intel XL710 controller for enhanced performance
• PCIe 3.0 x8 interface
• Support for network virtualization offloads including VXLAN and NVGRE
• Low power consumption (typical 4W, maximum 7W)
• Intel Flow Director for intelligent offloads
• Unified networking providing single wire support for LAN and storage
• Asset management features and NC-SI for remote management
• RoHS compliant 6/6

Technical Specifications

General

• Controller: Intel XL710
• Form Factor: SIOM
• Interface: PCIe 3.0 x8
• Ports: 4 x SFP+
• Data Rate: 10Gbps per port

I/O Features

• Intel Flow Director
• MSI-X support
• Multiple queues: 1,536 TX and RX queues per port
• Checksum offloading for IP, SCTP, TCP, and UDP (IPv4, IPv6)
• Jumbo frame support up to 9.5KB

Virtualization Features

• Next-Generation VMDq supporting up to 256 VMDq VMs
• PCI-SIG SR-IOV with up to 128 virtual ports
• Virtual Machine Load Balancing (VMLB)
• Advanced packet filtering
• VLAN support for up to 4096 VLAN tags
• VXLAN and NVGRE support

Storage Interface Features

• Preboot eXecution Environment (PXE) support
• iSCSI remote boot
• SNMP and RMON static counters

Management Features

• Asset management support on Supermicro platforms
• Controller asset tags including part number, revision, serial number, and MAC addresses
• Controller thermal sensor
• NC-SI for remote management

Advanced Software Features

• Teaming support
• IEEE 802.3ad (link aggregation control protocol)
• IEEE 802.1Q VLANs
• IEEE 802.3 2005 flow control support
• TCP segmentation/large send offload
• Interrupt moderation

Operating System Support

• Windows Server 2012 R2, 2012, 2008 R2 X86-64
• Linux RedHat EL 6.5 and 7.0 IA-32, X86-64, and IA-64
• Linux SuSE SLES 11 SP3 and 12 IA-32, X86-64, and IA-64
• FreeBSD 9 and 10 IA-32, X86-64, and IA-64
• UEFI 2.1 and 2.3 X86-64 and IA-64
• VMware ESXi 5.1, ESXi 5.5, and ESXi 6.0 X86-64

Cable Support

• SFP+ direct attach twinaxial copper cables up to 7m
• Fiber-optic cables (with required optional SFP+ transceivers)

Power Consumption

• Typical: 4W
• Maximum: 7W

Operating Conditions

• Operating temperature: 0°C to 55°C (32°F to 131°F)
• Storage temperature: -40°C to 70°C (-40°F to 158°F)
• Storage humidity: 90% non-condensing relative humidity at 35°C

Physical Dimensions

• Card PCB dimensions: 92mm (3.62in) x 87.1mm (3.43in) (W x D)

Applications

The SuperMicro AOC-MTG-I4SM is ideal for:

• Data centers requiring high-speed networking
• Enterprise servers with virtualization needs
• High-performance computing environments
• Network storage solutions
• Environments requiring remote management capabilities

Compatibility

This network adapter is compatible with Supermicro systems supporting the SIOM form factor. It can be ordered in bundle with Supermicro systems only. :contentReference[oaicite:120]{index=120}

Conclusion

The SuperMicro AOC-MTG-I4SM 4-Port 10Gbps Network Adapter offers a robust and efficient solution for high-speed networking requirements. With its advanced features, low power consumption, and compatibility with various operating systems, it stands as a reliable choice for modern data centers and enterprise environments.
