AOM-S3108M-H8L Supermicro Low Profile 12GBPS Eight-Port SAS Internal RAID Mezzanine Card

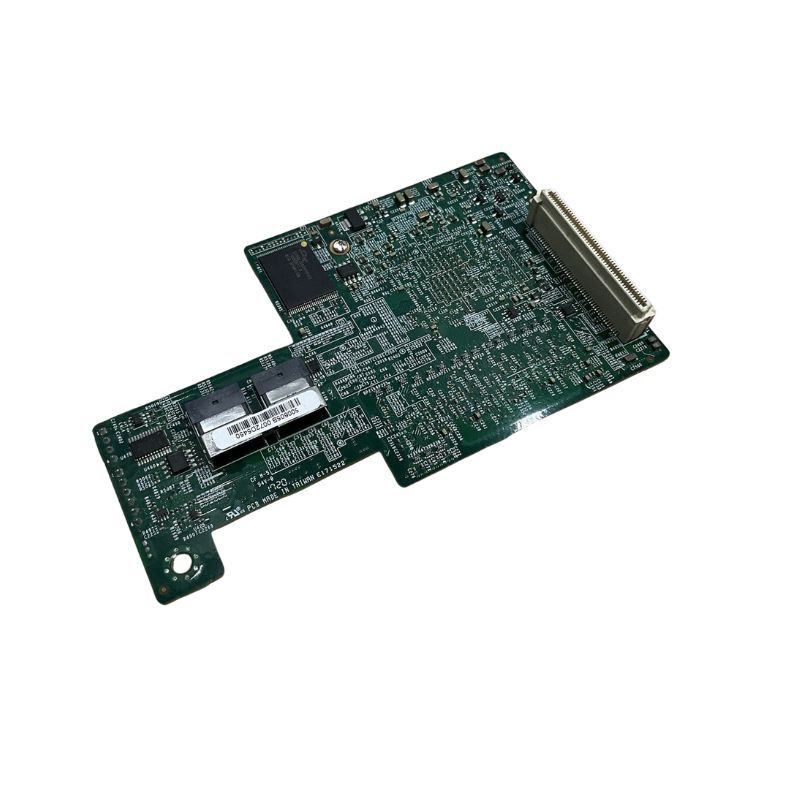

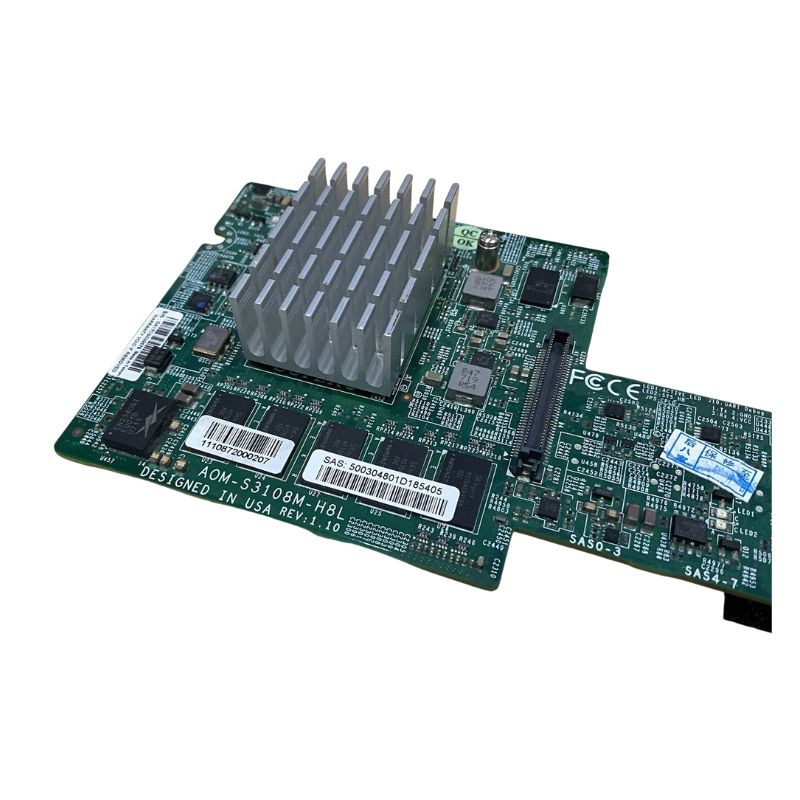

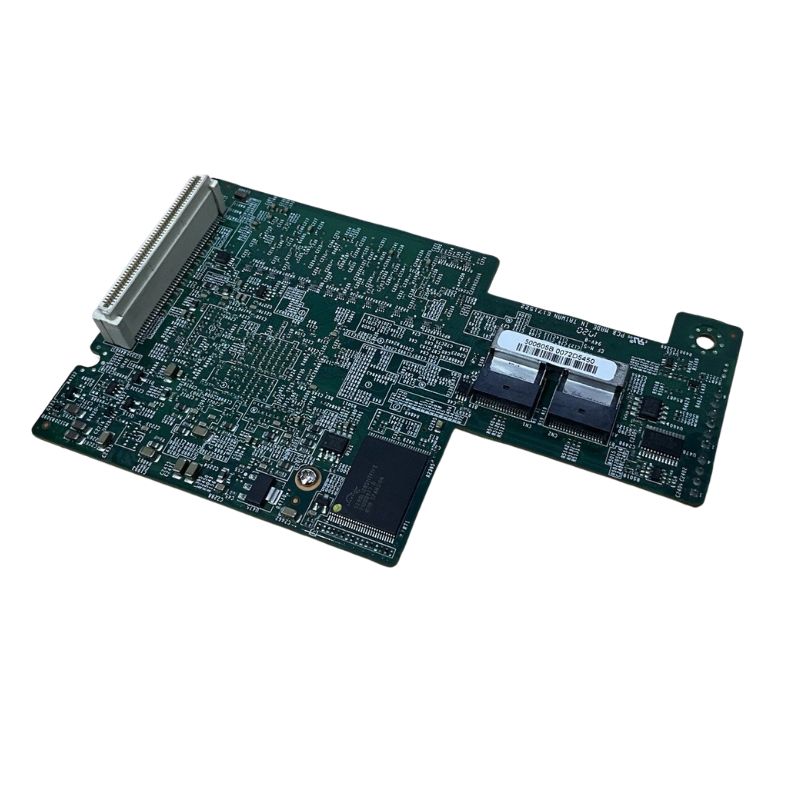

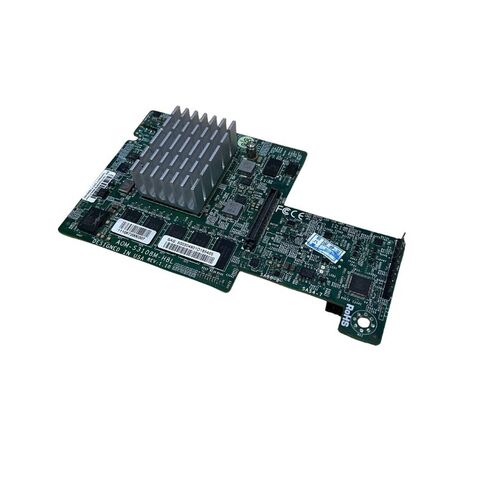

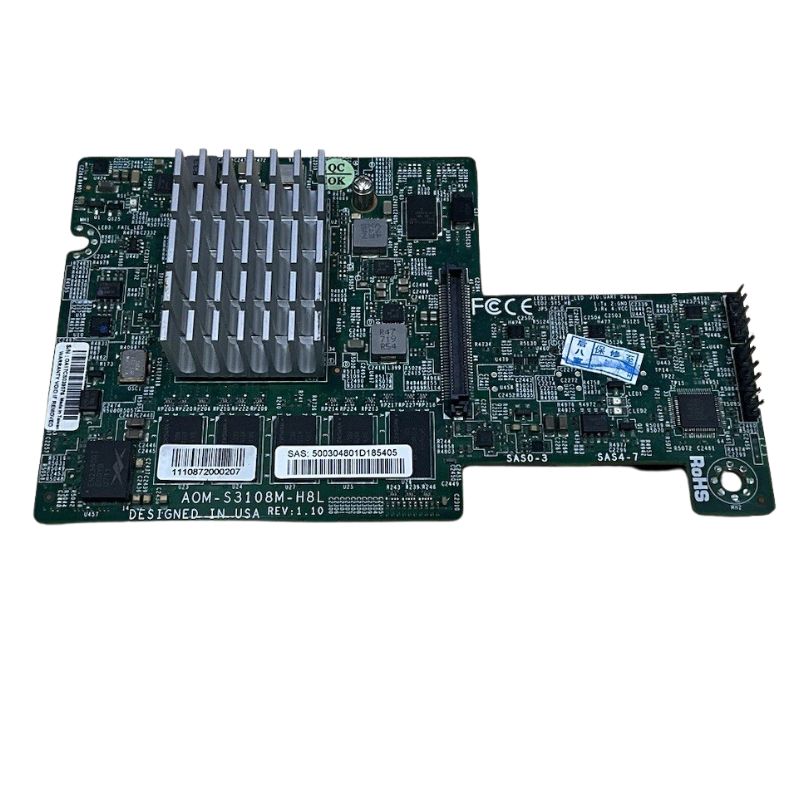

Supermicro AOM-S3108M-H8L SAS RAID Mezzanine Card

The Supermicro AOM-S3108M-H8L is a low-profile internal RAID mezzanine controller engineered for enterprise servers that demand reliable, high-speed storage management. Built around the Broadcom 3108 PCI Express SAS-3 controller, this RAID card delivers robust performance, flexible RAID configurations, and advanced data protection for modern data center and cloud environments.

Manufacturer and Product Identification

• Brand: Supermicro
• Model: AOM-S3108M-H8L
• Form Factor: Low Profile Mezzanine Card
• Controller Chipset: Broadcom / LSI 3108

High-Speed Internal Connectivity

• Eight internal SAS ports for direct drive connections
• 12Gb/s SAS data transfer rate per port
• Backward compatibility with 6Gb/s SATA devices
• Optimized for enterprise HDDs and SSDs

Supported RAID Modes

• RAID 0 for maximum performance
• RAID 1 for data mirroring and redundancy
• RAID 5 and RAID 6 for fault tolerance with parity
• RAID 10 for combined speed and redundancy
• RAID 50 and RAID 60 for large-scale enterprise storage arrays

On-Card Cache Memory

• 2GB DDR3 cache memory
• 1866MHz memory speed for rapid data buffering
• Enhanced read and write performance

Supported Storage Protocols

• SAS (Serial Attached SCSI)
• SATA (Serial ATA)
• SSP (Serial SCSI Protocol)
• SMP (Serial Management Protocol)
• STP (Serial ATA Tunneling Protocol)

Administration and Monitoring Features

• User-friendly RAID configuration interface
• Real-time drive and array monitoring
• Error reporting and alerting capabilities
• Support for advanced storage policies

Supported Operating Systems

• Microsoft Windows Server 2012
• Microsoft Windows Server 2008 (32-bit and 64-bit)
• Red Hat Enterprise Linux
• SUSE Linux Enterprise Server

Low Profile Mezzanine Advantages

• Optimized for Supermicro server platforms
• Space-saving low-profile design
• Improved airflow and thermal management
• Ideal for rack-mounted enterprise systems

Supermicro AOM-S3108M-H8L RAID Controller Server

The Supermicro AOM-S3108M-H8L low profile RAID mezzanine card belongs to the advanced category of internal SAS RAID controllers engineered specifically for enterprise and data center servers that demand reliable, scalable, and high-performance storage management. This category focuses on hardware-based RAID solutions designed to handle large volumes of data with consistency, fault tolerance, and minimal latency. Built around an enterprise-grade SAS controller chipset, this RAID mezzanine card supports 12Gbps SAS connectivity and is optimized for internal storage expansion within Supermicro server platforms, ensuring seamless integration and operational stability in mission-critical environments.

RAID mezzanine cards in this category are tailored for modern server architectures where space efficiency, airflow optimization, and power management are critical. The low profile design of the Supermicro AOM-S3108M-H8L allows it to fit into compact server chassis while maintaining robust thermal performance. Unlike traditional add-in PCIe RAID cards, mezzanine RAID controllers connect directly to dedicated mezzanine slots on compatible motherboards, reducing signal latency and improving overall system reliability.

12Gbps SAS Interface and Internal Connectivity Design

The category of 12Gbps SAS internal RAID mezzanine cards emphasizes high-speed data transfer and efficient communication between storage devices and the host system. The Supermicro AOM-S3108M-H8L supports eight internal SAS ports, enabling connectivity to multiple SAS or SATA drives through high-bandwidth links. This allows enterprise servers to support demanding workloads such as virtualization, database processing, cloud storage, and large-scale data analytics without compromising throughput or stability.

Internal SAS connectivity within this category is designed to reduce bottlenecks and maintain consistent performance under heavy I/O loads. By leveraging the 12Gbps SAS standard, these RAID mezzanine cards provide double the bandwidth of earlier SAS generations, making them suitable for modern high-capacity HDDs and high-performance enterprise SSDs. The internal-only design ensures clean cable management, improved airflow, and reduced electromagnetic interference within the server chassis.

Multiple Drive Types and Mixed Storage Arrays

This RAID controller category is characterized by its flexibility in supporting different drive technologies. The Supermicro AOM-S3108M-H8L enables mixed deployment of SAS and SATA drives, allowing system administrators to build cost-effective yet high-performance storage arrays. Such flexibility is essential in enterprise environments where storage tiers may include high-capacity spinning disks for archival data and solid-state drives for performance-sensitive applications.

The ability to manage mixed-drive configurations allows this category of RAID mezzanine cards to support hybrid storage strategies. Organizations can optimize storage costs while maintaining performance by assigning different RAID levels to different workloads. This adaptability makes the category ideal for businesses that require scalable storage solutions capable of evolving with changing data requirements.

Hardware-Based RAID Processing and Data Protection Capabilities

One of the defining characteristics of the Supermicro AOM-S3108M-H8L RAID mezzanine card category is the use of dedicated hardware RAID processing. Hardware-based RAID controllers offload parity calculations and data management tasks from the host CPU, ensuring consistent performance even during intensive read and write operations. This approach is particularly beneficial in enterprise servers where CPU resources must be reserved for application workloads rather than storage management.

By integrating onboard RAID processing, this category delivers enhanced data protection features, including advanced error handling and recovery mechanisms. Hardware RAID solutions provide predictable performance and reliability, which are critical for environments that require continuous uptime and data integrity.

Advanced RAID Levels for Enterprise Workloads

The category supports a wide range of RAID levels designed to address different performance, capacity, and redundancy requirements. The Supermicro AOM-S3108M-H8L enables configurations that balance fault tolerance with storage efficiency, making it suitable for transactional databases, virtual machine hosting, and large-scale file storage. These RAID levels allow organizations to tailor their storage architecture to meet specific operational demands without compromising data safety.

Enterprise RAID mezzanine cards in this category are engineered to handle drive failures gracefully. Automatic rebuild processes, background consistency checks, and intelligent error detection ensure minimal disruption to active workloads. These capabilities are essential for maintaining service availability in mission-critical data center environments.

Cache Management and Write Acceleration Technologies

Cache utilization is a core component of this RAID controller category. The Supermicro AOM-S3108M-H8L leverages intelligent cache management to optimize read and write operations, reducing latency and improving throughput. Efficient caching mechanisms allow frequently accessed data to be delivered faster, enhancing overall system responsiveness.

Write acceleration features within this category help protect data during power interruptions and system failures. By managing write operations intelligently, these RAID mezzanine cards reduce the risk of data loss while maintaining high performance. This makes them well suited for enterprise applications that require both speed and reliability.

Low Profile Mezzanine Form Factor and System Integration

The low profile mezzanine design is a defining attribute of this RAID controller category. The Supermicro AOM-S3108M-H8L is engineered to integrate seamlessly into compatible Supermicro server motherboards, eliminating the need for bulky PCIe cards. This design enhances system airflow and thermal efficiency, which are critical considerations in dense rack-mounted server environments.

Mezzanine RAID cards are specifically designed to align with manufacturer-certified platforms. This ensures optimal electrical compatibility, reduced installation complexity, and improved long-term reliability. The category emphasizes tight integration with server firmware and management tools, enabling streamlined deployment and maintenance.

Optimized for Rackmount and Blade Server Platforms

This category of RAID mezzanine cards is particularly suitable for rackmount and blade server architectures commonly used in enterprise data centers. The compact form factor allows servers to maintain a slim profile while still offering robust storage expansion capabilities. This is especially important in environments where maximizing rack density and minimizing power consumption are top priorities.

By reducing physical footprint and power overhead, the Supermicro AOM-S3108M-H8L category supports scalable data center designs. Organizations can deploy more servers within the same physical space while maintaining reliable storage performance and data protection.

Thermal Efficiency and Reliability Considerations

Thermal management is a critical factor in the design of this RAID controller category. The low profile mezzanine layout promotes efficient airflow across server components, helping maintain optimal operating temperatures. This contributes to improved component longevity and reduced risk of thermal-related failures.

Reliability is further enhanced through enterprise-grade components and rigorous validation processes. RAID mezzanine cards in this category are designed to operate continuously under heavy workloads, making them suitable for environments that require high availability and consistent performance.

Firmware Integration and Lifecycle

Enterprise RAID mezzanine cards in this category benefit from ongoing firmware development and support. Firmware updates provide performance enhancements, security improvements, and compatibility with new drive technologies. The Supermicro AOM-S3108M-H8L is part of a category that prioritizes long-term lifecycle support, ensuring continued reliability throughout the server’s operational lifespan.

This level of support is critical for enterprises that require stable platforms with predictable upgrade paths. RAID controller categories designed for enterprise use are typically backed by extensive validation and testing, reducing the risk of unexpected compatibility issues.

Scalability for Growing Storage Demands

The category supports scalable storage architectures that can grow alongside organizational data needs. With eight internal SAS ports and high-bandwidth connectivity, the Supermicro AOM-S3108M-H8L enables expansion without sacrificing performance. This scalability makes the category suitable for businesses experiencing rapid data growth or fluctuating workload requirements.

By supporting high-capacity drives and advanced RAID configurations, this RAID mezzanine card category provides a future-ready storage foundation. Enterprises can confidently deploy these solutions knowing they are equipped to handle evolving storage challenges.

Across Enterprise and Data Center Applications

The Supermicro AOM-S3108M-H8L category is designed for a wide range of enterprise and data center use cases. These include virtualization platforms, private and hybrid cloud infrastructures, enterprise databases, and large-scale file servers. The combination of high-speed SAS connectivity, hardware RAID processing, and efficient form factor makes this category a versatile choice for diverse workloads.

In virtualization environments, consistent storage performance and low latency are essential for maintaining virtual machine responsiveness. RAID mezzanine cards in this category help ensure predictable I/O behavior, even under heavy consolidation. For database applications, the emphasis on data integrity and fault tolerance supports continuous operations and minimizes downtime.

High Availability and Business Continuity Scenarios

Business continuity is a core consideration for this RAID controller category. The Supermicro AOM-S3108M-H8L supports storage configurations that protect against drive failures and data corruption. This is particularly important for enterprises that rely on uninterrupted access to critical data.

By combining redundancy, performance, and manageability, this category enables organizations to meet stringent service level agreements. The reliability and scalability offered by these RAID mezzanine cards make them a foundational component in modern enterprise IT infrastructure.
