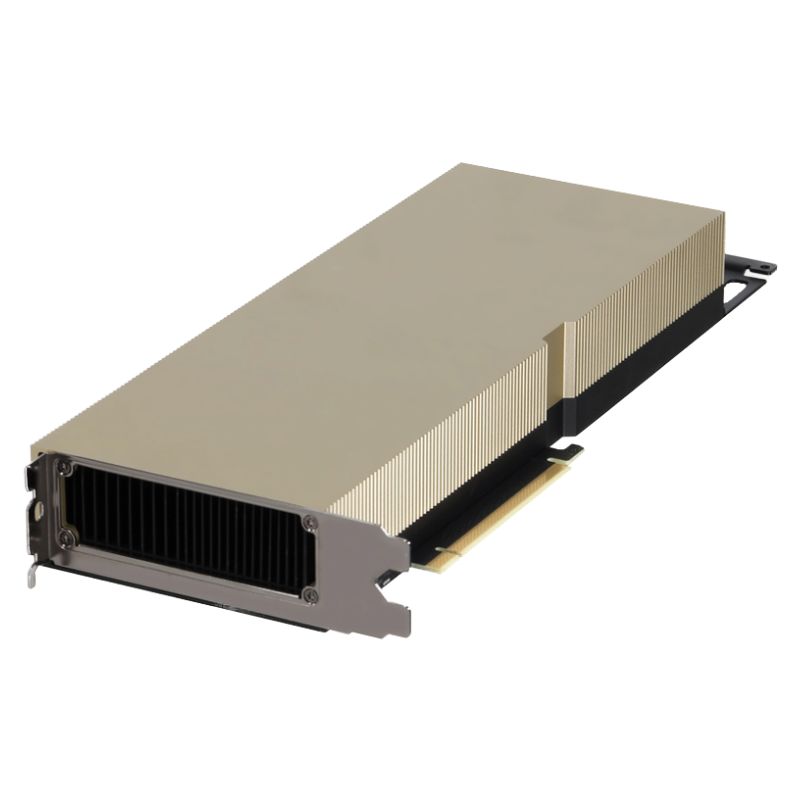

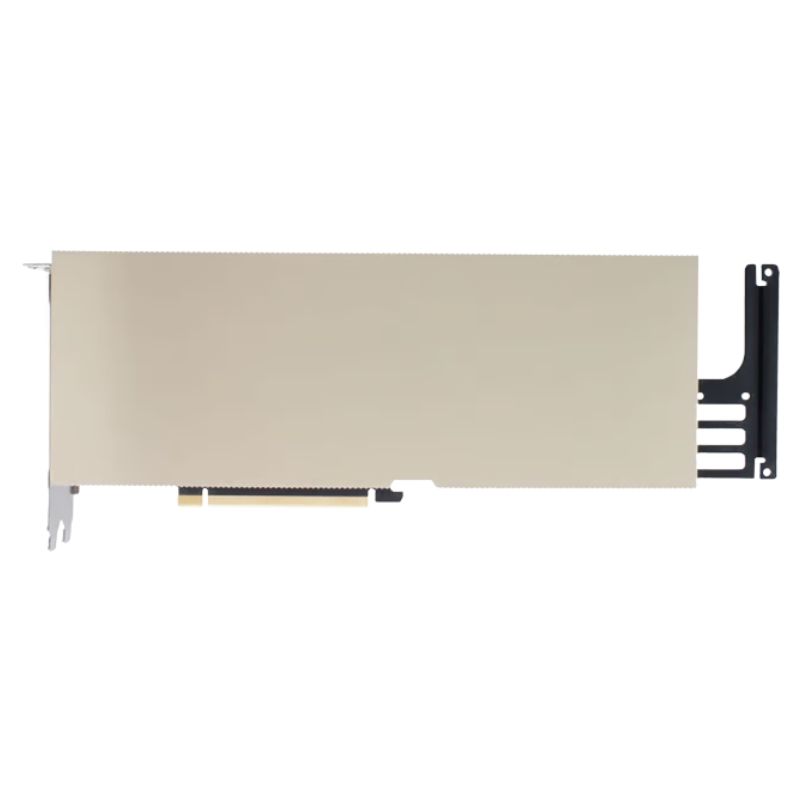

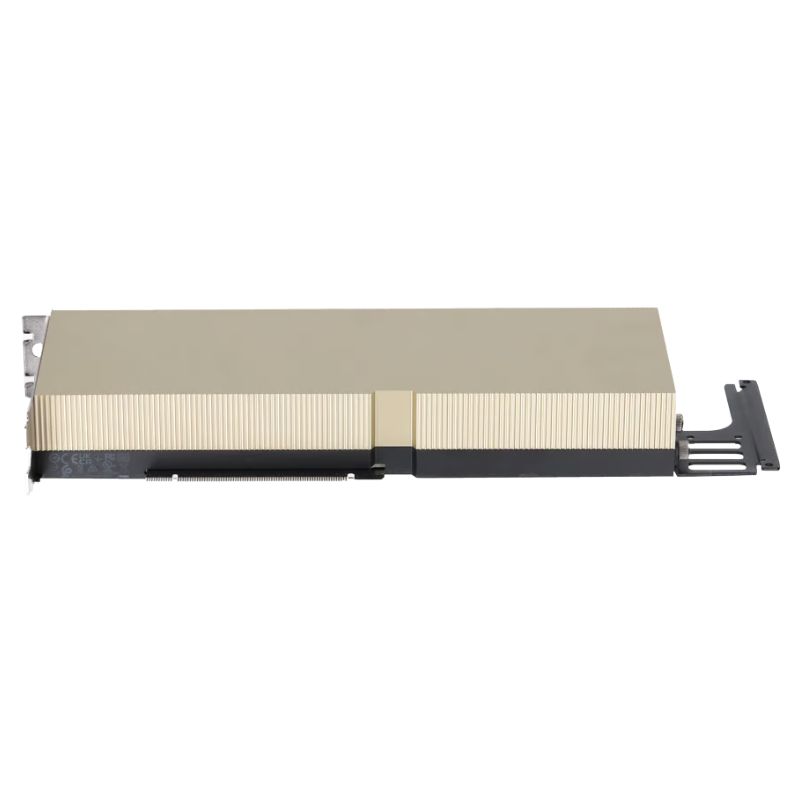

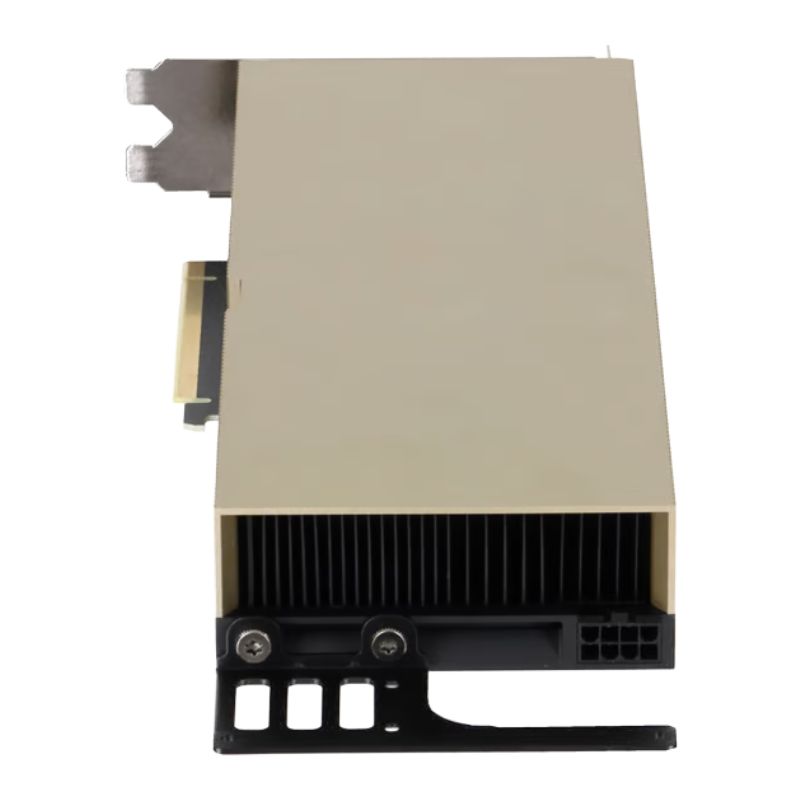

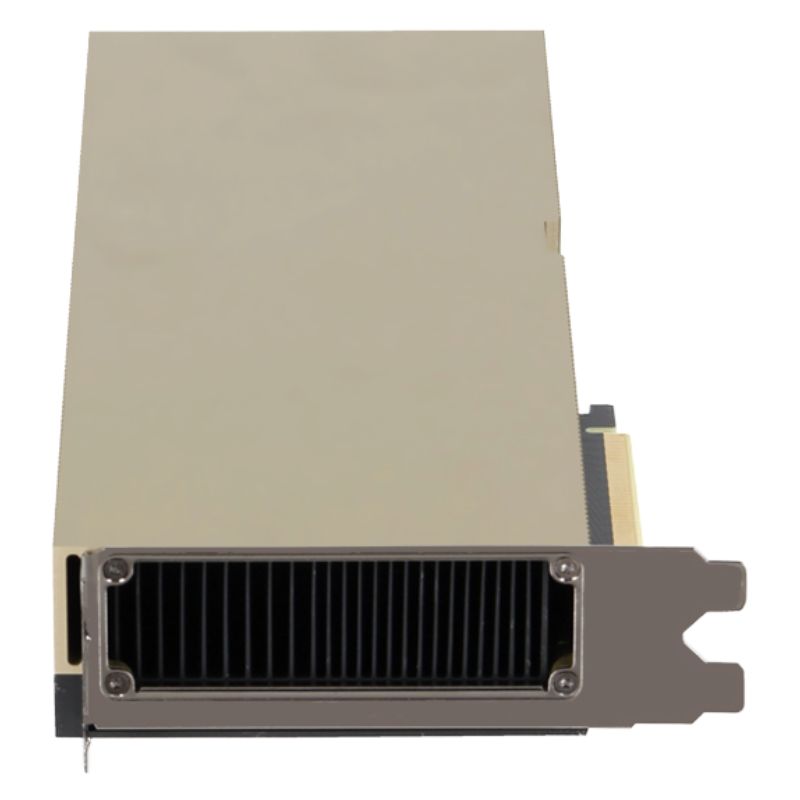

Supermicro GPU-NVH200NVL Nvidia H200 NVL Tensor Core 141GB Of HBM3e Graphics Processing Unit

Supermicro Nvidia H200 NVL GPU Accelerated Computing

Unprecedented Memory Capacity for Next-Generation AI Workloads

The Supermicro GPU-NVH200NVL represents a monumental leap forward in computational capability, specifically engineered to address the most demanding artificial intelligence, high-performance computing, and data analytics challenges. This groundbreaking solution combines Supermicro's expertise in enterprise-grade server infrastructure with Nvidia revolutionary H200 NVL Tensor Core GPU architecture, creating an unparalleled platform for accelerating innovation across multiple industries.

Architectural Foundation Nvidia Hopper Reinvented

Advanced Tensor Core Technology

At the heart of the H200 NVL lies Nvidia enhanced Hopper architecture, featuring fourth-generation Tensor Cores that deliver exceptional performance for both FP8 and FP16 precision formats. These specialized processing units are optimized for transformer engine operations, dramatically accelerating the massive matrix multiplication and mathematical operations that form the foundation of modern large language models and deep learning networks.

HBM3e Memory Architecture

High Bandwidth Memory 3e represents the cutting edge of memory technology, featuring enhanced signaling rates, improved power efficiency, and greater density per stack. The implementation in the H200 NVL utilizes multiple stacks of HBM3e memory connected through an ultra-wide memory interface, creating a unified memory space that eliminates traditional bottlenecks associated with GPU memory constraints.

Practical Implications of Massive Memory Capacity

Eliminating Model Partitioning Complexity

With 141GB of unified memory, the H200 NVL can accommodate entire large language models that previously required complex model parallelism strategies across multiple GPUs. This simplification of deployment architecture reduces system complexity, minimizes inter-GPU communication overhead, and streamlines the development and deployment workflow for AI researchers and engineers.

Dual-GPU NVLink Bridge: Cohesive Computational Power

Third-Generation NVLink Technology

The "NVL" designation signifies the incorporation of Nvidia third-generation NVLink bridge technology, creating a unified computational entity from two physical H200 GPUs. This high-speed interconnect provides a staggering 900GB/s of bi-directional bandwidth, effectively making the two GPUs operate as a single, massively powerful computational unit with combined resources.

Target Workloads and Applications

Large Language Model Training and Inference

Foundation Model Development

The H200 NVL is specifically engineered for the development and deployment of foundation models exceeding 100 billion parameters. Its massive memory capacity can accommodate the entire model parameters, optimizer states, and activations simultaneously, dramatically reducing the training time for state-of-the-art language models that are transforming industries worldwide.

Retrieval-Augmented Generation (RAG)

For advanced RAG applications, the H200 NVL can maintain both the large language model and extensive vector databases in GPU memory simultaneously. This capability enables real-time semantic search and generation with context windows extending to millions of tokens, creating unprecedented opportunities for enterprise knowledge management and customer service applications.

Scientific Computing and Research

Molecular Dynamics and Drug Discovery

In computational chemistry and pharmaceutical research, the GPU-NVH200NVL H200 NVL enables the simulation of increasingly complex molecular systems with higher accuracy. The massive memory capacity allows researchers to model larger protein structures, more comprehensive molecular interactions, and longer simulation timescales, accelerating the drug discovery pipeline.

Graph Analytics and Network Analysis

For graph-based workloads common in social network analysis, recommendation systems, and fraud detection, the H200 NVL can process graphs with billions of nodes and trillions of edges entirely in memory. This enables real-time graph queries and analytics at scales previously achievable only with distributed computing systems.

Robust Power Infrastructure

The GPU-NVH200NVL is designed to integrate seamlessly with Supermicro's high-wattage power supply units and sophisticated power delivery systems. These systems provide clean, stable power to the GPUs even during rapid load transitions, ensuring computational stability and protecting the significant investment in accelerator hardware.

System Architecture Considerations

PCIe Gen5 Host Interface

The H200 NVL maintains compatibility with PCI Express Gen5 interfaces, providing 128GB/s of bi-directional bandwidth to the host system. This high-speed connection ensures that data can flow efficiently between system memory and GPU memory, minimizing stalls and maintaining high utilization of the computational resources.

NUMA-Aware System Design

Supermicro's server platforms are optimized for Non-Uniform Memory Access architectures, ensuring that CPUs and GPUs are connected through the most efficient pathways. This optimization minimizes latency for CPU-GPU communication and ensures that data movement operations don't become a bottleneck for overall system performance.

Software Ecosystem and Development Tools

Nvidia AI Enterprise Software Platform

End-to-End AI Framework Support

The GPU-NVH200NVL H200 NVL is fully supported by Nvidia comprehensive AI Enterprise software suite, including optimized versions of popular deep learning frameworks such as Tensor Flow, PyTorch, and JAX. These frameworks have been specifically tuned to leverage the unique architectural features of the H200, including its Transformer Engine and massive memory capacity.

Development and Optimization Tools

Nvidia Nsight Systems and Compute

Developers can leverage Nvidia sophisticated profiling tools to analyze and optimize application performance on the H200 NVL. These tools provide deep insights into kernel performance, memory access patterns, and NVLink utilization, enabling developers to fully leverage the architectural capabilities of the platform.

Comparative Performance Advantages

Benchmark Performance Across Workloads

AI Training Performance

In standardized AI training benchmarks using models like GPT-3 175B, the H200 NVL demonstrates approximately 1.5-2x faster training times compared to previous generation solutions. This performance improvement stems from both the increased computational throughput and the ability to maintain larger batch sizes within the substantial memory capacity.

Total Cost of Ownership Considerations

Performance per Watt Efficiency

Despite its substantial computational capabilities, the  GPU-NVH200NVL H200 NVL maintains impressive power efficiency through architectural improvements and advanced power management features. When considering performance per watt metrics, the H200 NVL often demonstrates 2-3x improvements over previous generations, translating to significant operational cost savings in large-scale deployments.

Infrastructure Consolidation Opportunities

The massive memory capacity and computational power of a single GPU-NVH200NVL H200 NVL system can often replace multiple nodes of previous-generation infrastructure. This consolidation reduces physical space requirements, simplifies management overhead, and decreases total cost of ownership while delivering superior performance.

Deployment Scenarios and Use Cases

Enterprise AI Implementation

Private AI Infrastructure

For organizations concerned with data privacy, regulatory compliance, or proprietary algorithm protection, the  GPU-NVH200NVL H200 NVL enables the deployment of state-of-the-art AI capabilities within private infrastructure. This approach maintains data sovereignty while providing computational resources competitive with public cloud offerings.

Future-Proofing and Scalability

Architectural Longevity

Forward Compatibility

The H200 NVL is designed with future software ecosystems in mind, ensuring compatibility with upcoming framework versions and emerging AI methodologies. This forward compatibility protects investments by ensuring that the hardware remains relevant and performant as software ecosystems evolve.

Scientific Computing Advancements

As scientific computing increasingly embraces AI-assisted simulation and analysis techniques, the H200 NVL's balanced architecture provides an ideal platform for these hybrid workloads. The ability to run traditional HPC simulations alongside AI-driven analysis creates new opportunities for scientific insight and discovery.

Comprehensive Technical Specifications

GPU Architecture Details

Nvidia Hopper Architecture Enhancements

The GPU-NVH200NVL H200 NVL builds upon the revolutionary Hopper architecture with specific enhancements targeting memory-intensive workloads. Key architectural improvements include enhanced Tensor Cores with support for new numerical formats, improved asynchronous execution capabilities, and more sophisticated memory management units designed to maximize utilization of the massive HBM3e memory subsystem.

Memory Hierarchy and Performance

HBM3e Technical Implementation

Memory Stack Configuration

The 141GB memory capacity is achieved through multiple stacks of GPU-NVH200NVL HBM3e memory, each connected to the GPU die through a ultra-wide memory interface. This configuration maximizes memory bandwidth while minimizing access latency, ensuring that the computational units remain fed with data even for the most memory-intensive operations.

Connectivity and System Integration

Host Interface Specifications

PCI Express Gen5 Compatibility

The GPU-NVH200NVL H200 NVL maintains full backward compatibility with PCI Express Gen4 while leveraging Gen5 capabilities when available. The x16 PCIe interface provides sufficient bandwidth for most workloads while the massive onboard memory reduces the frequency of host memory accesses.

Topology and Addressing

The NVLink connection creates a symmetric topology between the two GPUs, GPU-NVH200NVL providing uniform access times regardless of which GPU initiates the memory access. This symmetry simplifies programming models and ensures predictable performance for memory operations spanning both devices.

Implementation and Operational Considerations

Power Delivery Specifications

The H200 NVL requires robust power delivery systems capable of supplying stable power under rapidly varying load conditions. Supermicro's compatible server platforms include redundant power supply units with sufficient capacity headroom to ensure reliable operation during peak computational demands.

Thermal Design Power Envelopes

Understanding the thermal characteristics of the GPU-NVH200NVL H200 NVL is essential for proper system design. The solution incorporates advanced thermal monitoring and management features that dynamically adjust operating frequencies based on thermal conditions, ensuring reliability while maximizing performance within thermal constraints.

Nvidia Driver Compatibility

The H200 NVL requires specific driver versions that include support for its unique architectural features, particularly the massive HBM3e memory subsystem and the dual-GPU NVLink implementation. These drivers are available through Nvidia enterprise driver program and are included in Supermicro's validated software stacks.
