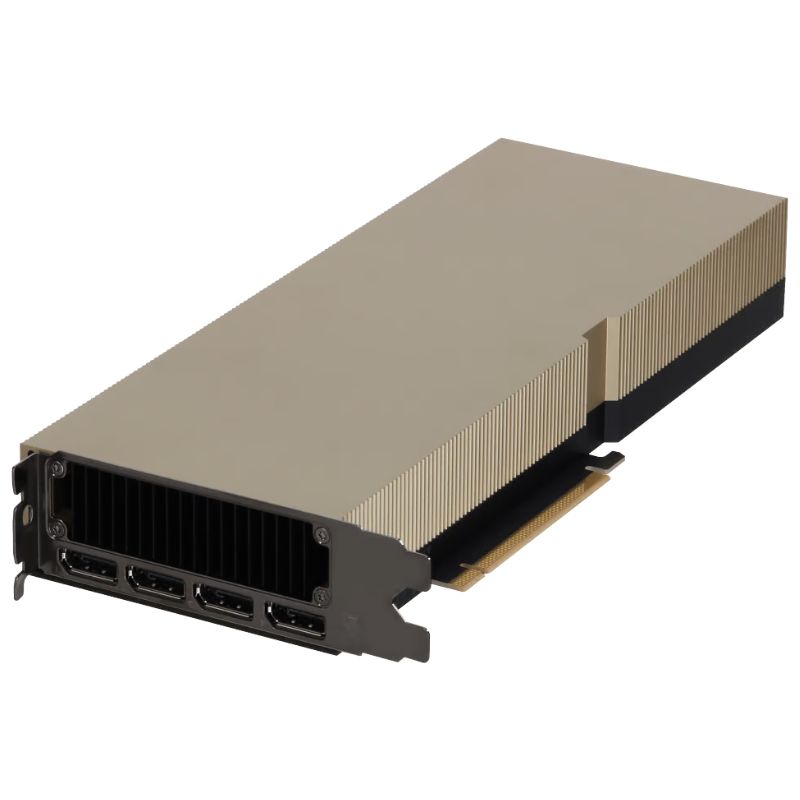

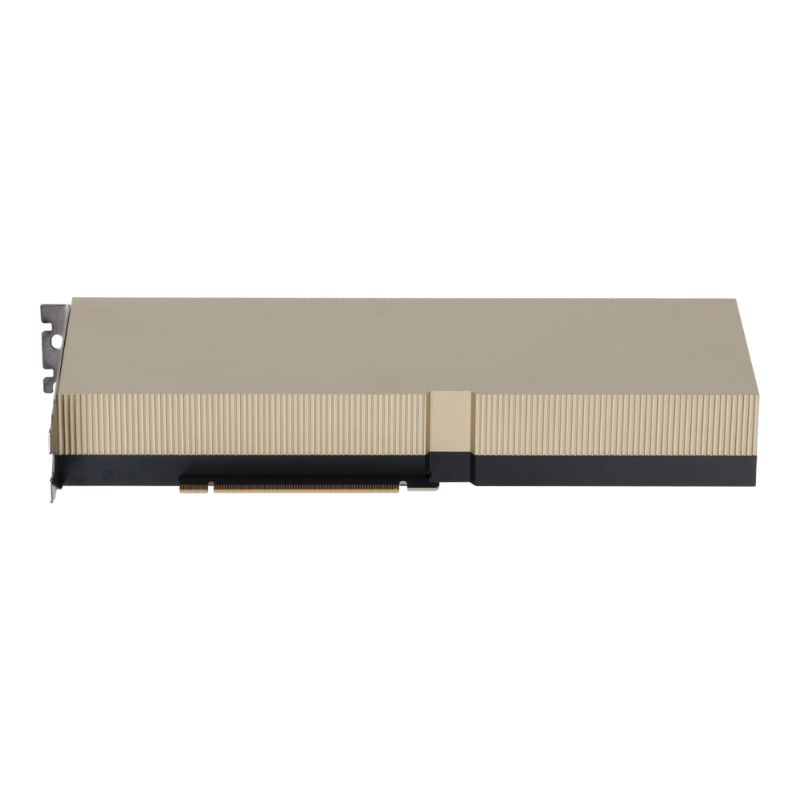

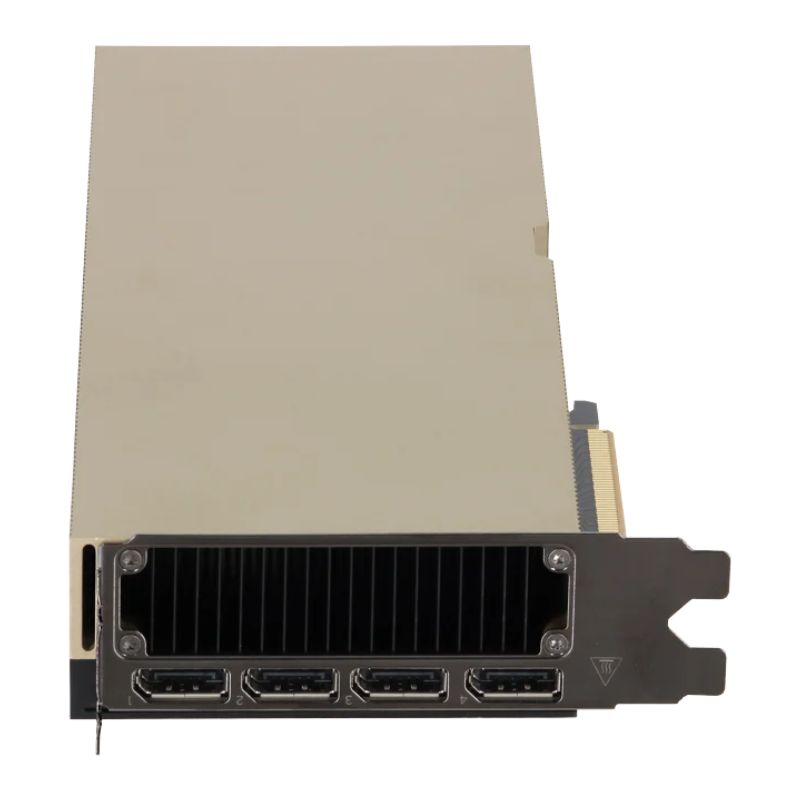

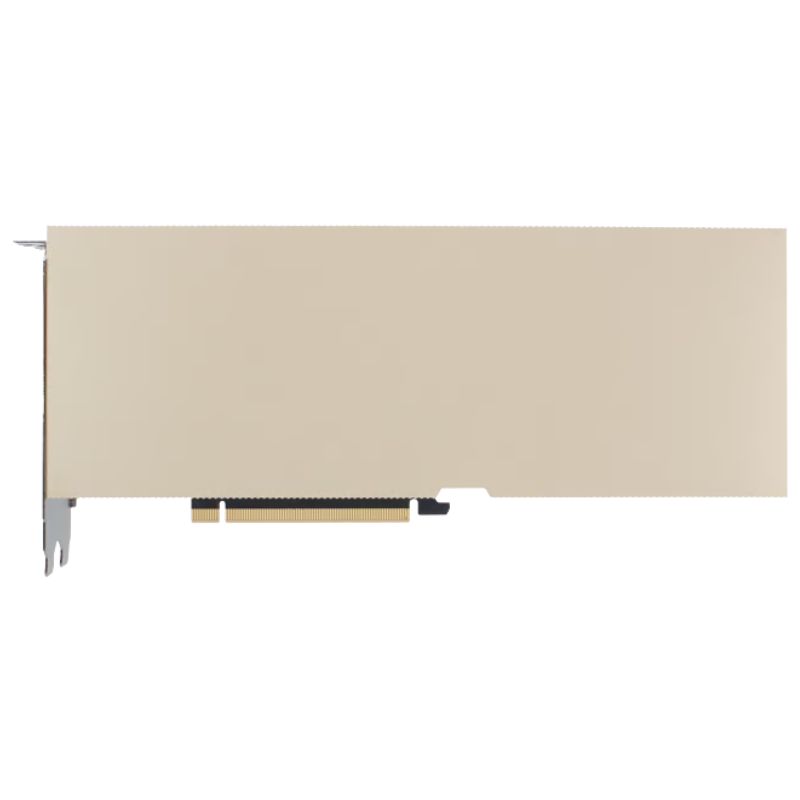

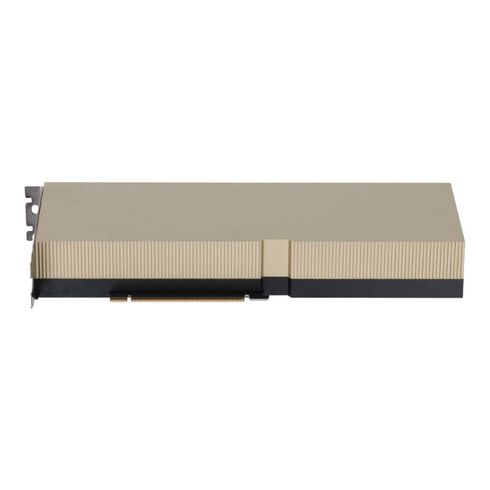

Supermicro GPU-NVL40S Nvidia L40S 48GB PCIe Gen4 Passive GPU Graphics Card

Next-Generation and Compute Performance with the Supermicro GPU-NVL40S

The Supermicro GPU-NVL40S represents a paradigm shift in computational power, engineered specifically for the most demanding AI training, inference, and high-performance computing (HPC) workloads. This isn't merely a graphics card; it's a purpose-built accelerator leveraging the groundbreaking NVIDIA L40S GPU, designed to excel in data center and enterprise environments where reliability, scalability, and raw performance are non-negotiable.

By integrating dual GPUs on a single PCIe card with a high-speed NVLink bridge, the NVL40S effectively creates a unified, powerful computational entity. This unique architecture provides researchers, data scientists, and engineers with a dense compute solution that accelerates time-to-discovery and deployment for complex models and simulations.

Architectural Innovation The Power of Dual L40S GPUs

At the heart of the Supermicro GPU-NVL40S lies not one, but two full NVIDIA L40S GPUs. These are based on the NVIDIA Ada Lovelace architecture, which brings a massive leap in performance and efficiency compared to previous generations. The key to this card's prowess is the direct, high-bandwidth connection between these two GPUs.

PCIe Gen4 x16 Host Interface

While the GPUs communicate via NVLink, the card itself connects to the server motherboard via a single PCIe Gen4 x16 slot. This efficient design allows a single card to deliver the computational power of two high-end GPUs while consuming only one physical slot in the chassis, optimizing server density and total cost of ownership.

Inside the NVIDIA L40S GPU: Ada Lovelace Architecture for the Enterprise

The Supermicro GPU-NVL40S derives its formidable capabilities from the NVIDIA L40S GPUs it houses. The L40S is a data center workhorse, built on the cutting-edge Ada Lovelace architecture and designed as a universal accelerator for AI, graphics, and compute.

Primary Workloads and Target Applications

The Supermicro GPU-NVL40S is a versatile accelerator, but it truly shines in specific, demanding domains. Its unique combination of massive memory, NVLink connectivity, and Ada Lovelace features makes it the ideal solution for several cutting-edge applications.

AI and Machine Learning

This is the primary domain for the L40S. The card is engineered to handle the entire AI pipeline, from data preparation and model training to deployment and inference.

Large Language Model (LLM) Training and Fine-Tuning

The combination of the Transformer Engine, FP8 precision, and 96GB of aggregate memory makes the Supermicro NVL40S a powerhouse for working with LLMs. Researchers can train larger models or fine-tune existing ones (like Llama 2, Mistral, or proprietary models) more efficiently, significantly reducing the time required for experimentation and production deployment.

Generative AI and Diffusion Models

Training and running generative AI models for image, video, and audio synthesis require immense computational power and memory. The parallel processing capabilities and high memory bandwidth of the NVL40S allow for faster iteration on model architectures and higher-resolution output generation.

High-Performance Inference

When a model is deployed into production, it needs to serve predictions quickly and efficiently. The L40S's Tensor Cores and support for advanced inference SDKs like NVIDIA Triton Inference Server make it an excellent choice for high-throughput, low-latency inference servers.

Professional Visualization and Virtual Production

The inclusion of powerful RT Cores makes the Supermicro NVL40S, despite its passive cooling, a formidable engine for graphics-intensive workloads in server-rendering scenarios.

Rendering Farms

In a centralized rendering setup, multiple NVL40S cards can be deployed in servers to render frames for animation, visual effects, and architectural visualization. The ray tracing acceleration and large memory allow artists to work with incredibly complex scenes and achieve photorealistic results faster.

NVIDIA Omniverse Enterprise

The L40S is an officially validated GPU for NVIDIA Omniverse, a platform for 3D design collaboration and real-time simulation. The NVL40S can power Omniverse Nucleus servers or provide the computational backend for rendering and simulation workloads within the platform, enabling large-scale, physically accurate digital twins.

Data Center Design: Form Factor, Cooling, and Integration

The Supermicro GPU-NVL40S is designed from the ground up for integration into enterprise-grade servers and data centers. Its physical and thermal design imposes specific requirements that must be understood for a successful deployment.

Passive Cooling Design and Thermal Management

Unlike consumer graphics cards with onboard fans, the Supermicro NVL40S features a passive heatsink. This means it has no moving parts and relies entirely on forced airflow from the server's system fans to dissipate heat.

Cooling Requirements

This design places a critical requirement on the host server. The server chassis must be equipped with high-static pressure fans capable of generating a strong, directed airflow across the length of the card's heatsink. Supermicro's own GPU-optimized servers, such as those in the BigTwin, GrandTwin, and 4U GPU series, are engineered with specific fan walls and ducting to provide the exact cooling profile required for these high-TDP passive cards.

Form Factor and Power Delivery

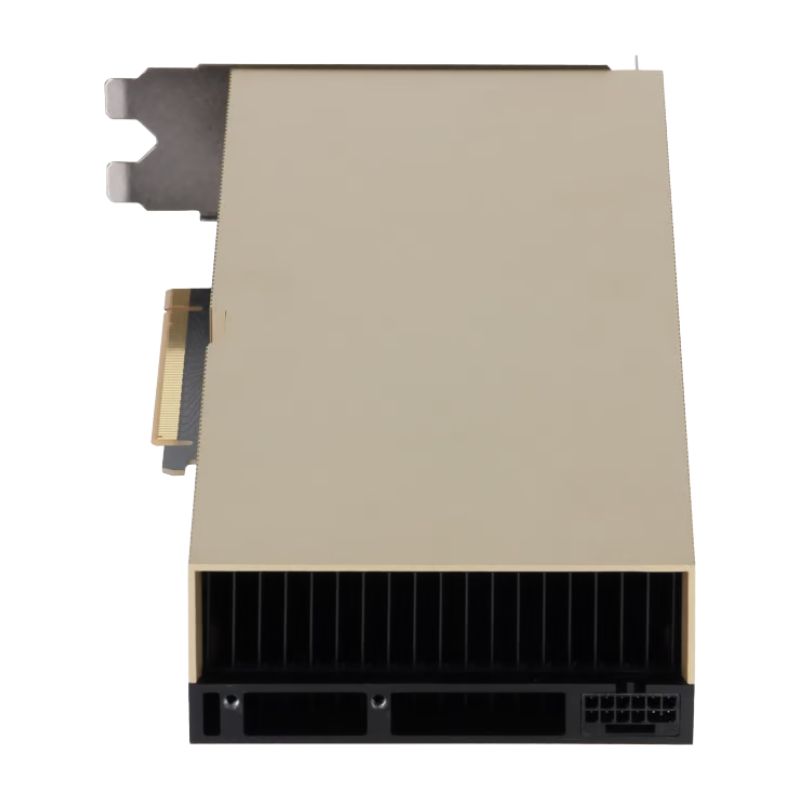

The Supermicro GPU-NVL40S is a full-height, dual-slot (FH/HL) card. Its most notable power requirement is the need for two 8-pin PCIe power connectors. It is crucial to ensure that the host server's power supply unit (PSU) has sufficient capacity and the necessary cabling to deliver stable power to the card, especially when deploying multiple units.

Compatibility with Supermicro Systems

Supermicro designs its servers and GPUs to work in perfect harmony. The GPU-NVL40S is rigorously tested and validated in a wide range of Supermicro's topologies.

Ecosystem and Enterprise

The hardware is only one part of the equation. The Supermicro GPU-NVL40S is supported by the comprehensive and mature NVIDIA software stack, ensuring developers and IT administrators have the tools they need.

NVIDIA Software Stack

The card is fully compatible with the core NVIDIA software drivers and libraries that power the modern AI and HPC revolution.

CUDA and cuDNN

The foundational layers for GPU computing. CUDA provides the parallel computing platform and programming model, while cuDNN is a highly tuned library for deep learning primitives.

NVIDIA AI Enterprise

This is an end-to-end, cloud-native software suite that streamlines the development and deployment of production AI. It includes optimized frameworks (like TensorFlow and PyTorch), the Triton Inference Server, and enterprise-grade security, support, and management tools. The L40S is a perfect hardware target for environments licensed with NVIDIA AI Enterprise.

NVIDIA HPC SDK

A comprehensive suite of compilers, libraries, and tools for maximizing developer productivity and application performance for HPC simulations. It includes compilers for C++, C, and Fortran that can target the GPU.

Comparison and Selection Considerations

Understanding where the Supermicro GPU-NVL40S fits in the broader ecosystem of data center accelerators is key to making an informed purchasing decision.

NVL40S vs. NVIDIA H100

The H100 is built for ultimate scale-out AI and HPC performance, featuring specialized Transformer Engine Tensor Cores and NVLink connectivity for multi-node scaling. The L40S, especially in the dual-GPU NVL40S configuration, is a more versatile, all-purpose data center GPU that excels at AI, HPC, *and* graphics, making it an ideal "universal" accelerator for a wider range of workloads within a single server.
