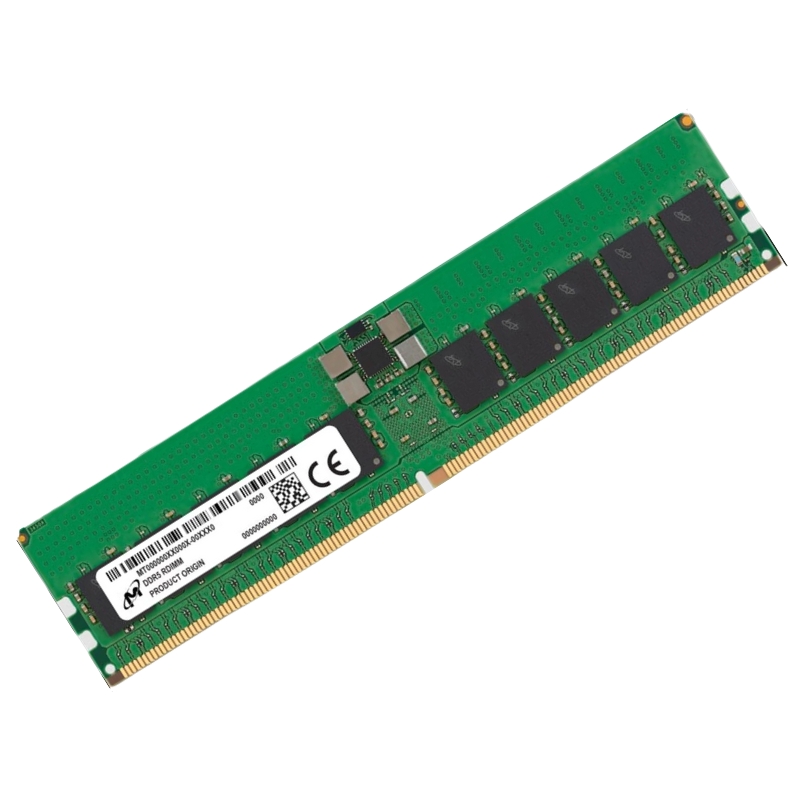

MEM-DR532L-CL02-ER56 Supermicro 32GB DDR5 5600MHz ECC Memory

Overview of ECC Registered DDR5 Memory Modules

Enterprise-grade memory modules like the MEM-DR532L-CL02-ER56 Supermicro 32GB DDR5 5600MHz PC5-44800 ECC Registered 2Rx8 CL46 288-pin DIMM are crucial components in modern data center infrastructure. These modules are designed for performance, reliability, and long-term scalability in environments where uptime and throughput are paramount. ECC (Error-Correcting Code) and Registered (buffered) features offer robust protection and signal stability, reducing data corruption risks and enhancing multi-channel memory architectures.

Advancements with DDR5 Technology

DDR5 (Double Data Rate 5) memory represents the next evolutionary leap in DRAM design. Compared to its predecessor DDR4, DDR5 delivers higher bandwidth, increased efficiency, and a more scalable architecture. With speeds like 5600MHz and transfer rates up to PC5-44800, DDR5 enables systems to handle vast data workloads with reduced latency and improved multitasking capabilities.

Increased Bandwidth and Performance

One of the most significant improvements in DDR5 is its increased bandwidth. The MEM-DR532L-CL02-ER56 operates at 5600MT/s, allowing for nearly double the data transfer rate of typical DDR4 modules. This increased throughput is critical in applications such as virtualization, AI/ML workloads, big data analytics, and high-frequency trading platforms.

Enhanced Power Efficiency

DDR5 memory introduces a 1.1V operating voltage, down from DDR4's 1.2V, contributing to better thermal performance and energy savings. Additionally, on-die ECC and the presence of a power management IC (PMIC) on the module allow for finer-grained power regulation, increasing the reliability and lifespan of memory components in 24/7 server environments.

ECC Registered Memory: Critical for Enterprise Workloads

ECC Registered memory is indispensable in server and enterprise-grade systems. The ECC functionality automatically detects and corrects single-bit memory errors, preventing data corruption. Registered (buffered) memory stabilizes data signals by reducing the electrical load on the memory controller, allowing for the deployment of multiple memory modules without signal degradation.

ECC Functionality in Mission-Critical Environments

In enterprise environments where downtime equates to revenue loss, ECC memory is essential. The MEM-DR532L-CL02-ER56 includes robust ECC capabilities that ensure data integrity during write and read cycles. This is particularly important for workloads that involve database management, scientific simulations, and financial systems where data corruption could result in significant operational consequences.

Buffered Performance for Large Memory Configurations

The registered (or buffered) feature allows this DIMM to be used in configurations that require high memory density. By buffering memory signals, registered DIMMs offload stress from the memory controller, enabling support for larger memory capacities per server node. This is key for virtualization hosts, HPC nodes, and large-scale analytics machines.

Supermicro Memory Modules and System Compatibility

Supermicro memory products, including the MEM-DR532L-CL02-ER56, are designed to meet stringent compatibility and reliability standards. Supermicro rigorously validates their memory against an extensive array of server boards, chassis, and platforms. These modules are optimized for compatibility with Supermicro's 4th Gen Intel Xeon Scalable or AMD EPYC 9004-series platforms, ensuring plug-and-play integration and BIOS-level stability.

Tailored for Supermicro Server Platforms

This 32GB DDR5 RDIMM is purpose-built for high-performance servers such as the Supermicro X13 series and H13 motherboards. With its dual-rank (2Rx8) configuration, it provides a balance between channel utilization and power efficiency, allowing for optimal throughput in dense server environments.

JEDEC Compliance and Quality Assurance

Supermicro memory modules are fully JEDEC-compliant, ensuring industry-standard design and performance characteristics. The MEM-DR532L-CL02-ER56 adheres to stringent manufacturing processes and component testing to guarantee long-term reliability, even under continuous high workloads.

Use Cases for 32GB DDR5 ECC Registered DIMMs

The MEM-DR532L-CL02-ER56 fits perfectly in several enterprise and cloud computing applications. Its balance of capacity, speed, and reliability make it suitable for:

Virtualization & Cloud Infrastructure

Virtualized environments benefit from high-speed ECC Registered memory that enables the deployment of many virtual machines with stable performance. This 32GB DIMM allows for dense server configurations with minimal risk of memory bottlenecks or crashes due to memory corruption.

High Performance Computing (HPC)

In scientific computing, simulations, and AI training environments, DDR5 memory like the MEM-DR532L-CL02-ER56 ensures that complex datasets are processed efficiently. Its fast clock speed and robust error-correction allow for accurate and accelerated modeling.

Database and Analytics Workloads

For workloads involving large in-memory databases, such as SAP HANA or Microsoft SQL Server, this memory module provides the bandwidth and capacity to facilitate fast query execution and real-time analytics with maximum reliability.

Memory Architecture and DIMM Design Considerations

The design of DDR5 RDIMMs introduces multiple innovations in internal architecture that boost performance. The MEM-DR532L-CL02-ER56 includes dual 40-bit channels per DIMM, providing better granularity in error detection and improved parallelism during data transfers.

Dual-Channel Architecture Per DIMM

Each DDR5 RDIMM supports two 32-bit subchannels (plus 8 bits ECC each), doubling the effective data lanes compared to DDR4. This design enables simultaneous command processing and faster memory access cycles, which are beneficial for multi-threaded server applications.

Integrated PMIC for Improved Power Regulation

A significant advancement in DDR5 is the relocation of power management from the motherboard to the DIMM itself. The integrated PMIC ensures stable voltage delivery to the memory chips and helps improve overall efficiency, especially under high-load conditions.

Memory Reliability and System Uptime

Memory errors can have catastrophic impacts on uptime and data fidelity. That’s why enterprise servers rely on ECC Registered modules like the MEM-DR532L-CL02-ER56 to detect and correct issues before they impact performance or cause application crashes.

Benefits of On-Die ECC in DDR5

Unlike earlier DDR versions, DDR5 adds on-die ECC in addition to system-level ECC. This internal error correction improves DRAM reliability even before errors are seen by the memory controller, making the entire memory subsystem more robust.

System-Level Data Protection

ECC Registered modules correct single-bit errors and detect multi-bit errors in real-time. Combined with Supermicro BIOS and firmware enhancements, the memory module protects against uncorrected errors that could lead to OS kernel panics or data loss.

Scalability in Multi-DIMM Environments

In dense compute environments like blade servers or rack-mount servers, it is common to populate systems with multiple DIMMs. The MEM-DR532L-CL02-ER56 is engineered for excellent thermal and electrical performance when deployed in full-population configurations.

Thermal Stability Under Load

With a design optimized for airflow and heat dispersion, Supermicro’s DDR5 RDIMMs maintain consistent performance under continuous heavy workloads. Thermal sensors embedded in the DIMM monitor temperature to allow dynamic fan speed adjustment and prevent overheating.

Server Configuration Flexibility

Thanks to its 2Rx8 configuration and JEDEC compliance, the module offers versatility in system builds—from dual-socket rackmount servers to high-capacity memory nodes used in cloud-scale data centers.

Choosing the Right DDR5 Memory for Your Server

Selecting memory for a server involves evaluating workload needs, system compatibility, and future scalability. The MEM-DR532L-CL02-ER56 is ideal for enterprises needing high-speed, reliable memory with strong ECC and power efficiency.

Ideal Balance Between Performance and Capacity

At 32GB per module, this DIMM offers a perfect middle-ground for many server configurations. It supports memory-dense applications without overwhelming power budgets or requiring exotic cooling solutions.

Designed for Longevity and Stability

Featuring robust PCB design, thermally optimized components, and long-term lifecycle support from Supermicro, this memory module is engineered to withstand years of operational stress in mission-critical deployments.
