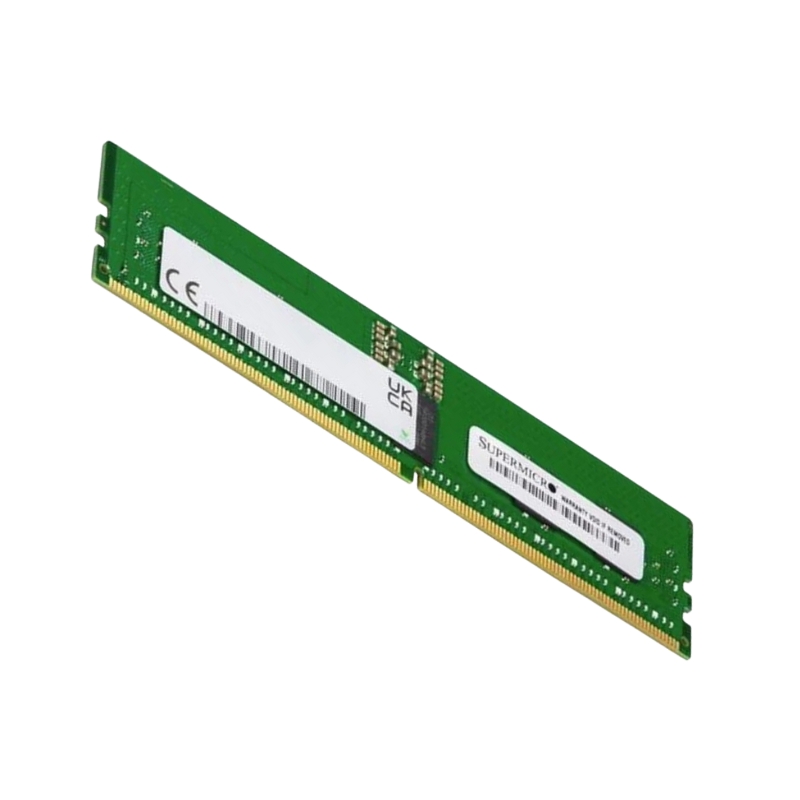

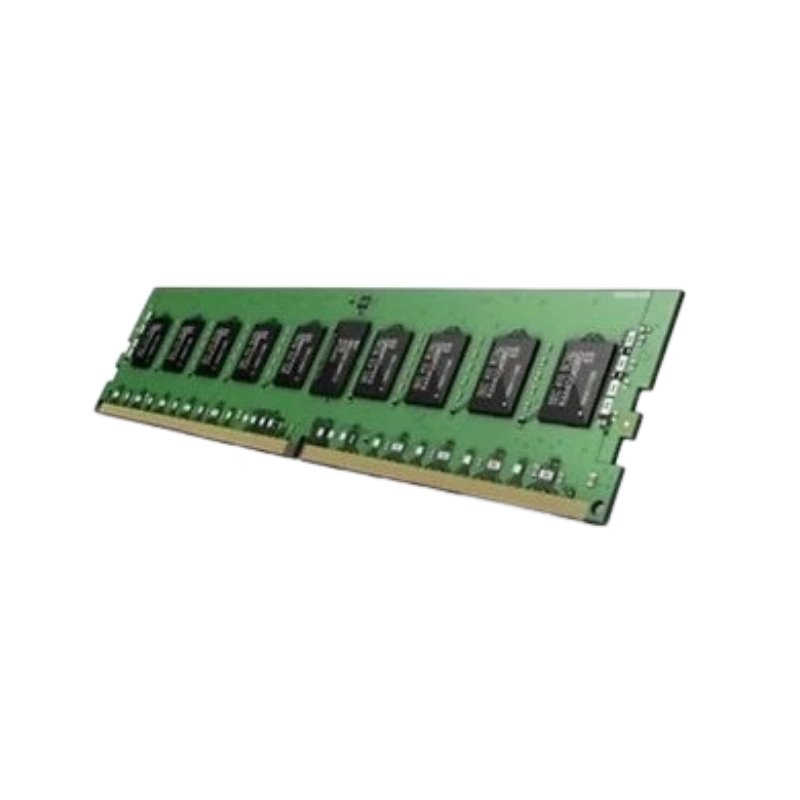

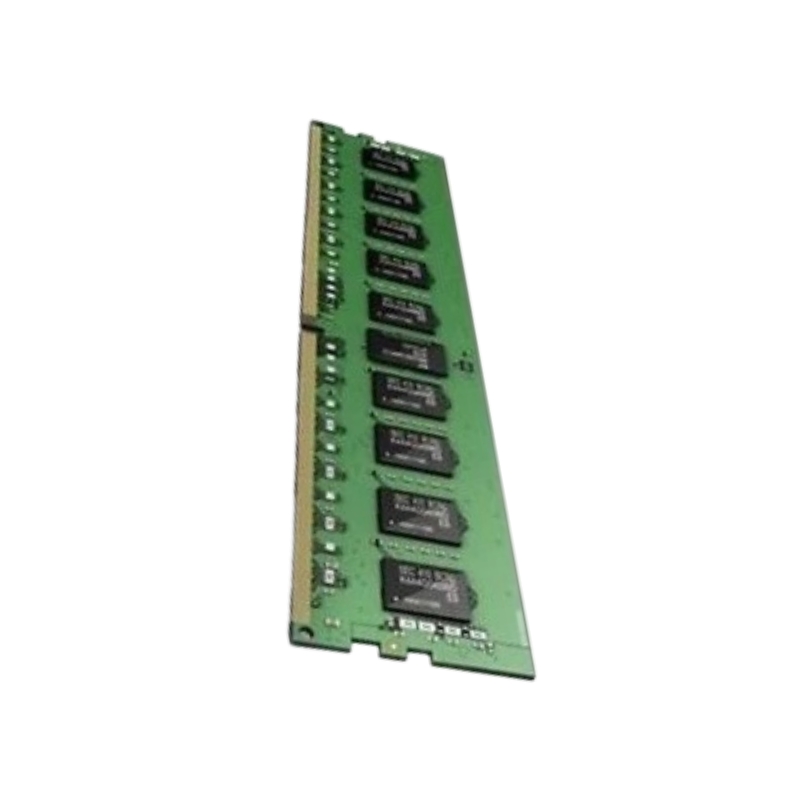

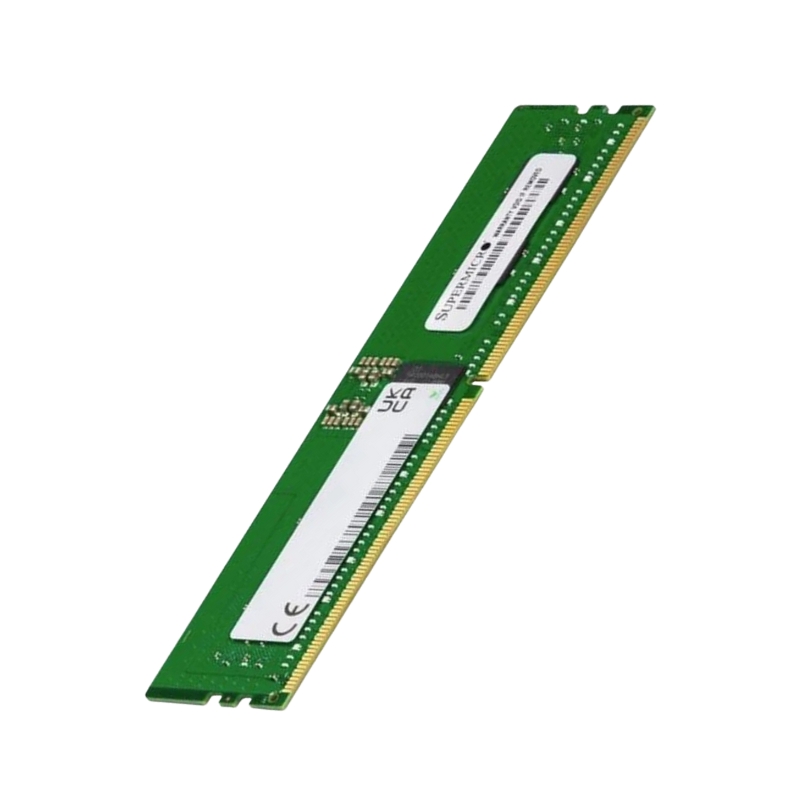

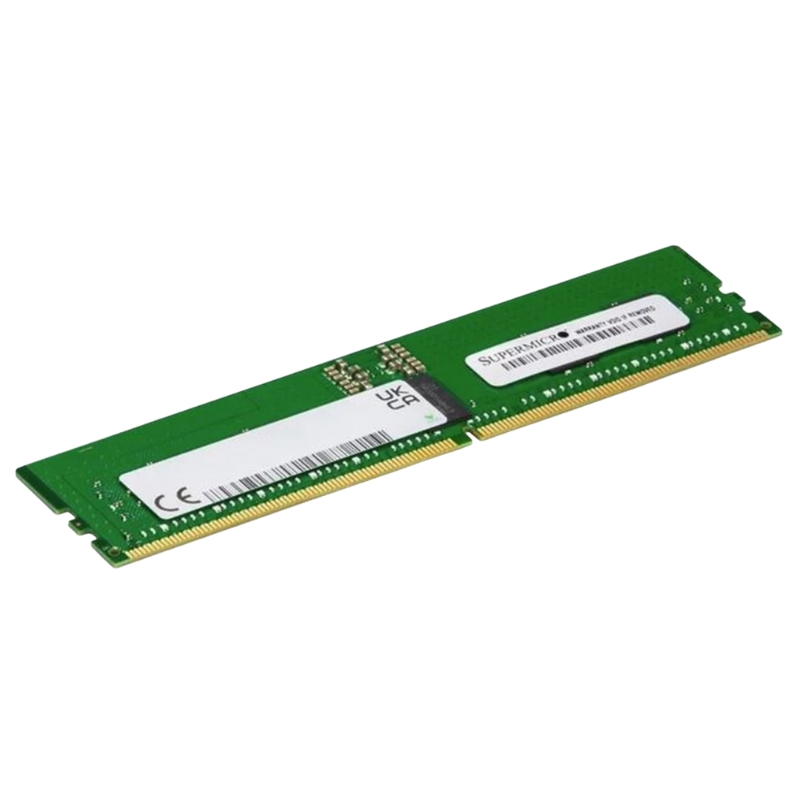

Supermicro 96GB DDR5 5600mt/s Pc5-44800 ECC Memory MEM-DR596L-HL01-ER56 Module.

DDR5 Technology: Advancing Server Memory Performance

DDR5 (Double Data Rate 5) memory is the next-generation standard for server and workstation environments. Compared to DDR4, DDR5 provides higher bandwidth, lower power consumption, and enhanced reliability features, making it ideal for enterprise workloads, virtualization, and cloud computing platforms. The Supermicro MEM-DR596L-HL01-ER56 leverages DDR5 architecture to deliver optimized performance in both single and multi-processor server systems.

Key Features of DDR5 Memory

• Higher Bandwidth: With a 5600MT/s transfer rate, this module ensures rapid data access and reduced bottlenecks for demanding applications.
• Lower Power Consumption: DDR5 modules operate at 1.1V, compared to 1.2V for DDR4, which improves energy efficiency across data center operations.
• Improved Reliability: DDR5 supports on-die ECC, enhancing data integrity during high-speed transfers.
• Advanced Channel Architecture: Each DIMM is split into two independent 32-bit channels, improving memory access efficiency and latency performance.

ECC Registered Memory: Ensuring Server Stability

One of the standout features of the Supermicro MEM-DR596L-HL01-ER56 is its ECC (Error-Correcting Code) Registered capability. ECC memory is crucial in servers and critical computing environments where data integrity cannot be compromised. It automatically detects and corrects single-bit errors in memory, reducing the risk of system crashes, data corruption, or downtime. Registered (or buffered) memory further enhances stability by reducing electrical load on the memory controller, enabling servers to support higher memory capacities reliably.

Advantages of ECC Registered Memory for Enterprise Applications

• Enhanced Data Integrity: ECC prevents single-bit errors from propagating, safeguarding mission-critical operations.
• Support for High-Capacity Configurations: Registered memory allows for larger server memory pools without sacrificing stability.
• Optimized for Multi-Processor Servers: Buffered DIMMs reduce the load on memory channels, enabling better scalability and performance in dual- or quad-processor servers.

Memory Capacity and Dual-Rank Configuration

The 96GB capacity of the Supermicro MEM-DR596L-HL01-ER56 is ideal for servers handling large datasets, virtual machines, or high-performance computing tasks. Its dual-rank configuration doubles the number of memory ranks available for the system, improving parallelism and data access speed. Dual-rank DIMMs can offer better performance in many workloads compared to single-rank DIMMs, particularly in read-intensive and mixed-use server applications.

Performance Metrics: Speed, Latency, and Bandwidth

The 5600MT/s data transfer rate combined with CL46 latency ensures a balanced approach to memory speed and responsiveness. The PC5-44800 rating indicates the module’s peak bandwidth, allowing it to handle large-scale data transfer operations common in enterprise environments. High-speed DDR5 memory like this module is essential for applications such as:

• High-performance computing (HPC) simulations
• Real-time analytics and large-scale databases
• AI and machine learning workloads
• Cloud computing and virtualization platforms

Impact of Latency on Server Workloads

While speed is critical, latency plays a significant role in overall memory performance. The CL46 latency of this module represents the number of clock cycles required for the memory to respond to a command. In combination with DDR5’s higher transfer rates, this latency provides efficient data access, minimizing wait times for memory-intensive operations.

Compatibility and Form Factor

The Supermicro MEM-DR596L-HL01-ER56 is a 288-pin DIMM designed specifically for server platforms compatible with DDR5 ECC Registered memory. It supports a wide range of Supermicro servers and motherboards, making it versatile for upgrades and high-density memory deployments.

Server Compatibility Considerations

• Ensure motherboard supports DDR5 memory.
• Check BIOS and firmware versions for ECC Registered module support.
• Verify maximum supported memory per DIMM slot and overall system capacity.

DIMM Form Factor Advantages

• Standard 288-pin configuration simplifies installation and replacement.
• Supports dual-rank memory addressing for improved performance.
• Compatible with high-density server environments requiring multiple DIMMs per channel.

Reliability and Durability

Supermicro memory modules are designed for 24/7 operation in enterprise-grade servers. The MEM-DR596L-HL01-ER56 undergoes stringent quality testing to ensure long-term reliability under heavy workloads. Its ECC Registered design, combined with superior thermal management, makes it highly resilient to the demands of modern data centers.

Enterprise Features for Maximum Uptime

• Heat Spreader Integration: Some modules feature advanced heat dissipation solutions to maintain optimal operating temperatures.
• Error Detection and Correction: ECC protects against data corruption and memory-related failures.
• High MTBF Ratings: Supermicro server memory is built for longevity, reducing replacement frequency and maintenance costs.

Applications of High-Capacity DDR5 Server Memory

The 96GB Supermicro MEM-DR596L-HL01-ER56 module is ideal for enterprises requiring superior performance and stability. Common applications include:

Virtualization and Cloud Infrastructure

High-capacity, high-speed memory modules allow multiple virtual machines to run concurrently without performance degradation. Cloud service providers can leverage these modules for scalable compute resources, ensuring customer workloads operate efficiently.

Data Analytics and Artificial Intelligence

Memory-intensive applications, such as real-time analytics, AI model training, and large-scale simulations, benefit from DDR5’s high bandwidth and low latency. This module ensures rapid data access and processing speed for complex datasets.

Database Management Systems

Enterprise databases often require large amounts of fast-access memory to cache data and reduce disk I/O latency. The MEM-DR596L-HL01-ER56 enables smoother database performance, faster queries, and improved transaction throughput.

High-Performance Computing (HPC)

Scientific simulations, financial modeling, and other HPC workloads demand high-speed, reliable memory. The 5600MT/s speed and dual-rank configuration make this module suitable for such environments, ensuring consistent performance even under heavy load.

Optimizing Memory Performance

• Populate memory channels evenly for maximum bandwidth.
• Consider memory interleaving to improve data throughput.
• Regularly monitor memory health using server management tools.

Future-Proofing Enterprise Infrastructure

With the MEM-DR596L-HL01-ER56, enterprises can scale memory resources to meet growing computational demands without frequent upgrades. Its DDR5 architecture ensures compatibility with upcoming server generations and supports next-level workloads efficiently.
