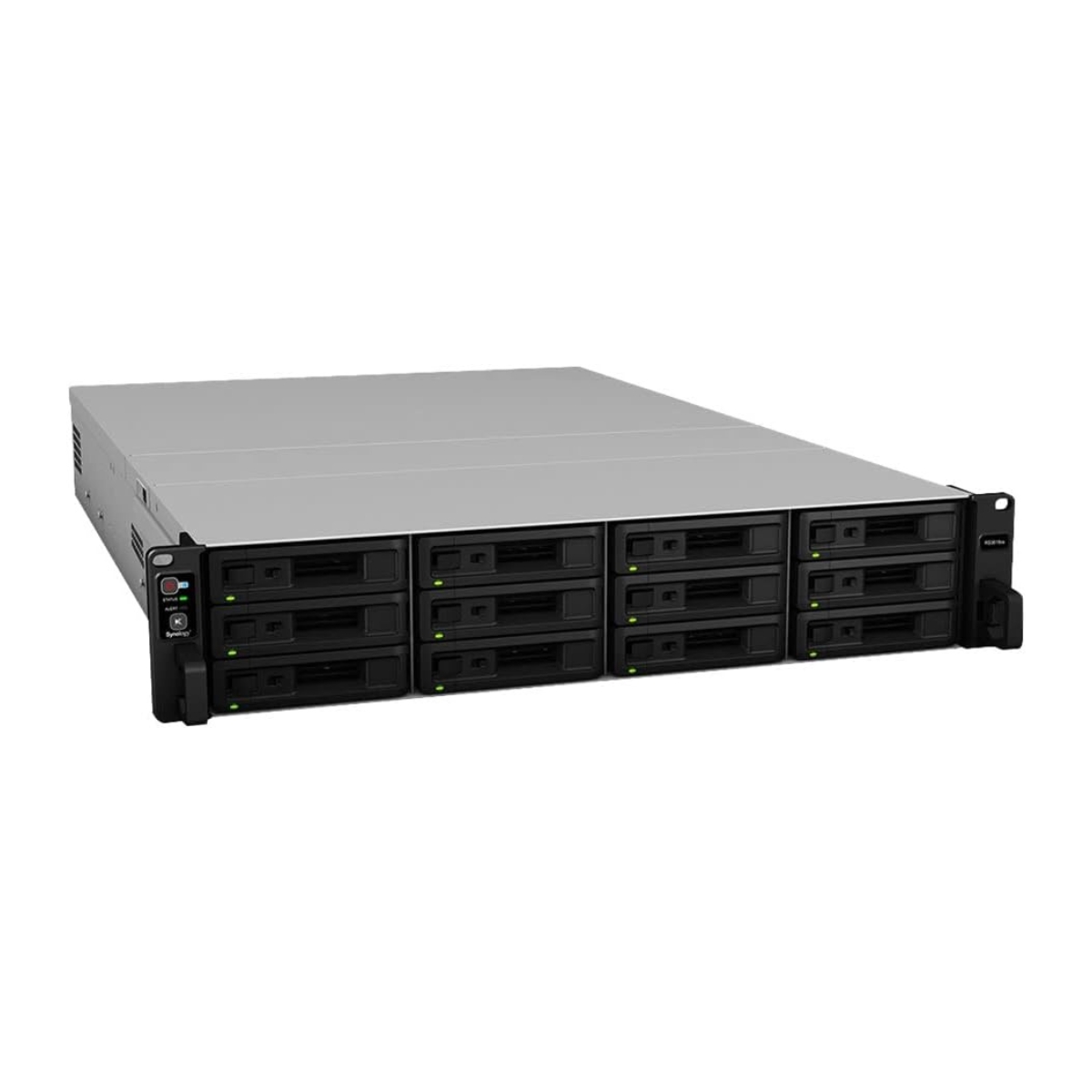

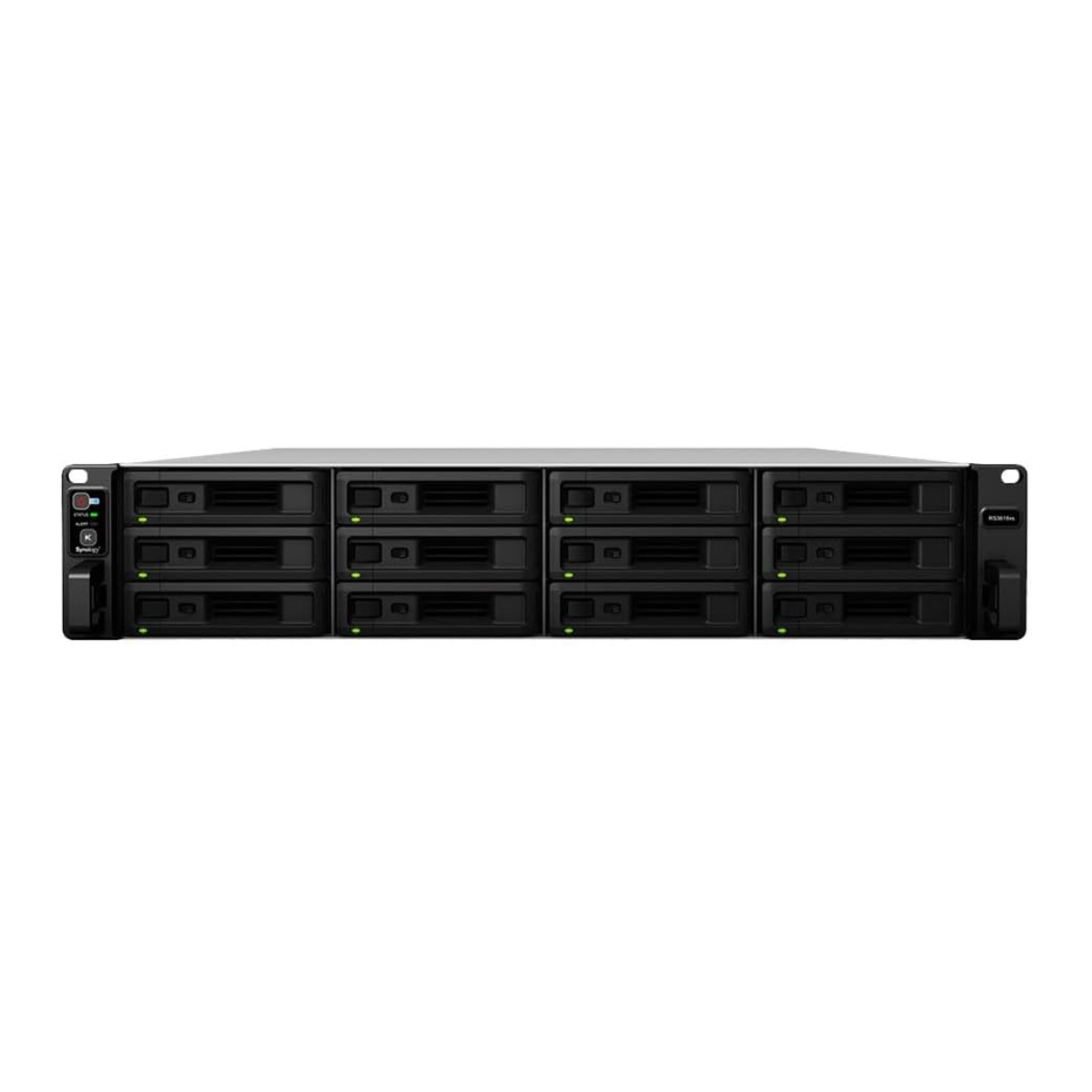

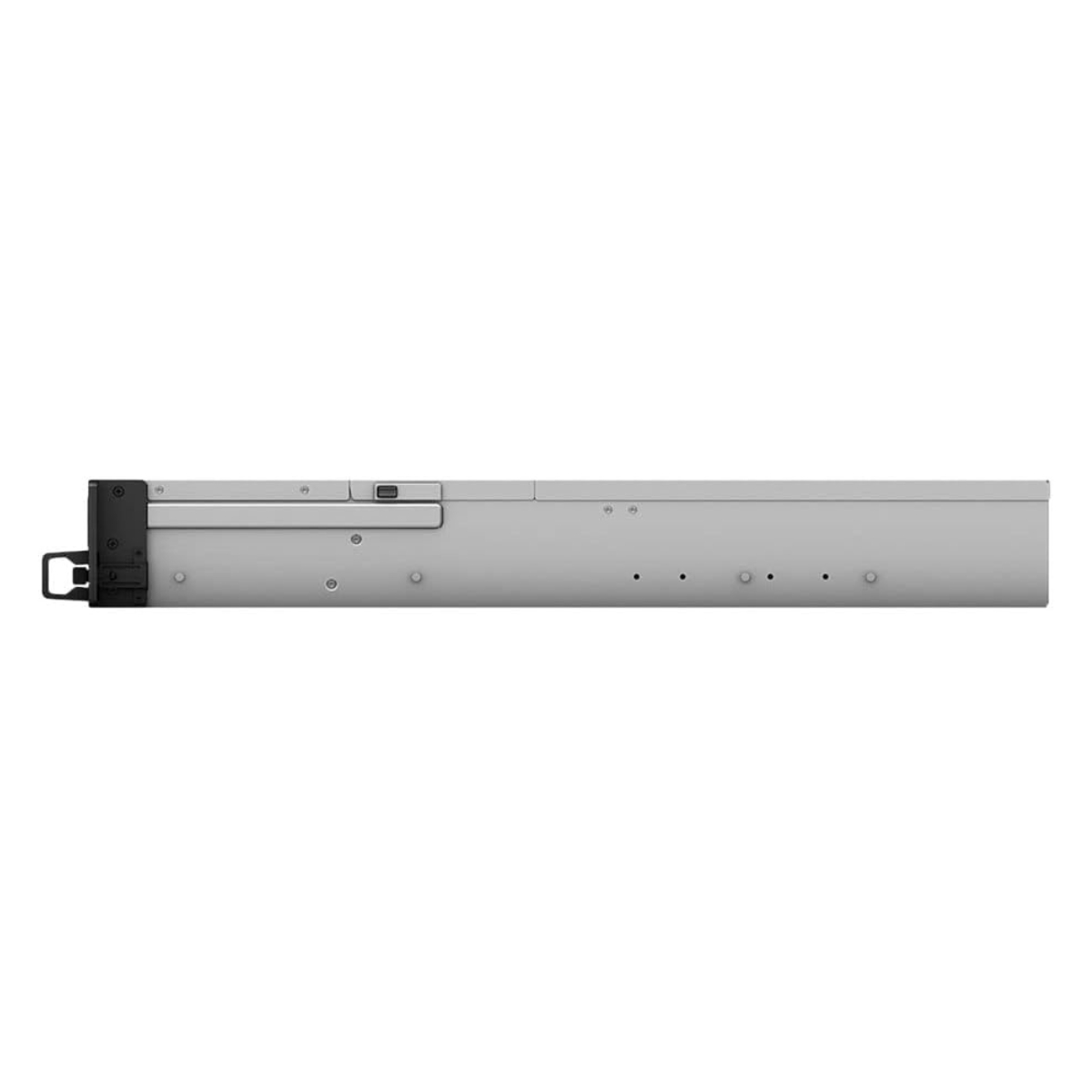

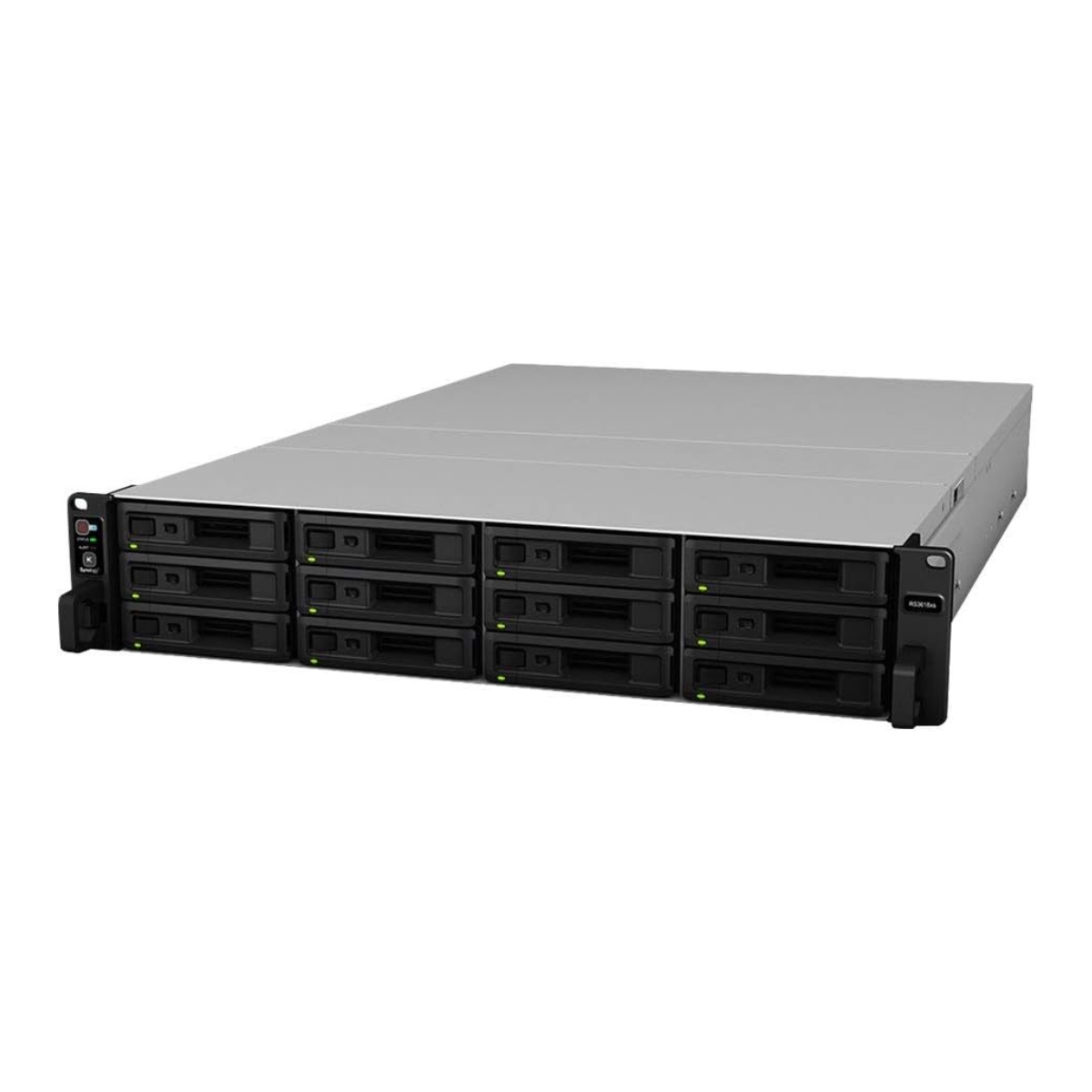

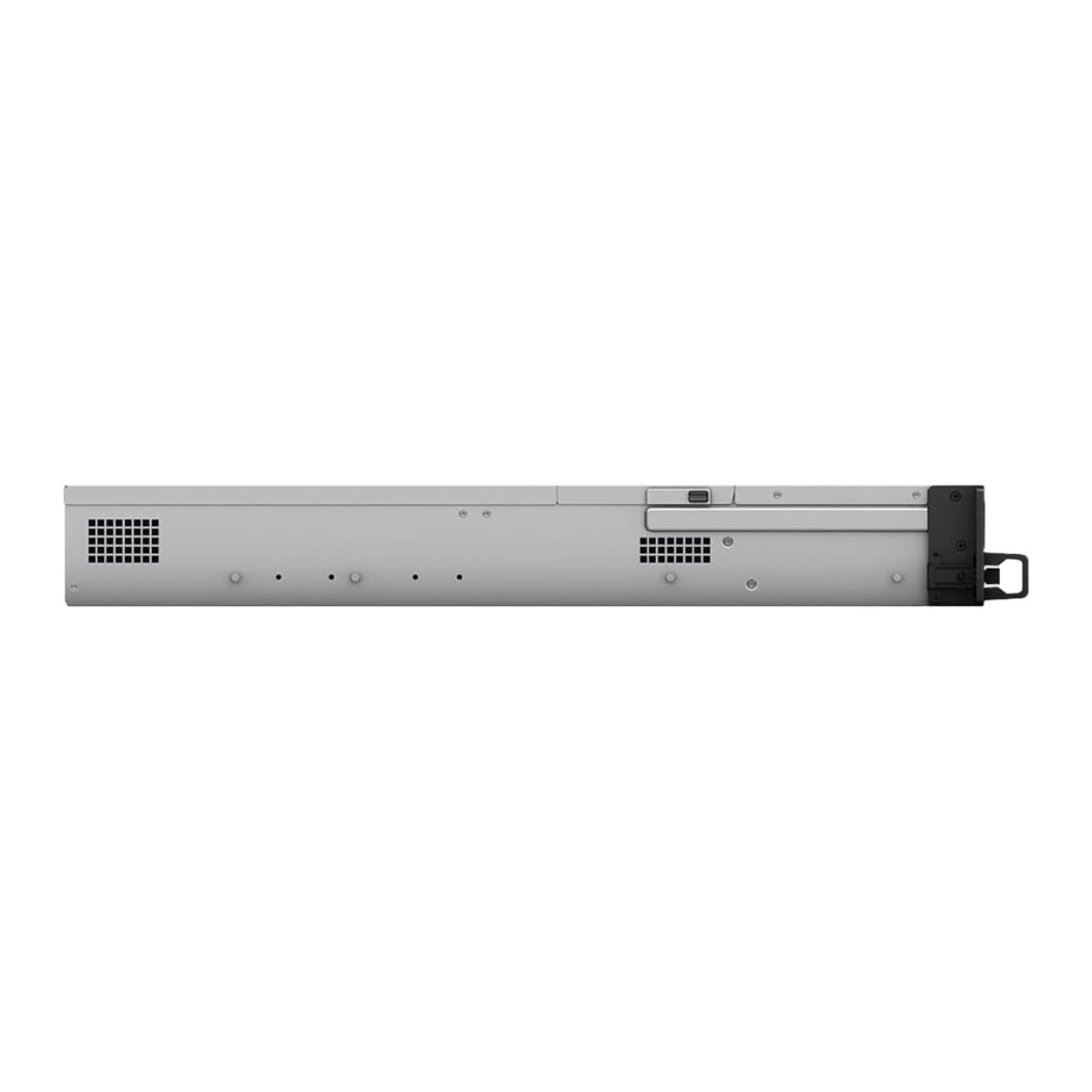

Synology RS3618XS NAS Storage System with Intel Xeon D-1521 Processor

Processor

When it comes to choosing a NAS storage system, the processor is a crucial factor to consider. The Synology RS3618XS is equipped with the powerful Intel Xeon D-1521 processor, which offers exceptional performance and reliability.

Main Information of RS3618XS

The SYNOLOGY RS3618XS is a robust 12-bay rackmount NAS designed for enterprise environments. Below are the key details about this high-performance storage solution:

Manufacturer Details

• Brand: SYNOLOGY
• Model Number: RS3618XS
• Product Category: Enterprise Rack Station
• Product Name: SYNOLOGY NAS RS3618XS 12-Bay 2U Rackmount NAS for Enterprise

CPU Specifications

• Model: Intel Xeon D-1521
• Quantity: 1
• Architecture: 64-bit
• Frequency: 2.4 GHz (base) / 2.7 GHz (turbo)
• Hardware Encryption: AES-NI support

Memory Details

• System Memory: 8 GB DDR4 ECC UDIMM
• Pre-installed Memory Module: 8 GB (1 x 8 GB)
• Total Memory Slots: 4
• Maximum Memory Capacity: 64 GB (16 GB x 4)

Storage Information

• Drive Bays: 12
• Expandable Drive Bays: Up to 36 (with RX1217/RX1217RP x 2)
• Compatible Drive Types:
• 3.5" SATA HDD
• 2.5" SATA HDD
• 2.5" SATA SSD
• Hot-Swappable Drives: Yes

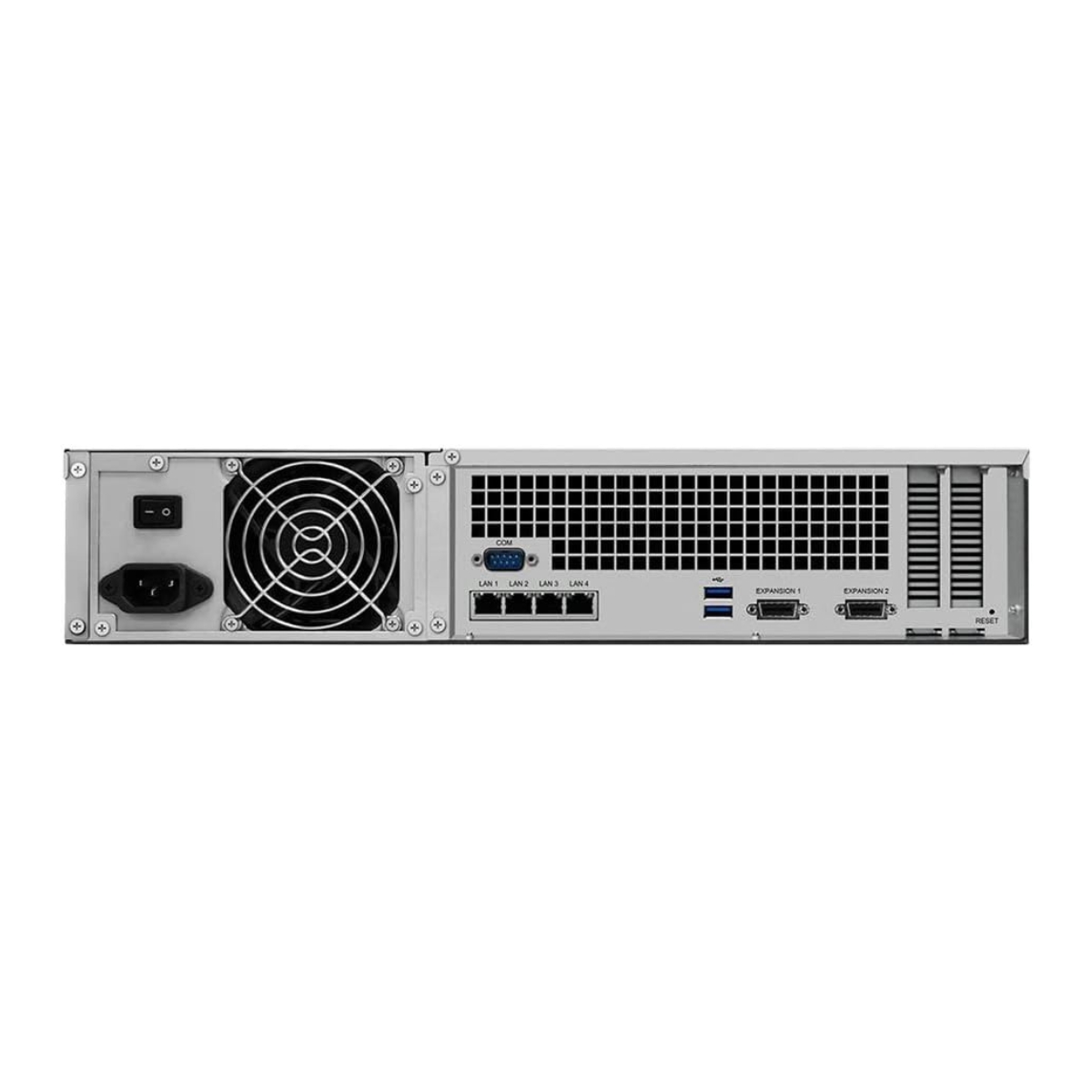

External Ports

• RJ-45 1GbE LAN Ports: 4 (Supports Link Aggregation / Failover)
• USB 3.2 Gen 1 Ports: 2
• Expansion Ports: 2
• Note: USB 3.0 is now referred to as USB 3.2 Gen 1 by USB-IF.

PCIe Expansion

• Slots: 2 x Gen3 x8 (x8 Link)

File System Compatibility

• Internal Drives: Btrfs, Ext4
• External Drives: Btrfs, Ext4, Ext3, FAT, NTFS, HFS+, ExFAT

Physical Dimensions

• Form Factor: 2U
• Size: 88 mm (H) x 482 mm (W) x 724 mm (D)
• Weight: 14.5 kg
• Rack Installation: 4-post 19” Rack (SYNOLOGY Rail Kit - RKS-02, sold separately)

Cooling and Power

• System Fans: 80 mm x 80 mm (4 pcs)
• Fan Speed Modes: Full-speed, Cool, Quiet
• Easy Fan Replacement: Yes
• Power Recovery: Yes
• Noise Level: 50.2 dB(A)
• Scheduled Power On/Off: Yes
• Wake On LAN/WAN: Yes
• Power Supply Unit: 500 W
• AC Input Voltage: 100 V to 240 V AC
• Power Frequency: 50/60 Hz, Single Phase
• Power Consumption: 142.76 W (active), 55.05 W (HDD hibernation)
• British Thermal Unit: 487.12 BTU/hr (active), 187.84 BTU/hr (HDD hibernation)

Temperature and Humidity

• Operating Temperature: 5°C to 35°C (40°F to 95°F)
• Storage Temperature: -20°C to 60°C (-5°F to 140°F)
• Relative Humidity: 5% to 95% RH

Unmatched Processing Power

The Intel Xeon D-1521 processor is a quad-core CPU that operates at a base frequency of 2.4GHz. It features Intel's Hyper-Threading technology, allowing it to handle up to 8 threads simultaneously. This means that the RS3618XS can effortlessly handle demanding tasks and process large amounts of data in record time.

Faster Data Transfer Speeds

With the Intel Xeon D-1521 processor, the RS3618XS NAS storage system delivers lightning-fast data transfer speeds. It supports the latest SATA and SAS drive technologies, ensuring that your data is transferred quickly and efficiently. Whether you are accessing files or performing backups, you can expect a seamless experience with minimal waiting time.

Efficient Multitasking

Thanks to its powerful processor, the RS3618XS excels at multitasking. It can handle multiple simultaneous tasks without compromising performance. This is particularly important for businesses that rely on their NAS storage system for critical operations. Whether you are running virtual machines, hosting applications, or serving files to multiple users, the RS3618XS can handle it all with ease.

Enhanced Security

The Intel Xeon D-1521 processor also enhances the security of the RS3618XS NAS storage system. It supports advanced encryption technologies, such as AES-NI (Advanced Encryption Standard New Instructions), which accelerate encryption and decryption operations. This ensures that your sensitive data remains protected at all times.

Reliability and Longevity

Another significant advantage of the Intel Xeon D-1521 processor is its reliability and longevity. It is built to withstand heavy workloads and operate under demanding conditions. This means that the RS3618XS can provide consistent performance and remain operational for extended periods without any issues. Whether you are using it for personal or business purposes, you can rely on the RS3618XS to deliver exceptional performance day in and day out.

Features

In addition to its powerful processor, the Synology RS3618XS NAS storage system boasts a range of features that make it an ideal choice for businesses of all sizes.

High-Performance

The RS3618XS is designed to deliver high-performance storage solutions. It supports SSD caching, allowing you to accelerate I/O performance by caching frequently accessed data. This significantly improves the overall system responsiveness and ensures that your applications run smoothly, even during peak usage periods.

Scalable

One of the key advantages of the RS3618XS is its scalability. It supports up to 36 drive bays, allowing you to expand your storage capacity as your business grows. Whether you need additional space for storing multimedia files, databases, or virtual machines, the RS3618XS can accommodate your needs without any hassle.

Reliable

Data protection is of utmost importance for businesses. The RS3618XS offers enterprise-level data protection features that ensure the safety and integrity of your valuable data. It supports RAID configurations, including RAID 1, RAID 5, RAID 6, and RAID 10, providing various levels of redundancy. Additionally, it offers hot-swappable drive support, allowing you to replace failed drives without downtime or data loss.

Enterprise-Level Data Protection

The RS3618XS NAS storage system also includes advanced data protection features such as snapshot replication. With snapshot replication, you can create point-in-time copies of your data, which can be used for quick and efficient disaster recovery. This feature is particularly crucial for businesses that cannot afford any downtime or data loss.

Built-in Snapshot Replication

Built-in snapshot replication is another standout feature of the RS3618XS. It allows you to schedule automatic snapshots of your data at regular intervals. These snapshots can be stored locally or replicated to offsite locations, providing an extra layer of data protection. In the event of a disaster or accidental data loss, you can easily restore your data from a previous snapshot, minimizing downtime and ensuring business continuity.

In conclusion, the Synology RS3618XS NAS storage system offers a powerful Intel Xeon D-1521 processor that provides unmatched processing power, faster data transfer speeds, efficient multitasking, enhanced security, reliability, and longevity. Its high-performance, scalability, reliability, enterprise-level data protection, and built-in snapshot replication features make it an ideal choice for businesses looking for a versatile and reliable storage solution. With the RS3618XS, you can enjoy seamless data management, exceptional performance, and peace of mind knowing that your valuable data is safe and protected.
