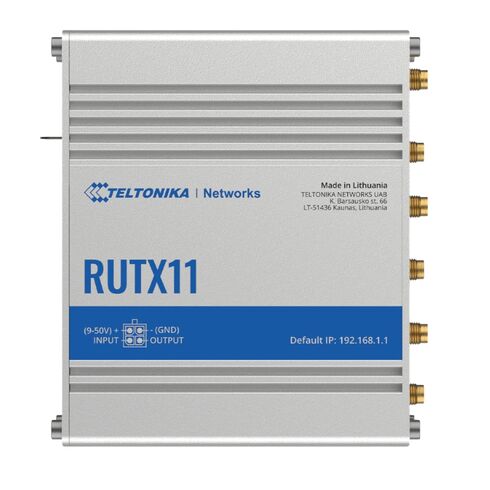

RUTX11100400 Teltonika Dual Sim Rutx11 Industrial Cellular Router

Teltonika Dual SIM Industrial Router

The Teltonika RUTX11100400 is a robust dual SIM industrial-grade cellular router designed for reliable connectivity in demanding environments. It offers advanced networking capabilities, versatile wireless features, and secure communication protocols.

General Information

• Brand: Teltonika
• Model Number: RUTX11100400
• Category: Cellular Router

Technical Specifications

Network Capabilities

Routing Functions

• Static Routing
• Dynamic Routing: BGP, OSPF v2, RIP v1/v2, NHRP

Supported Protocols

• TCP, UDP, IPv4, IPv6
• ICMP, NTP, DNS
• HTTP, HTTPS, FTP, SMTP
• SSL v3, TLS, ARP, VRRP
• PPP, PPPoE, UPnP, SSH
• DHCP, Telnet, SMPP, SNMP
• MQTT, Wake-on-LAN (WoL)

VoIP Support

• H.323 and SIP-ALG NAT helpers
• Ensures proper routing of VoIP traffic

DHCP Services

• Static and Dynamic IP Allocation
• DHCP Relay
• Relayd Support

Dynamic DNS

• Compatible with over 25 providers
• Manual configuration available

Network Backup Options

• WiFi WAN
• Mobile failover
• VRRP redundancy
• Wired fallback

Load Balancing

• Distributes traffic across multiple WAN connections

Hotspot Features

• Captive Portal
• Internal/External RADIUS Server
• SMS Authorization
• Customizable Landing Page
• User Groups and Management
• 9 Customizable Themes

SSHFS

• Mount remote file systems via SSH protocol

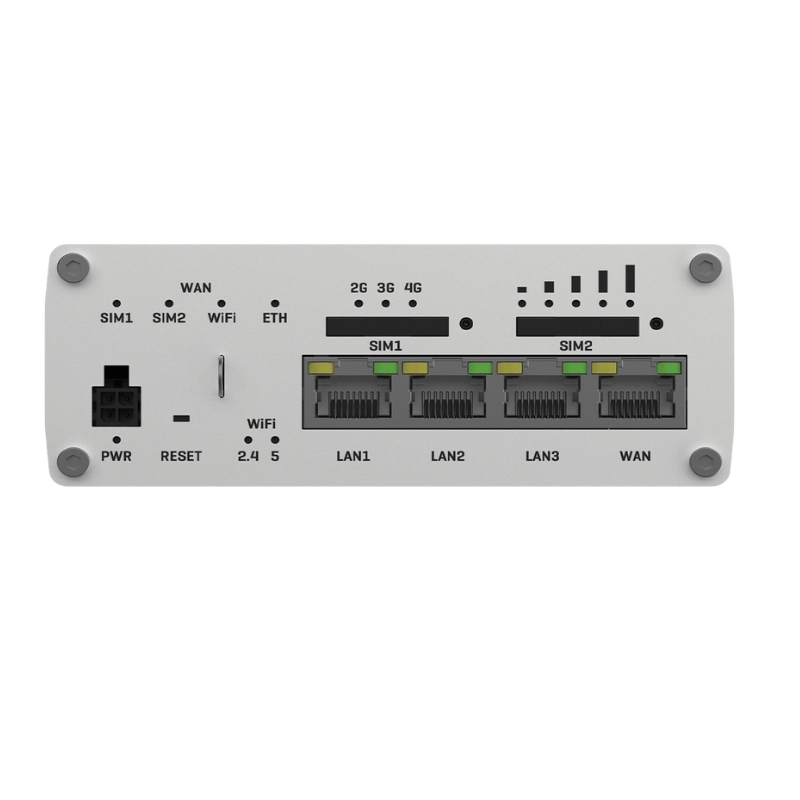

Ethernet Interfaces

WAN Port

• 1 x WAN port (10/100/1000 Mbps)
• IEEE 802.3, 802.3u, 802.3az compliance
• Auto MDI/MDIX crossover support

LAN Ports

• 3 x LAN ports (10/100/1000 Mbps)
• IEEE 802.3, 802.3u, 802.3az compliance
• Auto MDI/MDIX crossover support

Wireless Features

WiFi Modes

• 802.11b/g/n/ac Wave 2 (WiFi 5)
• Data rates up to 867 Mbps
• Dual-band MU-MIMO support
• 802.11r fast transition
• Access Point (AP) and Station (STA) modes

Wireless Security

• WPA2-Enterprise (PEAP)
• WPA2-PSK, WEP, WPA-EAP, WPA-PSK
• AES-CCMP, TKIP, Auto Cipher Modes
• Client Separation

SSID / ESSID Options

• ESSID Stealth Mode

WiFi User Capacity

• Supports up to 150 simultaneous connections

Wireless Hotspot

• Captive Portal
• Internal/External RADIUS Server
• Customizable Landing Page

RUTX11100400 Dual SIM RUTX11 Router Overview

The Teltonika RUTX11100400 Dual SIM RUTX11 Industrial Cellular Router represents a new generation of professional-grade networking equipment engineered for mission-critical connectivity. Designed and manufactured by :contentReference[oaicite:0]{index=0} in :contentReference[oaicite:1]{index=1}, the RUTX11 combines high-speed 4G LTE connectivity, advanced routing capabilities, and industrial durability into a compact yet powerful device. This category of industrial cellular routers is purpose-built for demanding environments such as manufacturing plants, transportation systems, smart city deployments, retail networks, and energy infrastructure.

The RUTX11 category focuses on delivering robust wireless WAN access with dual SIM failover, multiple Ethernet ports, WiFi 5 support, and extensive remote management functionality. It is not simply a mobile router but a comprehensive industrial networking solution tailored for professional and enterprise deployments that require stable uptime, secure data transmission, and flexible configuration.

Industrial Cellular Router Architecture and Design

High-Performance Hardware Platform

The Teltonika RUTX11 is built on a powerful quad-core ARM Cortex A7 CPU platform designed to handle intensive data processing, VPN encryption, firewall rules, and advanced routing protocols simultaneously. Industrial networking equipment in this category must sustain high throughput while maintaining reliability in fluctuating temperature conditions and electrically noisy environments. The RUTX11 addresses these challenges with industrial-grade components and a rugged aluminum housing.

The hardware architecture supports Gigabit Ethernet connectivity across multiple LAN ports, enabling seamless integration with switches, IP cameras, PLC controllers, industrial PCs, and other network endpoints. Unlike consumer-grade routers, this category emphasizes deterministic performance and reduced latency under heavy load.

Industrial-Grade Casing and Mounting Options

The aluminum enclosure of the RUTX11 ensures optimal heat dissipation while providing protection against vibration and environmental stress. DIN rail mounting compatibility allows for clean installation inside industrial cabinets and control panels. The compact form factor enables deployment in space-constrained installations such as vehicle compartments, kiosks, or telecom cabinets.

Operating temperature tolerance and resistance to power fluctuations are key differentiators within the industrial cellular router category. The RUTX11 is engineered to maintain consistent performance in challenging field conditions where consumer routers would fail.

Dual SIM Redundancy and Failover Capabilities

Automatic WAN Failover Mechanisms

One of the defining features of the Teltonika RUTX11100400 model is its dual SIM capability. This functionality allows the router to host two separate cellular network operators simultaneously, ensuring uninterrupted connectivity. If the primary SIM loses signal strength, encounters network congestion, or experiences downtime, the device automatically switches to the secondary SIM.

This dual SIM redundancy is critical in industries where even a few seconds of connectivity loss can lead to operational disruption, financial loss, or safety risks. Applications such as remote monitoring, point-of-sale systems, telemetry, and industrial automation rely heavily on constant data transmission.

Load Balancing and Network Optimization

Beyond failover, the RUTX11 category supports load balancing between WAN interfaces. This means traffic can be intelligently distributed across multiple connections to optimize bandwidth utilization and improve overall throughput. Network administrators can configure policies that prioritize specific applications, ensuring critical data flows are never interrupted.

Advanced LTE and Wireless Connectivity

4G LTE Cat 6 Technology

The RUTX11 supports LTE Category 6 technology, enabling high download and upload speeds suitable for data-intensive industrial applications. Carrier aggregation enhances performance by combining multiple frequency bands, delivering faster and more stable connectivity compared to lower LTE categories.

For organizations deploying remote surveillance systems, digital signage, or IoT gateways, this level of cellular performance ensures smooth data transfer and real-time communication.

WiFi 5 Dual-Band Performance

In addition to cellular WAN, the Teltonika RUTX11 includes dual-band 802.11ac WiFi support. This enables both 2.4 GHz and 5 GHz wireless connectivity for local devices. The 5 GHz band offers higher speeds and reduced interference, ideal for bandwidth-heavy applications, while 2.4 GHz provides extended range for IoT sensors and legacy devices.

The ability to function simultaneously as a cellular gateway and WiFi access point expands deployment flexibility across retail stores, offices, construction sites, and transportation hubs.

Comprehensive Networking and Routing Features

The RUTX11 is equipped with multiple Gigabit Ethernet ports, including WAN and LAN configurations that allow complex network topologies. VLAN tagging and port-based segmentation enable network isolation for security and traffic management purposes. Industrial users benefit from the flexibility to separate operational technology (OT) networks from information technology (IT) networks within the same router.

Energy, Utilities, and Remote Infrastructure

Remote Monitoring in Harsh Environments

Energy production sites, wind farms, oil and gas facilities, and water treatment plants often operate in remote or harsh environments. The Teltonika RUTX11 category supports these deployments by delivering secure remote access and telemetry communication over cellular networks.

Its rugged design and wide voltage input range ensure compatibility with industrial power systems and backup battery configurations.

Critical Infrastructure Resilience

Redundant connectivity options, strong encryption, and stable hardware performance make the RUTX11 an ideal solution for critical infrastructure sectors where downtime is unacceptable. The combination of dual SIM, wired WAN backup, and advanced failover logic guarantees maximum availability.

Compatibility with Emerging Technologies

Industrial networking evolves rapidly with the growth of edge computing, cloud platforms, and 5G networks. While the RUTX11 is a 4G LTE device, its flexible configuration and software capabilities ensure compatibility with hybrid environments that combine wired, wireless, and cellular technologies.
