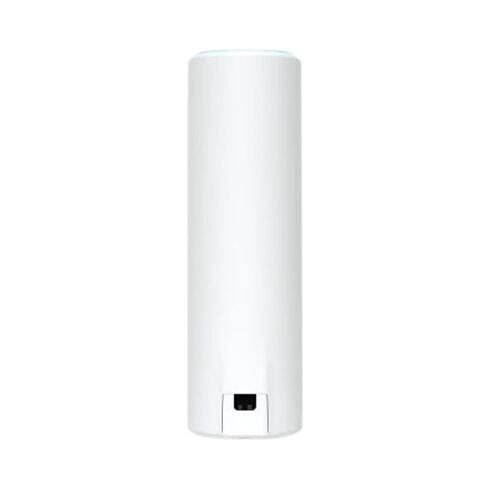

U6-MESH-US Ubiquiti Unifi U6 Mesh Access Point.

Ubiquiti U6-MESH-US UniFi WiFi 6 Mesh Access Point

The Ubiquiti U6-MESH-US UniFi Mesh Access Point is a high-performance wireless device designed to deliver seamless connectivity with Wi-Fi 6 technology. Offering robust throughput, advanced security, and flexible deployment, it is ideal for both enterprise and residential environments.

General Information

• Manufacturer: Ubiquiti
• Part Number: U6-MESH-US
• Device Type: Wireless Access Point

Technical Specifications

Wireless Standards

• Standard: Wi-Fi 6 (802.11ax)
• Backward Compatibility: 802.11a/b/g/n/ac

Performance Metrics

• Throughput (5 GHz): 4.8 Gbps (4x4 MU-MIMO)
• Throughput (2.4 GHz): 573.5 Mbps (2x2 MIMO)
• Aggregate Speed: High-capacity wireless performance

Antenna Specifications

• Integrated Antennas: Yes
• Gain (2.4 GHz): 3 dBi
• Gain (5 GHz): 5 dBi

Connectivity & Power

• Ethernet Port: 1 x 10/100/1000 Mbps RJ45
• Power Source: PoE (802.3af)
• Max Power Consumption: 11.4W

Physical Dimensions

• Size: Ø48.5 x 159.5 mm (Ø1.9 x 6.3")
• Weight: 400 g

Security Features

• WPA-PSK
• WPA-Enterprise
• WPA2
• WPA3

Environmental Specifications

• Operating Temperature: -30°C to 60°C (-22°F to 140°F)
• Durability: Robust design for diverse conditions

Ubiquiti U6-MESH-US UniFi U6 Mesh Access Point Performance

The Ubiquiti U6-MESH-US UniFi U6 Mesh Access Point is a powerful WiFi 6 solution engineered to deliver reliable, high-speed wireless connectivity in both indoor and outdoor environments. Designed as part of the UniFi ecosystem, this compact yet robust access point enables seamless mesh networking, simplified centralized management, and enhanced performance for modern bandwidth-intensive applications. Businesses, enterprises, hospitality venues, educational institutions, and advanced home users can leverage this device to create scalable and secure wireless infrastructures.

WiFi 6 (802.11ax) Technology for Enhanced Throughput

Built on the IEEE 802.11ax standard, the UniFi U6 Mesh Access Point introduces next-generation wireless performance with improved spectral efficiency, higher data rates, and better client density handling. WiFi 6 technology enhances user experiences by supporting Orthogonal Frequency Division Multiple Access (OFDMA), Target Wake Time (TWT), and advanced MU-MIMO capabilities. These features collectively reduce latency, increase capacity, and improve overall network responsiveness in crowded environments.

Dual-Band High-Speed Wireless Connectivity

The U6-MESH-US operates on both 2.4 GHz and 5 GHz frequency bands, delivering optimized coverage and performance. The 2.4 GHz band ensures broader coverage and better penetration through walls and obstacles, while the 5 GHz band provides faster speeds and reduced interference for high-demand applications such as video conferencing, 4K streaming, VoIP communications, and cloud-based workloads.

Optimized for High-Density Deployments

In high-density environments such as offices, conference centers, retail stores, and campuses, the UniFi U6 Mesh Access Point efficiently manages numerous concurrent client connections. Advanced spatial stream support and intelligent radio resource management help balance loads and maintain consistent performance across multiple devices.

Seamless Mesh Networking Capabilities

The defining feature of the Ubiquiti U6-MESH-US is its seamless mesh integration within the UniFi ecosystem. This access point supports wireless uplink functionality, allowing administrators to extend network coverage without extensive cabling infrastructure. By creating interconnected access points that communicate wirelessly, organizations can eliminate dead zones and ensure consistent WiFi coverage throughout large properties.

Wireless Uplink and Flexible Placement

Wireless uplink capability enables the U6 Mesh Access Point to connect to another UniFi access point wirelessly, simplifying installations in areas where Ethernet cabling may be limited or impractical. This flexibility supports rapid deployment across warehouses, outdoor patios, multi-story buildings, and temporary event spaces.

Automatic Topology Optimization

Within the UniFi network environment, mesh nodes automatically optimize their topology to maintain stable connectivity. Intelligent routing ensures that traffic follows the most efficient path, minimizing latency and maximizing throughput.

Indoor and Outdoor Deployment Versatility

The Ubiquiti U6-MESH-US is designed with a weather-resistant enclosure suitable for both indoor and outdoor use. Its durable housing withstands environmental elements, making it ideal for exterior walls, patios, courtyards, and outdoor seating areas. This flexibility reduces the need for separate indoor and outdoor access point models, simplifying procurement and standardization.

Weather-Resistant Construction

With a robust enclosure built to endure temperature variations and moisture exposure, the UniFi U6 Mesh Access Point ensures long-term reliability. Its compact cylindrical form factor allows discreet mounting in visible areas without compromising aesthetics.

Flexible Mounting Options

The device supports wall and pole mounting configurations, offering versatility in deployment scenarios. Whether installed in a commercial building lobby or mounted outdoors for perimeter coverage, the access point integrates seamlessly into diverse architectural settings.

Centralized Management with UniFi Network Controller

As part of the UniFi ecosystem, the U6-MESH-US is managed through the UniFi Network Controller. Administrators gain centralized visibility and control over multiple access points, switches, and gateways from a unified dashboard. This platform streamlines configuration, monitoring, firmware updates, and performance analytics.

Cloud-Based and On-Premises Management

The UniFi Network Controller can be deployed on-premises or accessed via cloud integration, enabling remote network administration. IT teams can configure SSIDs, VLANs, security policies, guest portals, and traffic shaping rules from a single interface.

Advanced Analytics and Monitoring

Real-time insights into device health, client activity, bandwidth consumption, and signal strength allow proactive network management. Detailed reporting supports troubleshooting, capacity planning, and performance optimization.

Enhanced Security Features for Enterprise Networks

Security remains a priority in modern wireless networks, and the UniFi U6 Mesh Access Point incorporates advanced encryption and authentication mechanisms. Supporting WPA3 security protocols alongside legacy WPA2 compatibility, the device ensures secure client connections while maintaining backward compatibility.

Secure Guest Network Isolation

Organizations can configure isolated guest networks to protect internal resources. Captive portal functionality enables branded guest access experiences, user authentication, and usage policies tailored to hospitality, retail, and educational environments.

VLAN Segmentation and Traffic Control

Virtual LAN support allows segmentation of network traffic, separating departments, IoT devices, and administrative systems. Traffic shaping and firewall integration further enhance data protection and bandwidth management.

Power over Ethernet (PoE) Integration

The Ubiquiti U6-MESH-US supports Power over Ethernet, simplifying installation by combining data and power delivery through a single Ethernet cable. This feature reduces cable clutter and eliminates the need for nearby power outlets.

Efficient Energy Consumption

Engineered for energy efficiency, the access point optimizes power usage without sacrificing performance. Intelligent power management contributes to reduced operational costs and sustainable IT infrastructure planning.

Scalability for Growing Network Demands

Scalability is a core advantage of the UniFi platform. The U6 Mesh Access Point can be deployed individually or as part of a larger network consisting of multiple UniFi devices. As organizations expand, additional access points can be seamlessly integrated without complex reconfiguration.

Expanding Client Ecosystems

With the proliferation of smartphones, tablets, IoT sensors, and wireless workstations, network demands continue to grow. The U6-MESH-US accommodates increasing device counts while maintaining reliable performance across the network.

Future-Ready Infrastructure

WiFi 6 technology ensures compatibility with next-generation devices and applications. By investing in the UniFi U6 Mesh Access Point, organizations prepare their wireless infrastructure for evolving digital transformation initiatives.

Performance Optimization for Business Applications

Modern enterprises rely on cloud applications, collaboration platforms, and real-time communications. The U6 Mesh Access Point prioritizes low-latency traffic and ensures stable connectivity for mission-critical operations.

Voice and Video Communications

High-definition video conferencing and VoIP services require consistent bandwidth and minimal packet loss. The advanced radio design of the U6-MESH-US supports smooth audio and video performance even in demanding environments.

Reliable Streaming and Data Transfer

From multimedia streaming in hospitality venues to large file transfers in corporate offices, the access point delivers high throughput and dependable performance. Enhanced beamforming technology directs signals toward connected clients, improving signal strength and reliability.

Design and Aesthetic Integration

The sleek cylindrical design of the UniFi U6 Mesh Access Point complements modern architectural spaces. Its minimalistic appearance allows discreet installation in visible areas such as reception zones, retail floors, and outdoor terraces.

Compact Form Factor

The device’s small footprint reduces visual clutter while maintaining powerful internal antenna configurations. Its design supports both functionality and aesthetic appeal.

Use Cases Across Industries

The Ubiquiti U6-MESH-US serves a wide array of industries seeking high-performance wireless connectivity.

Enterprise Offices

Corporate environments benefit from scalable WiFi 6 connectivity that supports remote collaboration tools, unified communications, and secure internal systems.

Hospitality and Retail

Hotels, restaurants, and retail stores can deploy the U6 Mesh Access Point to provide seamless guest WiFi while maintaining secure back-office operations.

Educational Institutions

Schools and universities require robust wireless networks capable of supporting e-learning platforms, digital classrooms, and student devices.

Outdoor Event Spaces

Weather-resistant construction and mesh capabilities make the device suitable for outdoor venues, event grounds, and recreational facilities.

Integration Within the UniFi Ecosystem

The U6-MESH-US integrates effortlessly with other UniFi switches, security gateways, and cloud management solutions. This unified approach simplifies deployment and ensures compatibility across the network infrastructure.

Unified Configuration Interface

Administrators manage wireless networks, wired switching, and security policies through a centralized interface, reducing operational complexity.

Firmware Consistency and Updates

Automated firmware updates keep the network secure and optimized. Consistent software management ensures uniform performance across all deployed devices.

Technical Advantages of the UniFi U6 Mesh Access Point

The Ubiquiti U6-MESH-US combines advanced antenna design, high-performance chipsets, and intelligent firmware optimization. These elements contribute to improved signal quality, broader coverage, and enhanced client experiences.

Advanced Antenna Design

Integrated antennas are optimized for balanced coverage patterns, minimizing interference and maximizing usable signal strength.

Low-Latency Network Experience

Efficient packet scheduling and enhanced wireless protocols ensure responsive connectivity for cloud-based applications and real-time services.

Optimized Deployment for Modern Wireless Infrastructure

The Ubiquiti U6-MESH-US UniFi U6 Mesh Access Point represents a strategic investment in high-speed, secure, and scalable wireless networking. Its WiFi 6 capabilities, mesh expansion support, centralized management, and versatile deployment options position it as a preferred solution for organizations seeking enterprise-grade wireless performance across indoor and outdoor environments.
