UCSC-PCIEQD16GF Cisco Qlogic Dual-Ports 16Gbps Fibre Channel Host Bus Adapter.

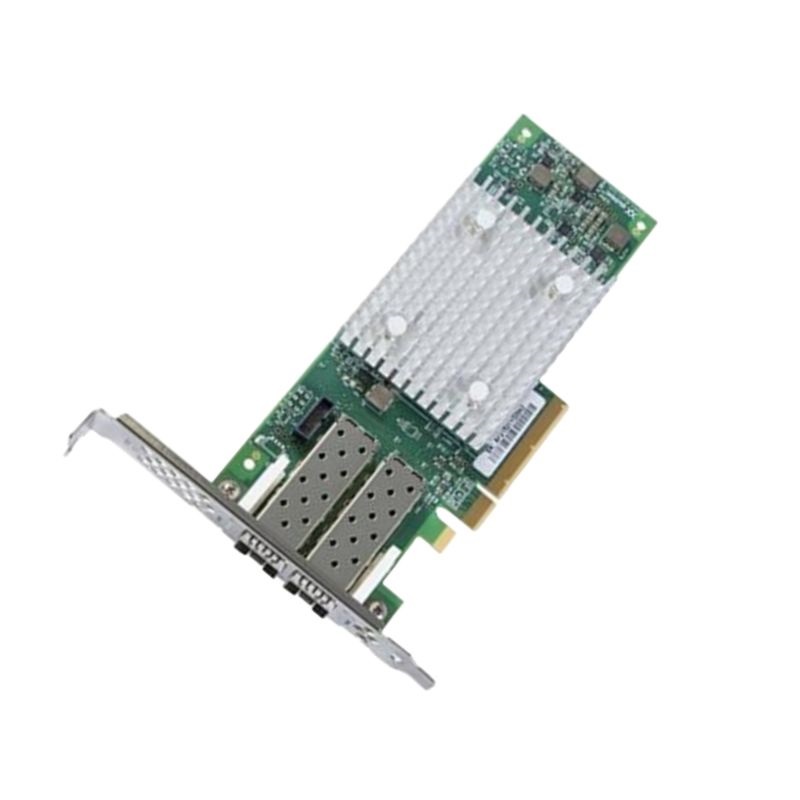

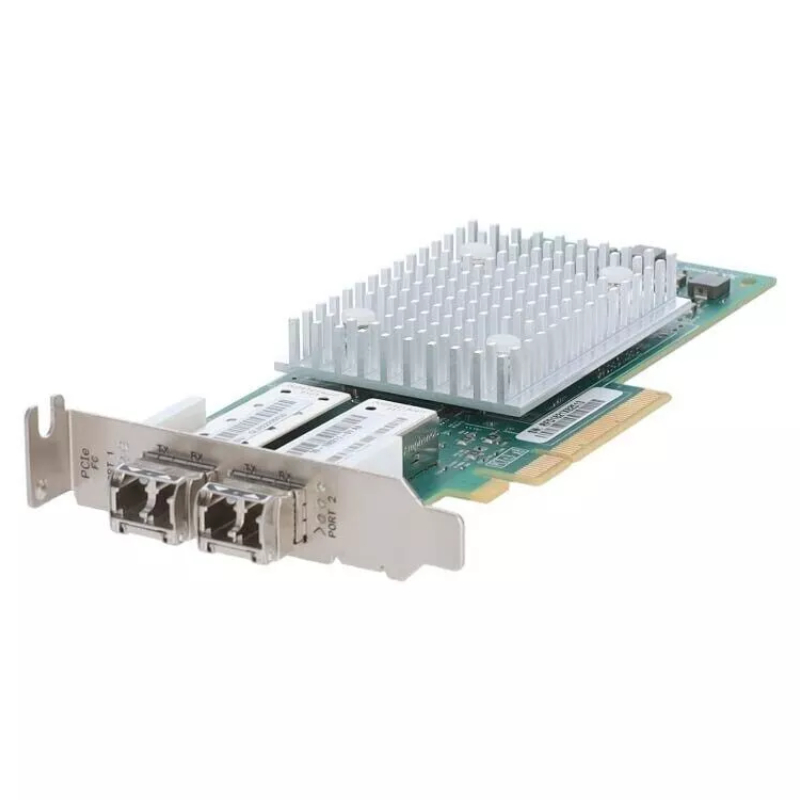

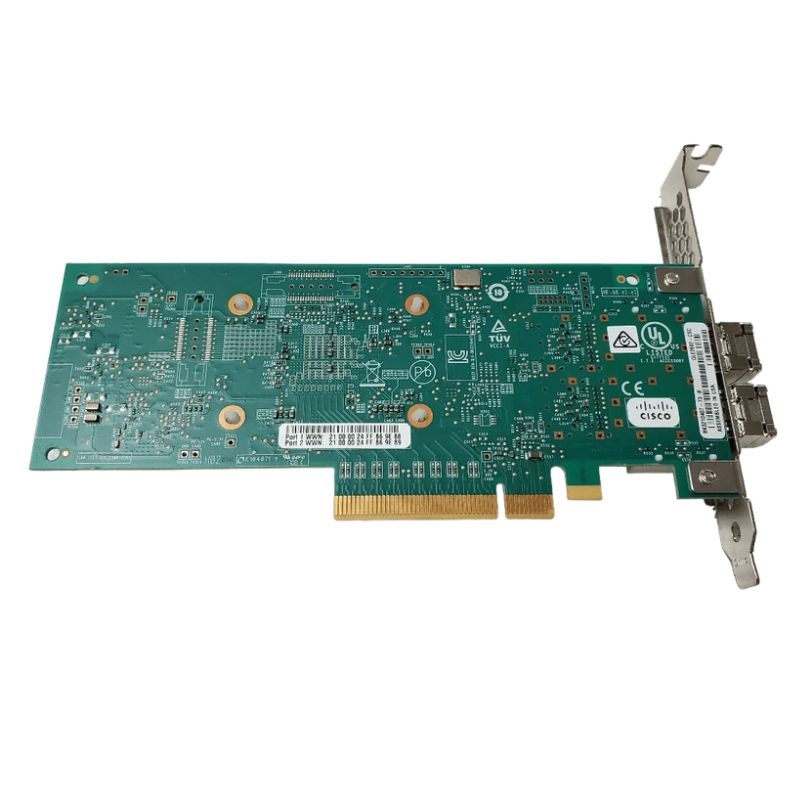

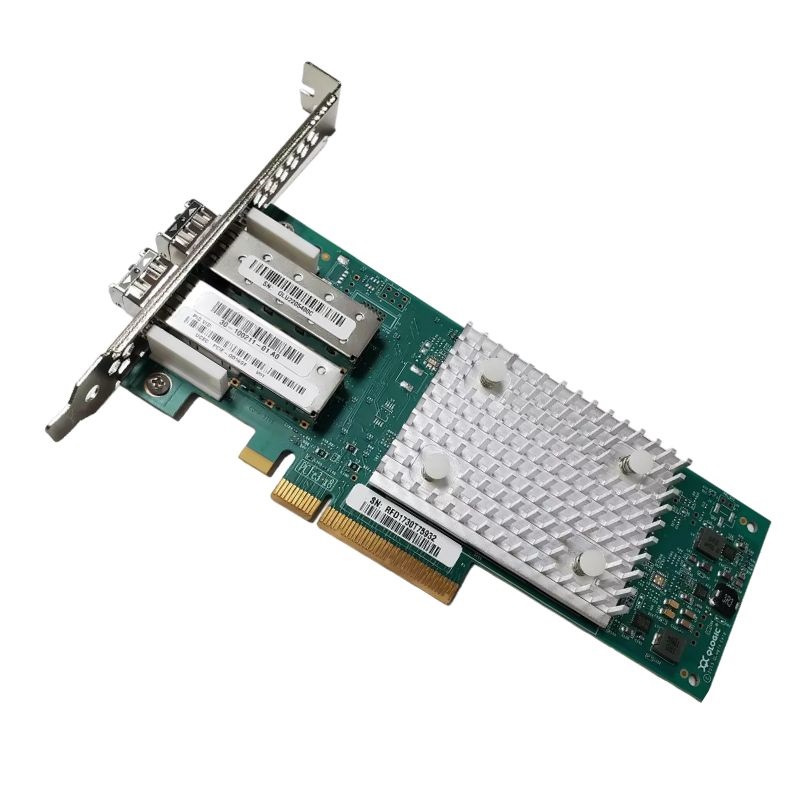

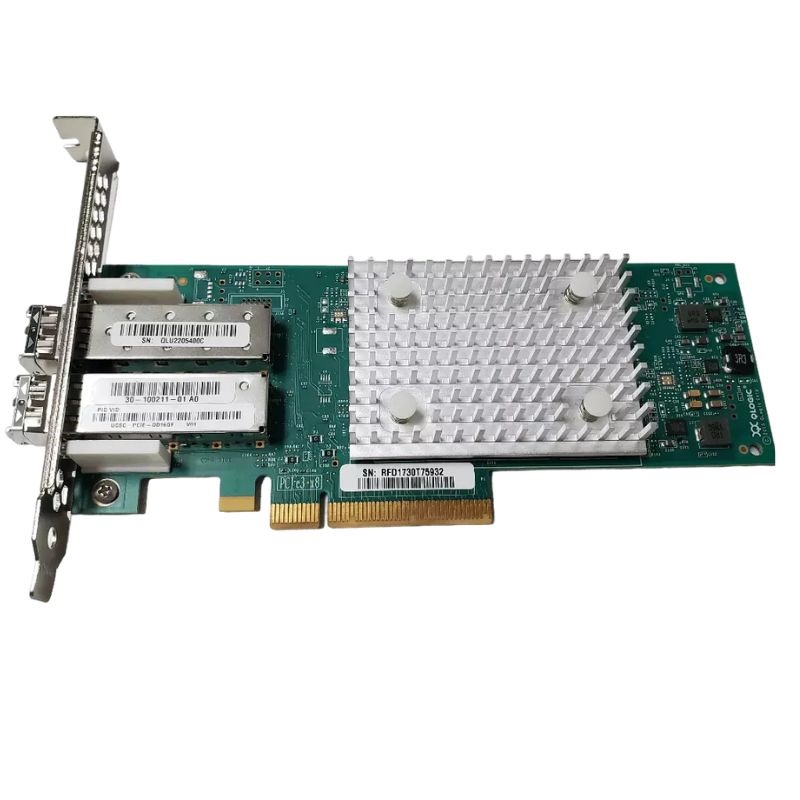

Cisco UCSC-PCIEQD16GF Fibre Channel Host Bus Adapter

The Cisco UCSC-PCIEQD16GF QLogic QLE2692 Dual-Port 16Gbps Fibre Channel Host Bus Adapter represents a highly specialized class of enterprise storage networking hardware designed to deliver reliable, high-speed connectivity between servers and Storage Area Networks (SANs). Built on advanced Fibre Channel architecture, this adapter is engineered to meet the growing demands of virtualization, cloud computing, and high-density data center environments where predictable performance and low latency are essential for maintaining business continuity and application responsiveness.

As part of the Fibre Channel host bus adapter category, this device plays a crucial role in enabling servers to communicate with storage arrays over dedicated high-speed Fibre Channel fabrics. Unlike general-purpose Ethernet-based storage solutions, Fibre Channel HBAs are optimized for deterministic traffic flow, minimal protocol overhead, and enhanced reliability, making them ideal for enterprise storage infrastructures that require consistent throughput and ultra-low latency data transfers.

Core Design Philosophy of Dual-Port 16Gbps Fibre Channel Adapters

The dual-port architecture of this 16Gbps Fibre Channel HBA provides redundancy, load balancing, and increased aggregate bandwidth for enterprise workloads. Each port operates independently, allowing simultaneous communication with multiple SAN switches or storage controllers. This ensures that even in the event of a port or path failure, data traffic can be rerouted without disruption, maintaining high availability for critical applications.

Designed for PCI Express-based server platforms, the adapter integrates seamlessly into modern data center infrastructure, leveraging PCIe bandwidth to eliminate bottlenecks between server CPU and storage fabric. This makes it suitable for environments running virtual machines, large databases, enterprise resource planning systems, and high-performance analytics workloads.

Optimized Data Throughput and Low Latency Performance

With support for 16Gbps per port Fibre Channel connectivity, the adapter ensures high-speed data transmission that significantly reduces storage access latency. This is particularly important in environments where applications depend on rapid read and write operations to shared storage resources. The combination of hardware-based offloading and protocol optimization allows the adapter to process storage traffic efficiently without placing excessive load on host CPU resources.

Advanced Fibre Channel Networking Capabilities for Enterprise Storage Systems

Reliable SAN Integration and Scalable Architecture

In modern data centers, scalability is a key requirement, and Fibre Channel networks are designed to support large-scale storage environments with thousands of connected devices. The Cisco UCSC-PCIEQD16GF QLogic QLE2692 HBA supports seamless integration into existing SAN fabrics, enabling enterprises to expand storage capacity without compromising performance or stability.

This host bus adapter is engineered to work with enterprise-class Fibre Channel switches and storage arrays, ensuring compatibility across a wide range of infrastructure components. Its ability to handle high-volume I/O operations makes it ideal for mission-critical applications such as financial transaction processing, healthcare databases, and large-scale virtualization platforms.

PCI Express Integration and Server Compatibility

Efficient Host Interface for High-Speed Data Processing

The PCI Express interface used in the Cisco UCSC-PCIEQD16GF QLogic QLE2692 adapter ensures efficient communication between the server motherboard and the Fibre Channel network. PCIe architecture provides high-bandwidth, low-latency connectivity that is essential for modern storage applications. This allows the adapter to fully utilize its dual 16Gbps ports without being constrained by host system limitations.

Designed for compatibility with enterprise-grade servers, the adapter can be deployed in rack-mounted systems, blade servers, and high-density compute nodes. Its form factor and interface standards ensure easy installation and integration into existing infrastructure without requiring extensive hardware modifications.

Hardware Offload and CPU Efficiency Optimization

One of the key advantages of Fibre Channel host bus adapters is their ability to offload storage processing tasks from the server CPU. This includes handling protocol processing, frame assembly, error correction, and flow control. By shifting these tasks to dedicated hardware, the adapter frees up CPU resources for application workloads, improving overall system efficiency.

This hardware acceleration is particularly beneficial in virtualized environments where multiple virtual machines share underlying physical resources. The reduction in CPU overhead allows for higher VM density and improved workload consolidation.

Enterprise-Class Driver and Firmware Support

The adapter is supported by robust driver and firmware ecosystems designed for enterprise operating systems. These drivers ensure stable performance, compatibility with SAN management tools, and access to advanced configuration options. Firmware updates provide ongoing improvements in performance, security, and interoperability with evolving storage technologies.

High-Performance Storage Networking for Virtualized Data Centers

Optimized for Virtual Machine and Cloud Workloads

Virtualization has become a cornerstone of modern IT infrastructure, and storage performance plays a critical role in ensuring smooth operation of virtual environments. The dual-port Fibre Channel HBA is optimized to handle high I/O workloads generated by virtual machines, ensuring consistent performance even under heavy demand.

In cloud environments, where multiple tenants share storage resources, predictable performance is essential. Fibre Channel networks provide isolated, lossless communication channels that reduce contention and ensure fair resource allocation across workloads.

Support for High-Density Storage Environments

As data centers evolve toward higher density and greater consolidation, storage networking hardware must scale accordingly. This adapter supports high-density environments by enabling efficient communication between large numbers of servers and centralized storage arrays. Its architecture ensures that performance remains stable even as storage demand increases.

Enterprise Storage Area Network Architecture and Deployment

Integration into Modern SAN Topologies

Storage Area Networks are designed to centralize data storage and provide high-speed access to multiple servers. The Cisco UCSC-PCIEQD16GF QLogic QLE2692 adapter integrates seamlessly into these SAN architectures, enabling efficient communication between compute and storage layers.

It supports traditional core-edge SAN topologies as well as modern flat and mesh architectures, making it adaptable to various deployment scenarios. This flexibility allows IT administrators to design storage networks that meet specific performance, redundancy, and scalability requirements.

Fabric-Based Connectivity and Zoning Support

Fibre Channel SANs rely on fabric-based switching and zoning mechanisms to control access between devices. The adapter supports these features, enabling administrators to define secure and efficient communication paths within the storage network. Zoning enhances security by restricting access to specific storage resources, while also improving performance by reducing unnecessary traffic.

Enterprise Security and Data Integrity Features

Security is a critical aspect of storage networking, and Fibre Channel environments provide built-in mechanisms to protect data in transit. The adapter supports secure communication protocols and error-checking mechanisms that ensure data integrity across the storage fabric. This is essential for industries that handle sensitive or regulated data.
