UCSC-RAILB-M4= Cisco Ball Bearing Rail Kit for C220 & C240.

Overview of UCSC-RAILB-M4=: Cisco Ball Bearing Rail Kit for C220 & C240 M4 & M5 Rack Servers

The UCSC-RAILB-M4= Ball Bearing Rail Kit is a crucial accessory for organizations that require efficient, secure, and reliable server installation in standard 19-inch server racks. Designed for compatibility with Cisco C220 and C240 M4 and M5 rack servers, this kit offers an essential solution for mounting your Cisco servers quickly and easily. Whether you're setting up a new rack or upgrading your existing infrastructure, the UCSC-RAILB-M4 ensures your server is supported and can be smoothly slid in and out of the rack with minimal effort.

What is the UCSC-RAILB-M4= Ball Bearing Rail Kit?

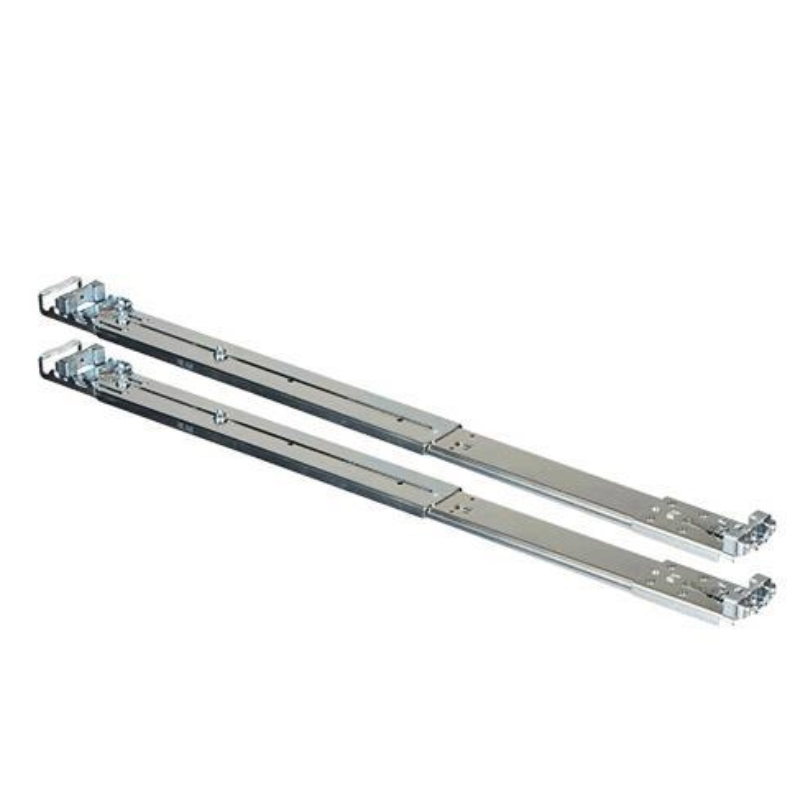

The UCSC-RAILB-M4= is a specialized rail kit engineered by Cisco for use with their C220 and C240 series M4 and M5 servers. This kit includes two rails, each equipped with durable ball bearings that enable smooth extension and retraction, facilitating efficient server handling. The rails are specifically designed to fit into the server rack, providing a secure and stable installation. Ball-bearing rails are widely used in data centers and server rooms due to their smooth movement and enhanced durability, which ensures minimal friction during the server installation and maintenance processes.

Key Features of the UCSC-RAILB-M4=

• Ball Bearing Technology: The use of ball bearing rails ensures smooth and easy sliding action when installing or removing your server from the rack.
• Compatible with Cisco C220 & C240 M4 & M5 Servers: The rail kit is tailored to fit Cisco's C220 and C240 rack servers, offering the perfect solution for these specific server models.
• Heavy-Duty Construction: Made from high-quality materials, the UCSC-RAILB-M4= is built to withstand the rigors of frequent server movement, offering long-lasting performance.
• Tool-Free Installation: The rail kit is designed for easy, tool-free installation, making it quicker and more convenient to set up your servers.
• Optimal Support for Rack Servers: These rails offer strong support for rack servers, ensuring that the servers are securely mounted and can be easily accessed for maintenance or upgrades.
• Standard 19-inch Rack Compatibility: The UCSC-RAILB-M4= is designed to fit into most 19-inch server racks, making it a versatile and flexible solution for various data center setups.

Optimized for Cisco Servers

As a Cisco-designed and approved accessory, the UCSC-RAILB-M4= is optimized for the C220 and C240 series servers. This means the rail kit is specifically designed to fit these models, providing a perfect and secure fit. This compatibility ensures that your servers will remain securely mounted within the rack, preventing any movement or instability that could lead to damage or poor performance.

Improved Server Management

Effective server management is key to maintaining a data center’s performance. The UCSC-RAILB-M4's ball bearing rails provide a smooth, easy sliding mechanism for servers, allowing technicians to quickly and safely slide the server in and out of the rack. This ease of access is invaluable during routine maintenance or upgrades, ensuring minimal downtime and disruption.

Enhanced Durability and Longevity

Constructed with high-quality materials, the UCSC-RAILB-M4= rail kit is built to last. Ball bearings reduce friction and wear over time, ensuring a smoother sliding action and preventing the rails from becoming worn or damaged under heavy use. The longevity of the UCSC-RAILB-M4= rail kit ensures that it can handle frequent server installations and removals in high-demand environments, providing a long-lasting solution for your server infrastructure.

Easy and Tool-Free Installation

One of the standout features of the UCSC-RAILB-M4= is its ease of installation. The rail kit has been designed with a tool-free installation process in mind, making it quick and simple for data center professionals to mount their servers. The simplicity of the installation process also reduces the time and effort required to install the rails, improving overall productivity.

Understanding the Role of Ball Bearing Rails in Server Racks

Ball bearing rails are an essential component of server installations, particularly in environments that require frequent server management. These rails utilize ball bearings to reduce friction and facilitate smooth movement when the server is being slid in and out of the rack. This mechanism is particularly important for ensuring that heavy servers can be moved with ease, even in a confined or cramped server rack space.

The Importance of Smooth Server Movement

Servers in a rack are often installed and removed for routine maintenance, upgrades, or troubleshooting. The UCSC-RAILB-M4’s ball bearing rails enable a smooth sliding action that reduces wear and tear on both the server and the rack itself. Smooth movement reduces the risk of server damage during handling and allows technicians to perform maintenance tasks quickly and efficiently.

Reduced Friction and Wear

Ball bearings in the UCSC-RAILB-M4= rail kit reduce the friction that typically occurs when sliding servers in and out of the rack. This friction reduction extends the lifespan of both the rails and the server, ensuring that your equipment performs optimally over time. This is especially critical in high-traffic environments where servers are regularly moved in and out of racks for updates, repairs, or hardware swaps.

Improved Server Rack Efficiency

The use of ball bearing rails increases the overall efficiency of the server rack setup. With smooth operation, technicians can handle servers more efficiently, reducing downtime and improving the overall speed of maintenance tasks. This is especially beneficial in large data centers, where minimizing downtime is a priority.

UCSC-RAILB-M4= Installation Process

Step-by-Step Installation Guide

Installing the UCSC-RAILB-M4= rail kit is a simple process, and it can be completed in a few straightforward steps. The kit is designed for tool-free installation, meaning that it can be installed without the need for any special tools or expertise. Below is a step-by-step guide to installing the UCSC-RAILB-M4= rail kit.

Step 1: Prepare Your Rack

Before beginning the installation, ensure that your 19-inch rack is properly set up and that it has the necessary space to accommodate the Cisco C220 or C240 server. Ensure the rack is sturdy and level to avoid any complications during installation.

Step 2: Attach the Rails to the Server

The first part of the installation is attaching the rails to your server. Line up the rail brackets with the appropriate mounting holes on the server chassis and slide them into place. Secure them without the need for screws or additional hardware.

Step 3: Insert the Rails into the Rack

Once the rails are attached to the server, it’s time to insert them into the rack. Simply slide the server with the attached rails into the rack slots. The ball bearings will allow the rails to slide smoothly into place. Ensure the rails are fully inserted before proceeding to the next step.

Step 4: Secure the Rails

After sliding the server into the rack, gently push the rails to ensure they are securely seated in the rack’s slots. The UCSC-RAILB-M4= is designed for tool-free installation, but if additional securing is needed, there may be quick-lock mechanisms that snap into place to secure the rails in the rack.
