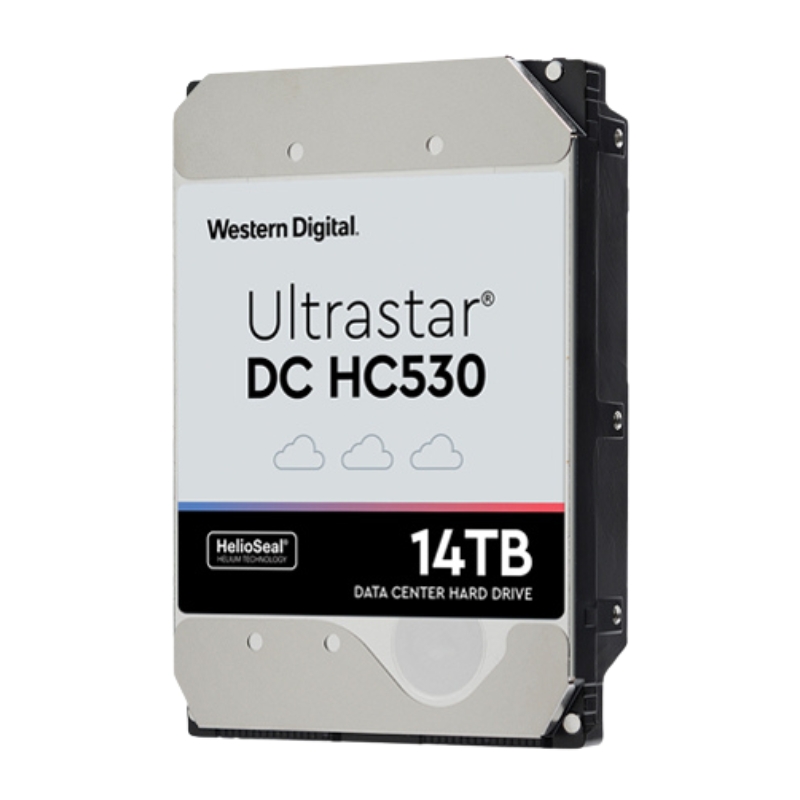

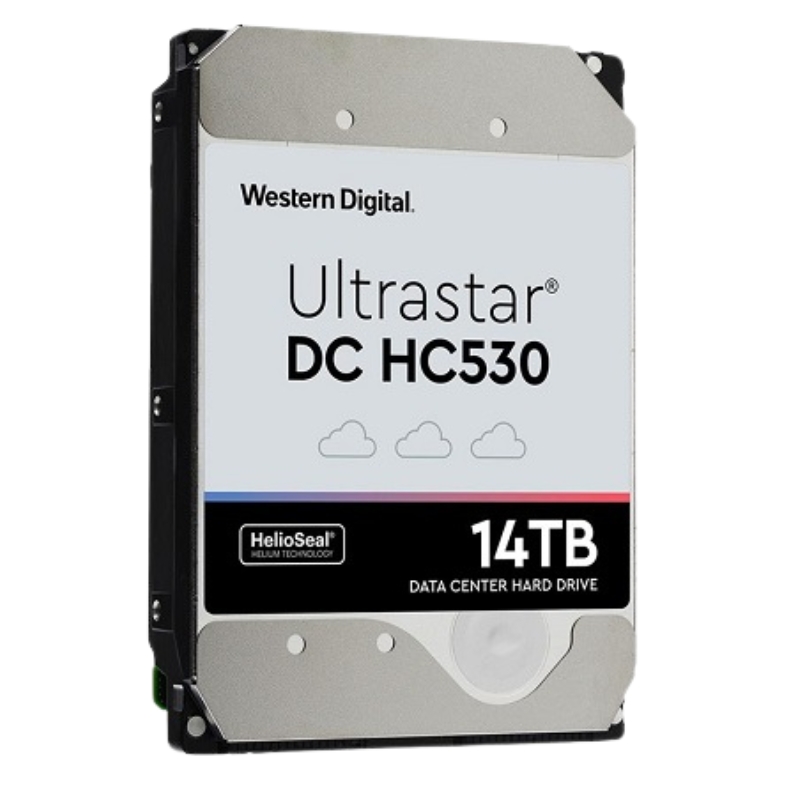

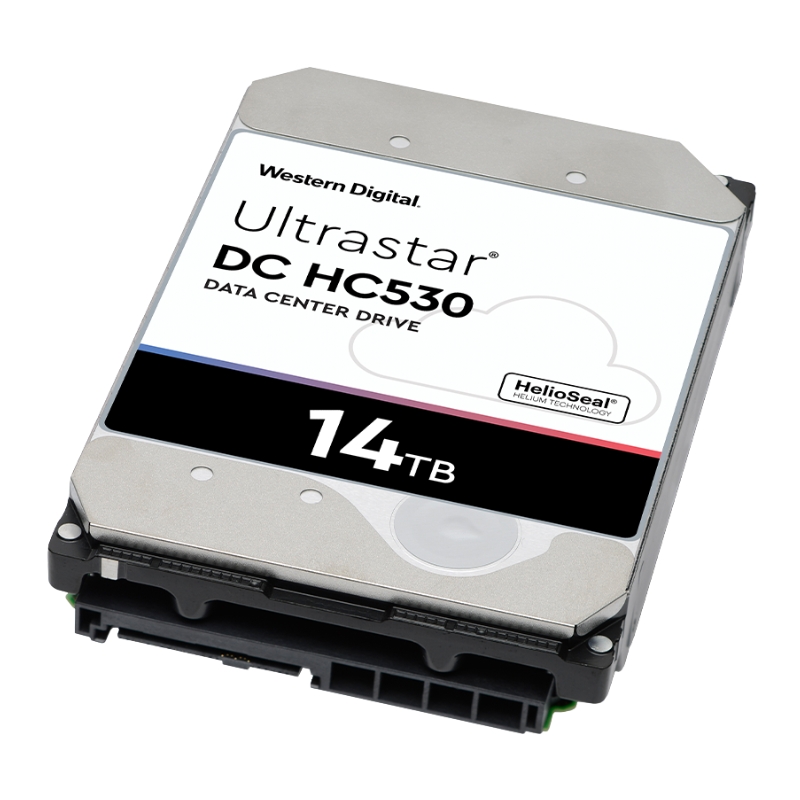

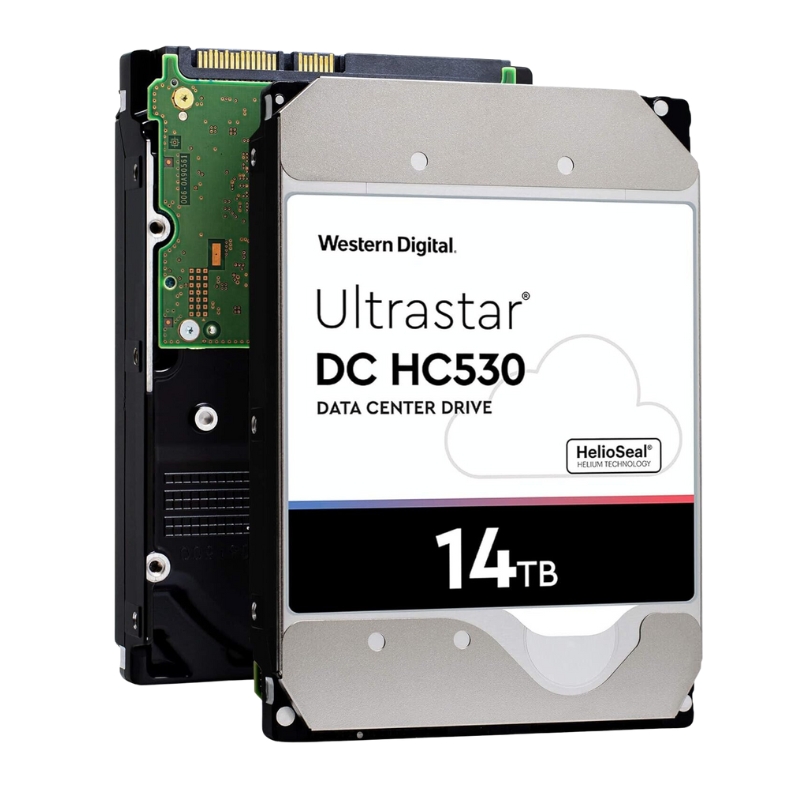

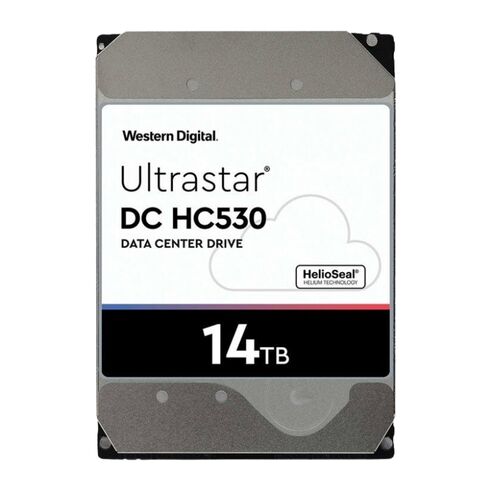

0F31000 Western Digital Ultrastar DC HC530 14TB SAS 12Gbps Hard Drive

Deconstructing the Core Technologies

Understanding the value proposition of the Ultrastar DC HC530 requires a deep dive into the key technologies that define its category. Each specification is a carefully chosen element of a larger system designed for resilience and efficiency.

The SAS 12Gb/s Interface: More Than Just Speed

The Serial Attached SCSI (SAS) interface is the lifeblood of enterprise storage connectivity. The 12 gigabits per second (Gb/s) specification in this drive is a critical differentiator from SATA.

Full-Duplex Communication & Dual-Port Reliability

Unlike SATA's half-duplex design, SAS operates in full-duplex mode, meaning it can read and write data simultaneously over separate physical paths. This dramatically increases effective throughput and reduces latency in mixed-workload environments. Furthermore, the SAS interface natively supports dual-porting. The Ultrastar DC HC530 has two separate physical ports, allowing it to be connected to two different host controllers (HBAs) or storage controllers simultaneously. This enables active-active failover configurations in RAID arrays or storage enclosures. If one controller path fails, the drive remains accessible via the second path, eliminating a single point of failure and ensuring continuous data availability—a fundamental requirement for mission-critical applications.

Advanced Command Set & Scalability

The SAS protocol supports a rich, tag-based command queue (up to 256 deep), allowing the drive to intelligently re-order and optimize the execution of incoming read/write requests for improved efficiency. It also enables robust error reporting and management, crucial for diagnosing issues in a large array. Additionally, SAS topology allows for expansive scalability through expanders, supporting thousands of drives in a single domain—a necessity for modern data centers.

HelioSeal Technology: Enabling 14TB Density

Achieving 14TB of capacity in a standard 3.5-inch form factor is a feat of precision engineering, made possible by Western Digital's proprietary HelioSeal technology.

The Helium Advantage

Traditional hard drives are filled with air. HelioSeal technology replaces this air with inert, low-density helium. Helium creates less internal drag and turbulence on the spinning platter assembly compared to air.

Reduced Power Consumption & Operating Temperature

With less drag, the drive's actuator arm and motor require less power to function, directly lowering the drive's operational power draw—a significant factor when multiplied across thousands of drives in a data center. Lower drag also translates to less heat generation, contributing to a cooler and more stable operating environment, which enhances component longevity and reduces cooling costs.

Increased Platter Count and Areal Density

The primary benefit of helium is that it allows drive manufacturers to fit more platters inside the standard HDD enclosure. In an air-filled drive, aerodynamic limitations typically restrict designs to 5 or 6 platters. The HelioSeal process enables the Ultrastar DC HC530 to reliably house more platters (typically 8 or 9), directly enabling the high 14TB capacity point. This technology is essential for achieving the industry's highest areal densities while maintaining reliability.

7,200 RPM Class Performance & Cache

The drive's rotational speed of 7,200 RPM places it in the performance-optimized segment of high-capacity drives.

Balancing Speed and Capacity

While higher-RPM drives (10K or 15K) offer lower latency, they come with trade-offs in capacity, power consumption, and heat. The 7,200 RPM speed of the HC530 represents an ideal equilibrium for its intended use case: high-capacity bulk storage that still requires responsive data access for sequential and random I/O operations common in cloud storage, data analytics, and backup repositories. Coupled with a large multi-tier cache (typically 512MB on such drives), it can effectively buffer data, manage write operations, and improve read performance for frequently accessed information.

Enterprise-Grade Features for Uncompromising Reliability

What truly separates a drive like the 0F31000 Ultrastar DC HC530 from consumer hardware is the suite of features engineered for constant, heavy use and maximum data protection.

Enhanced Durability and Workload Rate

Enterprise drives are rated for a specific annual workload, measured in terabytes written (TBW) per year.

550TB/Year Workload Rating

The DC HC530 is designed for a 550 TB/year workload rating. This means it is tested and validated to withstand writing and rewriting 550 terabytes of data every year for its warranty period (typically 5 years in this category). This is orders of magnitude higher than a desktop drive and reflects the robust mechanical design, enhanced firmware, and higher-grade components used. It ensures the drive can handle the relentless data churn of a large-scale storage system without premature wear-out.

Advanced Error Correction and Protection

Data integrity is sacrosanct in the enterprise. This drive employs sophisticated technologies to detect and correct errors.

Triple-Stage Actuator (TSA) and Vibration Protection

High-performance drives in dense multi-drive enclosures are subject to vibrational forces from neighboring drives, which can degrade positioning accuracy and performance. The Ultrastar DC HC530 incorporates a Triple-Stage Actuator (TSA) system. This combines a conventional voice coil motor (VCM) actuator with a microactuator on the head assembly itself, enabling ultra-fine adjustments to the head position. This allows the drive to compensate for system-induced vibrations in real-time, maintaining precise head positioning for faster, more accurate read/write operations and higher areal density support.

Power Management and Efficiency

In a large-scale deployment, even a few watts saved per drive can result in massive operational cost savings.

Intelligent Power Management

The drive supports multiple power modes (active, idle, standby) that can be managed by the host system to optimize power consumption based on workload demands. The combination of HelioSeal technology and efficient electronics results in a lower watts-per-terabyte ratio, a key metric for hyperscale operators focused on reducing their Power Usage Effectiveness (PUE).

Primary Use Cases and Application

The Western Digital 0F31000 Ultrastar DC HC530 14TB SAS drive is purpose-built for specific, demanding storage tiers within the enterprise and cloud ecosystem.

Hyperscale and Cloud Data Centers

This is the primary domain for this drive category. Hyperscalers (large cloud service providers like AWS, Google Cloud, Microsoft Azure, and large social media/streaming companies) build storage servers at an immense scale. For their bulk storage needs—object storage (e.g., Amazon S3), cold storage archives, and large-scale data lakes—the high density of the 14TB drive reduces physical footprint, power, and complexity. The SAS interface provides the necessary performance and management capabilities for their custom storage platforms, while the reliability specifications ensure data durability across countless drives.

Enterprise Storage Arrays and SANs

Major storage system vendors (e.g., Dell EMC, HPE, NetApp, IBM) integrate drives like the HC530 into their rack-scale storage arrays and Storage Area Networks (SANs). In these systems, the drives operate behind intelligent controllers that provide data services like RAID, snapshots, replication, and tiering. The dual-port SAS capability is essential here for connecting to redundant storage controllers, ensuring no single controller failure takes the storage pool offline. These arrays are used for enterprise file shares, virtual machine datastores, and large databases where capacity and reliability are key.

Scale-Out Storage (Software-Defined Storage)

In software-defined storage (SDS) solutions like Ceph, GlusterFS, or VMware vSAN, commodity servers are turned into distributed storage clusters. The HC530 is an ideal building block for the capacity tier in such architectures. Its high capacity allows each node to contribute massive raw storage, while the consistent SAS performance ensures predictable cluster behavior. The drive's health monitoring features integrate well with the proactive management and data rebalancing functions of SDS platforms.

Professional Media and Surveillance

While not the primary market, high-end media and entertainment workflows (4K/8K video editing, rendering farms) and large-scale surveillance network video recorder (NVR) systems can utilize these drives. The requirement is for massive, reliable storage that can sustain high-bandwidth sequential writes (for video recording) and reads (for playback and editing). The enterprise durability of the HC530 makes it suitable for 24/7 video ingestion in security deployments or handling large media asset libraries.

Compatibility and Integration

The SAS 12Gb/s interface is backward compatible with 6Gb/s and 3Gb/s SAS infrastructures. When connected to a slower controller, the drive will operate at the lower speed. It is crucial to ensure your host bus adapter (HBA), RAID controller, or storage enclosure backplane supports SAS 12Gb/s to unlock the full interface performance. These drives are formatted with 512e (512-byte emulation) sector sizing for broad compatibility with modern operating systems and storage systems. They are not typically recommended for direct use in desktop PCs due to their need for proper cooling, vibration damping, and SAS HBA support.
