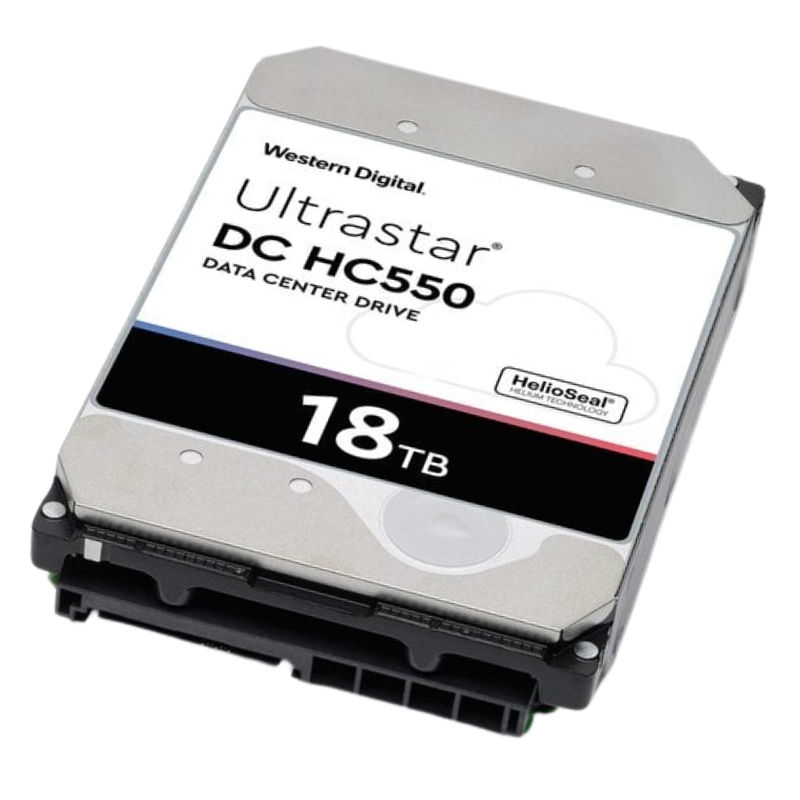

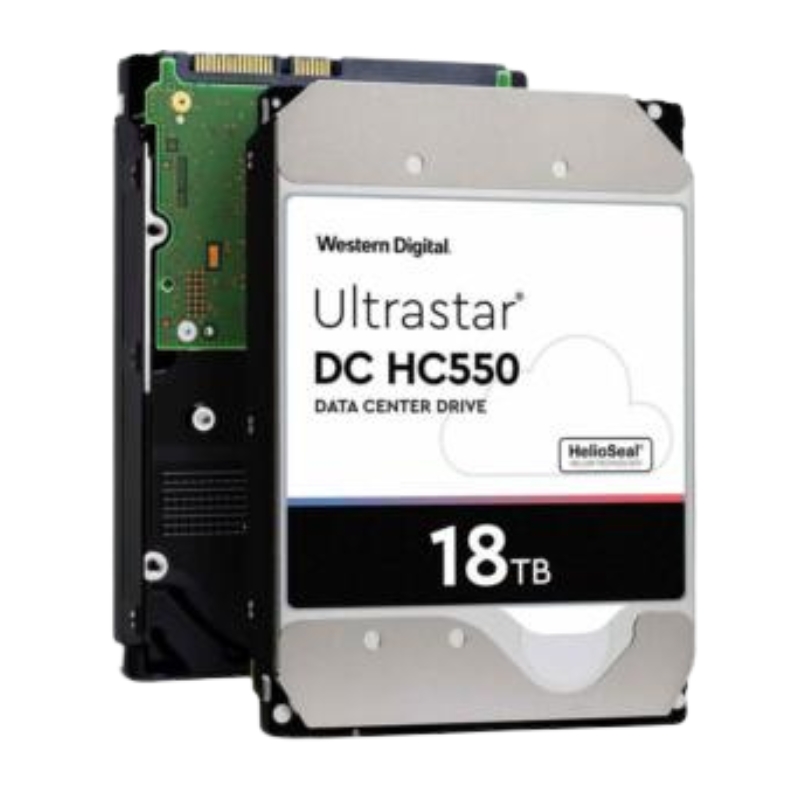

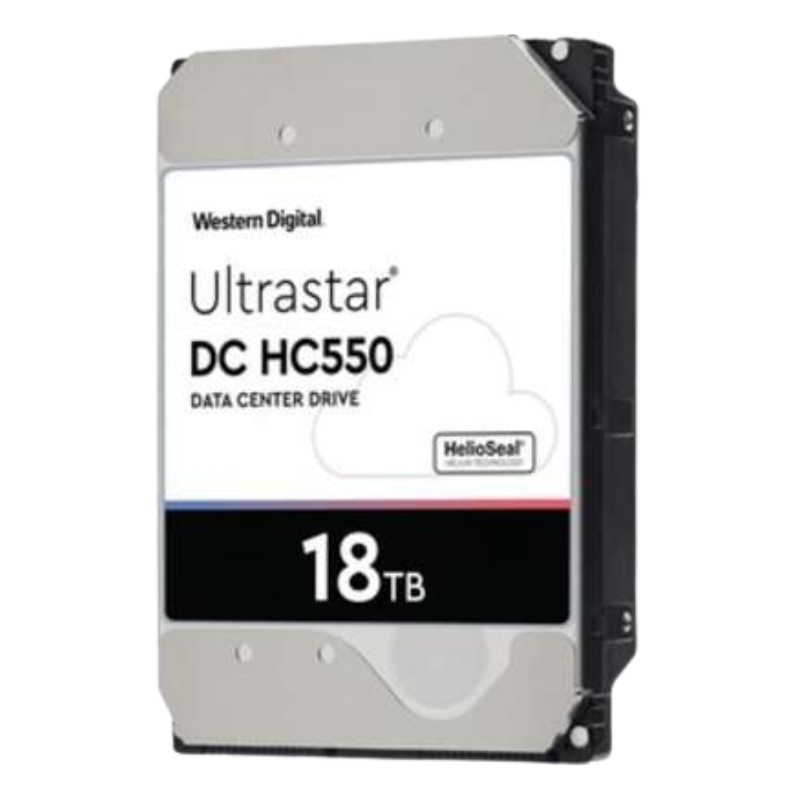

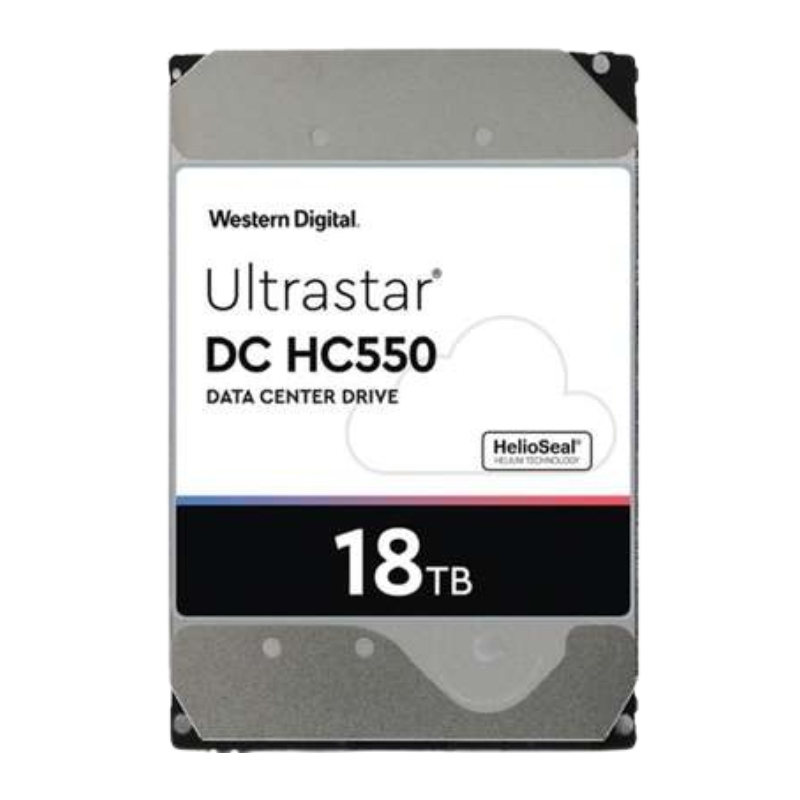

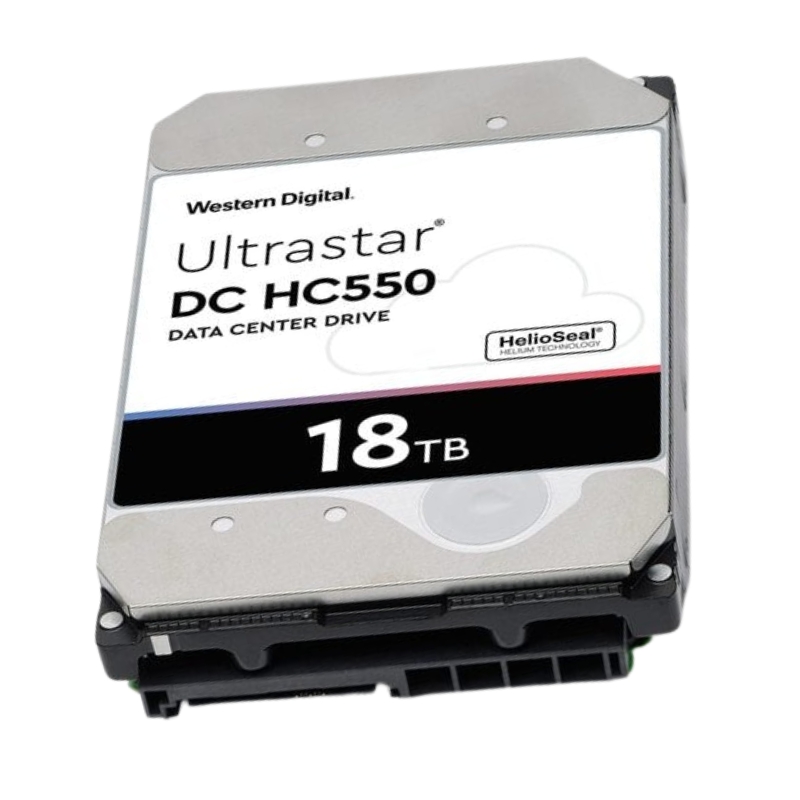

0F38352 Western Digital Ultrastar DC HC550 18TB 7.2K RPM SAS-12Gbps HDD

Western Digital Ultrastar DC HC550: The 18TB Data Center

At the forefront of high-capacity data storage, the Western Digital Ultrastar DC HC550 18TB (model 0F38352) stands as a pinnacle of enterprise-grade engineering. Designed explicitly for the relentless demands of cloud-scale infrastructure, hyperscale data centers, and enterprise storage arrays, this 3.5-inch hard drive leverages cutting-edge technology to deliver exceptional areal density and unwavering reliability. Utilizing Energy-Assisted Magnetic Recording (EAMR) in conjunction with the proven third-generation HelioSeal technology, the HC550 series achieves its massive 18TB capacity without sacrificing performance or power efficiency, making it a cornerstone for businesses managing exponential data growth.

Core Technology and Architecture

The Ultrastar DC HC550 18TB is not merely a high-capacity drive; it is a feat of precision engineering. Its architecture is built from the ground up to meet the 24/7/365 operational requirements of the world's largest data centers, where drive longevity, consistent throughput, and total cost of ownership (TCO) are paramount.

Energy-Assisted Magnetic Recording (EAMR)

EAMR is the enabling technology that allows the HC550 to break through previous density barriers. This sophisticated approach combines two key innovations:

Microwave-Assisted Magnetic Recording (MAMR): An integrated microwave generator creates a high-frequency field that "softens" the magnetic media just before writing. This allows data to be written reliably onto much smaller, more stable grains of magnetic material, dramatically increasing the amount of data that can be stored on each platter.
Improved Write Head Design: The drive features advanced write heads capable of generating a stronger, more focused magnetic field, working in perfect harmony with the MAMR technology to ensure clean, accurate data writes at extreme densities.

HelioSeal Technology

Western Digital's proprietary HelioSeal process fills the drive with helium instead of air. This third-generation implementation offers profound benefits:

Reduced Drag and Power Consumption: Helium is one-seventh the density of air, causing significantly less drag on the spinning platters. This allows the drive to operate at its 7,200 RPM speed with up to 25% lower power consumption under typical workloads compared to air-filled drives.
Increased Platter Count and Capacity: Lower turbulence enables the precise stacking of more platters and read/write heads within the standard 3.5-inch form factor, directly enabling the 18TB capacity.
Enhanced Cooling and Reliability: HelioSeal drives run cooler and with less vibration, reducing thermal stress and mechanical wear on components, which is critical for achieving its 2.5 million hour Mean Time Between Failures (MTBF) rating.

SAS-12Gbps Interface

The 0F38352 model employs a dual-port SAS (Serial Attached SCSI) 12 Gb/s interface, the enterprise standard for performance, reliability, and connectivity.

Full-Duplex Dual-Port Capability: The dual ports provide redundant paths to the drive, a non-negotiable feature for high-availability systems. This allows for multipath I/O configurations, ensuring continuous data access even if one host bus adapter (HBA) or path fails.
Superior Command Queueing and Error Recovery: SAS offers a richer command set and more sophisticated error recovery controls than SATA, allowing the drive to optimize command execution and maintain data integrity in complex, multi-drive environments.
Backward Compatibility: The SAS-12Gbps interface is fully backward compatible with 6 Gb/s SAS infrastructure, protecting existing investments while providing headroom for performance scaling.

Performance and Specifications Deep Dive

Performance in a data center drive is measured by consistent, low-latency throughput and IOPS, not just peak burst speeds. The Ultrastar DC HC550 18TB is engineered to deliver sustained performance under heavy loads.

Speed and Data Transfer Rates

With a rotational speed of 7,200 RPM and a large 512 MB cache buffer, the drive is optimized for sequential read/write operations common in large-scale storage. Its sustained data transfer rates are among the highest in its class, efficiently streaming massive datasets for applications like big data analytics, video archival, and backup repositories.

Cache and Performance Consistency

The 512MB DRAM cache plays a crucial role in smoothing out data flow between the high-speed interface and the physical media. It employs sophisticated algorithms for read-ahead caching and write caching (with protection against power loss in enterprise systems), ensuring that frequently accessed data is served quickly and write operations are efficiently managed.

Workload and Reliability Ratings

Enterprise drives are defined by their workload ratings, which specify the amount of data that can be written to the drive per year under warranty.

Annual Workload Rate: The Ultrastar DC HC550 is rated for a massive 550 TB per year. This translates to overwriting the entire 18TB capacity approximately 30 times annually, far exceeding the demands of typical read-intensive or mixed-use scenarios.
MTBF and AFR: With a Mean Time Between Failures (MTBF) of 2.5 million hours and a corresponding Annualized Failure Rate (AFR) of 0.35%, this drive is built for exceptional endurance. This reliability is backed by a 5-year limited warranty, reflecting Western Digital's confidence in its design.
Uncorrectable Error Rate: Rated at <1 sector in 10^15 bits read, this spec indicates an extremely low probability of encountering an unrecoverable read error, a critical factor for maintaining data integrity in large RAID arrays.

Target Applications and Use Cases

The Western Digital Ultrastar DC HC550 18TB SAS drive is purpose-built for specific, demanding storage tiers within modern data centers.

Hyperscale and Cloud Storage

For public and private cloud providers, density and TCO are king. The 18TB capacity allows for greater storage per rack unit, reducing real estate, power, and cooling costs per terabyte. Its consistent performance and high reliability ensure predictable service levels for cloud object storage, file services, and cold storage archives.

Enterprise Storage Arrays and SANs

In traditional enterprise Storage Area Networks (SANs) and scale-out NAS systems, the HC550 serves as an ideal high-capacity tier. Its SAS interface ensures seamless integration with enterprise storage controllers from vendors like Dell EMC, HPE, NetApp, and others. It's perfectly suited for:

Data Warehousing and Analytics: Storing vast historical datasets for business intelligence tools.
Backup and Disaster Recovery Targets: Serving as the primary repository for backup software like Veeam or Commvault, where high-capacity sequential writes are the norm.
Media and Entertainment Archives: Storing massive 4K/8K video files, animation projects, and digital film libraries.

Comparison and Considerations

Understanding where the HC550 SAS drive fits in the broader ecosystem is crucial for informed procurement.

SAS vs. SATA in the Data Center

While a SATA version of the HC550 exists, the SAS model (0F38352) offers distinct advantages for mission-critical deployments:

Dual-Port Redundancy: Essential for high-availability clusters and storage systems where a single point of failure is unacceptable.
Higher Queue Depths and Performance: Under heavy, mixed workloads, SAS drives typically maintain higher IOPS and lower latency due to superior command queueing.
Full-Duplex Communication: SAS can read and write data simultaneously, unlike SATA's half-duplex nature, improving throughput in busy systems.

SATA drives remain an excellent, cost-effective choice for bulk storage or active archive tiers where absolute maximum availability features are slightly less critical.

Within the Ultrastar HC500 Series

The HC550 represents the highest capacity point in the HC500 series. When comparing to other capacities (e.g., 16TB, 14TB), the 18TB model offers the lowest cost per terabyte and highest density, making it the most efficient choice for scaling capacity. The core technology (EAMR, HelioSeal) and reliability metrics are consistent across the family.
