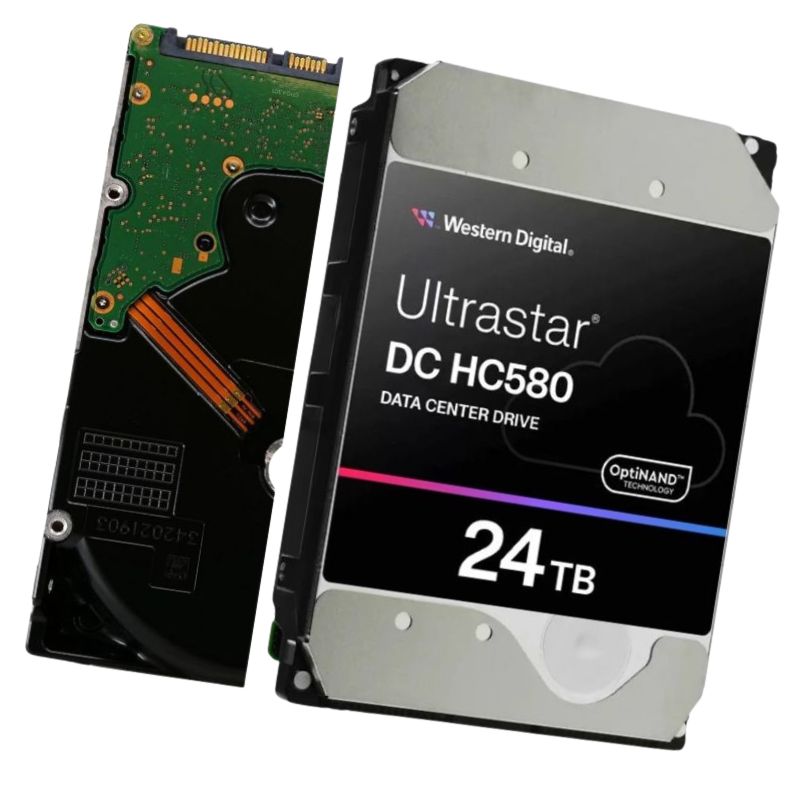

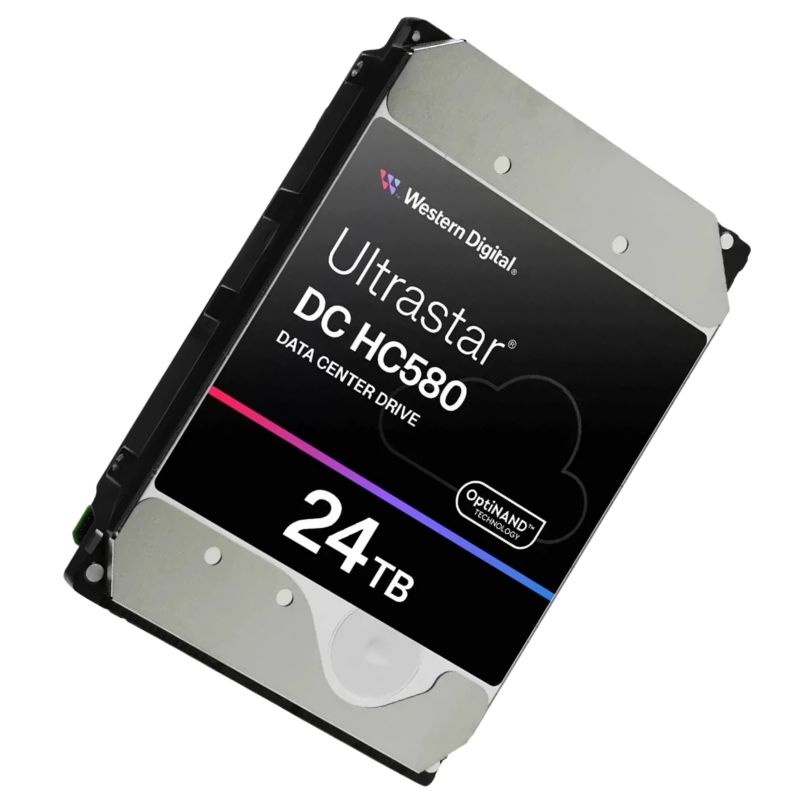

0F62838 Western Digital Ultrastar DC HC580 24TB SATA 6GBPS 3.5 Inch Hard Drive

Western Digital 0F62838 24TB Hard Drive

The Western Digital Ultrastar DC HC580 (model 0F62838) represents the pinnacle of high-capacity data center storage technology, delivering an unprecedented 24TB of storage capacity in a 3.5-inch form factor. This enterprise-class hard disk drive incorporates revolutionary OptiNAND technology, combining traditional magnetic recording with embedded flash memory to achieve new levels of performance, reliability, and capacity. Engineered specifically for cloud-scale infrastructure, hyperscale computing environments, and large-scale storage deployments, the DC HC580 sets new standards for mass storage solutions where capacity, power efficiency, and total cost of ownership are critical considerations.

Core Product Specifications

The 0F62838 Ultrastar DC HC580 24TB drive features a 7,200 RPM spindle speed with a SATA 6Gb/s interface, providing robust compatibility with existing data center infrastructure. With a substantial 512MB buffer cache and 512e (512-byte emulation) sector formatting, this drive delivers optimized performance for large-scale sequential and random workloads. The drive's advanced design incorporates HelioSeal technology for enhanced reliability and power efficiency, making it ideal for read-intensive applications and warm storage tiers where high capacity and reliability are paramount.

OptiNAND Technology Implementation

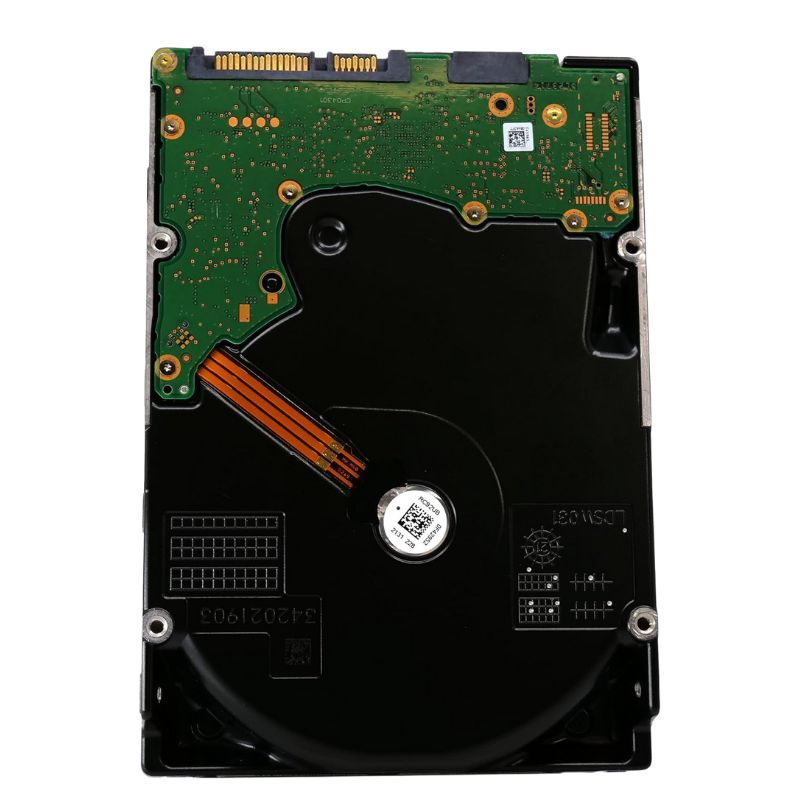

The 0F62838 Ultrastar DC HC580 incorporates Western Digital's innovative OptiNAND architecture, which integrates NAND flash memory directly onto the drive's PCB alongside traditional magnetic recording components. This sophisticated implementation enables the drive to store metadata and small, random writes in the flash memory while maintaining bulk data on the magnetic platters. The OptiNAND technology significantly improves performance during write-intensive operations and enhances drive reliability by allowing more efficient management of write cache flushing, reduce write amplification, and improve recovery times from unexpected power loss scenarios.

Enhances Performance

By leveraging the embedded NAND flash, the DC HC580 can process certain operations without interrupting the primary read/write head positioning, resulting in reduced latency and improved overall throughput. The technology enables more sophisticated data management at the drive level, allowing for improved track formatting and enhanced areal density. This architectural advancement provides tangible benefits in real-world data center environments where consistent performance under varying workloads is essential for maintaining service level agreements and operational efficiency.

HelioSeal Technology Advantages

The 0F62838 Ultrastar DC HC580 utilizes Western Digital's proprietary HelioSeal technology, which hermetically seals the drive with helium instead of traditional air. Helium's lower density creates less resistance and turbulence for the spinning platters and actuator arm, resulting in several significant advantages: reduced power consumption, lower operating temperatures, increased areal density capabilities, and enhanced reliability. The sealed environment allows for packing more platters into the same 3.5-inch form factor, directly contributing to the drive's industry-leading 24TB capacity while maintaining mechanical stability and thermal characteristics optimal for dense storage deployments.

Performance Characteristics

Interface and Transfer Rates

The Ultrastar DC HC580 features a SATA 6Gb/s interface, providing broad compatibility with existing server and storage infrastructure while delivering sustained transfer rates optimized for high-capacity sequential operations. The drive's 7,200 RPM spindle speed, combined with advanced caching algorithms and the 512MB buffer, ensures consistent performance for both large sequential transfers and mixed workloads typical in cloud storage environments. The SATA interface implementation includes support for Native Command Queuing (NCQ) up to 32 commands, enabling efficient command processing and reduced mechanical overhead during random operations.

Sustained Data Transfer Performance

With its high areal density and optimized mechanics, the DC HC580 delivers impressive sustained transfer rates that maximize the throughput capabilities of the SATA 6Gb/s interface. The drive's performance profile is particularly well-suited for sequential read/write operations common in big data analytics, video streaming archives, backup repositories, and other capacity-oriented applications where moving large datasets efficiently is more critical than extreme random I/O performance.

Cache Management and Performance Optimization

The substantial 512MB DDR3/DDR4 DRAM cache serves as a high-speed buffer for read-ahead operations and write caching, significantly improving performance for both sequential and random access patterns. The cache implementation works in concert with the OptiNAND flash memory to create a multi-tiered caching strategy that optimizes data placement based on access patterns and workload characteristics. This sophisticated cache management ensures that frequently accessed data remains readily available while maintaining data integrity through advanced power-loss protection mechanisms.

Adaptive Caching Algorithms

Western Digital's advanced caching algorithms dynamically adjust cache allocation based on workload patterns, optimizing performance for both read-intensive and write-intensive operations. The drive intelligently manages cache flushing to both the OptiNAND flash and magnetic media, reducing performance bottlenecks during peak write periods. This adaptive approach ensures consistent quality of service even under varying workload conditions, making the DC HC580 well-suited for heterogeneous cloud environments where workload patterns can change rapidly.

Capacity and Areal Density Innovation

24TB Capacity Achievement

The 0F62838 Ultrastar DC HC580's remarkable 24TB capacity represents the cutting edge of hard drive areal density technology. Achieving this capacity required innovations in multiple areas including recording technology, media formulation, head design, and mechanical precision. The drive utilizes conventional magnetic recording (CMR) technology with enhanced signal processing and track placement, enabled by the additional metadata management capabilities of the OptiNAND architecture. This capacity point provides storage administrators with maximum storage density per rack unit, significantly improving total cost of ownership for large-scale storage deployments.

Storage Efficiency and Density Benefits

At 24TB per drive, the DC HC580 enables storage systems to achieve unprecedented density levels, reducing the physical footprint, power consumption, and complexity of large-scale storage infrastructure. A standard 4U 60-bay storage system can now accommodate up to 1.44 petabytes of raw storage capacity using these drives, dramatically improving storage efficiency for cloud service providers, research institutions, and enterprises managing massive datasets. The increased capacity per drive also reduces the number of drives required for a given storage capacity, potentially lowering management overhead and failure rate exposure across the storage infrastructure.

512e Sector Formatting

The Ultrastar DC HC580 employs 512e (512-byte emulation) sector formatting, which presents 512-byte logical sectors to the host system while physically storing data in 4KB sectors on the media. This approach maintains compatibility with legacy operating systems and applications while benefiting from the increased format efficiency and error correction capabilities of larger physical sectors. The 512e implementation includes sophisticated emulation logic to handle partial sector writes efficiently, minimizing the performance impact sometimes associated with emulated sector architectures.

Compatibility and Migration Advantages

The 512e sector formatting ensures broad compatibility with existing servers, storage arrays, and operating systems, simplifying integration and migration from older storage systems. This compatibility is particularly valuable in heterogeneous data center environments where storage infrastructure may span multiple generations of hardware and software. The emulation layer is transparent to applications and file systems, allowing seamless deployment without requiring special drivers or configuration changes in most enterprise environments.

Environmental Specifications

The Ultrastar DC HC580 is designed to operate within the demanding environmental conditions typical of data centers and large-scale storage installations. The drive supports operating temperatures from 5°C to 60°C, with specialized firmware that optimizes performance and reliability across this range. Acoustic management features allow administrators to balance acoustic noise and performance based on deployment requirements, while power management capabilities optimize energy consumption based on workload demands without compromising performance.

Power Efficiency Characteristics

Despite its high capacity, the DC HC580 maintains excellent power efficiency through multiple innovative technologies. The helium-filled design reduces motor power requirements, while advanced power states allow the drive to minimize energy consumption during idle periods. The drive typically consumes less than 5.5 watts during active operation and can enter low-power idle states drawing less than 0.5 watts, significantly reducing total cost of ownership in large-scale deployments where power and cooling represent substantial operational expenses.

Data Integrity and Security Features

Error Correction and Data Protection

The Ultrastar DC HC580 employs sophisticated error correction coding (ECC) algorithms capable of correcting errors significantly longer than those correctable by standard ECC implementations. This enhanced error correction, combined with advanced signal processing and the stable recording environment enabled by HelioSeal technology, results in an exceptionally low unrecoverable error rate of 1 in 10^17 bits read. This robust data protection ensures data integrity for critical applications and reduces the risk of data loss in large-scale storage systems where the total amount of data read annually can reach petabytes per drive.

Protection Against Data Corruption

Beyond traditional ECC, the DC HC580 implements multiple layers of protection against data corruption, including end-to-end data path protection that verifies data integrity from the host interface through the cache and onto the media. The drive's firmware includes sophisticated algorithms for detecting and managing marginal sectors, proactively relocating data from potentially problematic areas before errors occur. These comprehensive data protection mechanisms make the drive suitable for applications where data integrity is paramount, including archival storage, financial records, and scientific datasets.

Security and Encryption Capabilities

The 0F62838 Ultrastar DC HC580 supports comprehensive security features, including optional hardware-based encryption compliant with TCG Enterprise and TCG Opal 2.01 standards. The encryption implementation uses a dedicated security processor within the drive controller, ensuring that encryption and decryption operations do not impact performance. Security management capabilities include instant secure erase, which cryptographically renders data inaccessible by destroying the encryption key, providing a rapid and secure method for drive decommissioning or repurposing without physical destruction.

Compliance and Regulatory Alignment

The drive's security features align with enterprise and regulatory requirements for data protection, including support for various authentication models and management through standard management interfaces. The hardware encryption implementation provides protection against unauthorized data access even if drives are physically removed from storage systems, addressing security concerns in multi-tenant environments and helping organizations comply with data protection regulations such as GDPR, HIPAA, and others that mandate encryption of sensitive data at rest.

Workload Optimization and Use Cases

Data Center and Cloud Storage Applications

The Ultrastar DC HC580 is optimized for the demanding requirements of modern data center and cloud storage environments. Its high capacity and power efficiency make it ideal for scale-out storage systems, object storage platforms, and content delivery networks where storage density and total cost of ownership are primary considerations. The drive's performance characteristics are well-matched to sequential-oriented workloads common in big data analytics, video streaming, backup and archive applications, and other capacity-optimized storage tiers.

Hyperscale and Cloud Infrastructure

In hyperscale computing environments, the DC HC580 provides the storage density required to manage the exponential growth of data while maintaining predictable performance and reliability. The drive's compatibility with standard SATA interfaces allows seamless integration into existing infrastructure, while its advanced features address the specific challenges of large-scale deployments, including vibration management, power efficiency, and consistent performance under varying workload conditions. These characteristics make it particularly valuable for cloud service providers managing petabytes of customer data across distributed storage infrastructures.

Enterprise Storage

For traditional enterprise storage deployments, the Ultrastar DC HC580 offers compelling advantages in secondary storage tiers, backup targets, and archival systems. The drive's high capacity enables organizations to reduce the physical footprint of their storage infrastructure while maintaining performance adequate for backup and restore operations, disaster recovery replication, and long-term data retention. The reliability features ensure data integrity over extended periods, making the drive suitable for regulatory archives and business records that must be maintained for years or decades.

Big Data and Analytics Workloads

The drive's sequential performance characteristics align well with big data and analytics workloads, where large datasets are typically processed in sequential patterns. The high capacity enables larger working datasets to be stored on higher-performance storage tiers rather than being relegated to tape or other nearline media, potentially improving processing efficiency for analytics and machine learning applications. The combination of capacity, performance, and reliability makes the DC HC580 a compelling choice for organizations leveraging data analytics for business intelligence and decision support.

Connector and Interface

The drive features standard SATA power and data connectors, ensuring compatibility with existing backplanes, cables, and controllers. The SATA 6Gb/s interface provides sufficient bandwidth for the drive's performance characteristics while maintaining broad compatibility with server and storage infrastructure. This interface selection makes the DC HC580 suitable for both new deployments and expansion of existing storage capacity without requiring interface upgrades or compatibility testing with unusual interface configurations.
