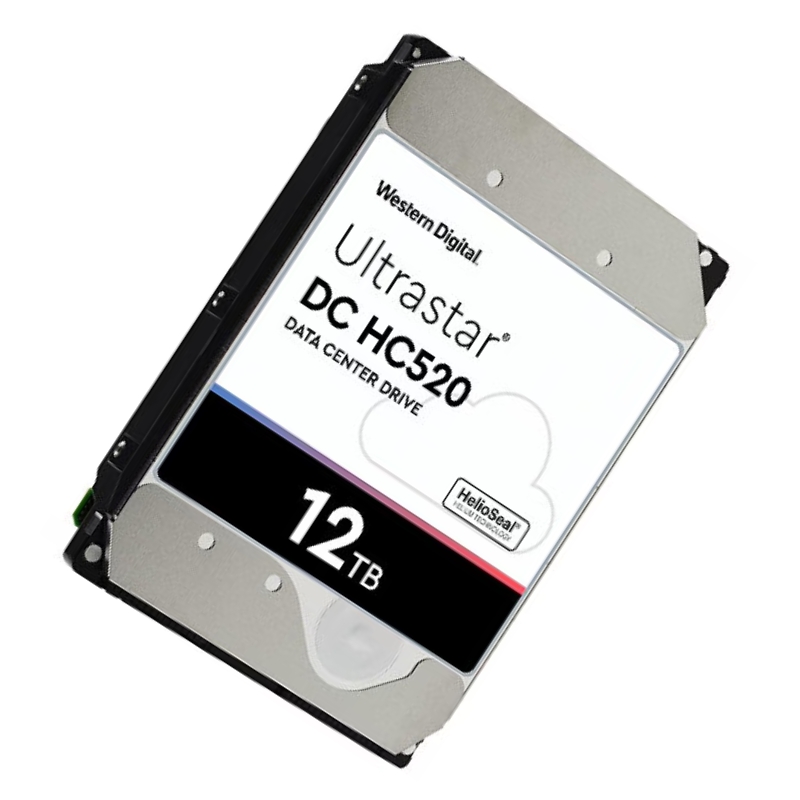

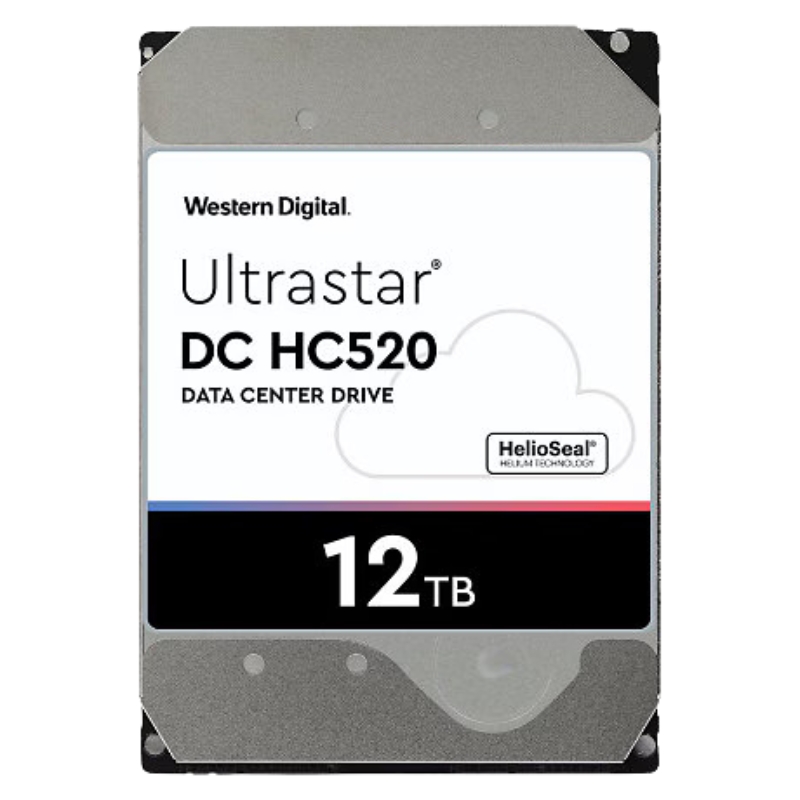

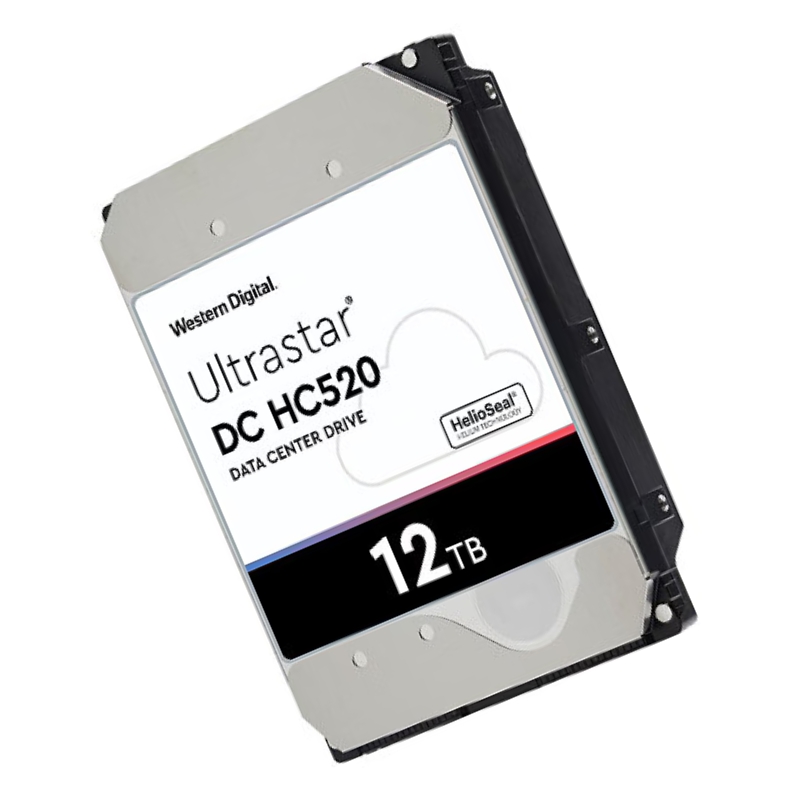

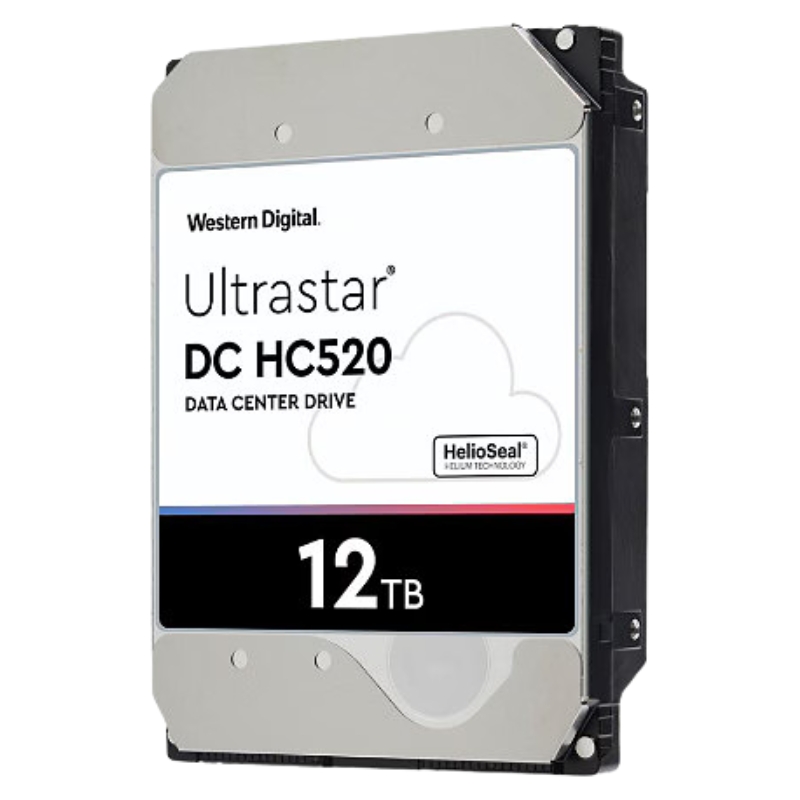

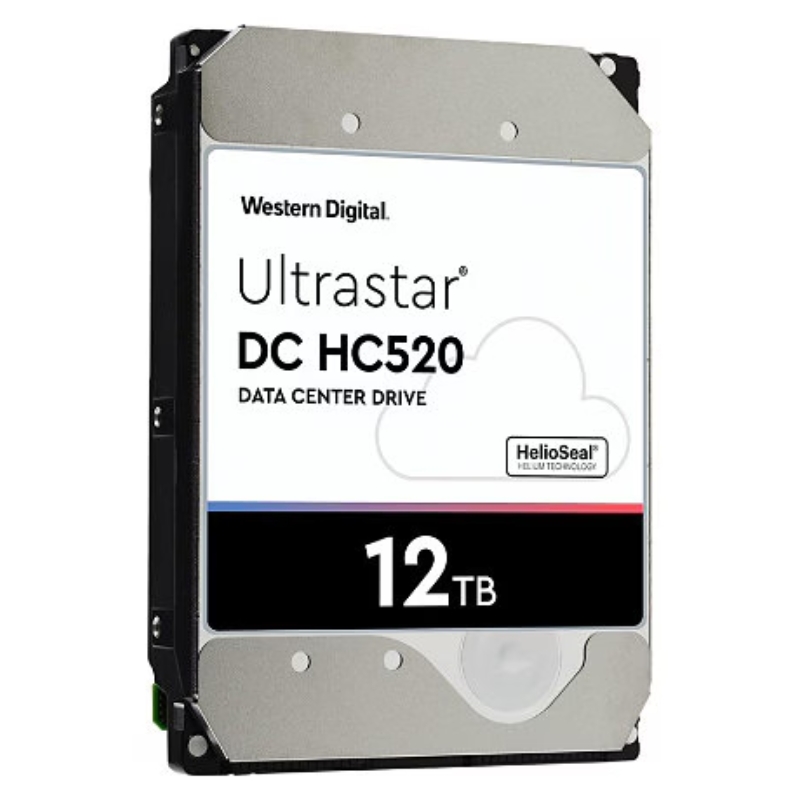

Western Digital HUH721212AL4200 12TB 7.2K RPM SAS 12GBPS 256MB Buffer 3.5inch Helium Platform Enterprise Hard Drive.

Western Digital HUH721212AL4200: Enterprise Storage Overview

The Ultrastar DC HC520 12TB enterprise hard drive from Western Digital is engineered for demanding data center operations, providing exceptional capacity and unwavering reliability for critical storage needs.

Primary Applications and Operational Environments

This storage solution is architected for deployment in a multitude of high-demand enterprise scenarios where performance cannot be compromised.

Optimal Deployment Scenarios

• Hyperscale computing and cloud storage infrastructures
• Massive scale-out (MSO) data center environments
• Object-based storage platforms, including Ceph™ and OpenStack Swift
• Primary and secondary storage layers for Hadoop® big data analytics
• Centralized repositories for high-resolution video surveillance systems
• Mainstream enterprise applications requiring vast capacity

Core Characteristics and Technical Specifications

The Ultrastar HC520 integrates advanced technology to deliver superior performance metrics and robust construction.

Fundamental Drive Attributes

• Manufacturer Brand: Western Digital
• Product Series: Ultrastar DC HC520
• Total Storage Capacity: 12 Terabytes
• Form Factor: Internal 3.5-inch
• Host Interface: SAS 12Gbps
• Peak Areal Density: 864 Gigabits per square inch
• Predicted Mean Time Between Failures (MTBF): 2.5 million hours

Performance Metrics and Transfer Rates

This enterprise-class hard drive offers impressive speed and efficiency for data-intensive operations.

Speed and Responsiveness

• Maximum Interface Transfer Speed: 1200 MB/s
• Sustained Data Transfer Rate: 243 MB/s (Read), 255 MB/s (Write)
• Average Read Seek Time: 8.0 ms
• Average Write Seek Time: 8.6 ms
• Rotational Speed: 7200 RPM
• Average Latency: 4.16 ms
• Integrated Buffer Memory: 256 MB

Physical Dimensions and Build

The drive is designed with a compact form factor to maximize storage density within server enclosures and racks.

Mechanical Specifications

• Product Height (Z-height): 26.1 mm
• Product Dimensions (Width x Depth): 101.6 x 147 mm
• Total Unit Weight: 660 grams

Unpacking the Western Digital Ultrastar DC HC520 12TB Enterprise Hard Drive

In the realm of enterprise data storage, where uptime is revenue and reliability is non-negotiable, the Western Digital Ultrastar DC HC520 (model HUH721212AL4200) stands as a formidable solution. This 12TB 3.5-inch hard disk drive (HDD) is not merely a component; it is the bedrock upon which vast digital empires are built. Engineered for the most demanding data center applications, it represents a confluence of high capacity, exceptional performance, and legendary Ultrastar resilience. This deep dive explores the intricate architecture, performance benchmarks, ideal use cases, and technological innovations that define this enterprise-grade storage workhorse, providing a comprehensive understanding of its role in modern IT infrastructure.

Architectural Foundation and Core Technology

The foundation of the Ultrastar DC HC520's prowess lies in its sophisticated internal design and the strategic use of advanced technologies. It is a product of relentless innovation aimed at solving the core challenges of modern data centers: increasing density while managing power and thermals.

Helium-Sealed Platform: The Heart of Efficiency

A pivotal innovation in high-capacity drive design is the HelioSeal process, which hermetically seals the drive's internal mechanics with helium. This inert gas is significantly less dense than air, creating an environment with far less aerodynamic drag and turbulence. The benefits of this platform are multi-faceted:

• Reduced Power Consumption: The read/write heads encounter less resistance, requiring less energy to move and position themselves precisely. This translates directly into lower operational expenditures (OPEX) for large-scale deployments, where power and cooling constitute a major portion of the total cost of ownership.
• Enhanced Areal Density: The calmer environment allows for the placement of more platters and read/write heads within a standard 3.5-inch form factor. The HC520 achieves a remarkable max areal density of 864 Gb/in², enabling its massive 12TB capacity.
• Superior Thermal Management: Helium conducts heat more efficiently than air, allowing for better dissipation of operational heat. This leads to a cooler running drive, which enhances component longevity and reliability while enabling higher drive densities within a server chassis.
• Improved Acoustics: The internal mechanics operate more quietly, a non-trivial benefit in large server rooms where thousands of drives may be humming simultaneously.

Mechanical Precision and Robustness

Beyond the helium, the HC520 is built to the exacting standards of the Ultrastar product line. It features a high-quality, durable motor spinning the platters at 7200 RPM, the standard for performance-optimized enterprise drives. The actuators and read/write heads are engineered for millions of precise movements, ensuring fast access times and sustained performance. The drive's construction is designed to mitigate vibration, both self-induced and from neighboring drives in a multi-bay enclosure, ensuring stability and accuracy during operation.

Performance Benchmarks and Interface Analysis

Raw capacity is meaningless without the performance to access data efficiently. The Ultrastar DC HC520 is designed to deliver strong, consistent throughput suitable for heavy workloads.

The SAS 12Gbps Interface: A Enterprise-Grade Connection

The drive utilizes a Serial Attached SCSI (SAS) 12Gb/s interface, which is a critical differentiator from consumer-grade SATA drives. SAS is the backbone of enterprise storage for several compelling reasons:

• Full Duplex Communication: Unlike SATA, which is half-duplex, SAS allows for simultaneous read and write operations across the data lanes, effectively doubling the potential bandwidth of the connection.
• Enhanced Reliability Features: The SAS protocol includes more robust error recovery and reporting mechanisms, which are essential for maintaining integrity in complex RAID arrays and mission-critical systems.
• Dual-Port Capability: High-end SAS drives often feature dual ports, allowing a single drive to be connected to two different host controllers simultaneously. This enables advanced failover configurations in redundant storage setups, ensuring continuous availability even if a controller fails.
• Stronger Signal Integrity: Designed for longer cables and larger, more complex backplanes, SAS is built for the expansive nature of enterprise storage arrays.

The interface's maximum transfer rate of 1200 MB/s provides ample headroom for the drive's sustained performance, ensuring the interface itself is never the bottleneck.

Sustained Transfer Rates and Latency

While burst speeds are impressive, sustained transfer rate (STR) is the true measure of a drive's performance under load. The HC520 delivers a STR of up to 255 MB/s (write) and 243 MB/s (read). These figures represent a strong, consistent flow of data, essential for:

• Streaming large media files.
• Rebuilding RAID arrays in a timely manner.
• Supporting multiple simultaneous virtual machines.
• Ingesting massive datasets for analytics.

Furthermore, with an average latency of 4.16 ms and typical seek times of 8.0 ms (read) and 8.6 ms (write), the drive offers responsive access to data, minimizing wait times for read/write commands.

The Role of the 256MB Buffer

The large 256MB DDR4 cache buffer acts as a high-speed staging area. Frequently accessed data can be stored in the buffer for near-instantaneous retrieval, while write commands can be acknowledged and cached before being written to the platters. This smoothes out performance, especially during random read/write operations, and improves overall efficiency.

Deployment Scenarios and Ideal Applications

The combination of high capacity, strong performance, and extreme reliability makes the Ultrastar DC HC520 exceptionally versatile within the enterprise and cloud ecosystem.

Cloud and Hyperscale Storage

For cloud service providers and hyperscale data centers (e.g., those run by Google, Amazon, Microsoft), the economics of storage are paramount. The HC520's 12TB capacity allows these entities to achieve phenomenal storage density per rack unit, maximizing the value of their expensive data center real estate. Its power efficiency, thanks to helium, directly lowers their massive electricity bills, making it a key tool for sustainable scaling.

Big Data and Analytics Platforms

Platforms like Hadoop and object storage solutions such as Ceph and OpenStack Swift thrive on vast pools of reliable, scalable storage. These distributed file systems are designed to handle hardware failures, but using drives with a high MTBF like the HC520 (2.5 million hours) reduces the frequency of these events, minimizing management overhead and ensuring data processing jobs are not interrupted by drive rebuilds.

Enterprise Data Centers and RAID Arrays

In traditional enterprise data centers, the HC520 is a perfect candidate for primary storage in performance-oriented RAID 10 configurations or capacity-optimized RAID 6 or 60 arrays. Its SAS interface ensures compatibility with high-end RAID controllers, and its robust error-recovery controls prevent drives from unnecessarily dropping out of the array—a common frustration with consumer-grade drives in enterprise environments.

Video Surveillance Archives

Modern high-resolution (4K, 8K) video surveillance systems generate staggering amounts of data that must be retained for weeks or months. The HC520 provides the perfect blend of large capacity for long retention periods and strong sustained write performance to handle continuous video streams from hundreds of cameras simultaneously.

Reliability, Durability, and Total Cost of Ownership

In enterprise storage, the initial purchase price is only a fraction of the total cost of ownership (TCO). Drive failure, data loss, downtime, and replacement labor are far more costly.

Mean Time Between Failures (MTBF) and Annualized Failure Rate (AFR)

The HC520's MTBF rating of 2.5 million hours is a statistical projection of reliability. This translates to an exceptionally low Annualized Failure Rate (AFR), meaning far fewer drives are expected to fail in a given year within a large population. This reliability is a product of superior components, the helium environment, and rigorous testing.

Workload Rating and Features

Enterprise drives are rated for a specific workload—the amount of data written to them per year. The HC520 is built for heavy, 24/7 operation, far exceeding the workload tolerance of desktop or NAS drives. It also includes advanced features like rotational vibration sensors, which compensate for vibrations from other drives in the chassis, and thermal monitoring to ensure it operates within safe parameters.

Physical Specifications and Integration

Despite its massive capacity, the HC520 conforms to standard dimensions for easy integration into existing infrastructure.

• Form Factor: 3.5-inch, the standard for enterprise and desktop storage.
• Height (Z-height): 26.1 mm, which is a standard "full-height" drive size, ensuring compatibility with server bays and hot-swap cages.
• Dimensions (W x D): 101.6 x 147 mm, conforming to industry standards.
• Weight: 660 g, a typical weight for a drive of its construction and capacity.

This adherence to standard form factors means the drive can be seamlessly deployed in a vast array of servers, storage arrays, and expansion shelves from vendors like Dell, HPE, Supermicro, and many others.
