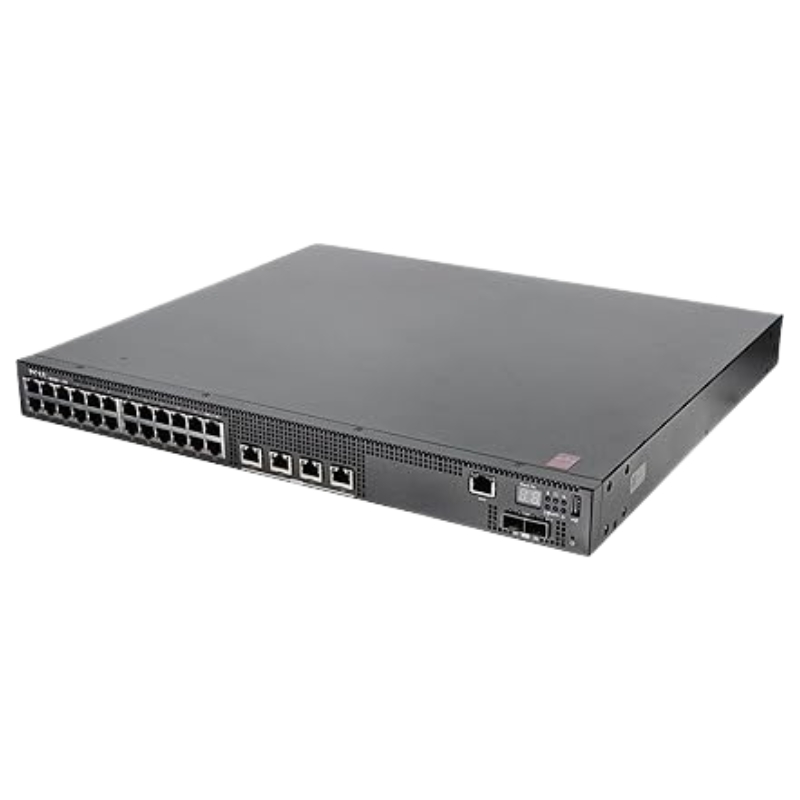

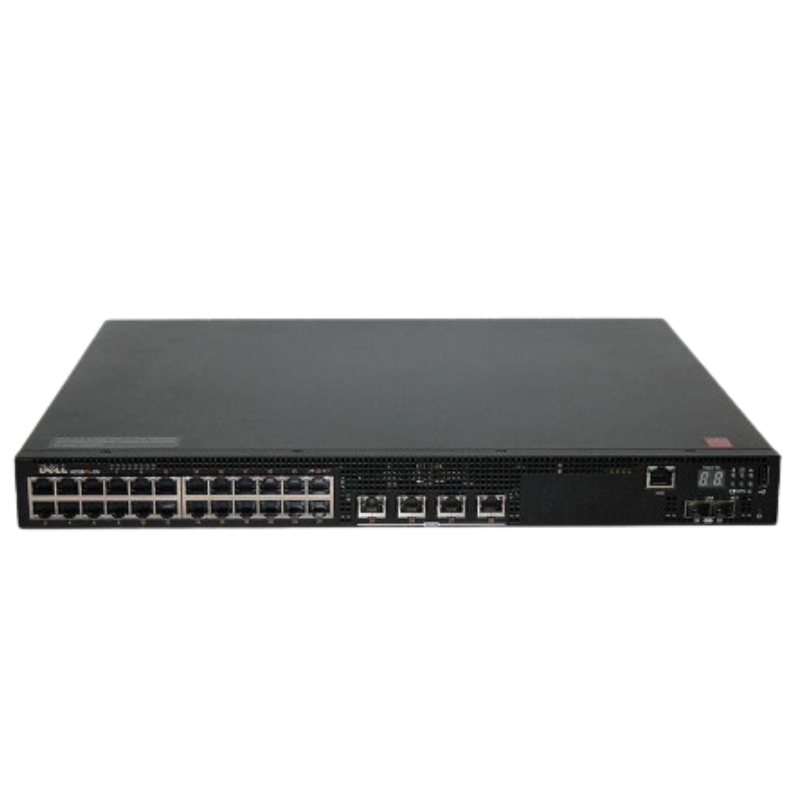

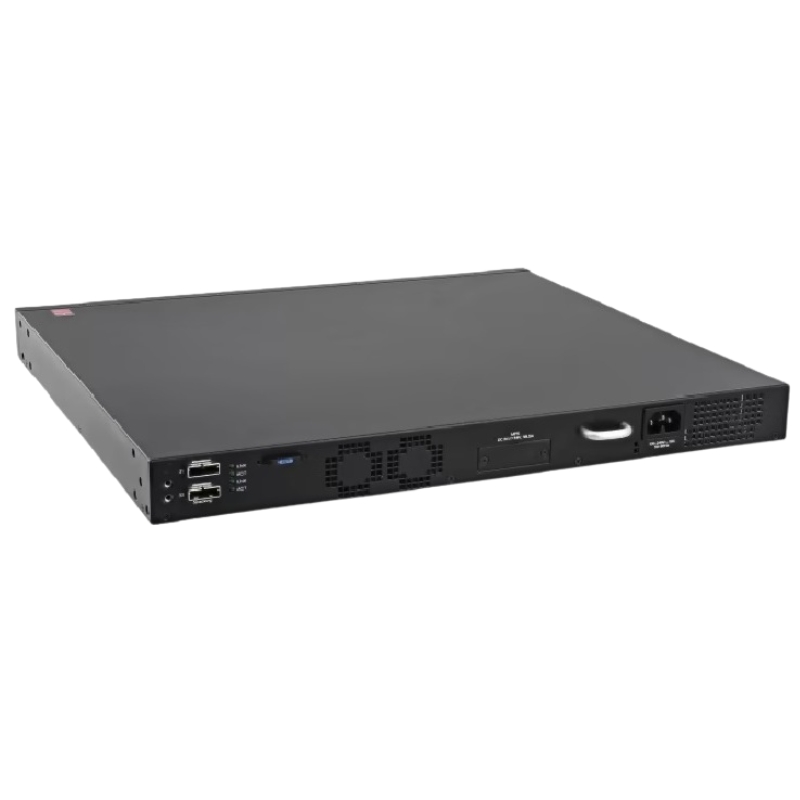

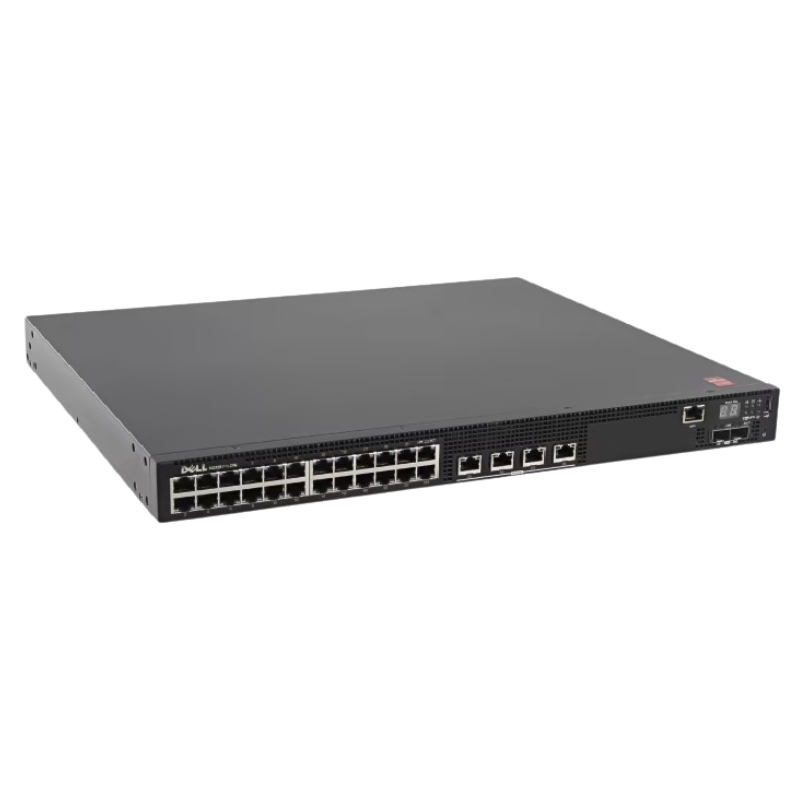

WHXMD Dell N2128PX-ON EMC 28 Ports Rack-Mountable Switches

WHXMD
Hover on image to enlarge

Brief Overview of WHXMD

Dell N2128PX-ON EMC 28 Ports Rack-Mountable Managed Network Switches by WHXMD. Excellent Refurbished with 6-Month Replacement Warranty
QR Code of WHXMD Dell N2128PX-ON EMC 28 Ports Rack-Mountable Switches
$1,792.80
$1,161.00
You save: $631.80 (35%)
Ask a question
+
Quote
Additional 7% discount at checkout
SKU/MPNWHXMDAvailability✅ In StockProcessing TimeUsually ships same day ManufacturerDell Product/Item ConditionExcellent Refurbished ServerOrbit Replacement WarrantySix-Month (180 Days)
Our Advantages
  • Free Ground Shipping
  • — Min. 6-month Replacement Warranty
  • — Genuine/Authentic Products
  • — Easy Return and Exchange
  • — Different Payment Methods
  • — Best Price
  • — We Guarantee Price Matching
  • — Tax-Exempt Facilities
  • — 24/7 Live Chat, Phone Support
Payment Options
  • — Visa, MasterCard, Discover, and Amex
  • — JCB, Diners Club, UnionPay
  • — PayPal, ACH/Wire Transfer
  • — Apple Pay, Amazon Pay, Google Pay
  • — Buy Now, Pay Later - Affirm, Afterpay
  • — GOV/EDU/Institutions PO's Accepted
  • — Invoices
Delivery
  • — Deliver Anywhere
  • — Express Delivery in the USA and Worldwide
  • — Ship to -APO -FPO
  • For USA - Free Ground Shipping
  • — Worldwide - from $30
Description

Product Overview

Dell EMC WHXMD Networking N2128PX-ON Switch

Key Features
  • Device Type: 28-Port L3 Managed Stackable Switch
  • Enclosure: 1U Rack-Mountable
  • Ethernet Subtype: Gigabit
  • Port Configuration:
    • 24 x 10/100/1000 (PoE+)
    • 4 x 100/1000/2.5G/5G (PoE)
    • 2 x 10 Gigabit SFP+
  • Power over Ethernet (PoE): PoE+

Performance Specifications

  • Switching Fabric Bandwidth: 220 Gbps
  • Forwarding Performance: 256 Mpps
  • MAC Address Capacity: 32,000 Entries
  • Dynamic Aggregated Links: 144
  • Maximum VLANs Supported: 4,094
  • ARP Entries: 1,024
  • NDP Entries: 400
  • Maximum ACL Rules System-wide: 2,048
  • Queues Per Port: 8

Advanced Features

  • Routing Protocols: RIP, RIP-1, RIP-2, IGMPv2, IGMPv3
  • Remote Management Protocols: SNMP v2, RMON v1, RMON v2, Telnet, HTTP, TFTP, SSH-2
  • Encryption Standards: AES, SSL, TLS 1.0
  • Authentication Protocols: RADIUS, TACACS+, LDAP
  • Additional Features:
    • MDI/MDI-X Switching
    • Auto-Negotiation
    • Port Mirroring
    • IP Address Filtering
    • Access Control List (ACL) Support
    • Quality of Service (QoS)
    • Front-to-Back Airflow
    • Remote Switch Port Analyzer (RSPAN)
    • Management Information Base (MIB)
    • Dual Firmware Images
    • Redundant Fans
    • Time-Controlled ACL Support

Compliance Standards

  • IEEE 802.2
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3z
  • IEEE 802.1d
  • IEEE 802.1q
  • IEEE 802.3ab
  • IEEE 802.1p
  • IEEE 802.3x
  • IEEE 802.3ad (LACP)
  • IEEE 802.1w
  • IEEE 802.1x
  • IEEE 802.3ae
  • IEEE 802.3ac
  • IEEE 802.1s
  • IEEE 802.1v
  • ANSI/TIA-1057
  • IEEE 802.1AB (LLDP)
  • IEEE 802.3at
  • IEEE 802.3az
  • IEEE 802.3ax

Memory and Storage

  • RAM: 2 GB
  • Flash Memory: 512 MB

Expansion and Connectivity Options

  • Interfaces:
    • 24 x Gigabit LAN - RJ-45 - PoE+ - 30.8 W
    • 4 x 5Gbit LAN - RJ-45 - PoE - 60 W
    • 2 x 10Gbit LAN - SFP+
    • 1 x 1000Base-T - RJ-45 - Management
    • 1 x USB - Type A

Power Specifications

  • Power Device: Internal Power Supply
  • Installed Quantity: 1
  • Power Provided: 1,000 Watts

Ports

The Dell N2128PX-ON Rack-Mountable Switches come with a remarkable 28 ports, making it an ideal choice for businesses and organizations that require a high-performance networking solution. These switches offer an extensive range of benefits and features that cater to the needs of modern network environments. Let's dive deeper into the importance and advantages of the 28 ports in the Dell N2128PX-ON Rack-Mountable Switches.

Flexibility and Scalability

One of the primary benefits of having 28 ports in a switch is the flexibility it grants to network administrators. With a multitude of ports available, you can effortlessly connect various devices, such as computers, servers, printers, and access points. This flexibility allows for easy expansion of your network infrastructure as your business grows. Additionally, the Dell N2128PX-ON Rack-Mountable Switches support virtual local area networks (VLANs), enabling you to segment your network, enhancing security and performance.

Increased Bandwidth

By offering 28 ports, the Dell N2128PX-ON Rack-Mountable Switches ensure sufficient bandwidth for each connected device. Bandwidth refers to the amount of data that can be transmitted simultaneously on a network. With more ports available, there is less congestion on the network, resulting in faster data transfer rates and reduced latency. This increased bandwidth guarantees smooth communication between devices, enabling seamless multitasking and uninterrupted data flow.

Power over Ethernet (PoE)

Many modern devices, such as IP cameras, wireless access points, and VoIP phones, require power to function. The Dell N2128PX-ON Rack-Mountable Switches support Power over Ethernet (PoE) on all 24 Gigabit Ethernet ports. This feature eliminates the need for additional power adapters or electrical outlets, simplifying installation and reducing cable clutter. With PoE, you can conveniently power compatible devices through the Ethernet cable itself, making it an efficient and cost-effective solution.

Enhanced Network Security

The 28 ports in the Dell N2128PX-ON Rack-Mountable Switches enable network administrators to implement robust security measures. With the ability to create VLANs, you can segregate critical resources and control access to sensitive data. By assigning different ports to specific VLANs, you can restrict unauthorized users from accessing sensitive information, enhancing network security. Additionally, these switches support advanced security protocols, such as Secure Shell (SSH) and Secure Sockets Layer (SSL), ensuring secure remote management and data transmission.

Improved Network Performance

In a network environment, performance is crucial for seamless operations. The Dell N2128PX-ON Rack-Mountable Switches deliver exceptional performance due to their 28 ports. Each port supports Gigabit Ethernet speeds, providing a significant boost in network performance compared to standard Fast Ethernet switches. This increased speed allows for faster file transfers, quicker access to network resources, and improved overall productivity. The Dell N2128PX-ON Rack-Mountable Switches also feature Quality of Service (QoS) capabilities, enabling you to prioritize specific types of network traffic for optimized performance.

Efficient Power Management

With 28 ports available on the Dell N2128PX-ON Rack-Mountable Switches, power management becomes more efficient. These switches feature Energy Efficient Ethernet (EEE) technology that automatically detects the length of connected cables and adjusts power consumption accordingly. By reducing power usage during periods of low network activity, the Dell N2128PX-ON Rack-Mountable Switches help minimize energy costs while maintaining optimal performance. This eco-friendly feature aligns with Dell's commitment to sustainability and energy efficiency.

Easy Deployment and Management

The Dell N2128PX-ON Rack-Mountable Switches are designed for easy deployment and management. With 28 ports, you have ample connectivity options available, allowing for seamless integration into your existing network infrastructure. These switches also support various management protocols, including Simple Network Management Protocol (SNMP), which enables centralized monitoring and configuration. The intuitive web-based graphical user interface (GUI) simplifies switch management, making it accessible even to non-technical users. Furthermore, the Dell N2128PX-ON Rack-Mountable Switches support firmware updates, ensuring that you can benefit from the latest features and security enhancements.

In conclusion, the 28 ports in the Dell N2128PX-ON Rack-Mountable Switches provide users with unparalleled flexibility, scalability, and performance. These switches offer a wide array of benefits, including increased bandwidth, Power over Ethernet (PoE) support, enhanced network security, improved network performance, efficient power management, and easy deployment and management. Whether you are a small business or a large enterprise, the Dell N2128PX-ON Rack-Mountable Switches with their 28 ports are an excellent choice for building a reliable and high-performing network infrastructure.

Features
Product/Item Condition:
Excellent Refurbished
ServerOrbit Replacement Warranty:
Six-Month (180 Days)
