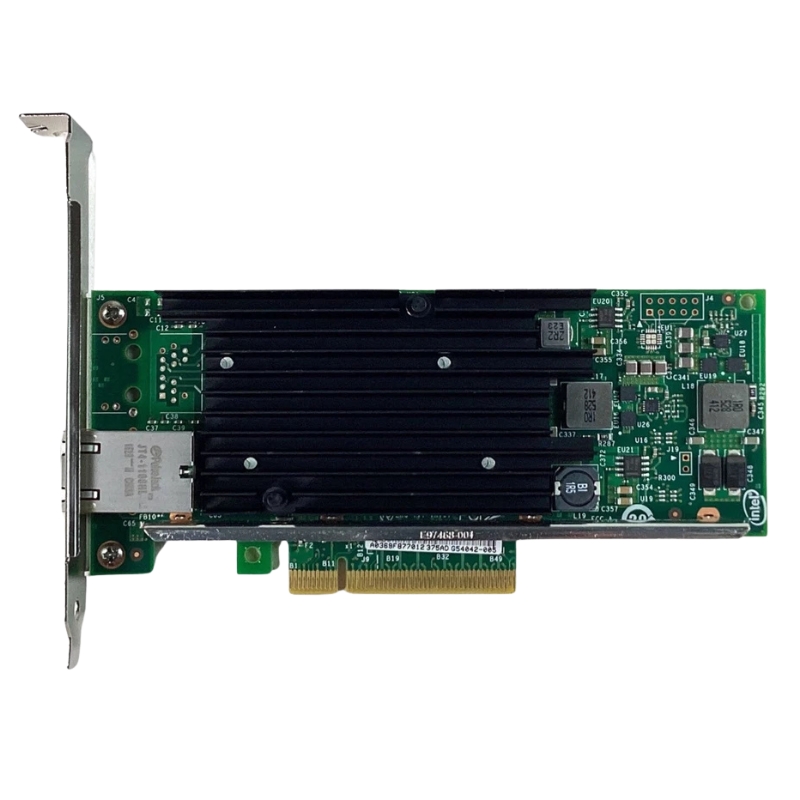

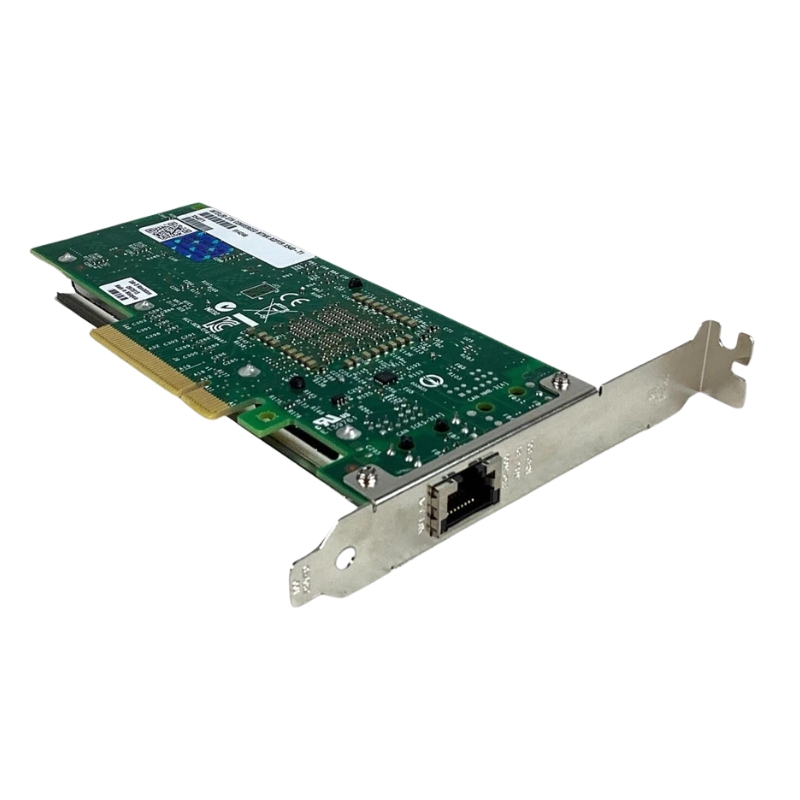

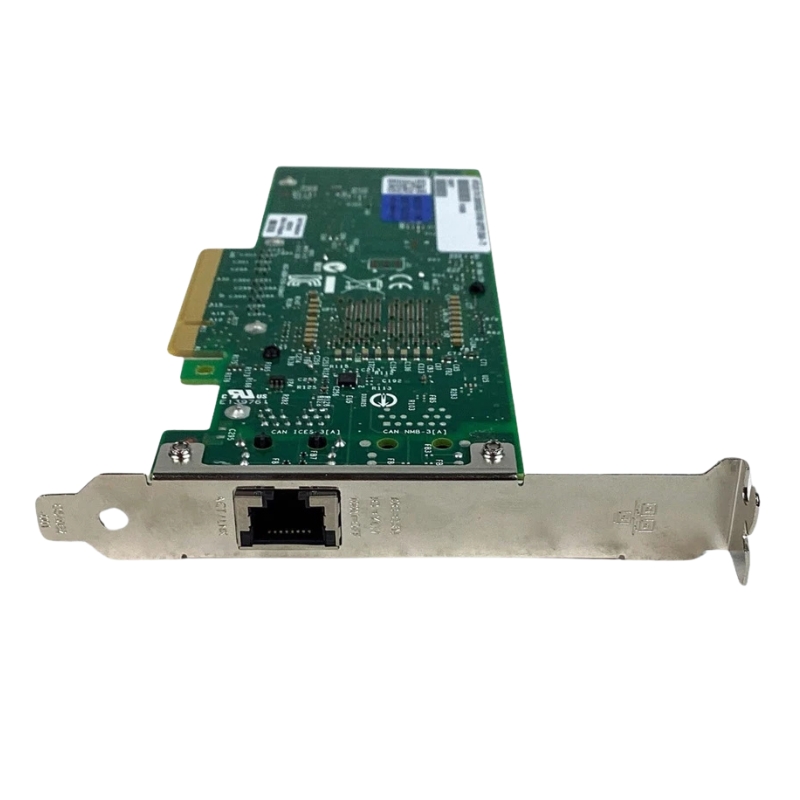

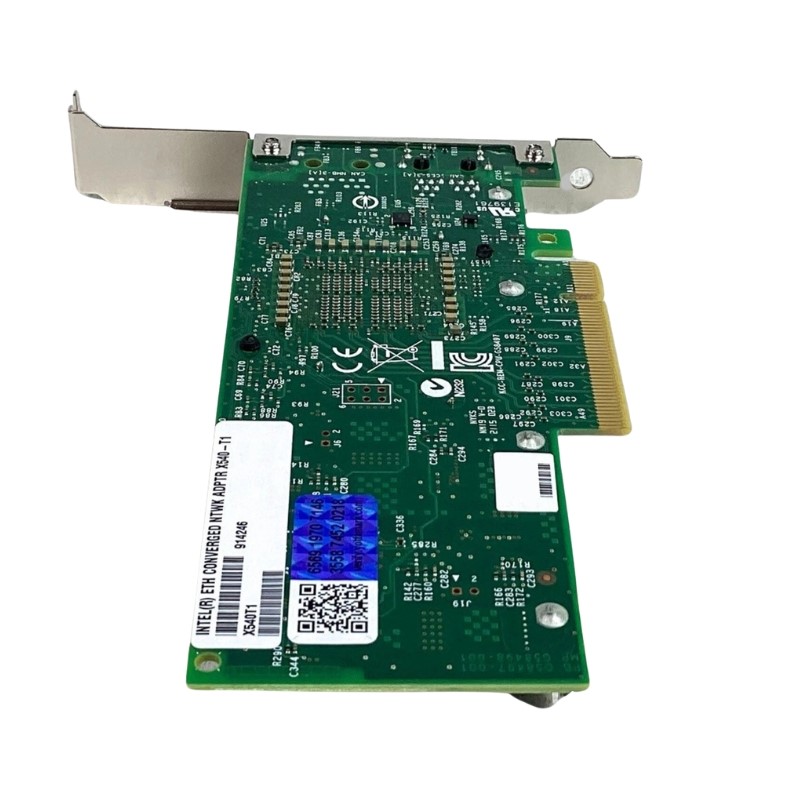

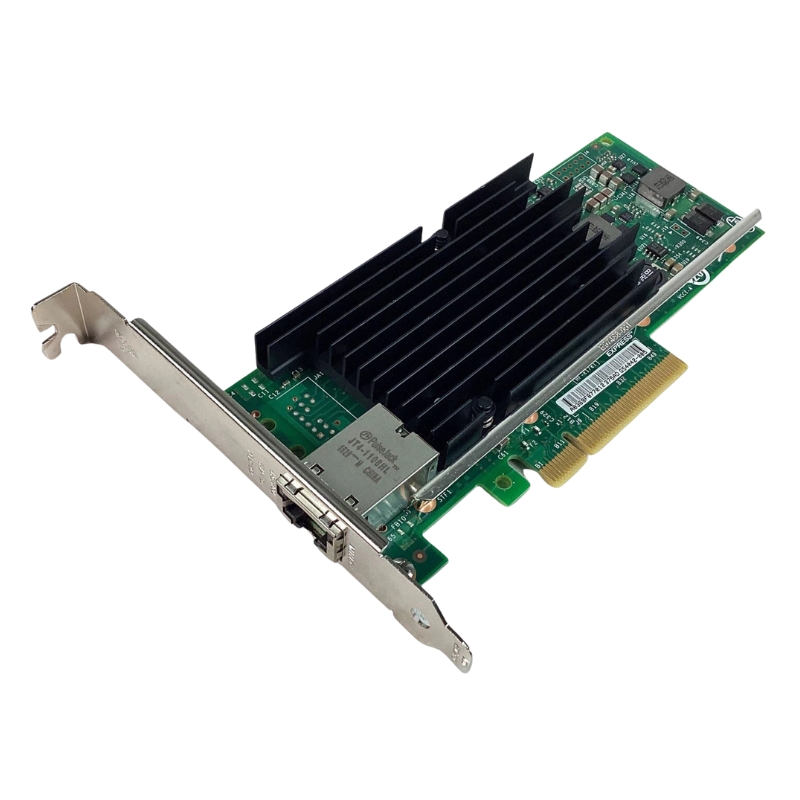

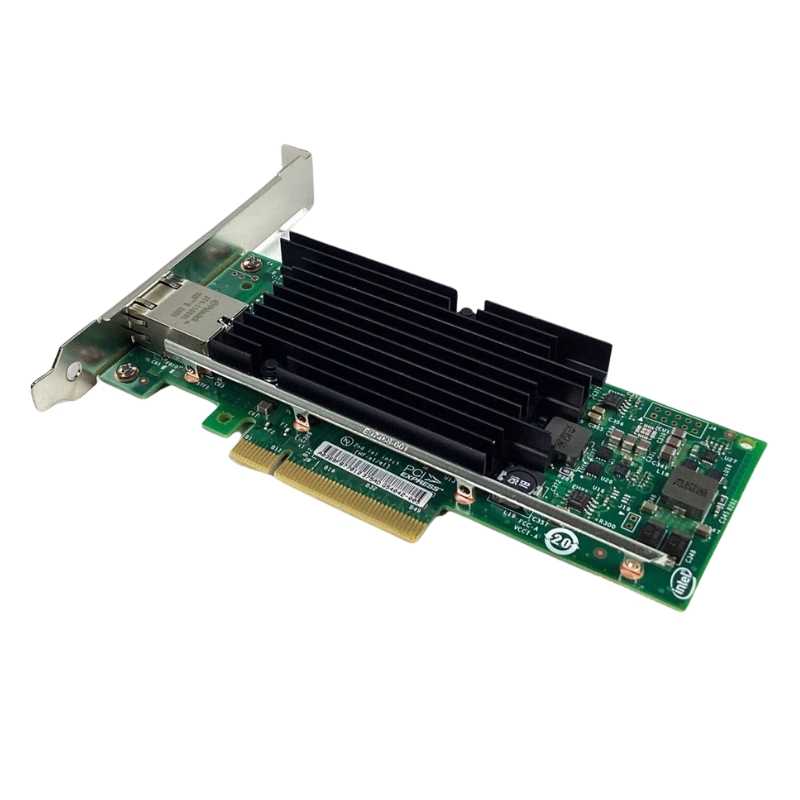

X540-T1 Intel Single Port 10 Gigabit Ethernet Low Profile PCI-Express Converged Network Adapter

The Intel X540-T1 Ethernet Converged Network Adapter is engineered to deliver robust, high-throughput networking performance for modern data centers, enterprise servers, and virtualization environments. Designed as a single-port 10 Gigabit Ethernet solution, this adapter ensures seamless data transmission, reduced latency, and improved network efficiency across demanding workloads. Built on Intel’s advanced networking architecture, it supports scalable infrastructure upgrades while maintaining compatibility with existing Ethernet standards.

General Specification

• Manufacturer: Intel
• Part Number: X540-T1
• Device Type: Network Adapter

Technical Specifications

Network Interface Capabilities

• Form Factor: Low Profile Plug-in Card
• Connectivity Type: Wired Ethernet
• Ethernet Port: 1 x RJ-45 10GBase-T
• Supported Cabling: Ethernet 10GBase-T twisted pair copper
• Link Protocol: 10 Gigabit Ethernet

Performance Metrics

• Transfer Speed: Up to 10 Gbps
• Interface Standard: PCI Express 2.1
• Lane Configuration: x8 PCIe lanes
• Data Handling Efficiency: Optimized for high-throughput environments

Key Functional Benefits

• Ultra-fast 10 Gbps data transfer rate for high-volume network traffic
• Low latency performance optimized for enterprise workloads
• Seamless integration into existing copper-based Ethernet infrastructure
• Stable connectivity for mission-critical applications
• Enhanced support for virtualization and multi-tenant environments

PCIe Performance Characteristics

• PCI Express 2.1 architecture for improved data handling efficiency
• x8 lane configuration for maximum bandwidth availability
• Backward compatibility with PCIe infrastructure where applicable
• Stable and efficient host-to-network communication channel

Design Advantages

• Low-profile bracket compatibility for compact server deployments
• Efficient heat dissipation design for continuous operation
• Durable construction suitable for 24/7 data center usage
• Standardized form factor for broad system compatibility

Performance Optimization Features

• Efficient packet processing for reduced CPU overhead
• Enhanced throughput for multi-user environments
• Support for large data packet transmission
• Improved network responsiveness under heavy loads

Integration Features

• Supports major server-grade hardware platforms
• Compatible with virtualization environments
• Designed for enterprise-grade operating systems
• Plug-and-play installation in supported PCIe slots

Common Data Center Applications

• Server-to-server communication
• Cloud infrastructure networking
• Virtual machine clustering
• High-speed storage access

Deployment Benefits

• Quick installation in standard server environments
• Minimal configuration requirements
• Reduced downtime during upgrades
• Flexible deployment in multiple system architectures

Reliability Features

• Designed for 24/7 enterprise operation
• Stable performance under heavy network loads
• Enhanced error handling and packet processing
• Robust hardware construction for long-term use

Outline of Intel X540-T1 Converged Network Adapter

The Intel X540-T1 Ethernet Converged Network Adapter, represented in the enterprise networking ecosystem as Intel X540-T1 Ethernet Converged Network Adapter, is a high-performance single-port 10 Gigabit Ethernet solution designed to meet the demanding requirements of modern data centers, virtualization clusters, cloud infrastructures, and high-throughput enterprise networks. Built on Intel’s trusted silicon architecture, this adapter delivers a balance of bandwidth efficiency, CPU offload capability, and advanced networking features that support both legacy and next-generation IT environments.

Advanced Architecture and Design Philosophy

Integrated 10GBase-T Connectivity

The Intel X540-T1 is engineered around a robust 10GBase-T interface, enabling high-speed data transmission over standard twisted-pair copper cabling. This design allows organizations to leverage existing Cat6a or Cat7 infrastructure while upgrading to 10Gbps performance without the need for costly fiber deployments. The single-port configuration provides dedicated bandwidth for mission-critical workloads, ensuring stable throughput in environments where predictable performance is essential.

Converged Networking Capabilities

As a converged network adapter, this model supports the integration of multiple data streams across a unified Ethernet fabric. This enables organizations to consolidate storage, virtualization traffic, and traditional networking workloads onto a single interface. The result is reduced hardware complexity, simplified cabling infrastructure, and improved manageability across enterprise networks.

Performance Optimization for Modern Data Centers

High Throughput and Low Latency Processing

The Intel X540-T1 is optimized for high throughput environments where data transfer efficiency directly impacts application performance. It supports full-duplex 10 Gigabit speeds, significantly reducing latency in communication between servers, storage arrays, and network appliances. This makes it particularly suitable for workloads such as virtualization clusters, database replication, and high-frequency transaction systems.

Hardware Offloading Capabilities

One of the defining features of the X540 series is its advanced hardware offloading engine. By transferring CPU-intensive networking tasks such as TCP/IP segmentation, checksum calculations, and packet processing to the adapter itself, system processors are freed to handle application-level workloads. This leads to improved overall system efficiency and better utilization of compute resources in dense server environments.

Virtualization and Cloud Infrastructure Integration

Optimized for Virtual Machine Density

In virtualization-heavy environments, the Intel X540-T1 plays a critical role in maintaining network performance consistency across multiple virtual machines. It supports advanced virtualization features that allow efficient traffic segmentation and prioritization. This ensures that each virtual machine receives predictable bandwidth allocation, reducing contention and improving application responsiveness.

Support for SR-IOV and VM Efficiency

Single Root I/O Virtualization (SR-IOV) capabilities allow the adapter to present multiple virtual interfaces directly to hypervisors. This minimizes overhead associated with software-based switching and improves direct I/O performance. As a result, cloud service providers and enterprise virtualization platforms benefit from lower latency and higher packet throughput.

Storage Networking and Data Intensive Applications

Unified Network Storage Support

The Intel X540-T1 is widely used in environments where storage and data traffic converge on a single network infrastructure. It supports storage protocols that enable seamless communication between servers and storage arrays, improving data accessibility and reducing network complexity. This convergence is especially valuable in modern software-defined storage architectures.

High-Speed Data Replication and Backup

Enterprises relying on real-time data replication and backup systems benefit from the adapter’s high bandwidth capacity. The 10Gbps link ensures that large datasets can be transferred efficiently between data centers or storage nodes without bottlenecks. This is critical for disaster recovery strategies and business continuity planning.

Energy Efficiency and Thermal Management

Dynamic Power Optimization

Despite its high-performance capabilities, the Intel X540-T1 is designed with energy efficiency in mind. It incorporates dynamic power management features that adjust energy consumption based on network load. This helps reduce operational costs in large-scale deployments where hundreds or thousands of network interfaces may be active simultaneously.

Thermal Control for Dense Server Environments

The adapter is engineered to maintain stable thermal performance even under sustained heavy workloads. Its heat dissipation design ensures consistent operation within rack-mounted servers and blade systems, where airflow and space constraints are common challenges.

Compatibility and System Integration

Broad Operating System Support

The Intel X540-T1 is compatible with a wide range of enterprise operating systems, including major Linux distributions, Windows Server editions, and virtualization hypervisors. This cross-platform compatibility ensures seamless integration into existing IT infrastructures without requiring extensive driver modifications or system redesigns.

Server and Platform Interoperability

Designed for PCIe-based server architectures, the adapter integrates smoothly into modern enterprise servers from multiple vendors. Its standardized interface ensures predictable performance across different hardware platforms, making it a flexible choice for heterogeneous data center environments.

Network Reliability and Enterprise Stability

Advanced Error Handling Mechanisms

Reliability is a core strength of the Intel X540-T1 design. It incorporates advanced error detection and correction mechanisms that help maintain data integrity across high-speed transmissions. This reduces packet loss and ensures stable communication even under heavy network congestion.

Link Aggregation and Failover Support

While the adapter is single-port, it integrates seamlessly into network architectures that use redundancy, failover routing, and link aggregation at the switch level. This ensures continuous uptime for mission-critical systems, minimizing the risk of network interruptions.

Enterprise Use Cases and Deployment Scenarios

Data Center Core Networking

In modern data centers, the Intel X540-T1 serves as a foundational component for server-to-switch connectivity. Its 10 Gigabit capability supports high-density server clusters where rapid data exchange between compute nodes is essential for performance scalability.

Cloud Service Infrastructure

Cloud providers leverage this adapter to support multi-tenant environments where bandwidth isolation and performance consistency are crucial. Its virtualization capabilities ensure that multiple clients can share infrastructure without performance degradation.

High-Performance Computing Environments

HPC systems benefit from the adapter’s low-latency communication and high throughput, enabling faster processing of scientific simulations, financial modeling, and AI workloads. The stable performance characteristics make it suitable for distributed computing clusters.

Security and Data Integrity Enhancements

Network-Level Protection Features

The Intel X540-T1 includes built-in features that help enhance network security at the hardware level. These include support for secure packet handling and isolation mechanisms that reduce exposure to unauthorized network access or data interception.

Reliable Packet Transmission Integrity

Data integrity is preserved through hardware-based validation processes that ensure accurate transmission across high-speed links. This reduces the risk of corrupted packets and enhances overall system reliability in sensitive enterprise environments.

Scalability and Long-Term Infrastructure Value

Future-Ready Network Expansion

As organizations transition toward higher bandwidth demands, the Intel X540-T1 provides a scalable foundation for network expansion. Its 10Gbps capability ensures compatibility with evolving data requirements in cloud computing, big data analytics, and AI-driven workloads.

Cost-Effective Upgrade Path

By utilizing existing copper infrastructure, organizations can significantly reduce upgrade costs while still achieving enterprise-grade performance. This makes the adapter a strategic investment for long-term network modernization initiatives.
